10K Trailer Hub & Drum Assembly Kit
MAT 10K Oil-Bath Hub & Drum Kit with Bearings, Seal and Oil Cap
Complete single-wheel-end service kit built around the MAT 99-86510-HD-H hub and drum for compatible 10,000 lb trailer axle applications.
Kit SKU: 99-86510-HD-H-KIT
10K Application
One Wheel-End Kit
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Kit SKU | 99-86510-HD-H-KIT |
| Primary Component | MAT 99-86510-HD-H hub and drum |
| Product Type | Oil-bath hub, drum, bearing and seal kit |
| Axle Class | 10,000 lb trailer axle applications |
| Inner Bearing | 395S — 2.625-inch inside diameter |
| Outer Bearing | 387A — 2.250-inch inside diameter |
| Oil Seal | 10-3125-06 — 3.12-inch × 4.506-inch |
| Oil Cap | Dexter 021-036-00 — 4-inch oil cap |
| Quantity | One complete wheel-end kit |
Fitment / Application
| Category | Details |
|---|---|
| Primary Application | Compatible 10K trailer hub and drum applications using the listed bearing combination |
| Inner Bearing Fit | 395S bearing with 2.625-inch inside diameter; 394A race application |
| Outer Bearing Fit | 387A bearing with 2.250-inch inside diameter; 382A race application |
| Oil-Cap Applications | Listed for compatible Dexter 10K HD through 15K and pre-2009 10K general-duty applications |
| Fitment Method | Match the existing hub, bearing numbers, bearing diameters, seal dimensions and oil-cap diameter |
| Important Note | Axle capacity alone does not establish fitment. Verify every wheel-end specification before ordering. |
Features
10K Hub & Drum Assembly
The kit is centered around one MAT 99-86510-HD-H hub and drum for compatible heavy-duty 10K trailer wheel-end applications.
Matched Bearing Combination
Includes one 395S inner bearing and one 387A outer bearing in the sizes specified for this hub and drum.
Oil-Bath Components Included
Includes the 4-inch Dexter oil cap, center oil plug, cap O-ring and oil seal required for the listed oil-bath configuration.
Single Wheel-End Package
Components are grouped as one kit for servicing one compatible trailer wheel end. Order two kits when servicing both ends of one axle.
Included Components
| Quantity | Part Number | Included Item |
|---|---|---|
| 1 | 99-86510-HD-H | MAT 10K hub and drum assembly for 395S inner and 387A outer bearings |
| 1 | 395S | Inner bearing, 2.625-inch inside diameter; fits 394A race applications |

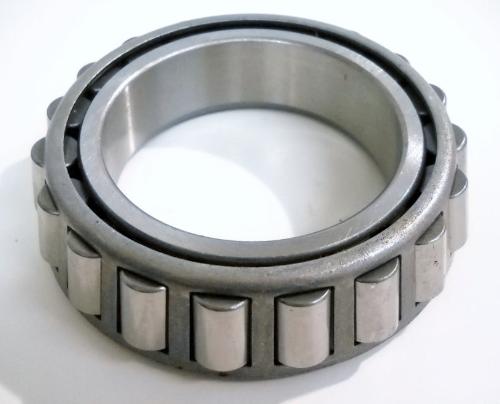

| 1 | 387A | Outer bearing, 2.250-inch inside diameter; fits 382A race applications |
| 1 | 021-036-00 | Dexter 4-inch oil cap for compatible heavy-duty wheel-end applications |
| 1 | 046-032-00 | Center oil plug for the included oil cap |
| 1 | 010-050-00 | Oil-cap O-ring, 3.734-inch inside diameter × .139-inch cross section |
| 1 | 10-3125-06 | Red oil seal, 3.12-inch × 4.506-inch |
Important Fitment Note:
This kit is intended for one compatible wheel end using a 395S inner bearing, 387A outer bearing, 3.12-inch × 4.506-inch oil seal and 4-inch oil cap. Before ordering, compare the existing hub number, bearing numbers, spindle bearing surfaces, seal dimensions, oil-cap diameter and complete axle specifications. A trailer’s stated 10,000 lb axle capacity by itself is not enough to confirm fitment.
