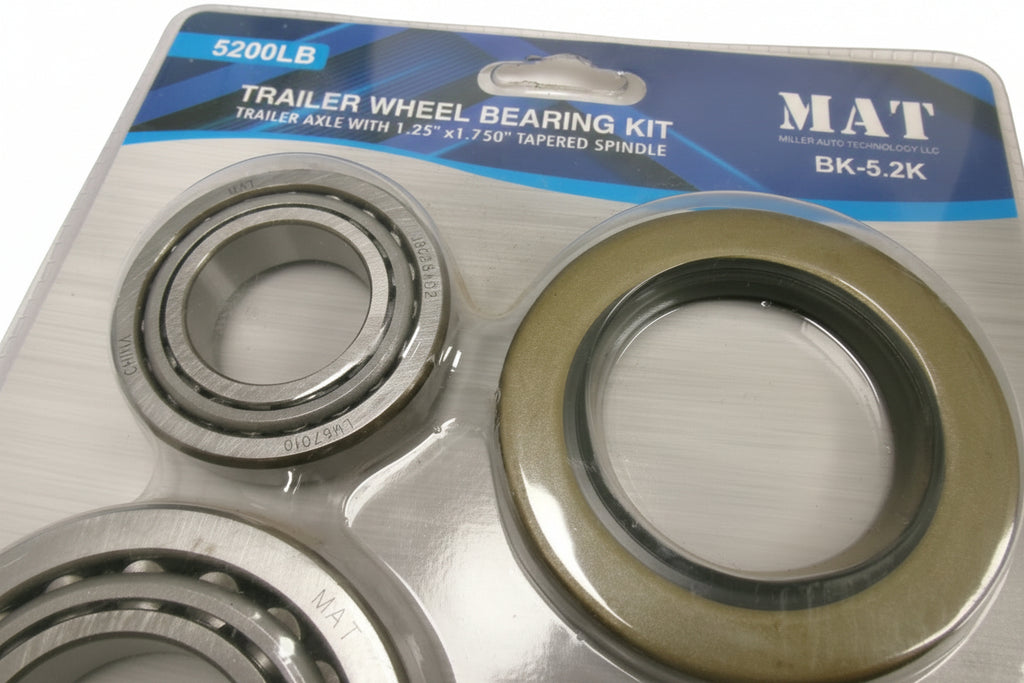

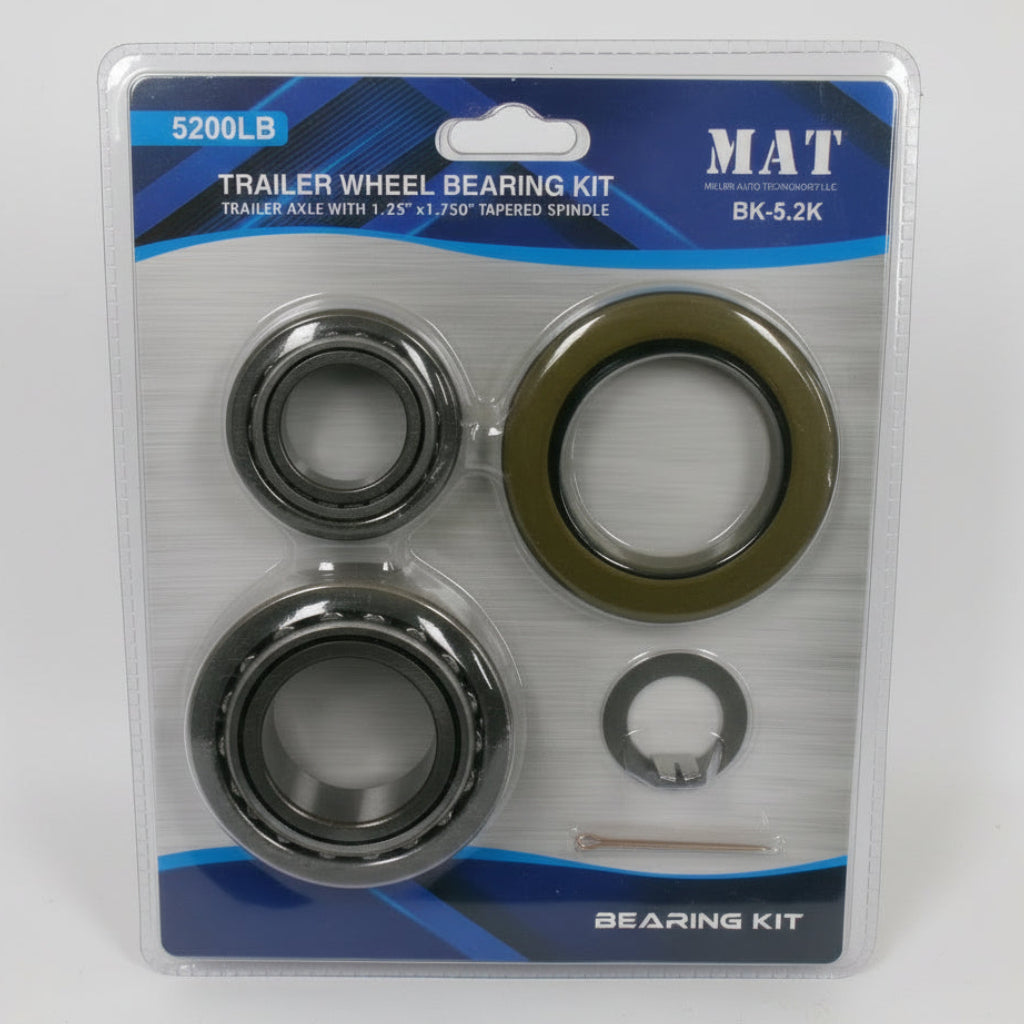

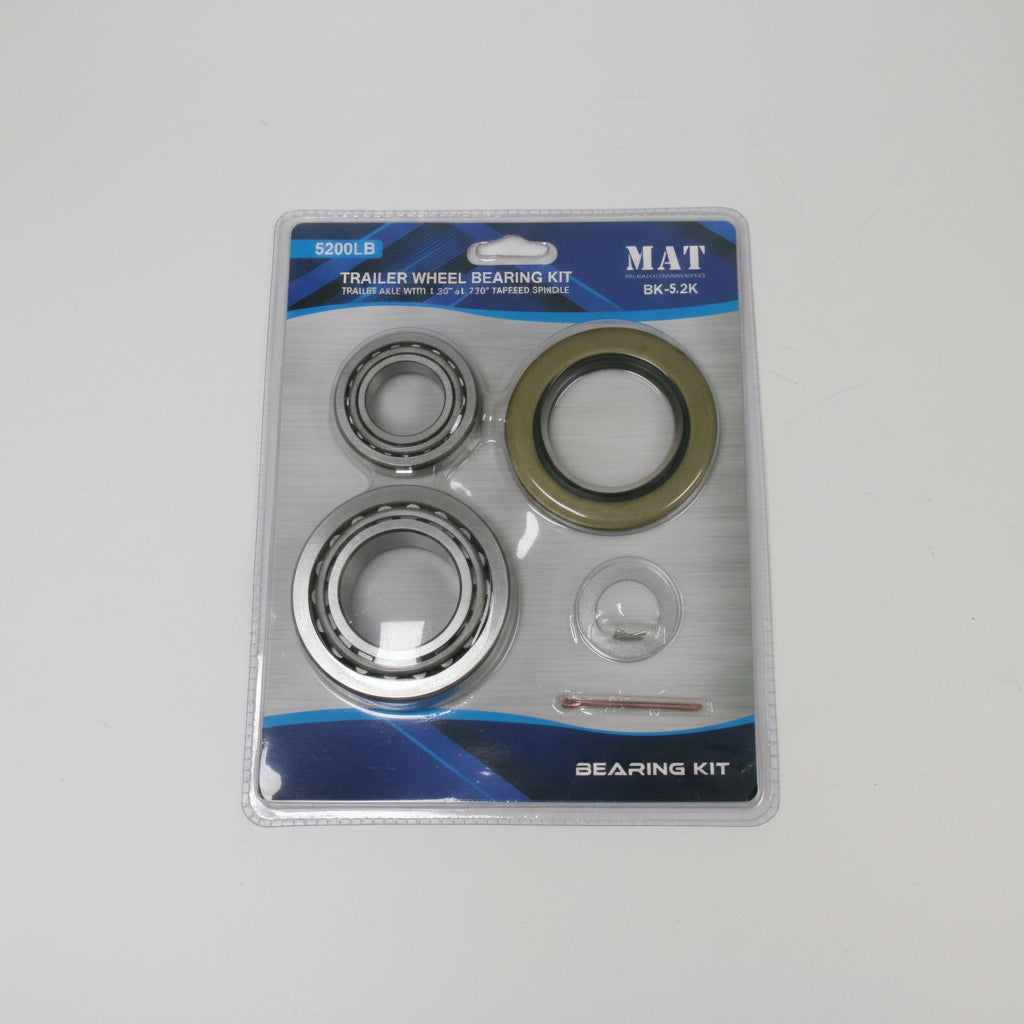

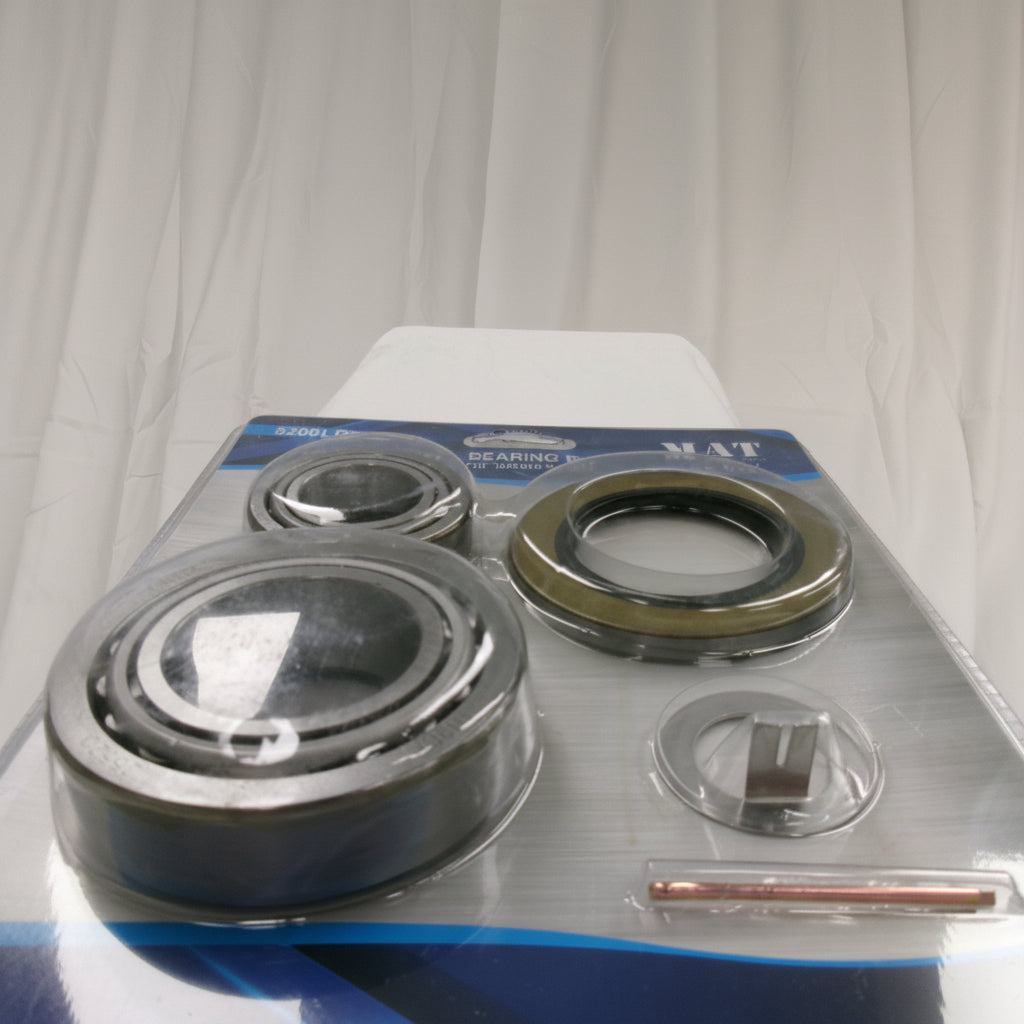

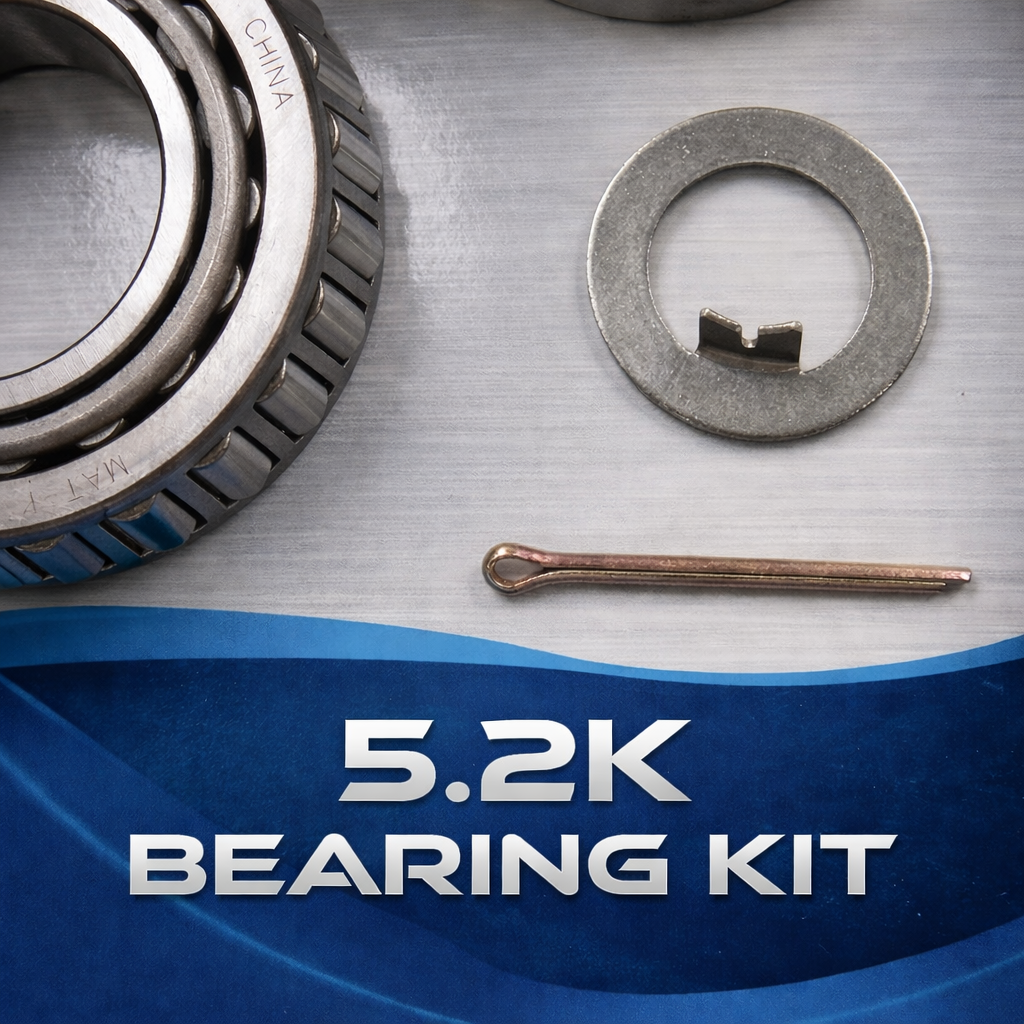

MAT 5,200K Trailer Wheel Bearing Kit – Fits 5,200 lb Axles (1.25" x 1.75" Spindle)
The MAT 5,200K Trailer Wheel Bearing Kit provides everything needed to service one hub on a 5,200 lb trailer axle. Designed for standard #42 tapered spindles, this kit fits Dexter, Lippert, Rockwell, and other major axle brands. Ideal for replacing worn bearings, races, and seals on utility, cargo, equipment, or boat trailers.
| Part Number | MAT-5200K |
| Axle Rating | 5,200 lb |
| Spindle Size | 1.25" (Outer) × 1.75" (Inner) |

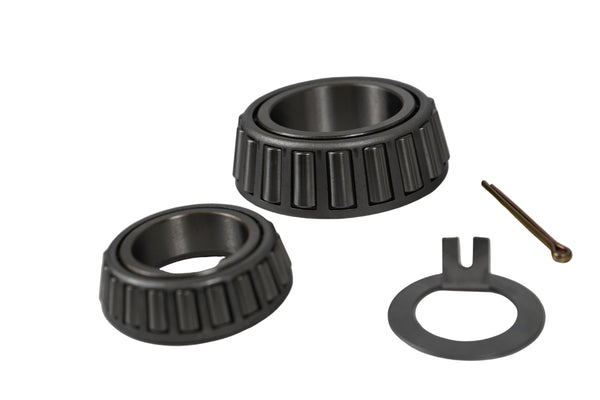

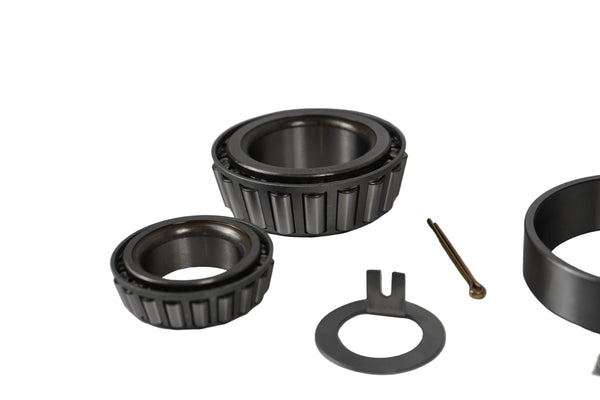

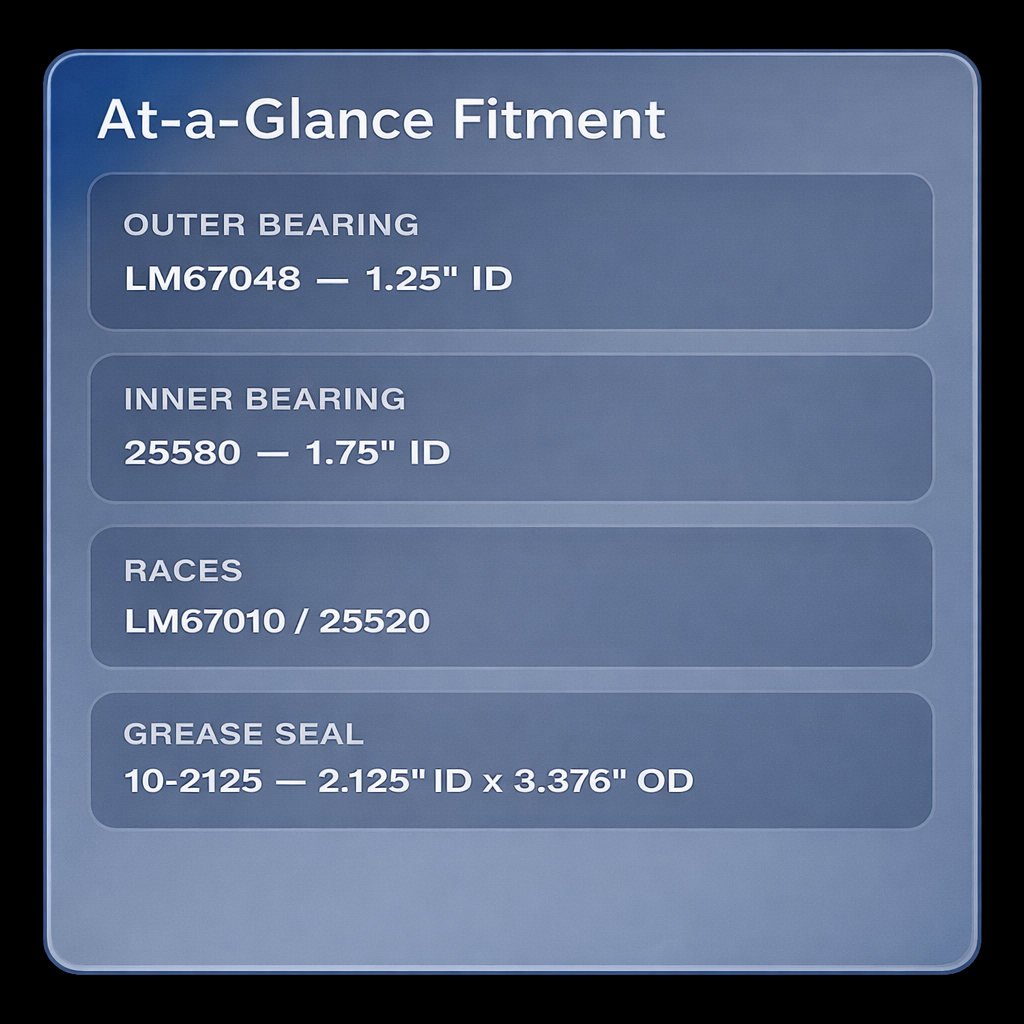

| Outer Bearing | LM67048 – 1.25" ID |
| Inner Bearing | 25580 – 1.75" ID |

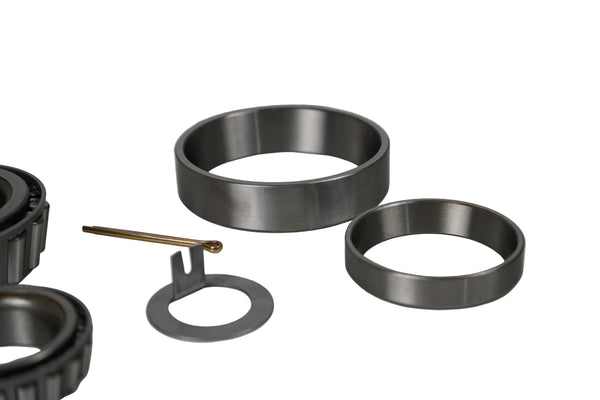

| Outer Race | LM67010 – 2.441" OD |
| Inner Race | 25520 – 3.265" OD |

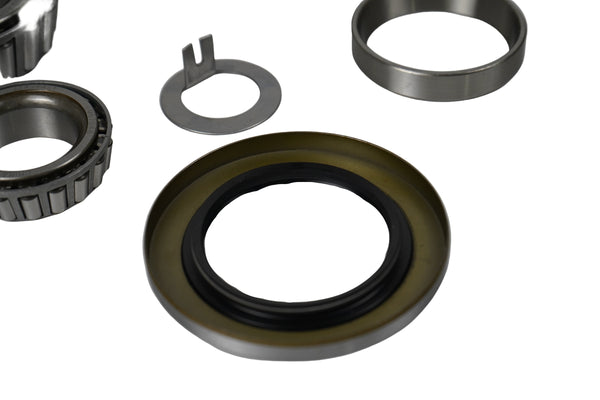

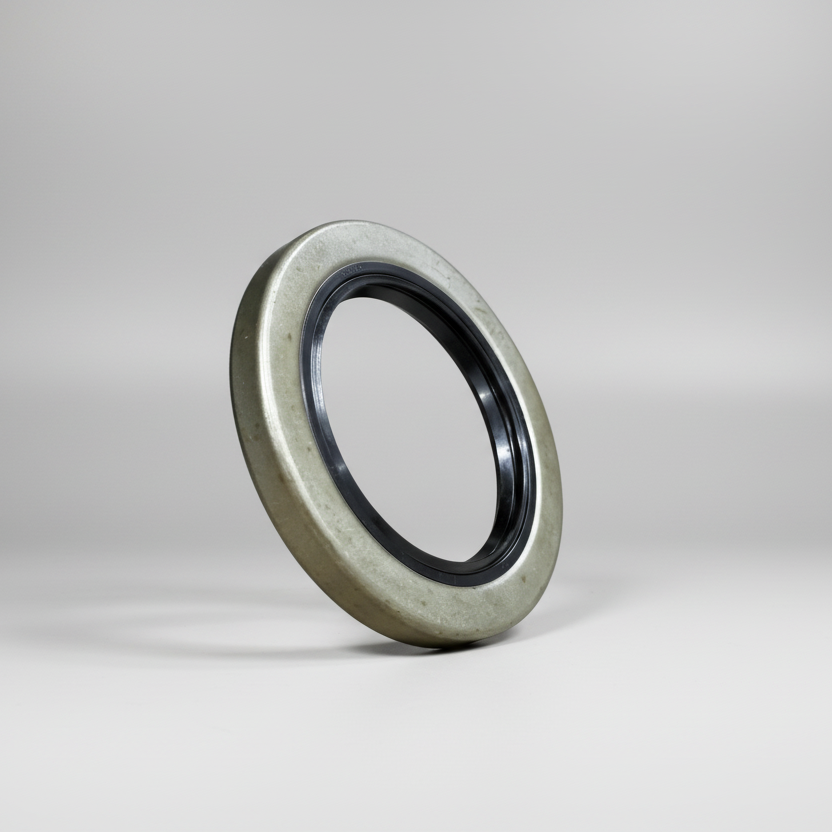

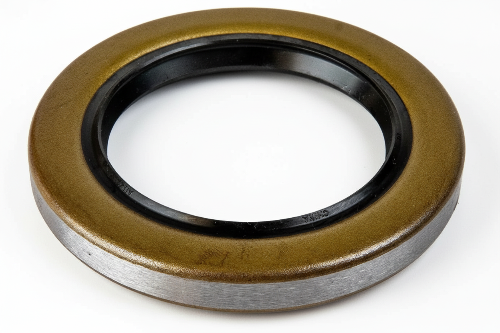

| Grease Seal | 10-2125 Double-Lip Seal (2.125" ID × 3.376" OD) |

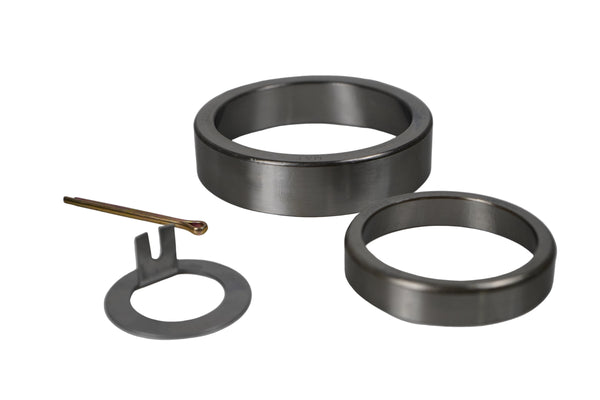

| Hardware | Tang Washer and Cotter Pin Included |

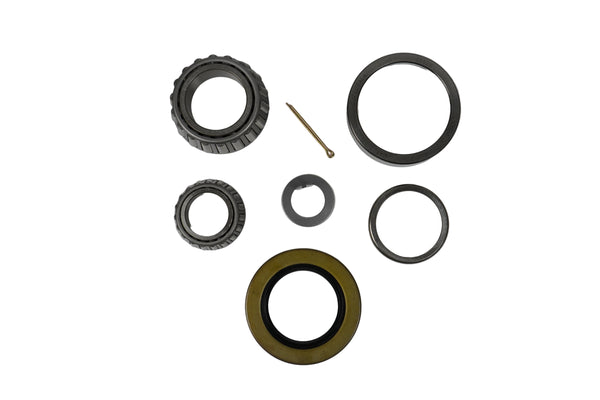

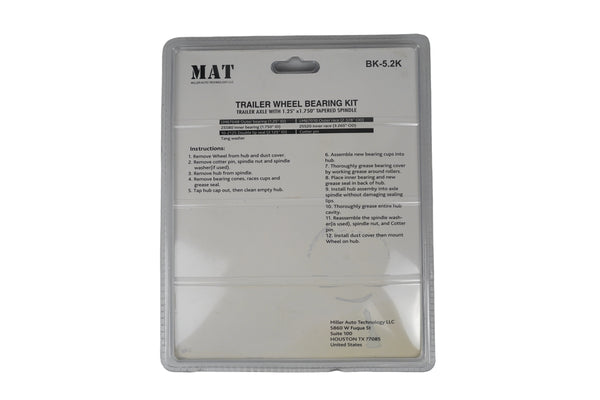

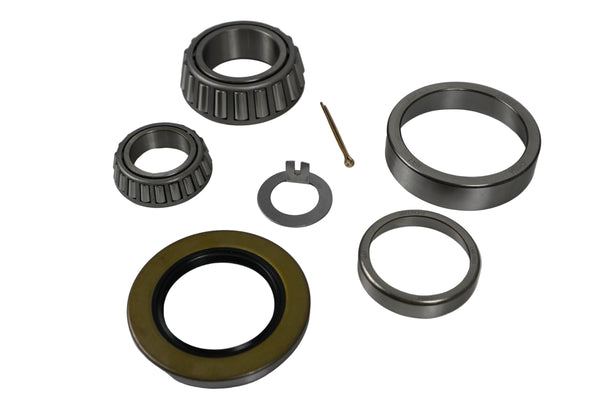

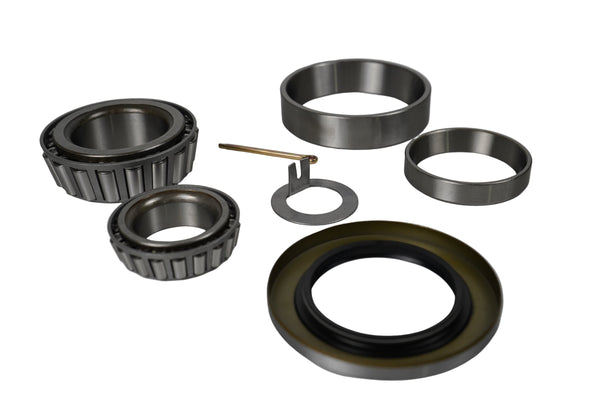

| Includes | All Bearings, Races, Seal, Hardware, and Installation Instructions |
Features & Fitment
- Complete one-hub bearing service kit – order two for a full axle
- Fits standard #42 spindles on 5,200 lb and 6,000 lb trailer axles
- Works with Dexter, Lippert, Rockwell, and AL-KO hubs
- Matched bearing and race sets for long-lasting performance
- Double-lip seal protects against dirt and moisture intrusion
- Compatible with EZ-Lube and standard grease spindles
One kit services a single hub — order two per axle. Always verify bearing and seal numbers stamped on your existing parts before ordering.
