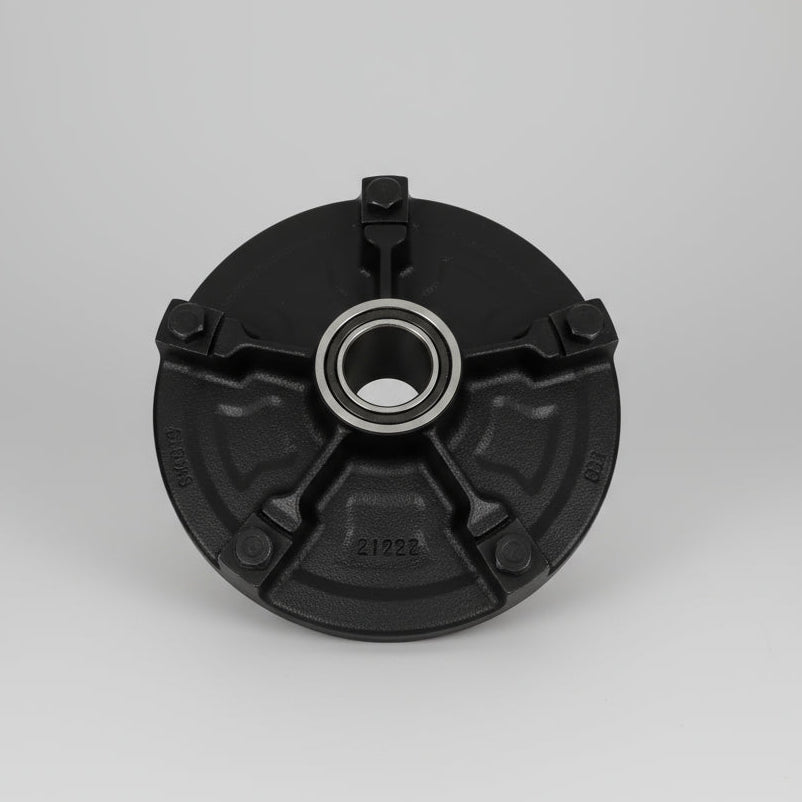

12" x 2" True Mobile Home Demountable Hub and Drum with Bolts & Wedges
Five-lug mobile home–style hub and drum assembly for compatible True Demountable wheel systems. Replaces Dexter 8-222 and 8-222-24 applications where all measurements and mounting details match. The bearings referenced in this listing are NOT included.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | MHD-122459-RCB |
| Product Type | Mobile home–style hub and brake drum assembly |
| Drum Size | 12" diameter × 2" brake width |
| Wheel System | True Demountable |
| Lug Count | 5 |
| Axle Application | Compatible 4,400 lb mobile home axle applications |
| Quantity Included | One hub and drum assembly with mounting bolts and wedges |
Fitment / Application
| Category | Details |
|---|---|
| System | True Mobile Home demountable wheel systems |
| Primary Fit | Compatible 4,400 lb mobile home axles using a 12" × 2" brake and matching demountable mounting system |
| Replacement Reference | Dexter 8-222 and 8-222-24 application reference |
| Fitment Method | Match the drum size, demountable wheel design, bearing requirements, seal dimensions and axle application |
| Important Note | Mobile home application only; not intended as a replacement for a standard trailer hub and drum |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 12" × 2" Configuration | Matches compatible mobile home brake assemblies using this drum size |
| True Demountable Design | Supports the matching five-lug demountable mobile home wheel system |
| Mounting Hardware Included | Bolts and wedges are supplied with the assembly |
| Replacement Application | Provides an aftermarket replacement option for compatible Dexter 8-222 and 8-222-24 applications |
| Serviceable Configuration | Allows the required bearings, races and seal to be selected separately for the application |
Overview
The MHD-122459-RCB is a 12" × 2" mobile home–style hub and drum assembly designed for compatible True Demountable wheel systems. It features a five-lug demountable mounting configuration and includes the required mounting bolts and wedges. This assembly is used as an aftermarket replacement for compatible Dexter 8-222 and 8-222-24 applications where the axle, brake size, bearing requirements and mounting system match.
R&P Service Insight
Mobile home running gear is application-specific. Confirm the complete hub, brake, spindle and wheel configuration before ordering replacement components.
- Check the wheel system: This hub is designed for a True Demountable wheel, not a conventional trailer wheel.
- Check the brake size: The matching brake assembly must use a 12" drum diameter and 2" brake width.
- Check the bearings: Bearings, races and the grease seal are not supplied with this version and must be matched separately.
R&P Knowledge Hub
Compatibility: Intended for compatible 4,400 lb True Mobile Home axle applications using a five-lug demountable wheel system and 12" × 2" brakes.
Wheel-System Fit: A demountable mobile home wheel is retained with separate bolts and wedges. This differs from a conventional trailer wheel that mounts directly over wheel studs and is secured with lug nuts.
Installation Notes: Inspect the spindle, brake assembly and wheel-mounting components before installation. Select bearings, races and the seal according to the actual spindle and hub requirements.
Ordering Insight: Buyers needing the bearings and seal should review the complete MHD-122459-RCB-KIT version instead of purchasing this hub and drum by itself.
Brand & Fitment Note
Selling Part Number: MHD-122459-RCB
Application Reference: Dexter 8-222 and 8-222-24 are provided as replacement application references. They do not indicate that this product is a Dexter-branded component.
What This Means: This listing is for an aftermarket mobile home hub and drum assembly designed for compatible applications where the physical measurements and mounting configuration match.
Before Ordering: Verify the 12" × 2" drum size, five-lug demountable wheel system, axle application, spindle dimensions, bearing numbers and seal requirements.
R&P Repair Insight
The demountable wheel design is the most important distinction when identifying this assembly. A matching brake-drum diameter alone does not confirm fitment.
- Confirm the mounting style: The wheel must use the matching bolt-and-wedge demountable arrangement.
- Inspect reusable parts: Examine the spindle, brakes and wheel components for wear or damage before installing the replacement drum.
- Do not assume bearing fit: Bearing and seal requirements must be confirmed from the existing components or measured spindle surfaces.
Features

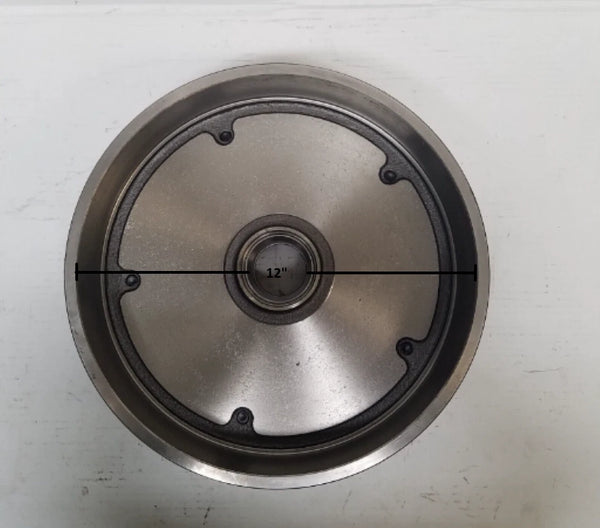

12" × 2" Mobile Home Drum
Configured for compatible mobile home brake assemblies requiring a 12-inch drum diameter and 2-inch brake width.
Five-Lug Demountable Hub
Designed for the matching True Demountable mobile home wheel system rather than a conventional stud-mounted trailer wheel.

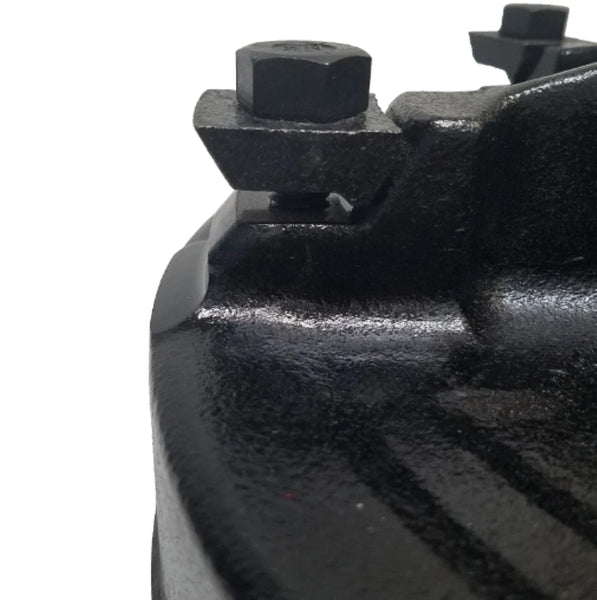

Bolts and Wedges Included
The demountable wheel-mounting bolts and wedges are supplied with the hub and drum assembly.
Replacement Application
Suitable as an aftermarket replacement for Dexter 8-222 and 8-222-24 applications when all specifications match.
4,400 lb Axle Application
Intended for compatible 4,400 lb True Mobile Home axle systems using the specified brake and wheel configuration.
Bearings Selected Separately
This version allows the required bearings, races and seal to be matched to the existing spindle and purchased separately.
Included Components
| Quantity | Item |
|---|---|
| 1 | 12" × 2" five-lug demountable mobile home hub and drum assembly |
| Included | Demountable wheel-mounting bolts |
| Included | Demountable wheel-mounting wedges |
| Not Included | Inner and outer bearings |
| Not Included | Bearing races |
| Not Included | Grease seal |
