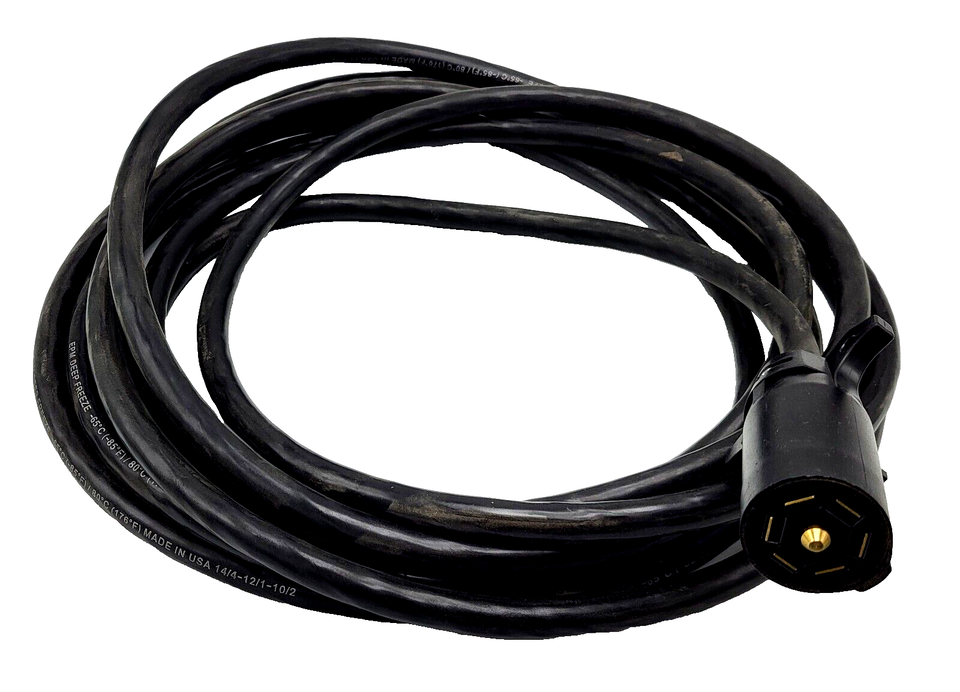

7-Way RV Trailer Plug with 20 ft Multi-Gauge Wire Harness
Part Number: MP7WY-20
This 7-way RV-style trailer plug assembly includes a molded connector with an attached multi-gauge jacketed wire harness measuring approximately 20 feet in length. The assembly is intended for replacement of worn or damaged trailer cords without requiring splicing at the connector.
Features
- Pre-wired 7-way RV-style trailer plug

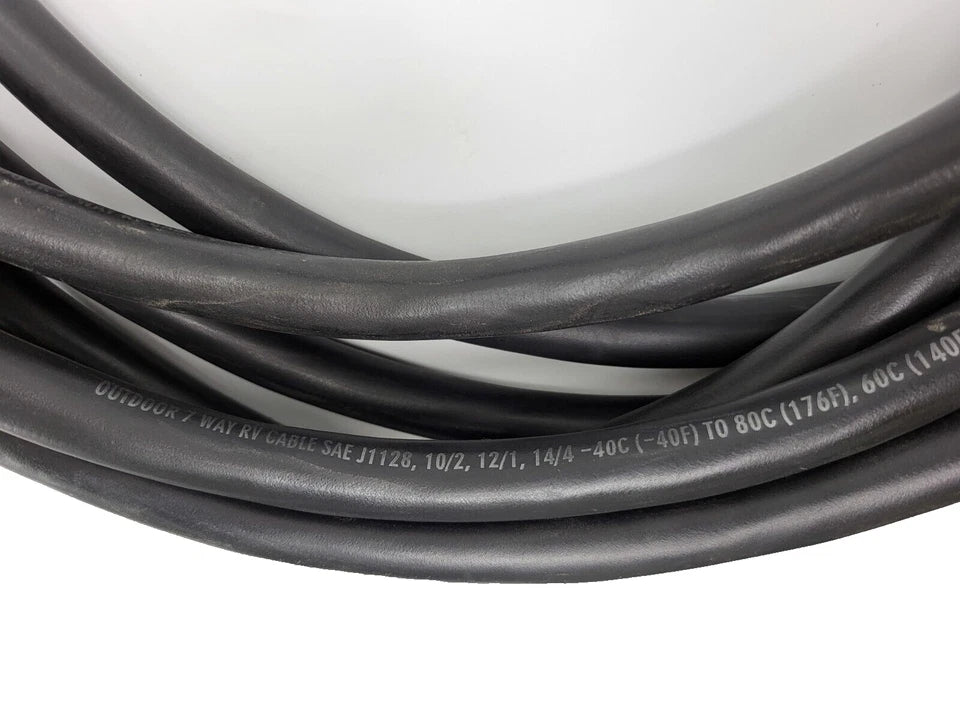

- Approximately 20 ft jacketed wire harness
- Molded plug design

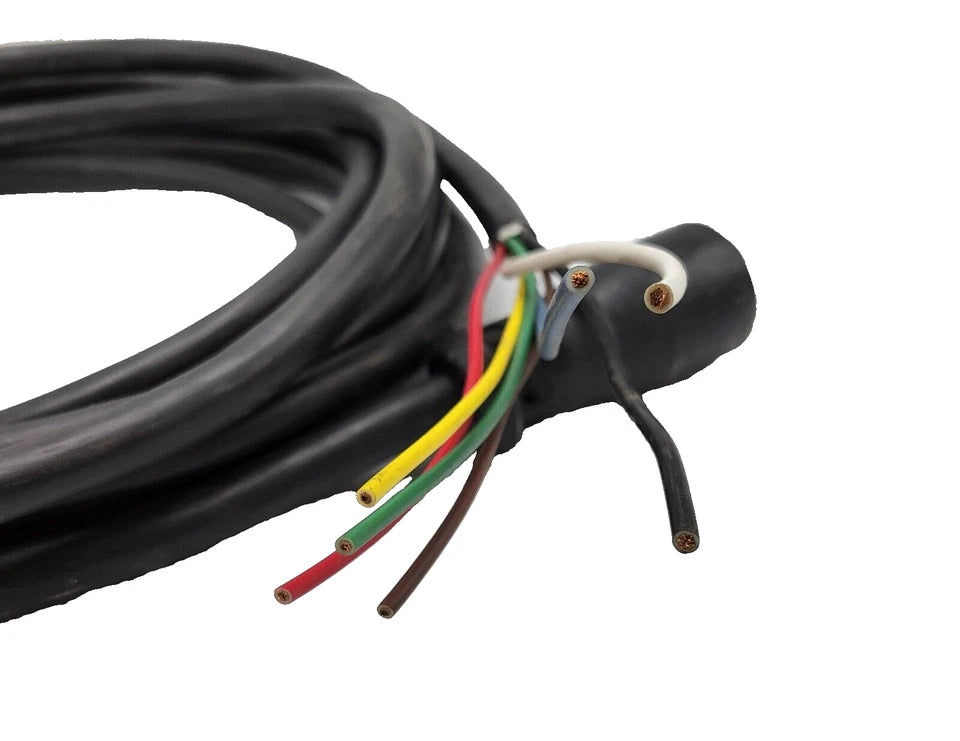

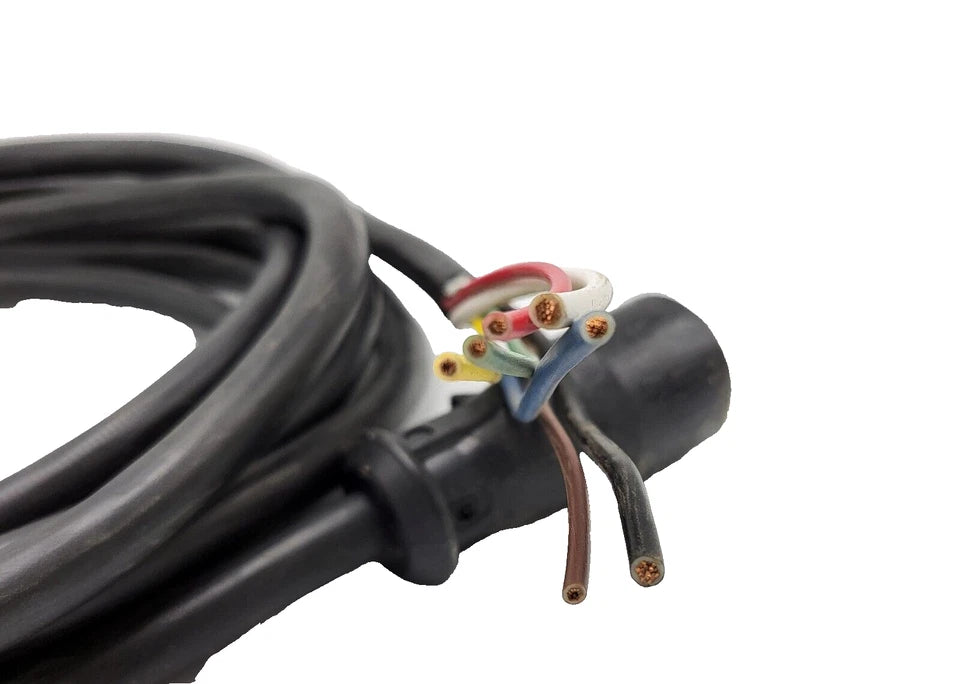

- Multi-gauge conductors for standard trailer circuits
- Intended for trailer wiring replacement applications
Specifications
| Connector Type | 7-Way RV Style Trailer Plug |
| Cord Length | Approximately 20 ft |
| 10 AWG Conductors | White (Ground) |
| 12 AWG Conductors | Blue (Electric Brakes), Black (12V Auxiliary) |
| 14 AWG Conductors | Yellow, Brown, Red, Green |
Verify wire functions, lengths, and compatibility for your specific trailer before installation. Wire colors should not be relied upon as the sole method of identification.
