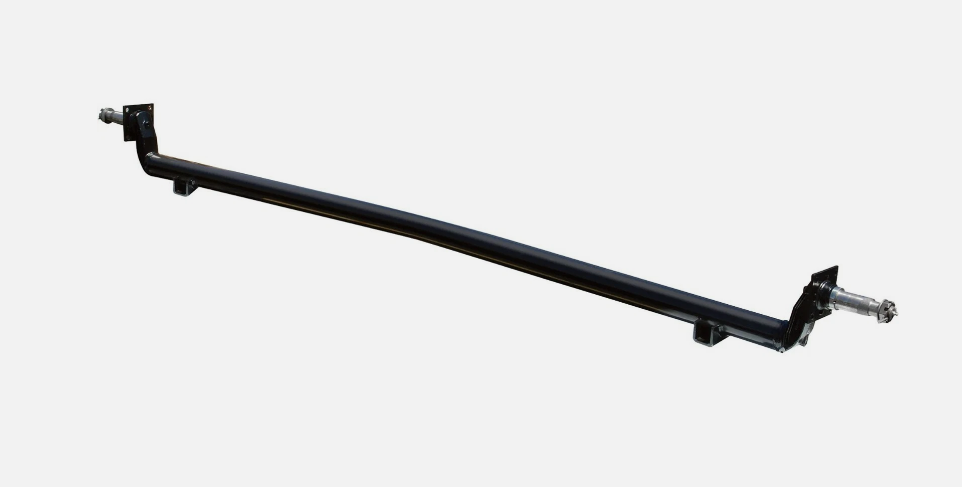

Lippert 3500 lb Trailer Axle Beam – 89" Hub Face – 2.4" Tube – 4" Drop – EZ Lube
Part Number: 3500-89-24-D-KIT
Lippert 3500 lb trailer axle beam with 89" hub face and standard 2.4" tube. 4" drop cambered design with EZ Lube spindles commonly used on utility trailers and campers running 5-lug hubs or 10" drum brakes.
R&P Knowledge Hub

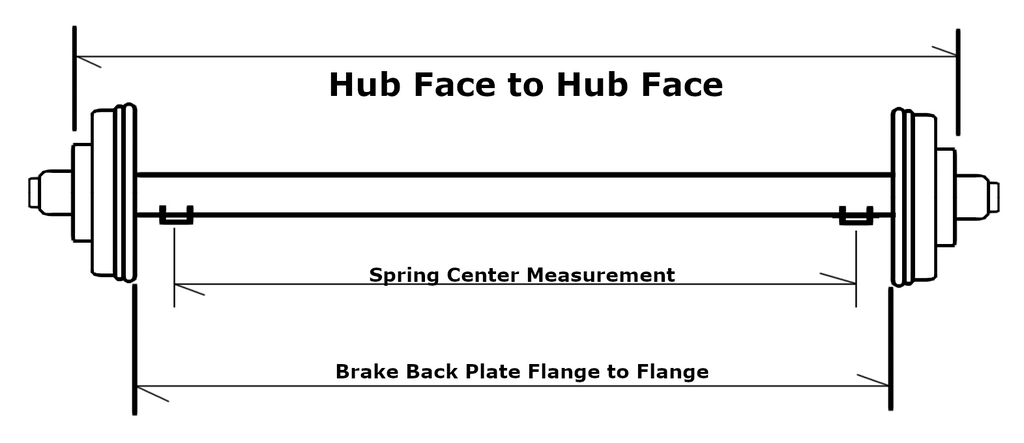

Hub face width determines wheel spacing on a trailer axle. Always confirm hub face measurement and spring perch placement before installing a replacement axle to maintain proper alignment and suspension geometry.
Features
- Common replacement axle for trailers or campers with 71" to 77" floor deck width
- Standard 2.4" axle tube (heavy duty 3" tube version also available)
- 4" drop cambered axle beam design
- Uses L44649 and L68149 bearings with 10-19 grease seals (not included)
Specifications
| Brake Flange to Flange | 82.66" |
| Bearing Shoulder to Shoulder | 85.19" |
| Spindle End to End | 93.38" |
Included Components
| Part Number | Quantity | Description |
|---|---|---|
| 3500-89-24-D-KIT | 1 | Lippert Trailer Axle 3500# Bare Beam 89" Hub Face 2.4" Tube 4" Drop EZ Lube USA Made |
| SP-3 | 2 | Spring Perch for 3" Axle Beam |
