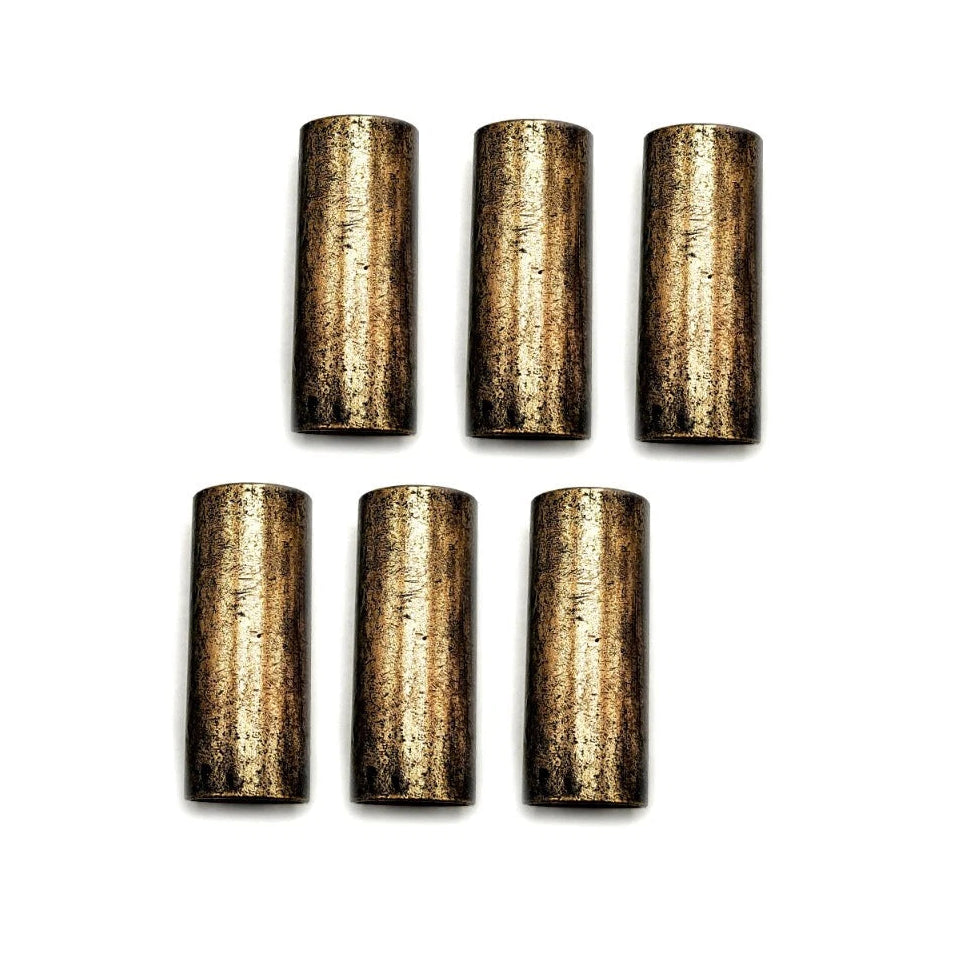

Pack of 6 - Replacement Bronze Bushings 9/16" x 1-3/4"

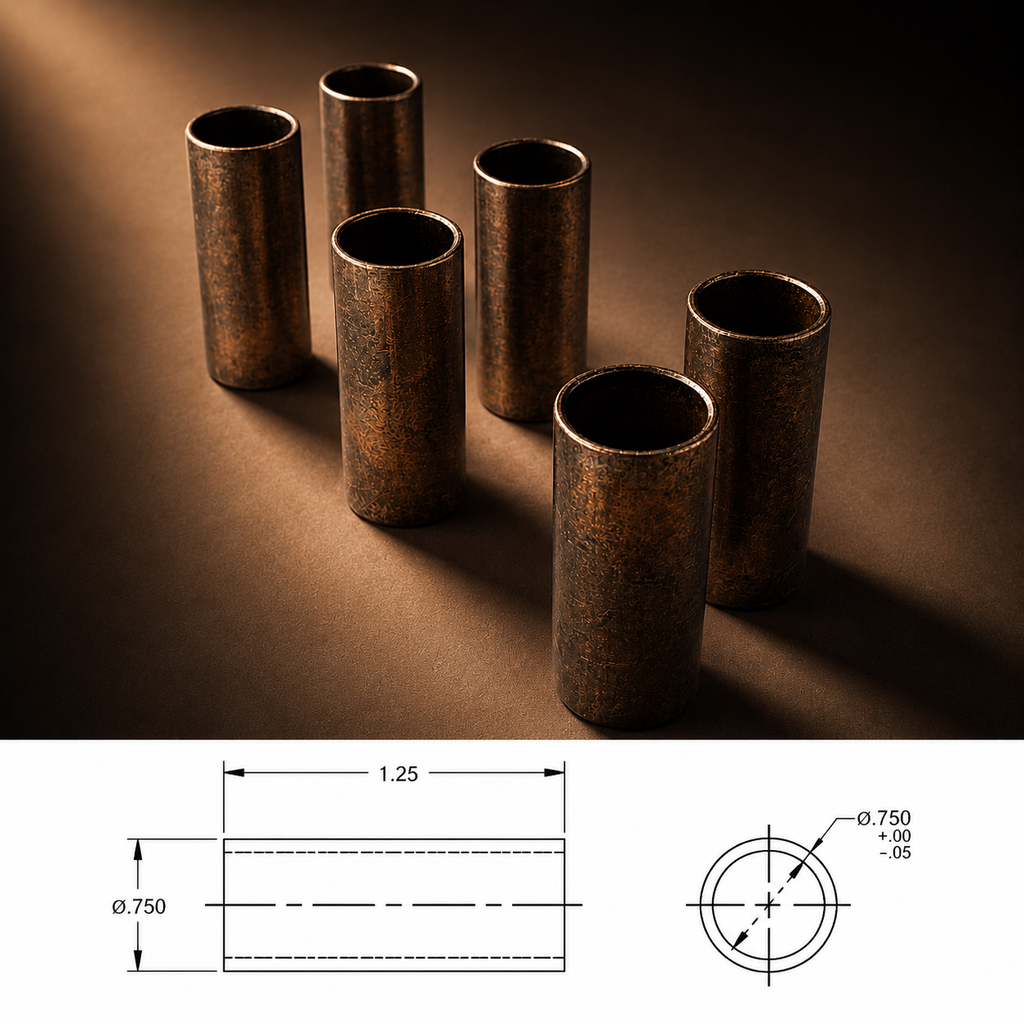

Six replacement steel bushings for trailer spring eyes or equalizer bolt holes using 9/16" suspension hardware. Dexter cross-reference SKU is (Dexter 014-077-00). Important Note : Please view our Dimensional Tolerance Print located in the images ; These bushings are designed for 9/16" trailer suspension bolt applications. Actual measured bore is approximately 0.575"–0.580" to allow proper bolt clearance. Outside diameter measures approximately 0.696"–0.700", and length measures approximately 1.73"–1.75".
Overview
This BU1-1566B-LOTOF6 listing includes six bronze replacement bushings for trailer suspension service. These bushings fit into compatible spring eyes or equalizer bolt holes and are commonly used when replacing worn bushings in pre-existing equalizers on tandem-axle trailer suspension systems.
R&P Service Insight
Worn suspension bushings can cause looseness, clunking, uneven movement, and accelerated wear around equalizer and spring-eye connection points.
- Use Case: Replaces worn bushings in trailer spring eyes or equalizer bolt holes.
- Tandem-Axle Service: Six bushings are commonly enough to service two 3-hole equalizers when all six bushing positions match.
- Verification: Confirm the bushing inside diameter, outside diameter, and length before ordering.
R&P Knowledge Hub
Compatibility: Designed for trailer suspension applications using 9/16" suspension hardware and compatible spring-eye or equalizer bushing bores.
Vehicle / System Fit: Commonly used on tandem-axle trailer suspension systems with equalizers requiring six replacement bushings.
Installation Notes: Press or drive old bushings out carefully and install new bushings squarely into the existing spring eye or equalizer hole.
Performance Insight: Replacing worn bushings helps restore tighter suspension movement and reduces excess play at pivot points.
Brand & Fitment Note
Selling Brand: R&P Carriages
Cross-Reference: Dexter 014-077-00 is provided as a dimensional and application reference only.
What This Listing Includes: One lot of six bronze replacement bushings only.
Before Ordering: Match your existing bushing dimensions. These bushings are designed for 9/16" trailer suspension bolt applications with an actual measured bore of approximately 0.575"–0.580", outside diameter of approximately 0.696"–0.700", and length of approximately 1.73"–1.75".
R&P Repair Insight
This 6-piece bushing lot is especially useful when rebuilding or refreshing existing tandem-axle equalizers with 9/16" eyes. If the equalizer, bolts, or shackle straps are also worn, inspect those parts before completing the repair.
- Check Equalizer Holes: Replace the equalizer if the holes are egg-shaped, cracked, or badly worn.
- Check Bolts: Worn bolts can damage new bushings quickly.
- Check Shackle Area: Loose or worn shackles can create suspension noise and uneven axle movement.
Features
Six-Piece Replacement Lot
Includes six bronze bushings for replacing worn bushings in existing trailer suspension components.
Spring Eye / Equalizer Use
Fits into one spring eye or one equalizer bolt hole, depending on the trailer suspension layout.
9/16" Hardware Application
Actual measured bore of approximately 0.575"–0.580" is sized to allow proper clearance for common 9/16" trailer suspension bolts.
Equalizer Service Friendly
This lot can replace the bushings in two pre-existing 3-hole equalizers when all six bushing positions match.
Specifications
| Specification | Detail |
|---|---|
| Part Number | BU1-1566B |
| Listing SKU | BU1-1566B-LOTOF6 |
| Brand | R&P Carriages |
| Product Type | Trailer Suspension Replacement Bushings |
| Quantity Included | 6 Bronze Bushings |
| Application | Spring Eye / Equalizer Bolt Hole Replacement |
| Material / Finish | Bronze |
| Nominal Hardware Reference | 9/16" Suspension Bolt Applications |
| Actual Measured Inner Diameter | Approximately 0.575"–0.580" |
| Actual Measured Outer Diameter | Approximately 0.696"–0.700" |
| Actual Measured Length | Approximately 1.73"–1.75" |
| Cross-Reference | Dexter 014-077-00 dimensional / application reference |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Tandem-Axle Trailer Suspension |
| Primary Fit | Spring eyes or equalizer bolt holes using 9/16" suspension bolts |
| Secondary Fit / Common Uses | Replacing bushings in two existing 3-hole equalizers when dimensions match |
| Notes | Verify inner diameter, outer diameter, length, and equalizer condition before installation. Please view the dimensional tolerance print located in the product images. |
Detailed Measurements
| Key Dimension | Measurement |
|---|---|
| Inner Diameter | Approximately 0.575"–0.580" |
| Outer Diameter | Approximately 0.696"–0.700" |
| Length | Approximately 1.73"–1.75" |
| Nominal Size | 9/16" x 1-3/4" |
| Hardware Reference | 9/16" trailer suspension bolt applications |
Included Components
| Quantity | Item |
|---|---|
| 6 | BU1-1566B replacement bronze spring eye / equalizer bushings |
| Not Included | Equalizers, shackle straps, suspension bolts, nuts, hangers, springs, grease, or installation tools |
