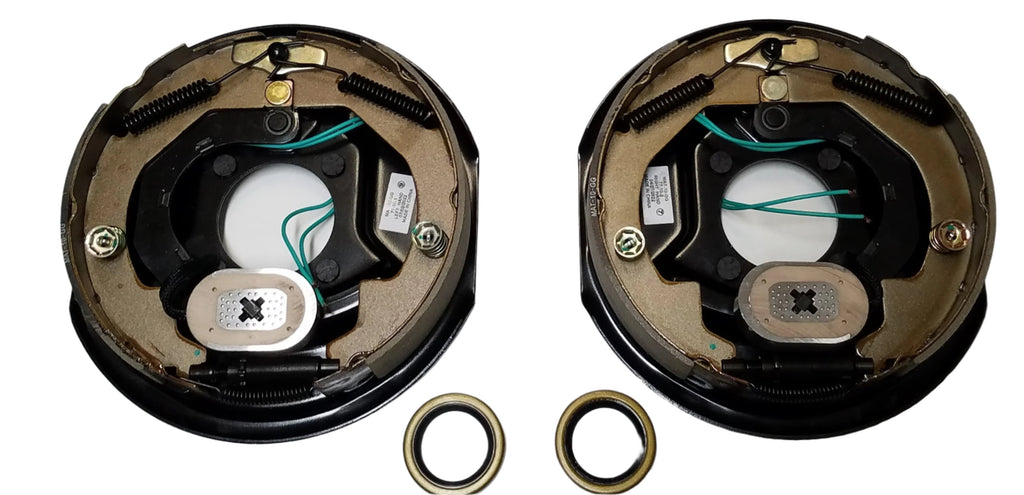

Pair – 10" × 2.25" Electric Brake Backing Plates – 3,500 lb – With Seals
Part Number: 10RVEB-1P-SEAL
This kit includes one complete pair of 10" × 2.25" electric trailer brake backing plates for standard 3,500 lb trailer axles, along with two grease seals. Designed for single axle replacement.
These backing plates may be used to replace Dexter part numbers 023-026-00 (Left) and 023-027-00 (Right).
R&P Knowledge Hub
Designed for 3,500 lb axles using 10" diameter × 2.25" wide electric drum brakes with a standard 4-bolt mounting flange.
Always verify brake diameter, shoe width, mounting flange spacing, and seal dimensions before installation.
Features
- One left-hand brake assembly
- One right-hand brake assembly
- 10" × 2.25" brake size
- 4-bolt mounting configuration
- Includes two grease seals
- Pre-assembled electric backing plates
Specifications
| Specification | Detail |
| Brake Size | 10" × 2.25" |
| Axle Rating | 3,500 lb |
| Mounting Pattern | 4 Bolt Flange |
| Dexter Replacement (LH) | 023-026-00 |
| Dexter Replacement (RH) | 023-027-00 |
| Seal Part Number | 171255TB |
| Seal Dimensions | 1.719" × 2.56" |
| Included Components |
(1) 10RVEBLH – Left Hand (1) 10RVEBRH – Right Hand (2) 171255TB Grease Seals |
Verify brake size, mounting configuration, and seal dimensions before installation.
