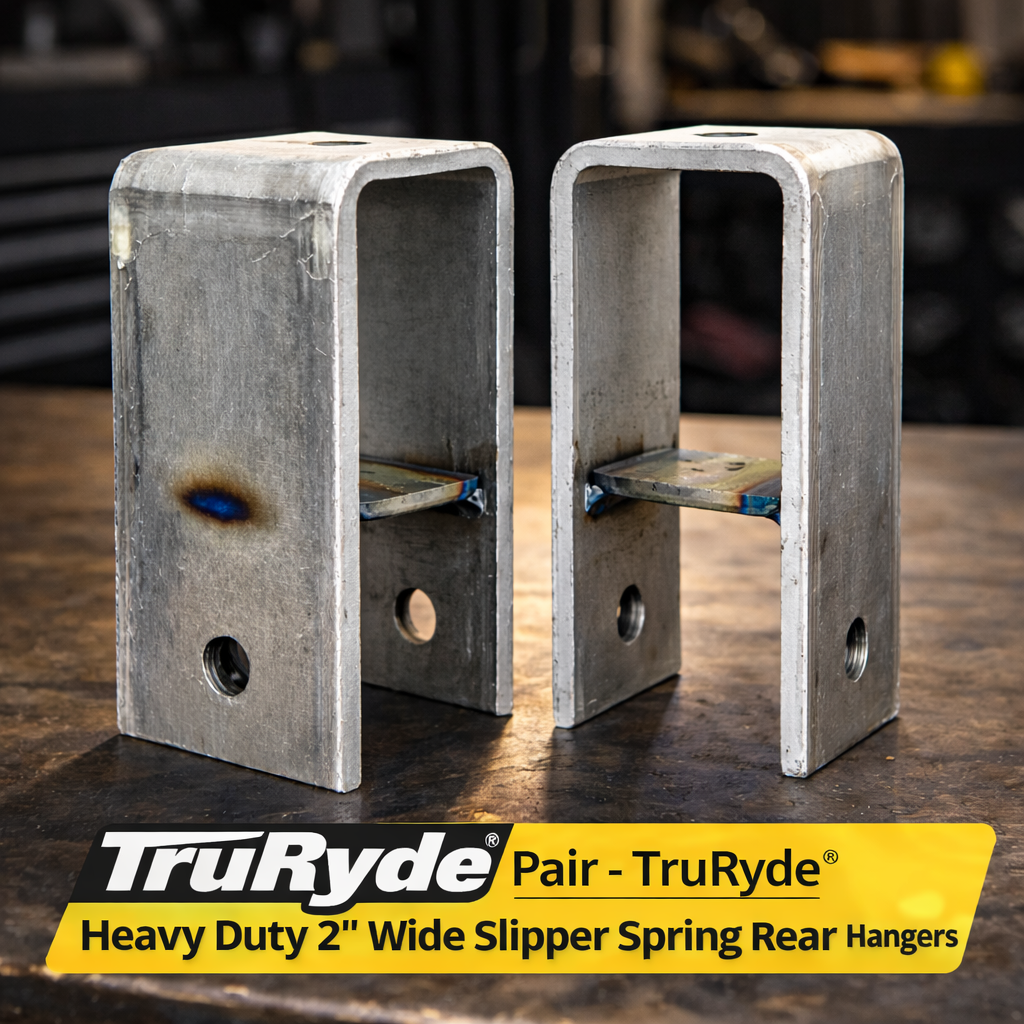

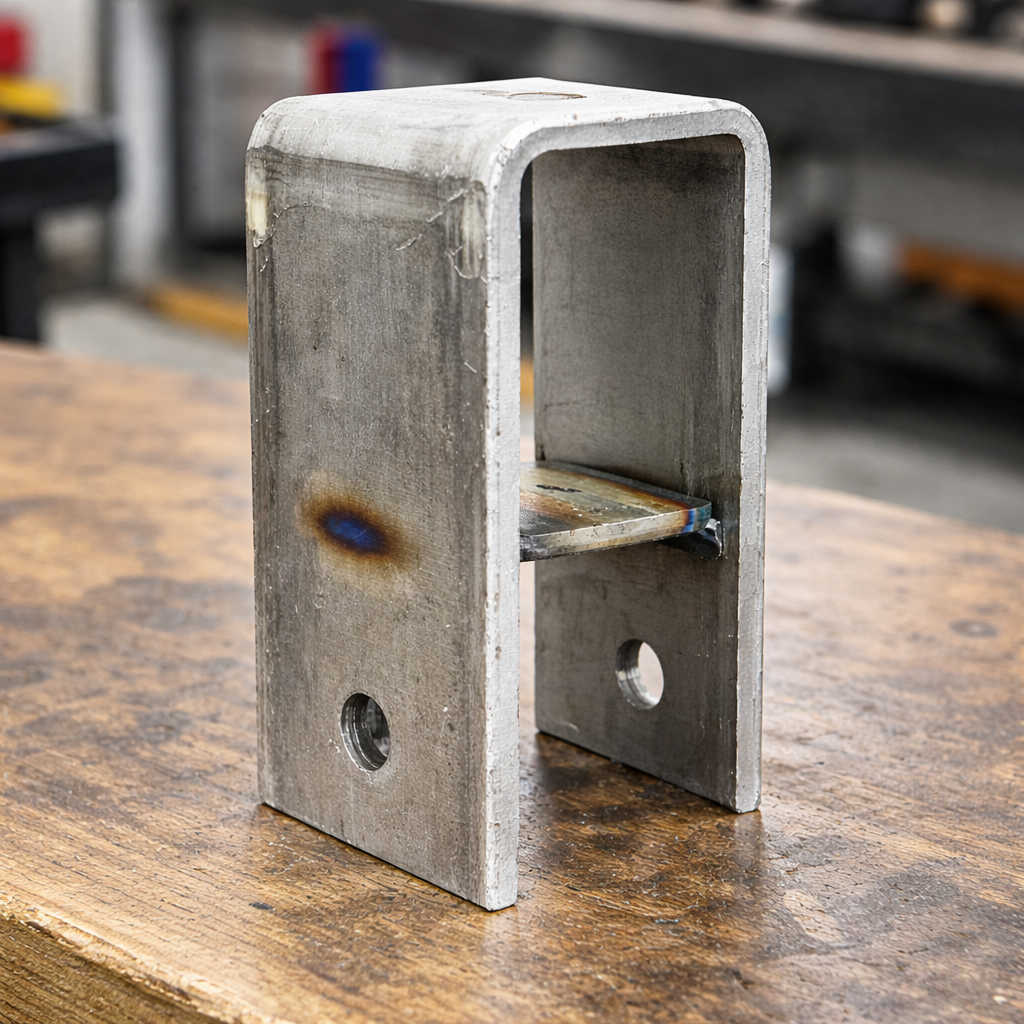

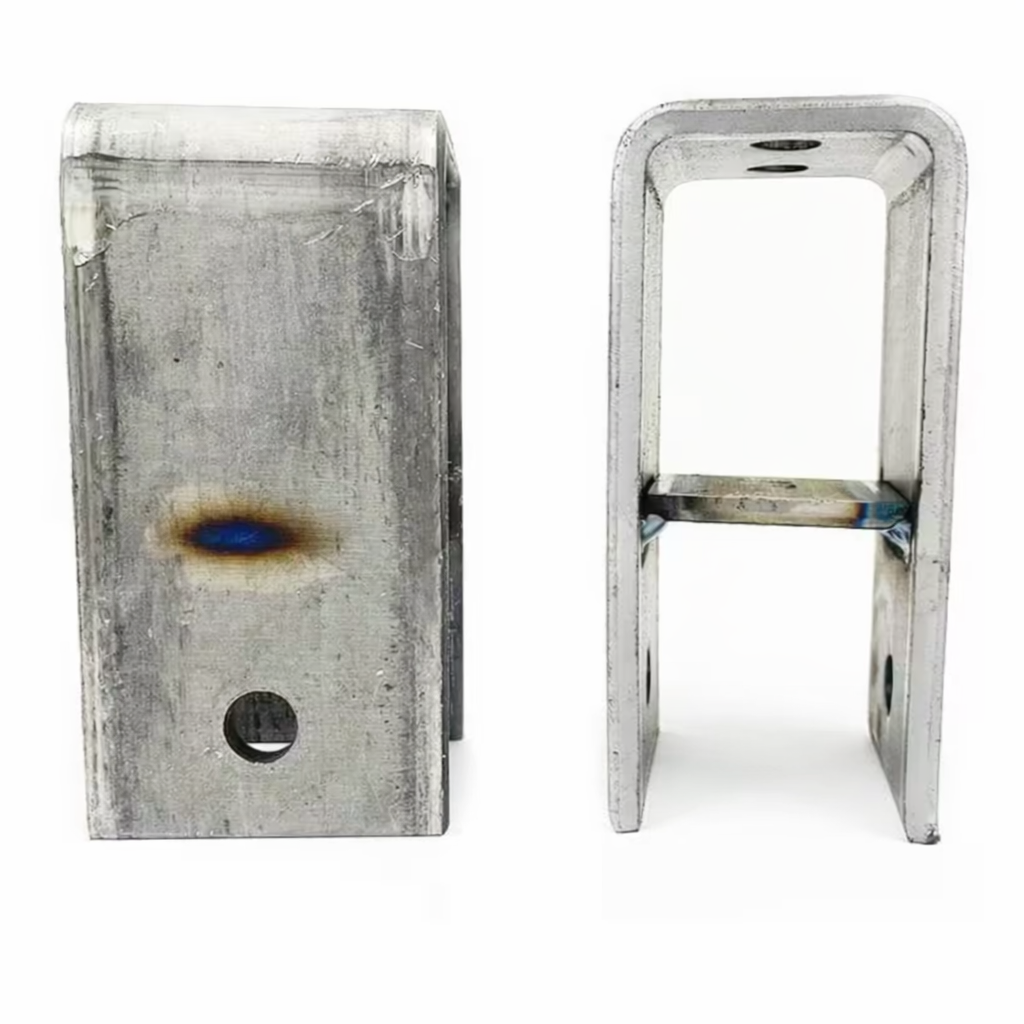

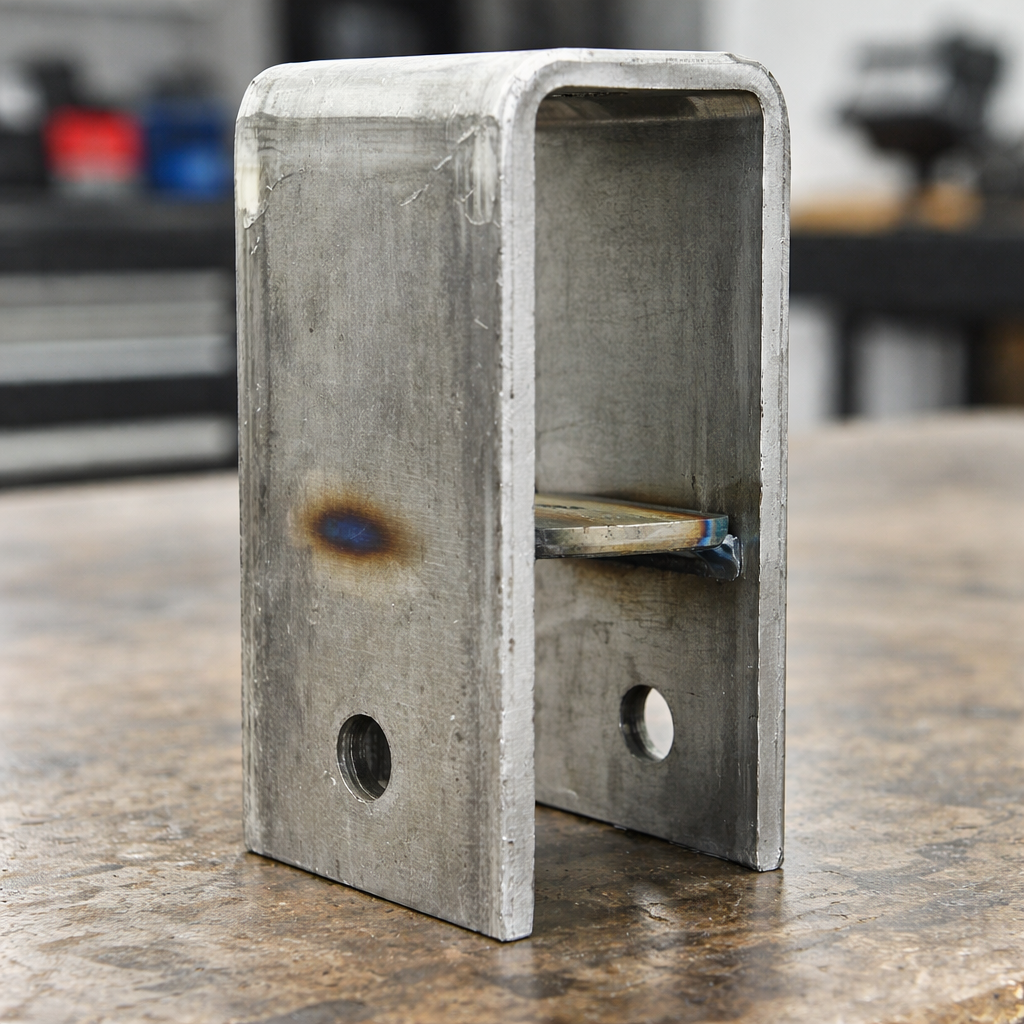

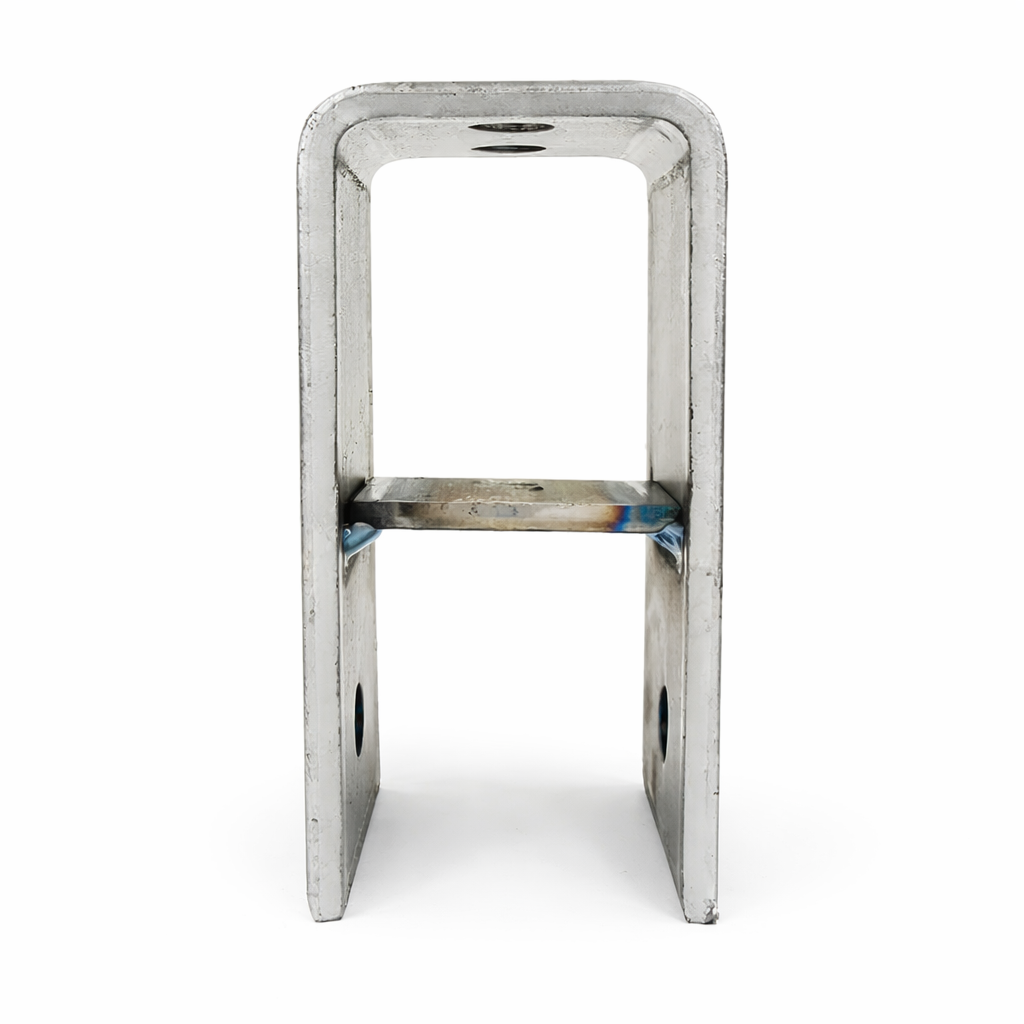

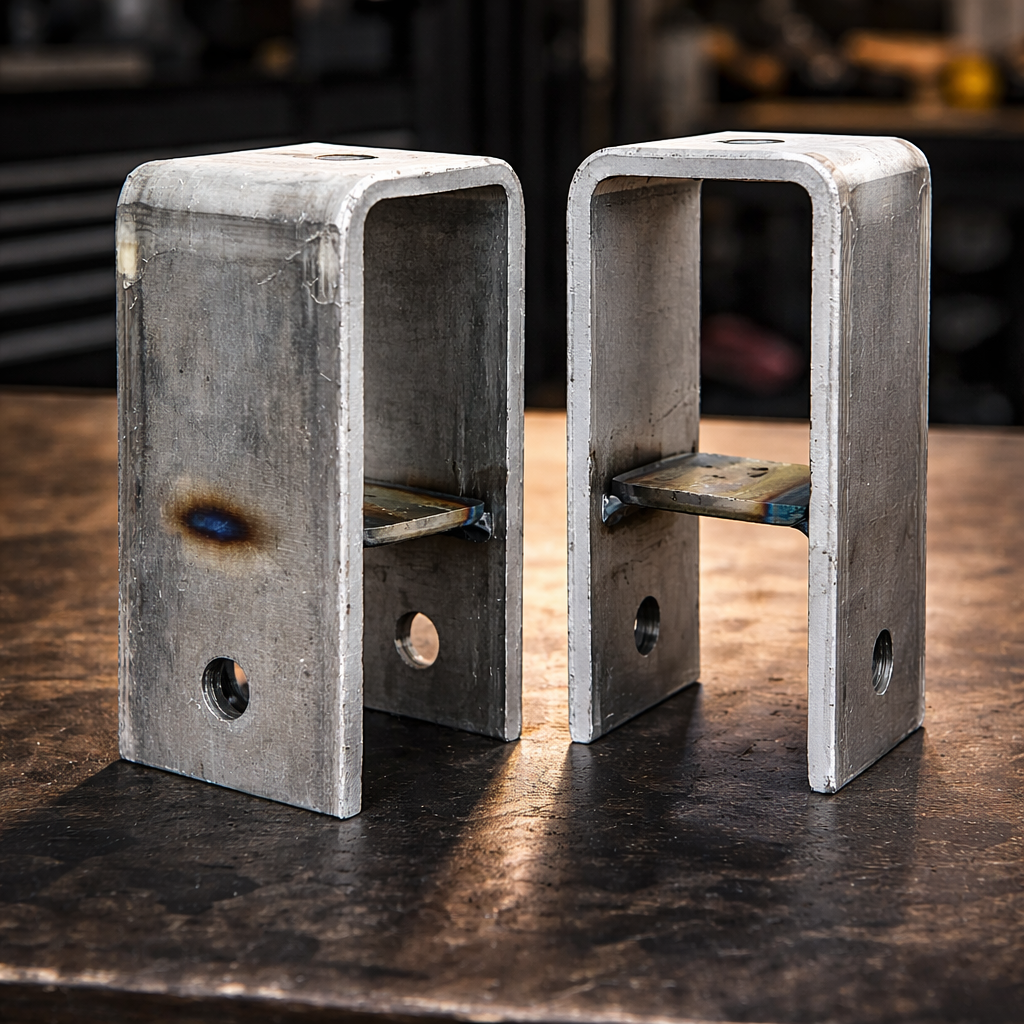

Pair of Rear Slipper Spring Hangers 2" Wide - 3.47" Spring Height to Wear Plate - 6" Tall - 4" Long - (HG-15854-R-LOTOF2)
A matched pair of rear hangers for 2-inch-wide slipper spring trailer suspension setups. This HG-15854-R-LOTOF2 listing is built for buyers replacing both rear hanger points at the same time so the suspension geometry, wear surface height, and side-to-side setup stay consistent.
Overview
The HG-15854-R-LOTOF2 listing includes two HG-15854-R rear hangers for slipper spring trailer suspension systems using a 2-inch-wide spring. Each hanger is the longer 4-inch version in this style, with a 6-inch overall height and a 3.47-inch spring height to the wear plate. Buying two is often the smart move when both rear hanger points have been exposed to the same mileage, corrosion, loading cycles, or suspension wear, because replacing them as a matched set helps maintain more even side-to-side geometry and saves duplicating teardown and welding labor later.
R&P Service Insight
Rear slipper hangers influence ride height, spring angle, and how the slipper end tracks across the wear area as the suspension cycles. In many trailer repairs, replacing one side only can leave the opposite side as the next weak point.
- Matched Repair: If one rear hanger is cracked, bent, or badly worn, the hanger on the other side has often seen the same service conditions and may not be far behind.
- Side-to-Side Consistency: Replacing both rear hangers together helps keep the suspension geometry more balanced from left to right.
- Labor Efficiency: If the trailer is already in the shop for cutting, fitting, and welding, replacing the pair can be more efficient than revisiting the second side later.
R&P Knowledge Hub
Compatibility: HG-15854-R-LOTOF2 includes a pair of rear hangers for trailer suspension systems using 2-inch-wide slipper springs.
Vehicle / System Fit: Best suited for trailer slipper spring suspension repairs where both rear hanger locations need the same dimensional match, especially spring width, hanger height, and wear plate height.
Installation Notes: Confirm spring width, hanger height, overall length, inside width, hole size, steel thickness, and weld-on placement before removing the original hangers. Replace as a pair when both sides show similar wear, corrosion, or damage.
Performance Insight: Matching both rear hanger points at the same time can help preserve intended spring tracking and ride height instead of pairing a fresh hanger with an older, possibly worn mate on the opposite side.
R&P Repair Insight
Suspension hangers are easy to confuse because many look similar at a glance. The safest way to order a replacement is by matching the actual measurements, especially spring width, height to wear plate, overall height, overall length, material thickness, and hole location. For tandem repairs or trailers with comparable wear on both sides, a pair purchase can prevent doing the same job twice.
- Check Spring Width: Each hanger in this HG-15854-R-LOTOF2 listing is built around a 2-inch slipper spring application.
- Check Height to Wear Plate: The dimensional reference calls out 3.47 inches for the spring height to the wear plate.
- Check the Opposite Side: If one hanger is elongated, cracked, or badly worn at the wear area, inspect the matching rear hanger on the other side before deciding to replace only one.
Features
Matched Pair of Rear Hangers
HG-15854-R-LOTOF2 includes two identical HG-15854-R rear hangers for buyers replacing both rear hanger points in the same repair.
Fits 2" Slipper Springs
Designed for rear hanger use in trailer suspension systems with 2-inch-wide slipper springs.
3.47" Wear Plate Height
The dimensional reference identifies 3.47 inches as the spring height to the wear plate for fitment verification.
Longer 4" Version
Each hanger in this pair is the longer 4-inch style in this family rather than the shorter 3-inch version.
Specifications
| Specification | Detail |
|---|---|
| Part Number | HG-15854-R-LOTOF2 |
| Component Part | 2 x HG-15854-R rear hangers |
| Listing Type | Pair of rear slipper spring hangers |
| Quantity Included | 2 hangers |
| Application | Trailer suspension rear hangers for 2" slipper spring setups |
| Material | Steel |
| Key Measurement | 3.47" spring height to wear plate |
| Overall Height | 6.00" each |
| Overall Length | 4.00" each |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer slipper spring suspension |
| Primary Fit | Rear hanger positions for 2" wide slipper springs |
| Secondary Fit | Repairs requiring the longer 4" version of this hanger style on both sides |
| Why Buy Two | Useful when both rear hangers show similar wear, when matching side-to-side geometry matters, or when you want to complete both sides during one welding and suspension repair session. |

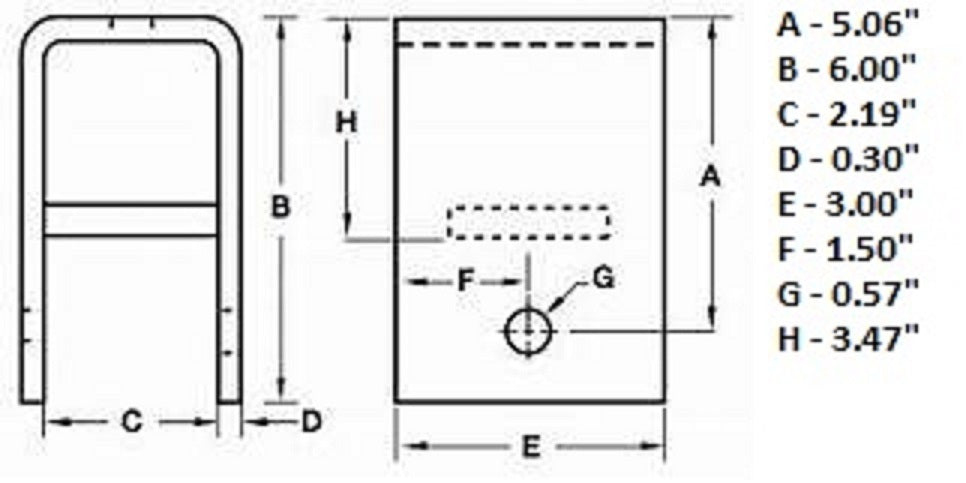

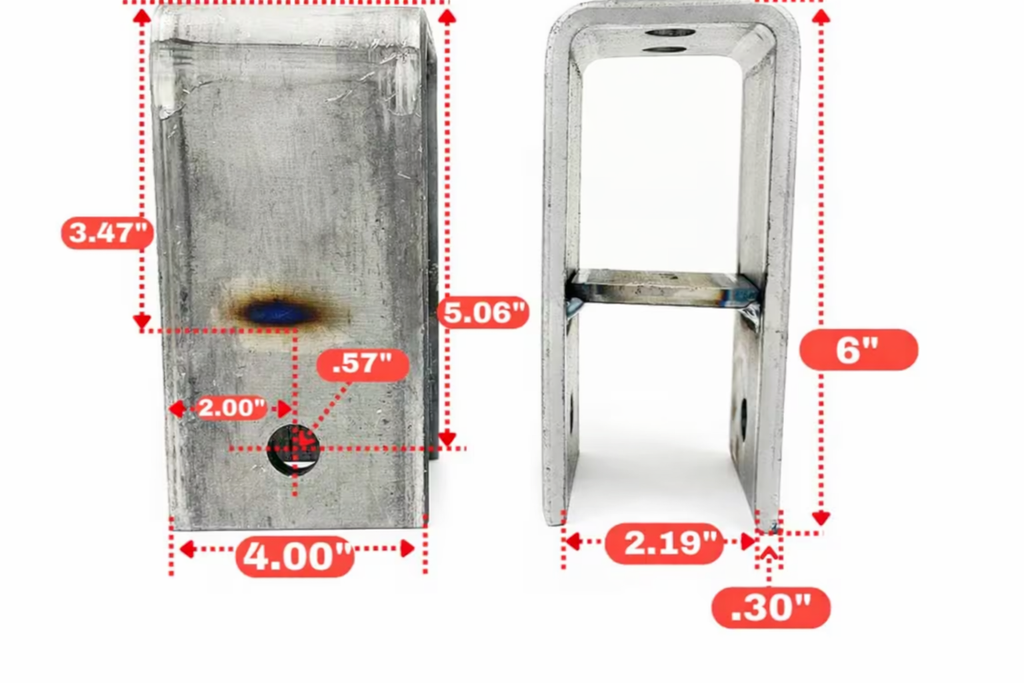

Dimensional Reference
Measurement Table
| Callout | Measurement |
|---|---|
| A | 5.06" |
| B | 6.00" |
| C | 2.19" |
| D | 0.30" |
| E | 3.00" |
| F | 1.50" |
| G | 0.57" |
| H | 3.47" |
Included Components
| Quantity | Item |
|---|---|
| 2 | Rear slipper spring hangers |
| Matched Set | Two identical HG-15854-R rear hangers included under listing HG-15854-R-LOTOF2 |
| Not Included | Spring, equalizer, bolts, bushings, and weld-on installation labor |
