Pair Trailer Suspension Rebuilt Kit Slipper Spring 12" Equalizer Bushings Bolts (EQ-12-REBUILD-LN-KIT)

R & P Carriages

Regular price $79.99

Pair Trailer Suspension Rebuilt Kit Slipper Spring 12" Equalizer Bushings Bolts

Part Number - EQ-12-REBUILD-LN-KIT

This pair of 12" Long equalizer connects slipper springs on tandem-axle trailers and allows for enough movement between the axles to keep the ride smooth and the load undisturbed.

Fits springs with 9/16" diameter eye.

Features:

Connects slipper springs on dual-axle trailers

Slip arched end of front spring into equalizer so that it rests on keeper bolt

Attach rear-most spring with shackle bolt through the eye

Suspends from center hanger

Transfers load and sudden impacts from one axle to another by permitting movement between the axles

Distributes weight evenly

Constructed of high-quality, 1/4" thick, hot rolled steel

Results in smooth ride for trailer

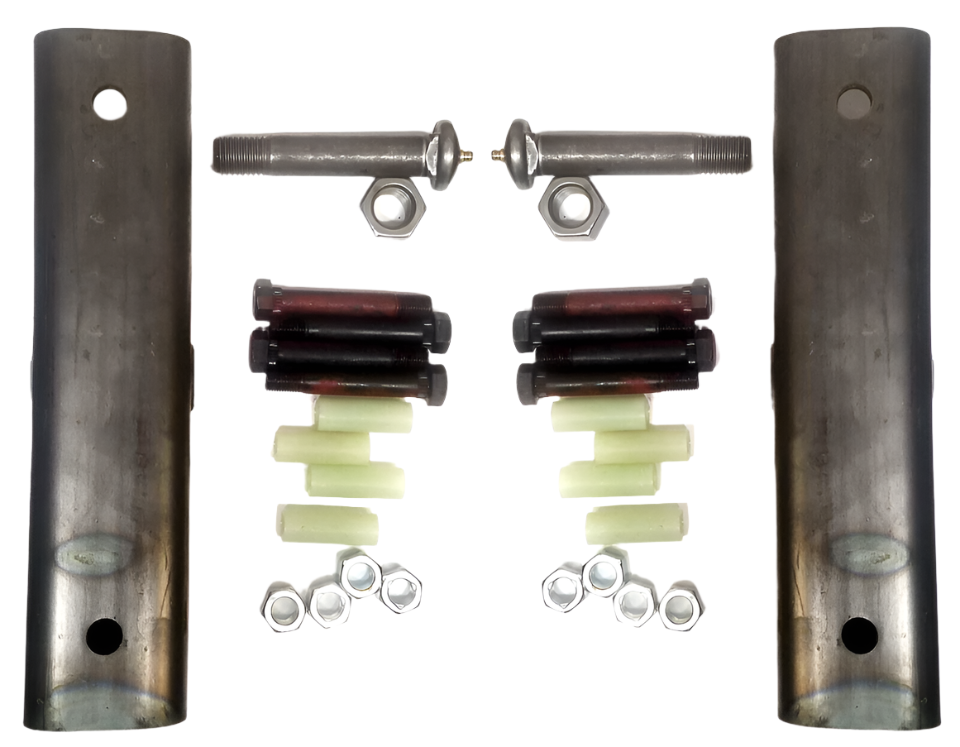

Kit Includes:

2 X 007-001-00: 7/8" Grease Bolt

2 x 006-111-00: 7/8" Nut for 7/8" Grease Bolt

8 x 91635B: 9/16"-18 x 3-1/2" Shackle Bolt (Extra Long)

8 x SB-LN-9: 9/16" Lock Nut for 9/16" Shackle Bolt

4 x NBI-2566 Bushings 9/16 x 11/16 x 2

2 x EQ-12: 12" Equalizer

Specs:

Fits 2" wide slipper leaf springs

Center bolt hole diameter: 7/8"

Side bolt hole diameter (for mounting spring): 9/16" diameter

Side bolt hole diameter (for keeper bolt): 9/16"

Dimensions: see diagram

This Listing is Priced for 2 (two) EQ-12
(12" long) Center Pivot Equalizers
2 x Pivot bolts and nuts for the Equalizers

8 x 9/16 Bolts & 2 Nuts (4 for springs, 4 keeper bolts)
4 Replacement nylon Bushings for Spring Eyes
