At a Glance
- >OEM-style RAM connector
- >Plug-and-play installation
- >Approx. 3 ft. harness length
- >Compatible with Prodigy P2, Prodigy P3, and Primus controllers
- Brand: Need A Trailer Part®
- SKU: 3023
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Connector | Match the connector and circuit count. |
|---|---|
| Function | Verify circuits rather than wire color alone. |
| Voltage | Confirm system voltage. |
Product Details

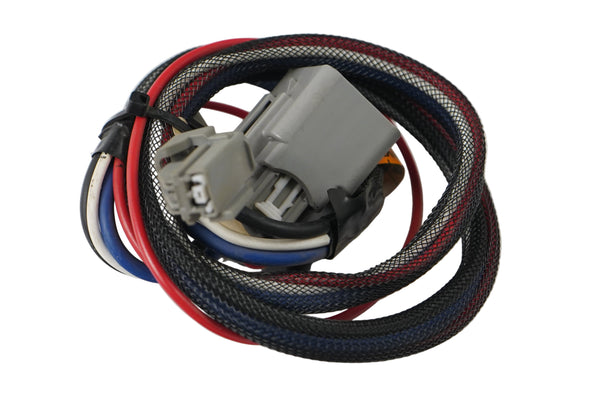

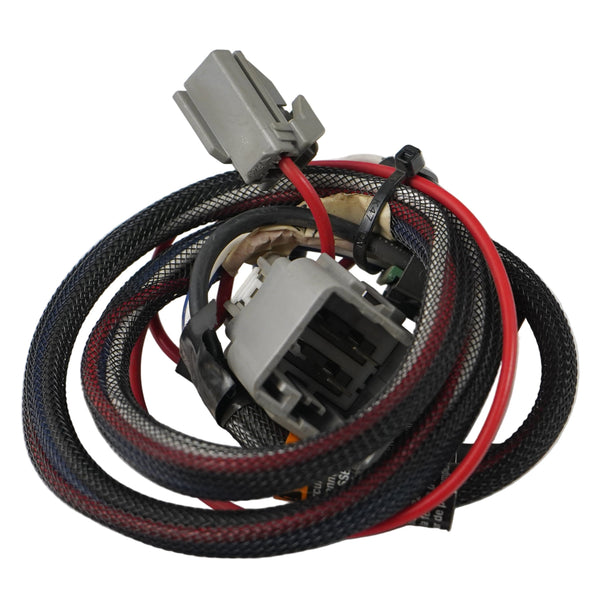

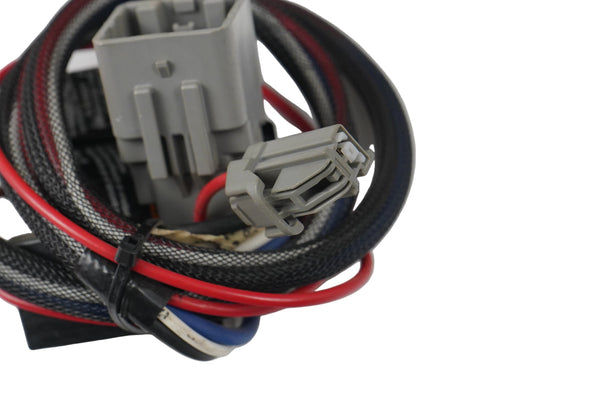

Tekonsha Prodigy / Primus Brake Control Wiring Harness – RAM 2013–2014
Part Number: 3023-P
Tekonsha 3023-P wiring harness provides a plug-and-play connection between factory pre-wired RAM trucks and compatible brake controllers, allowing installation without cutting or splicing.
R&P Knowledge Hub
Brake controller harnesses connect directly to factory tow-package ports, eliminating splicing and ensuring proper signal transfer between vehicle and trailer braking systems.
Features
- OEM-style RAM connector
- Plug-and-play installation
- Approx. 3 ft. harness length
- Compatible with Prodigy P2, Prodigy P3, and Primus controllers
Specifications
| Part Number | 3023-P |
| Harness Length | Approx. 3 feet |

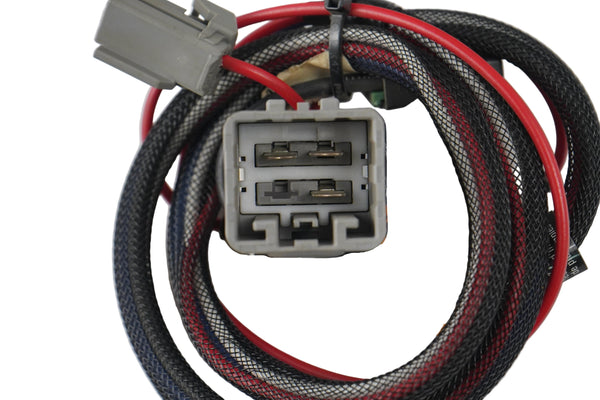

| Truck Connector | OEM-style RAM plug (tow-package equipped) |
| Controller Connector | Tekonsha Prodigy / Primus plug |
| Compatible Controllers | Prodigy P2, Prodigy P3, Primus, and others with compatible plug |
| Vehicle Fitment | RAM 1500, 2500, 3500 (2013–2014, tow-package equipped) |
| Fitment Limitation | Does not fit California-spec RAM models |
Included Components
| Part Number | Quantity | Description |
|---|---|---|
| 3023-P | 1 | Brake Control Wiring Harness |
