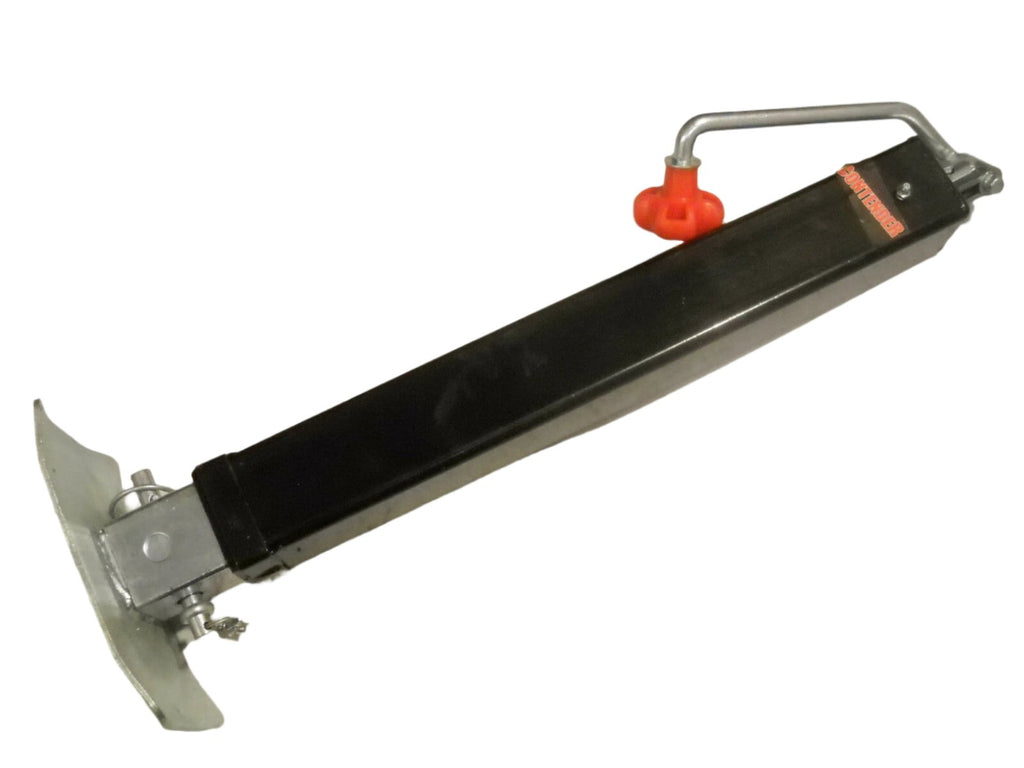

RAM 8,000 lb Topwind Drop Leg Trailer Jack — 15 inch Lift
Part Number: JATJD-7000
The RAM JATJD-7000 is a weld-on, topwind drop leg trailer jack designed for use on agricultural, industrial, commercial, recreational, and similar trailer applications. It features a painted outer tube, zinc-coated inner tube, and an integrated grease zerk for routine maintenance.
Features
- Topwind operation
- Weld-on mounting design
- Drop leg configuration
- Sand foot attached
- Grease zerk pre-installed
- Black painted outer tube with zinc-coated inner tube
Specifications
| Static Capacity | 8,000 lbs |
| Lifting Capacity | 7,000 lbs |
| Lift Height | 15 in |
| Outer Tube Diameter | 2-1/4 in |
| Retracted Height (A) | 23.5 in |
| Extended Height (B) | 54 in |
| Drop Leg Length (C) | 13.5 in |
| Mounting Style | Weld-on |
| Wind Orientation | Topwind |
Verify dimensions, mounting requirements, and capacity before installation.
