Set of 4 Recessed Full 360° Swivel 6000 lb Rated D-Ring Tie Downs with Backing Plates
R&P Carriages four-pack of recessed 4-bolt D-ring tie down assemblies with full 360° swivel action, zinc plated finish, and matching backing plates for trailer floor cargo securement applications.

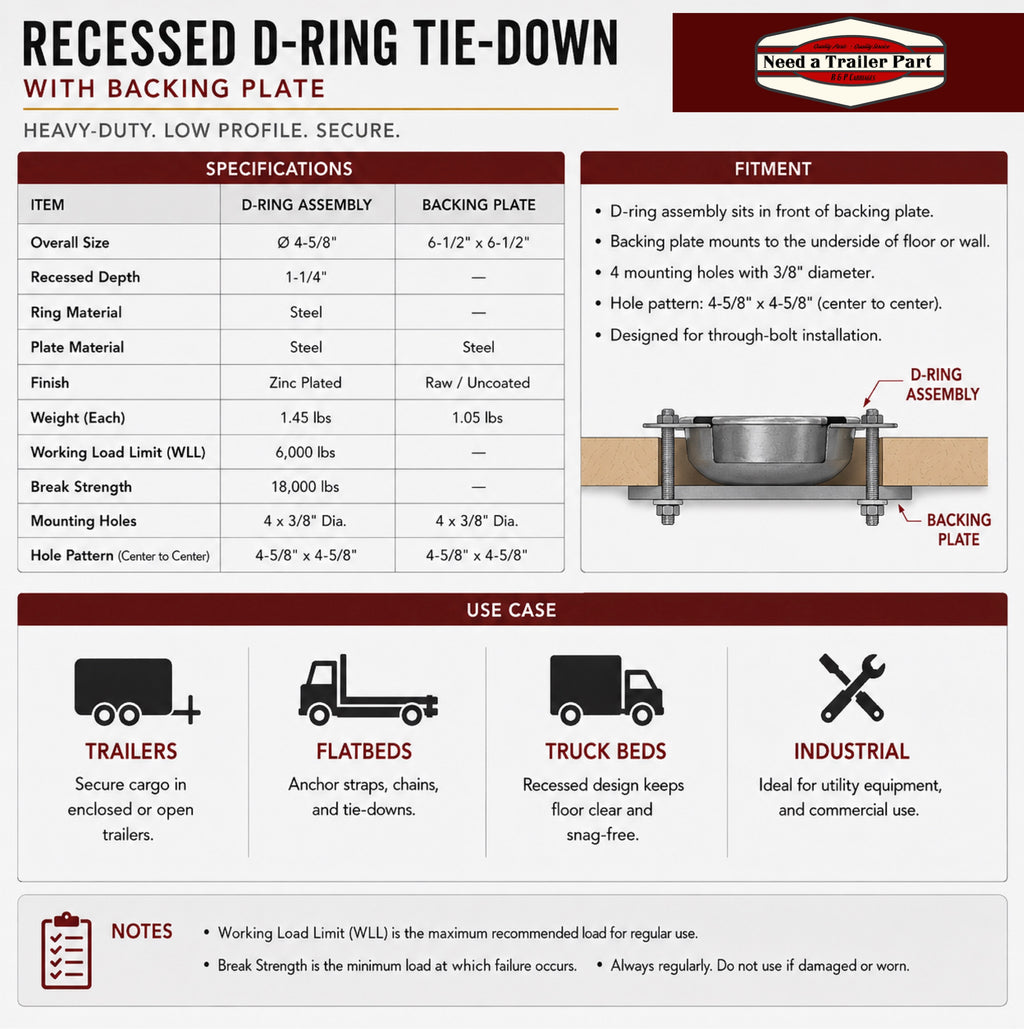

Specifications
| Specification | Detail |
|---|---|
| Part Number | RRQ6-BP-4 |
| Brand | R&P Carriages |
| Product Type | Set of recessed D-ring tie downs with backing plates |
| Quantity | Set of 4 D-ring assemblies and 4 backing plates |
| Rated Capacity | 6000 lb per D-ring assembly |
| Swivel | Full 360° swivel ring |
| Mounting Style | 4-bolt mounting pattern |
| Mounting Hole Style | Square holes in ring assembly |
| Backing Plate Size | 6-1/2" x 6-1/2" |
| Backing Plate Center Opening | 4-5/8" diameter |
| Backing Plate Bolt Holes | 3/8" diameter holes shown on diagram |
| Backing Plate Thickness | 1/8" |
| Finish | Zinc plated |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer floor cargo tie-down system |
| Primary Fit | Trailer floors and cargo decks that can accept recessed 4-bolt D-ring installations with 6-1/2" square backing plates |
| Common Applications | Utility trailers, enclosed trailers, equipment trailers, cargo trailers, and trailer deck tie-down points where rating and installation requirements match |
| Mounting Requirement | Proper structural reinforcement beneath each mounting location is required. |
| Notes | Verify load requirements, mounting surface strength, 6-1/2" x 6-1/2" backing plate clearance, 4-5/8" center opening clearance, D-ring spacing, and hardware compatibility before installation. |
Overview

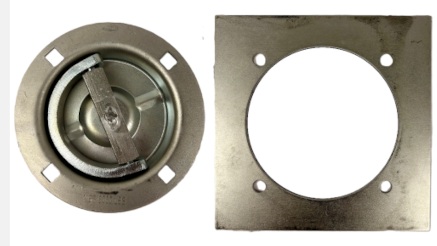

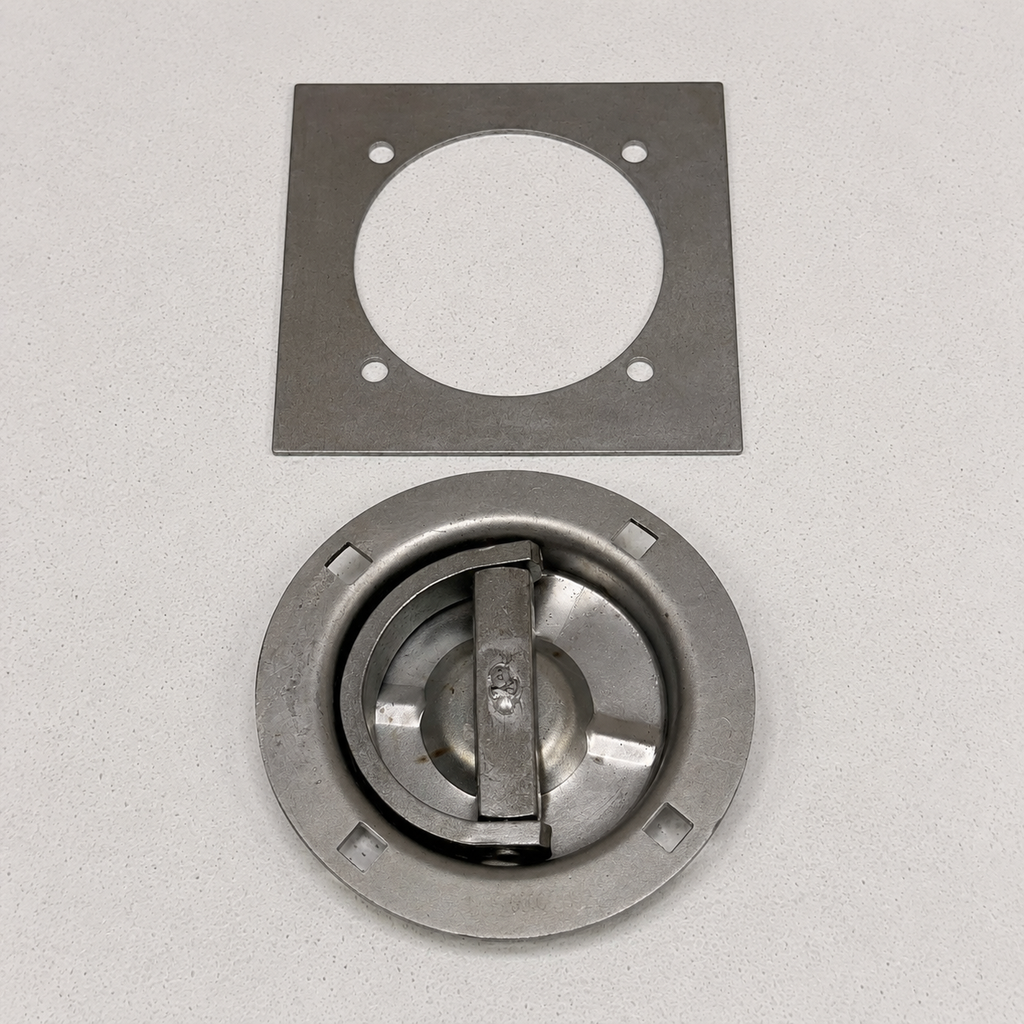

This RRQ6-BP-4 set includes four recessed D-ring tie down assemblies and four matching backing plates for trailer cargo securement applications where multiple flush-mount anchor points are needed. Each D-ring assembly features full 360° swivel action and a recessed design that allows the ring to sit down into the trailer floor when not in use.
R&P Service Insight
A set of four recessed D-rings is useful when laying out multiple cargo anchor points across a trailer deck. Proper placement, reinforcement, and hardware selection are critical for safe cargo securement.
- Four-Point Layout: Four assemblies help create multiple anchor positions for balanced cargo tie-down routing.

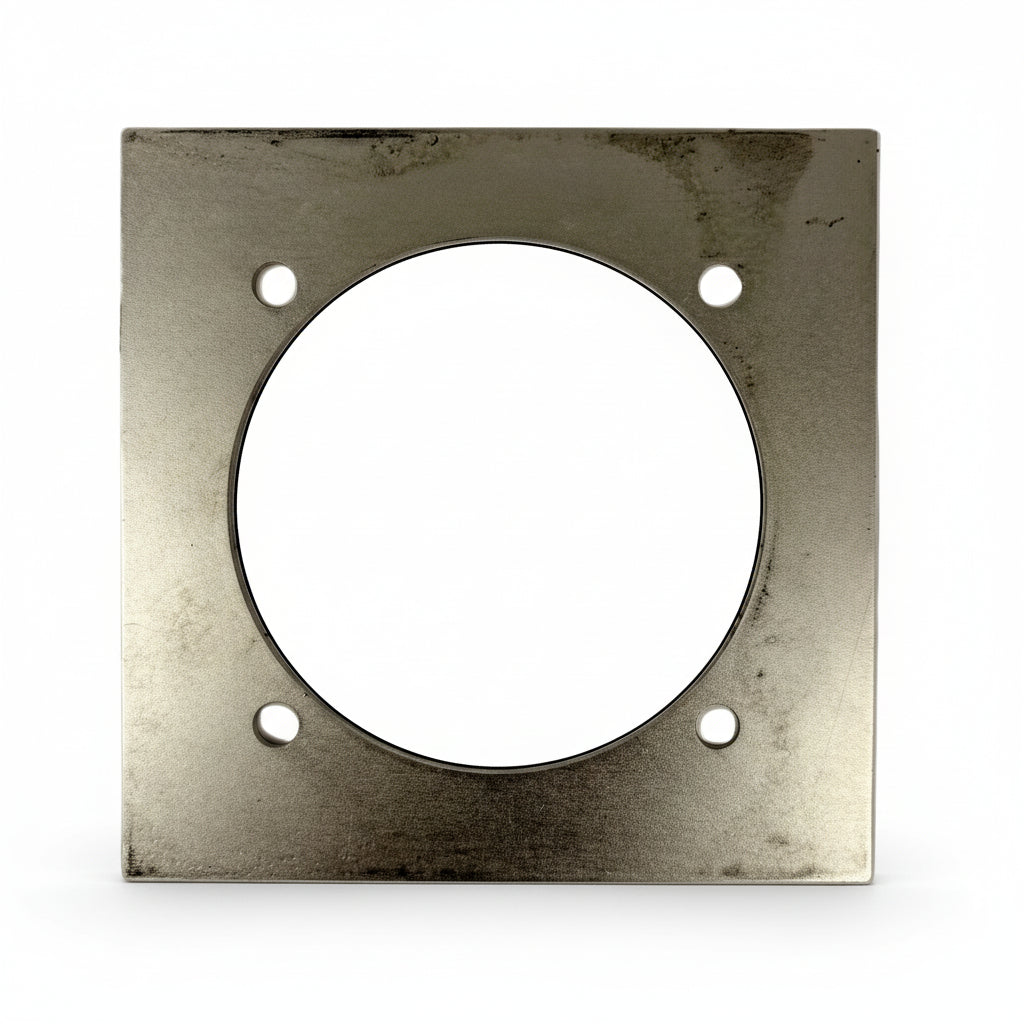

- Backing Plate Fit: Each backing plate is shown as 6-1/2" x 6-1/2" with a 4-5/8" center opening.
- Install Check: Confirm each deck location, backing plate, and mounting hardware are suitable for the intended load.
R&P Knowledge Hub
Compatibility: Suitable for trailer cargo tie-down installations where recessed 4-bolt D-rings, backing plates, and 6000 lb rated anchor assemblies match the application requirements.
Vehicle / System Fit: Used as floor-mounted cargo anchor points on compatible utility, enclosed, equipment, and cargo trailers.
Installation Notes: Each backing plate measures 6-1/2" x 6-1/2" with a 4-5/8" center opening. The diagram shows 3/8" diameter bolt holes. Verify hole pattern, mounting location, hardware choice, backing plate position, spacing, and load path before use.
Performance Insight: The recessed swivel design supports a cleaner deck surface while allowing each tie-down ring to rotate with the load angle.

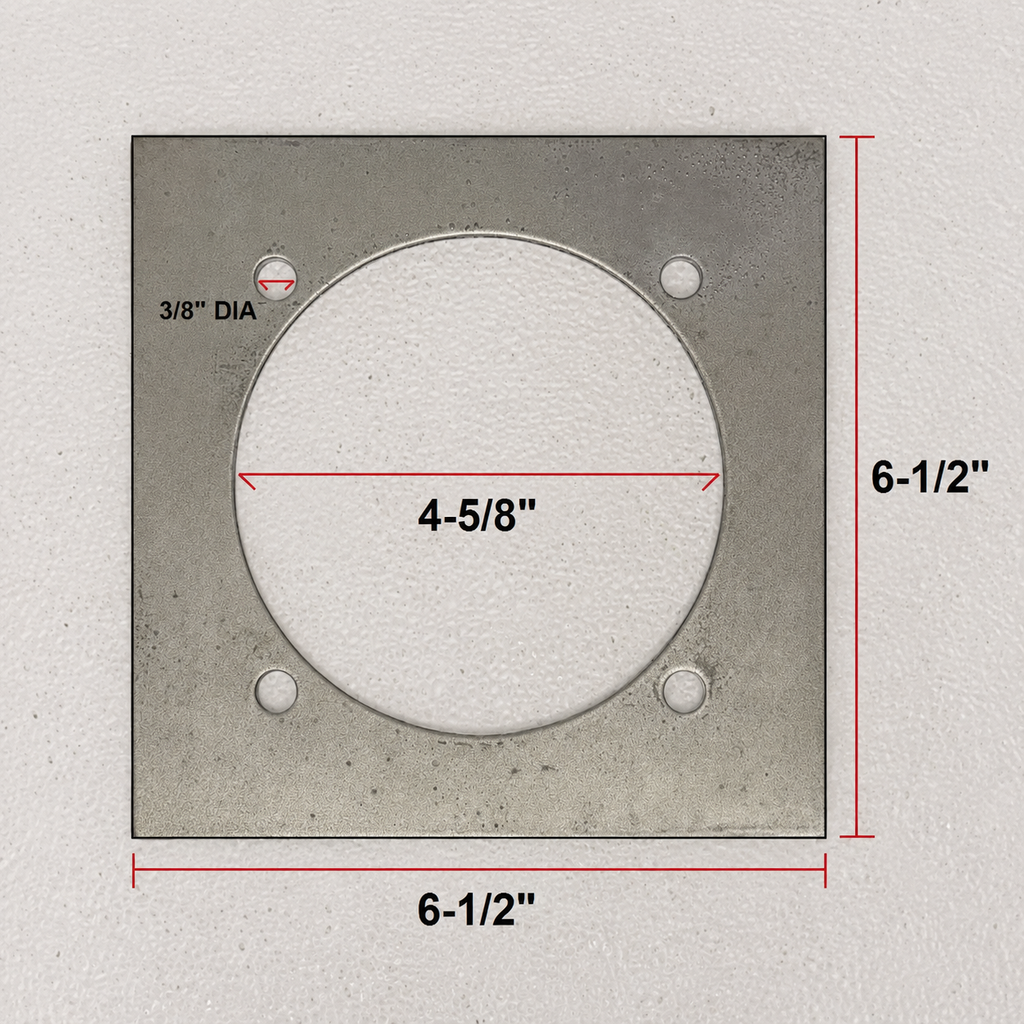

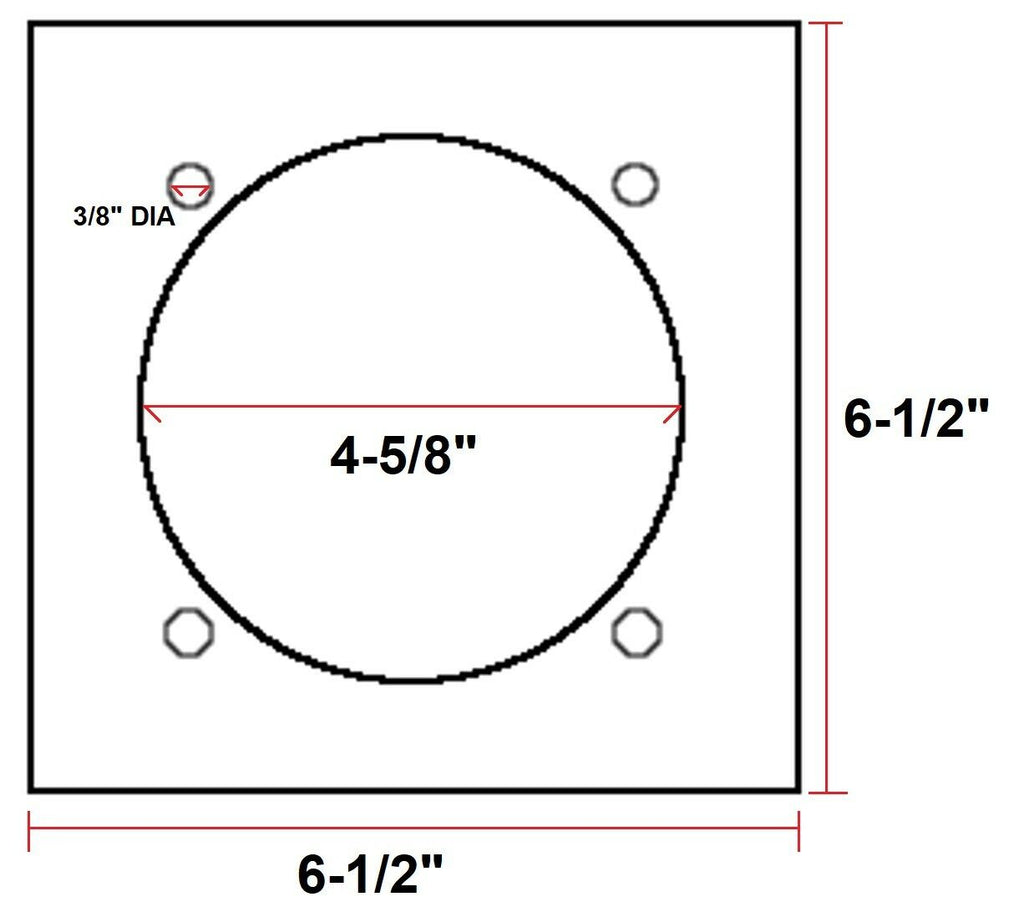

Backing Plate Diagram
Brand & Fitment Note
Selling Brand: R&P Carriages.
Application Reference: Trailer types and cargo applications are listed only as fitment guidance where the mounting surface, reinforcement, hardware, spacing, and load requirements match.
What This Means: This listing is for a set of four recessed 6000 lb rated D-ring tie down assemblies with backing plates, not a complete trailer cargo control system.
Before Ordering: Verify rated capacity needs, installation locations, deck structure, bolt pattern, hardware compatibility, backing plate clearance, and tie-down layout before installation.
R&P Repair Insight
Tie-down anchors are only as dependable as the structure they are mounted to. When replacing or adding multiple recessed D-rings, inspect the trailer floor and support structure at each mounting point before relying on the anchors for cargo securement.
- Deck Check: Inspect each mounting surface for rot, cracking, corrosion, or weak material before installation.
- Backing Plate Check: Confirm there is room for the 6-1/2" x 6-1/2" backing plate beneath each selected mounting point.
- Hardware Check: Use compatible mounting hardware for the 4-bolt square-hole pattern and intended application.
Features
Set of Four Anchor Assemblies
Includes four recessed D-ring assemblies and four matching backing plates for multiple trailer cargo anchor points.
6000 lb Rated Each
Each D-ring assembly is rated for 6000 lb applications where the mounting surface, reinforcement, and hardware are properly matched.
Full 360° Swivel Rings
Swivel D-ring design helps each anchor align with the tie-down direction during cargo securement.
Measured Backing Plates
Backing plate diagram shows 6-1/2" x 6-1/2" plate size with a 4-5/8" center opening and 3/8" bolt holes.

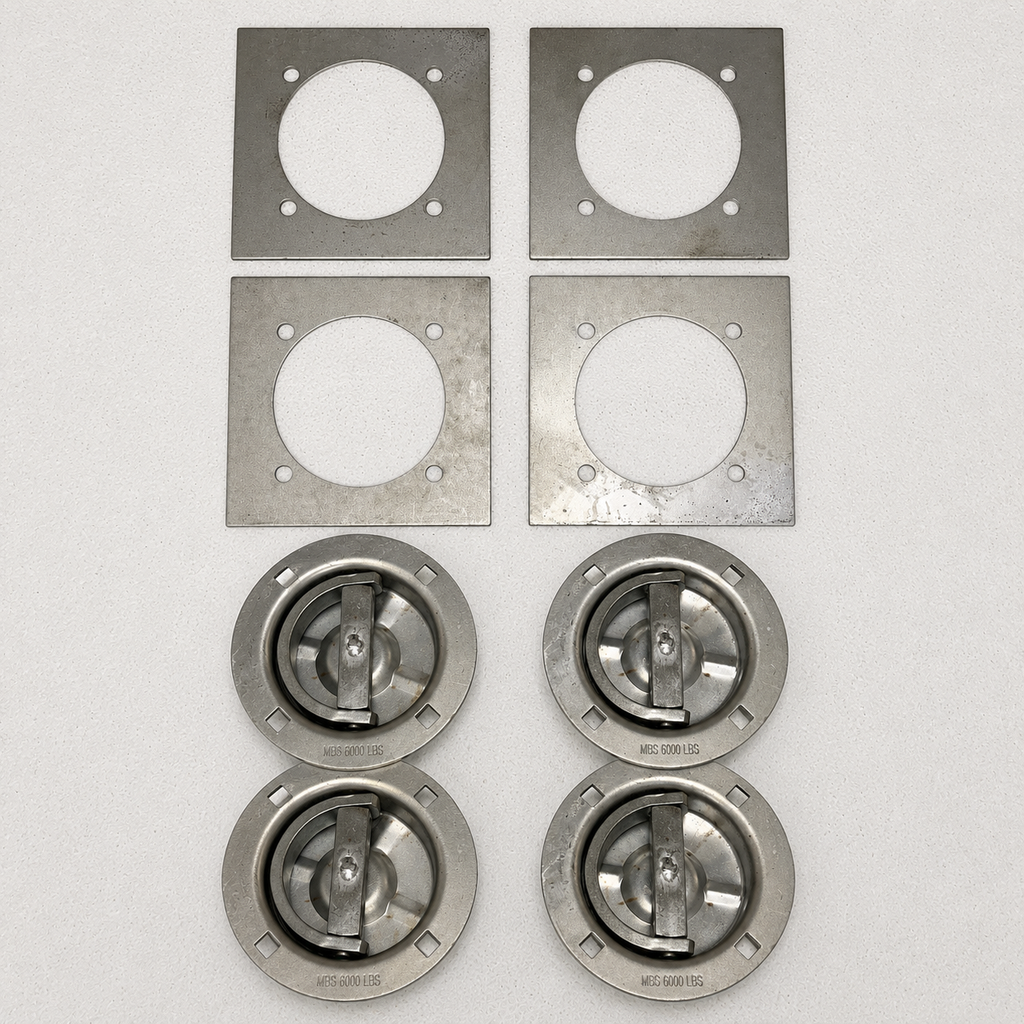

Included Components
| Quantity | Item |
|---|---|
| 4 | Recessed full 360° swivel D-ring tie down assemblies |
| 4 | Zinc plated backing plates, 1/8" thickness |
| Not specified | Mounting hardware is not listed as included unless confirmed separately. |
