Redline 12-1/4" Electric Trailer Brake Shoe Return Springs

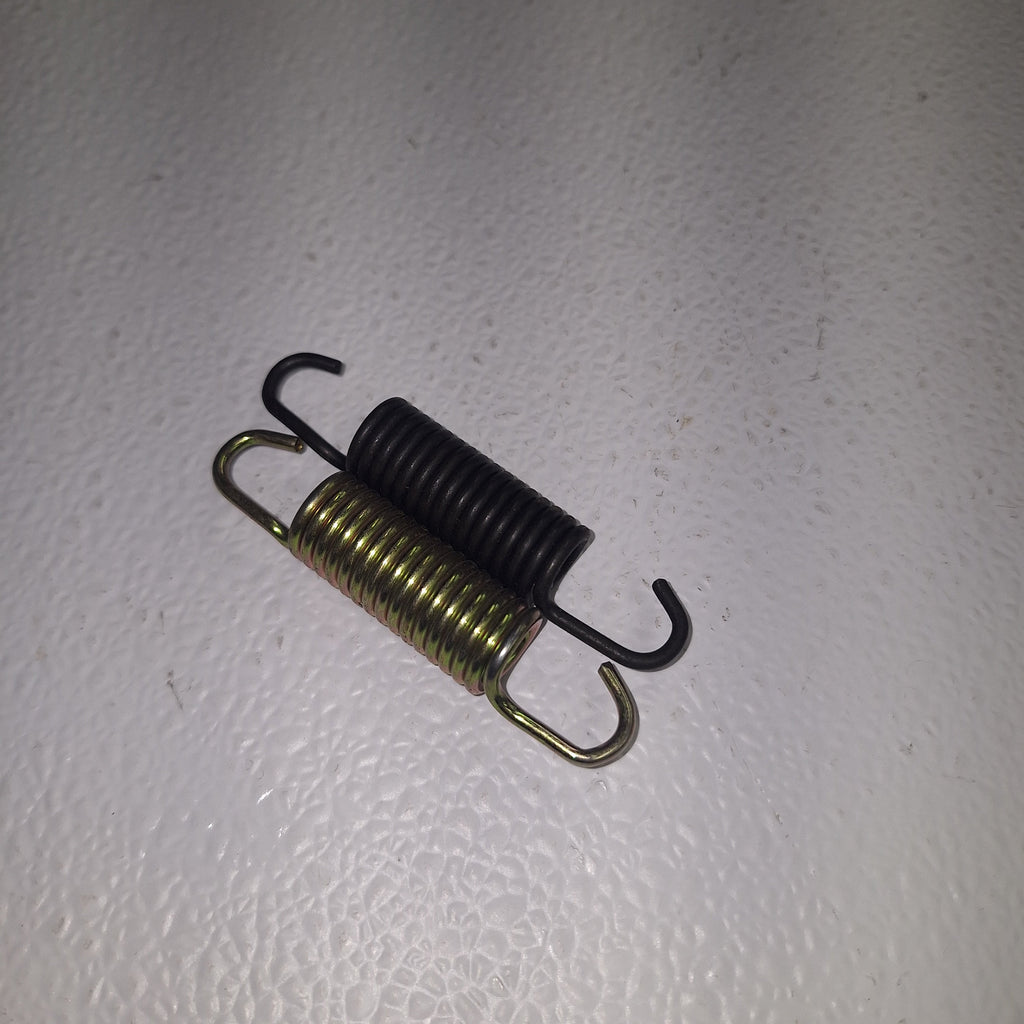

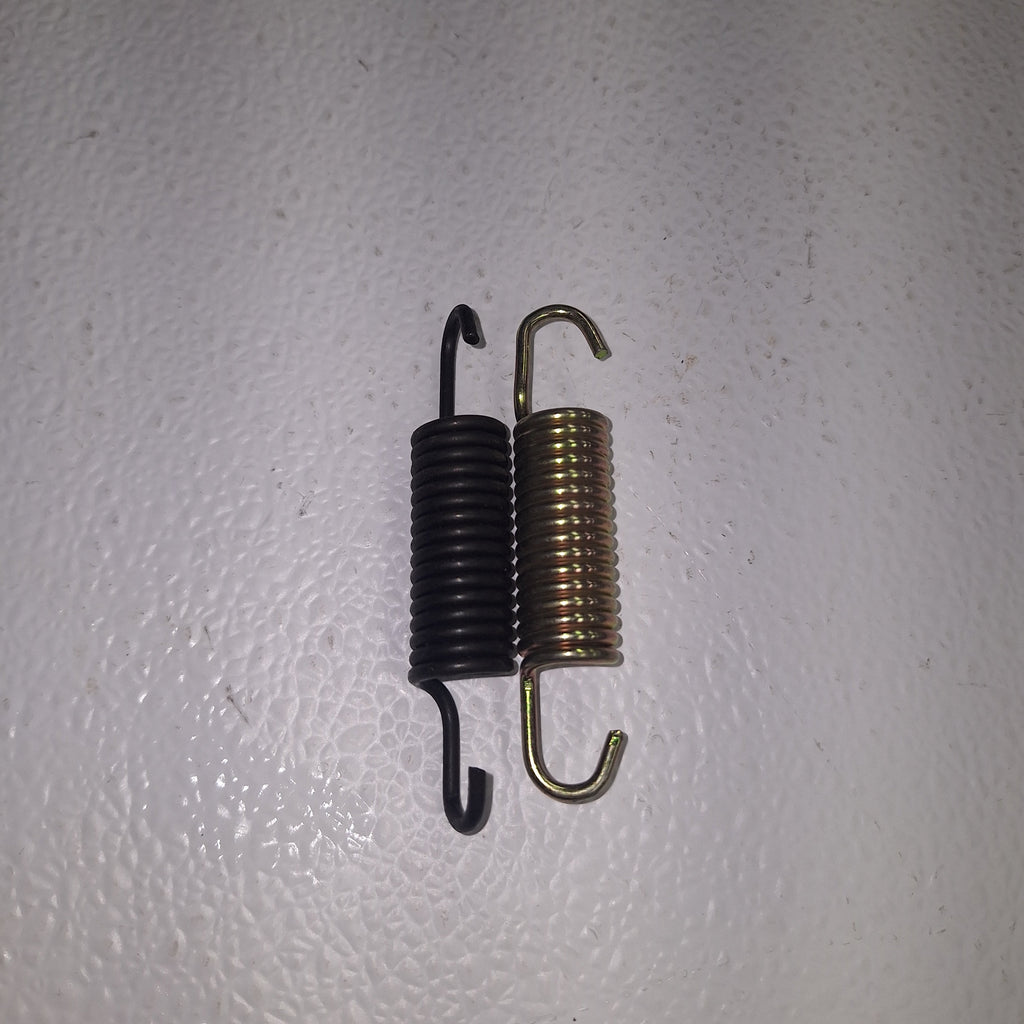

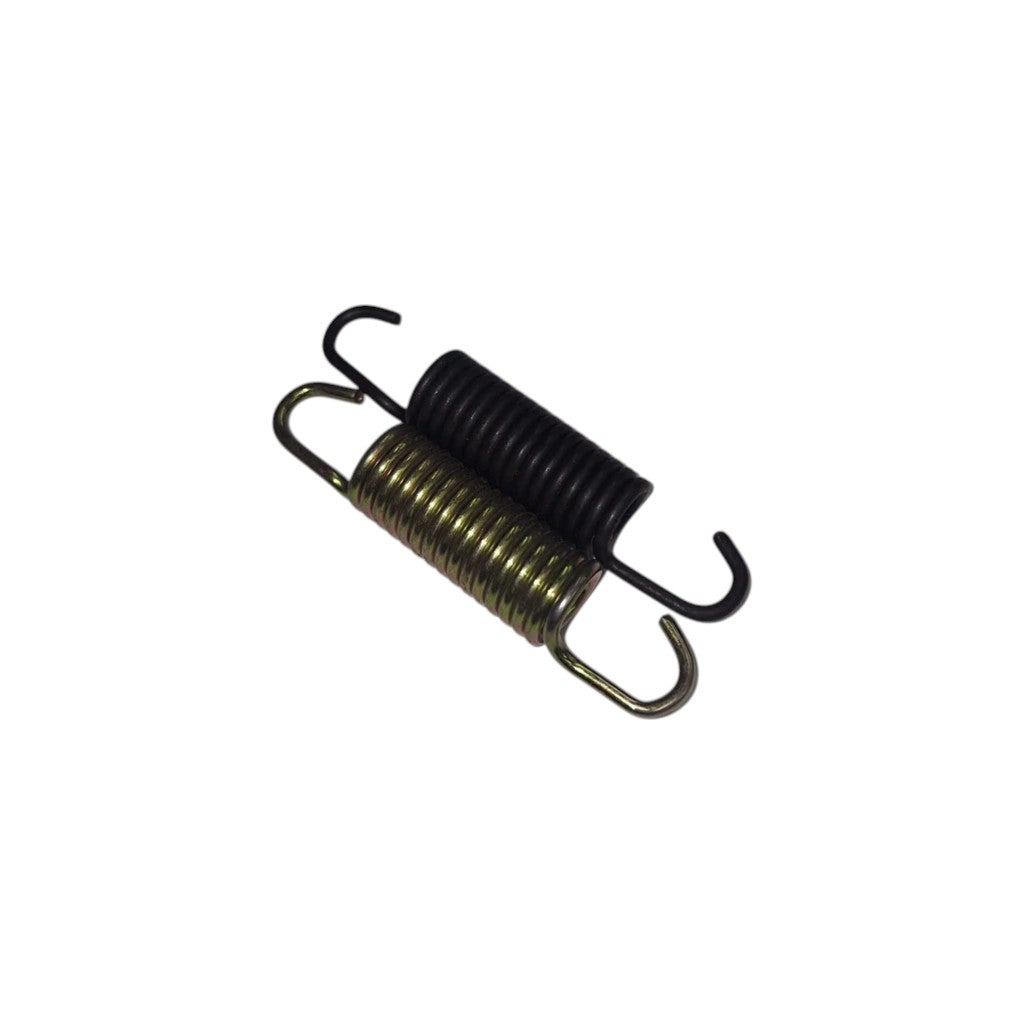

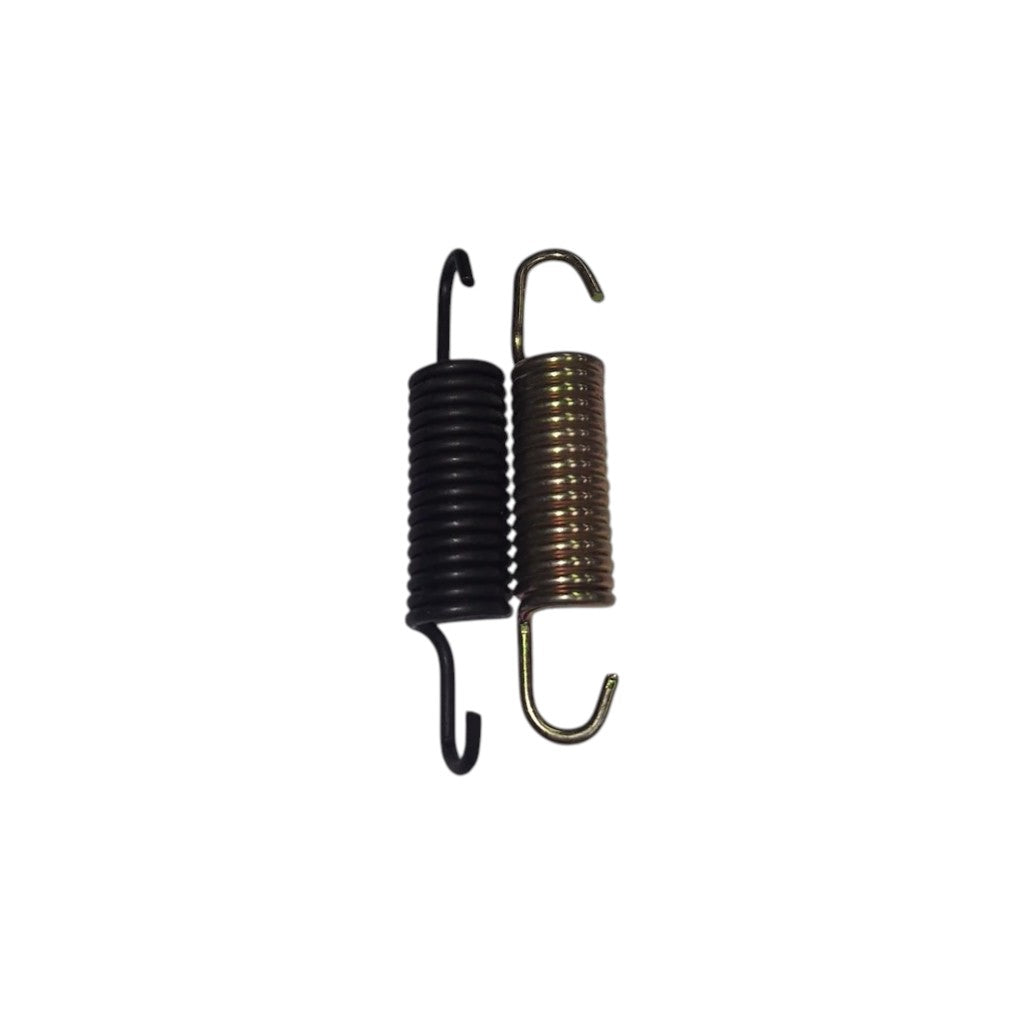

Two color-coded shoe return springs designed to fit Dexter 12-1/4" electric brake assemblies. Includes one gold spring and one black spring. Gold Spring: This is the front (primary) shoe return spring. It connects to the front-facing brake shoe, which typically requires slightly different tension characteristics because it receives less force during forward braking than the trailing shoe. Black Spring: This is the rear (secondary) shoe return spring. It attaches to the rear-facing brake shoe, which bears the brunt of the stopping friction.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number | bp07-225 |
| Brand | Redline |
| Product Type | Brake shoe return spring set |
| Brake Type | Electric drum brake |
| Brake Size | 12-1/4" |
| Quantity Included | 2 shoe return springs |
Fitment / Application
| Category | Details |
|---|---|
| System | Electric trailer drum brakes |
| Primary Fit | Dexter 12-1/4" electric brake assemblies |
| Component Location | Brake shoe return spring positions |
| Fitment Check | Confirm a 12-1/4" Dexter electric brake assembly and compare the spring colors and positions before ordering. |
| Important Note | The gold and black springs serve different tension positions and should not be treated as interchangeable. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Application-Specific Fit | Designed for Dexter 12-1/4" electric brake assemblies. |
| Two-Spring Set | Includes both listed shoe return springs for the brake assembly. |
| Color Coded | Gold and black colors help identify the correct spring positions. |
| Brake Service Part | Provides the return springs needed when servicing a compatible assembly. |
R&P Knowledge Hub
Compatibility: This spring set fits Dexter 12-1/4" electric brake assemblies.
System Fit: Intended for the shoe return spring positions in a compatible electric drum brake assembly.
Why the Colors Matter: Trailer brake assemblies use return springs with different tension requirements. The green spring is generally used for the heavier-duty or primary position, while the black spring is generally used for the secondary position.
Installation Note: Use the original assembly layout and spring positions as the installation reference. Do not assume the gold and black springs are interchangeable.
Features
Fits Dexter 12-1/4" Brakes
Designed for use with compatible Dexter 12-1/4" electric trailer brake assemblies.
Two Return Springs
Includes the two listed shoe return springs needed for the compatible brake assembly.
Color-Coded Identification
One gold spring and one black spring help distinguish the different spring positions.
Different Tension Roles
The two springs support the different tension requirements within the electric brake assembly.
Included Components
| Quantity | Item |
|---|---|

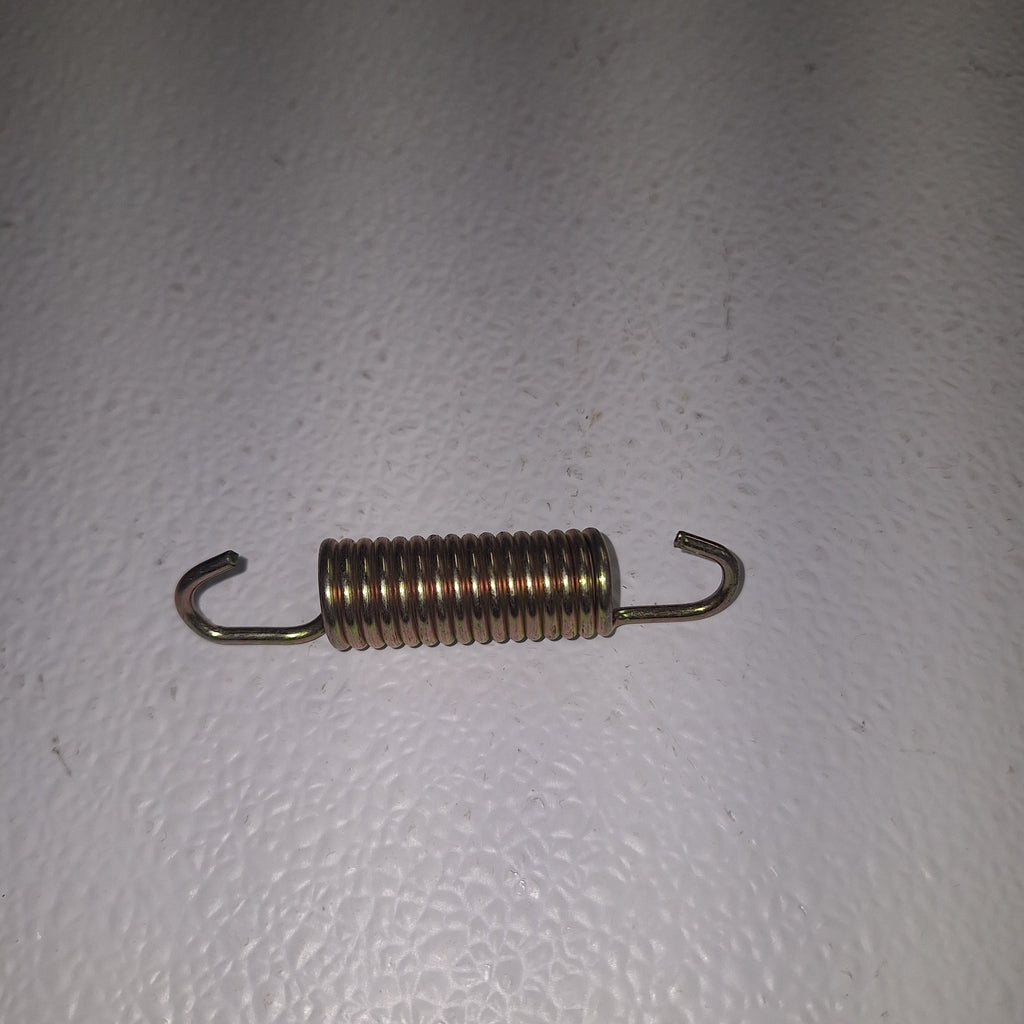

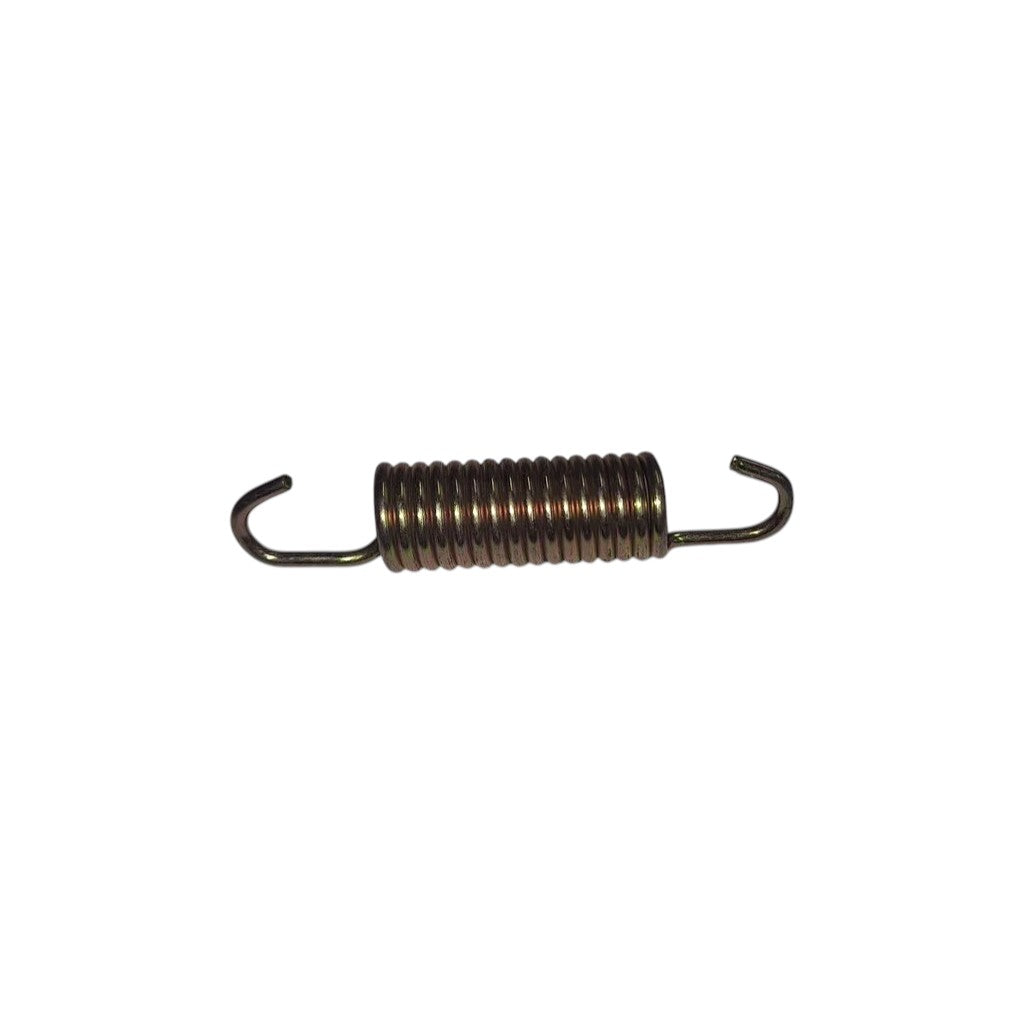

| 1 | Gold shoe return spring |

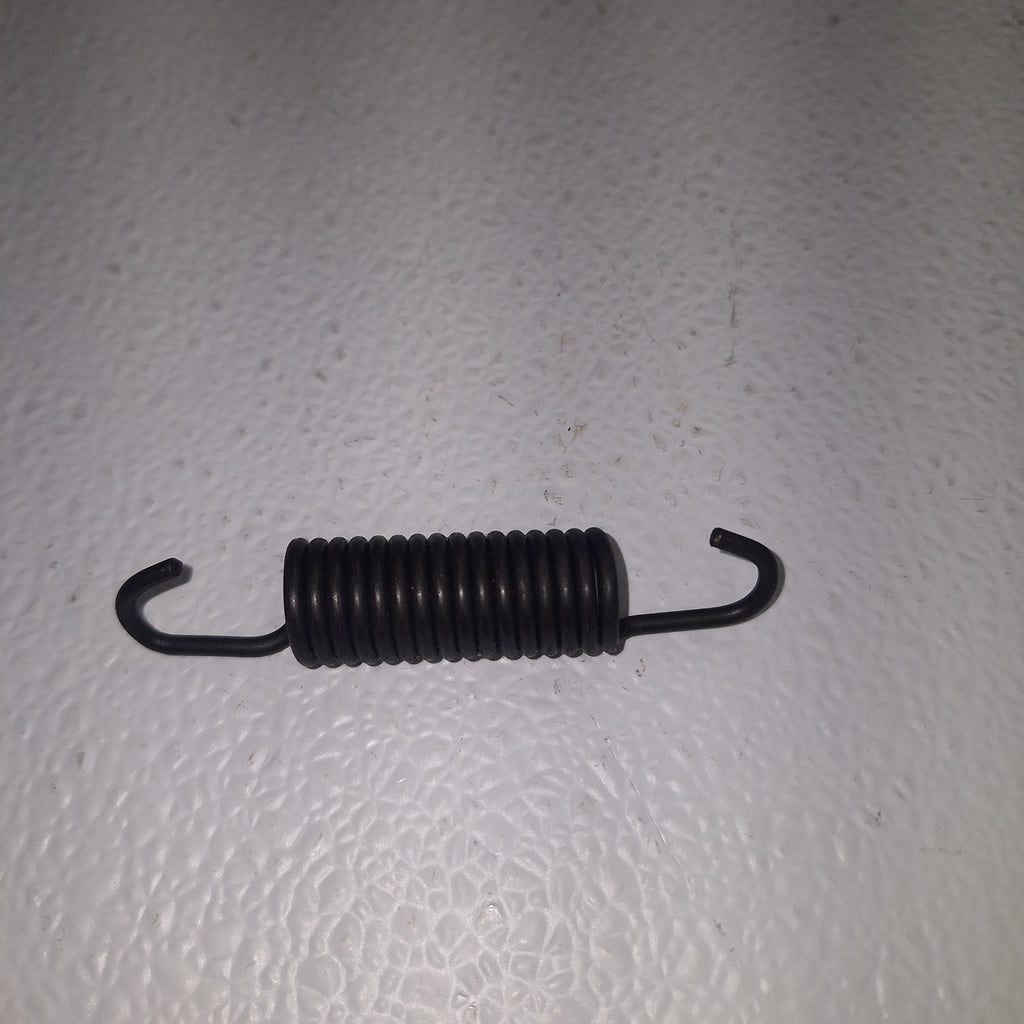

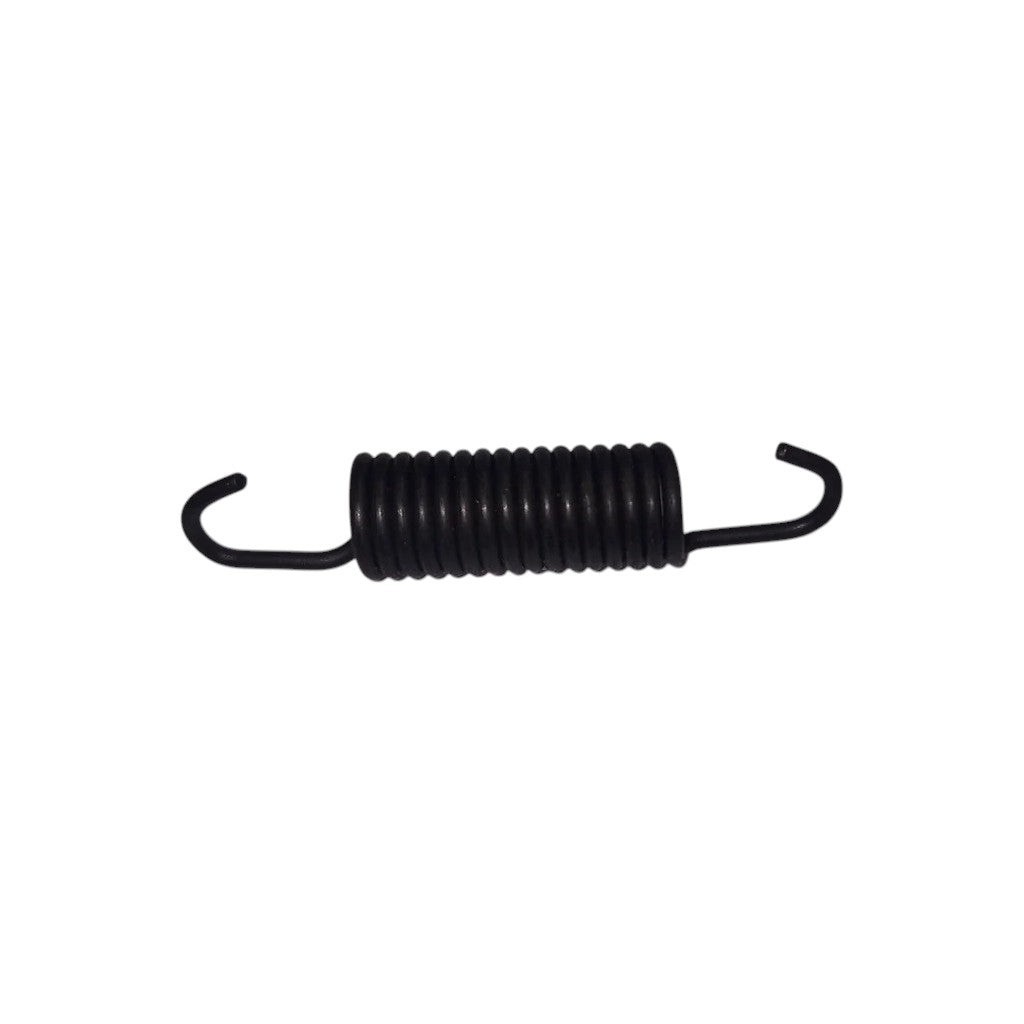

| 1 | Black shoe return spring |
| 2 Total | Shoe return springs |
