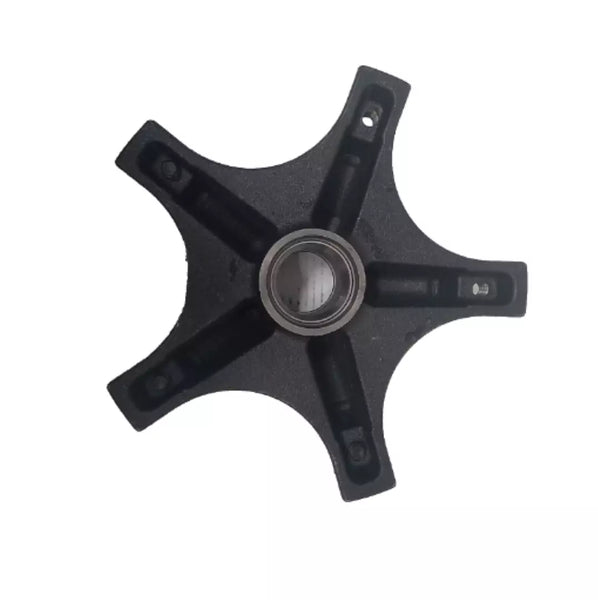

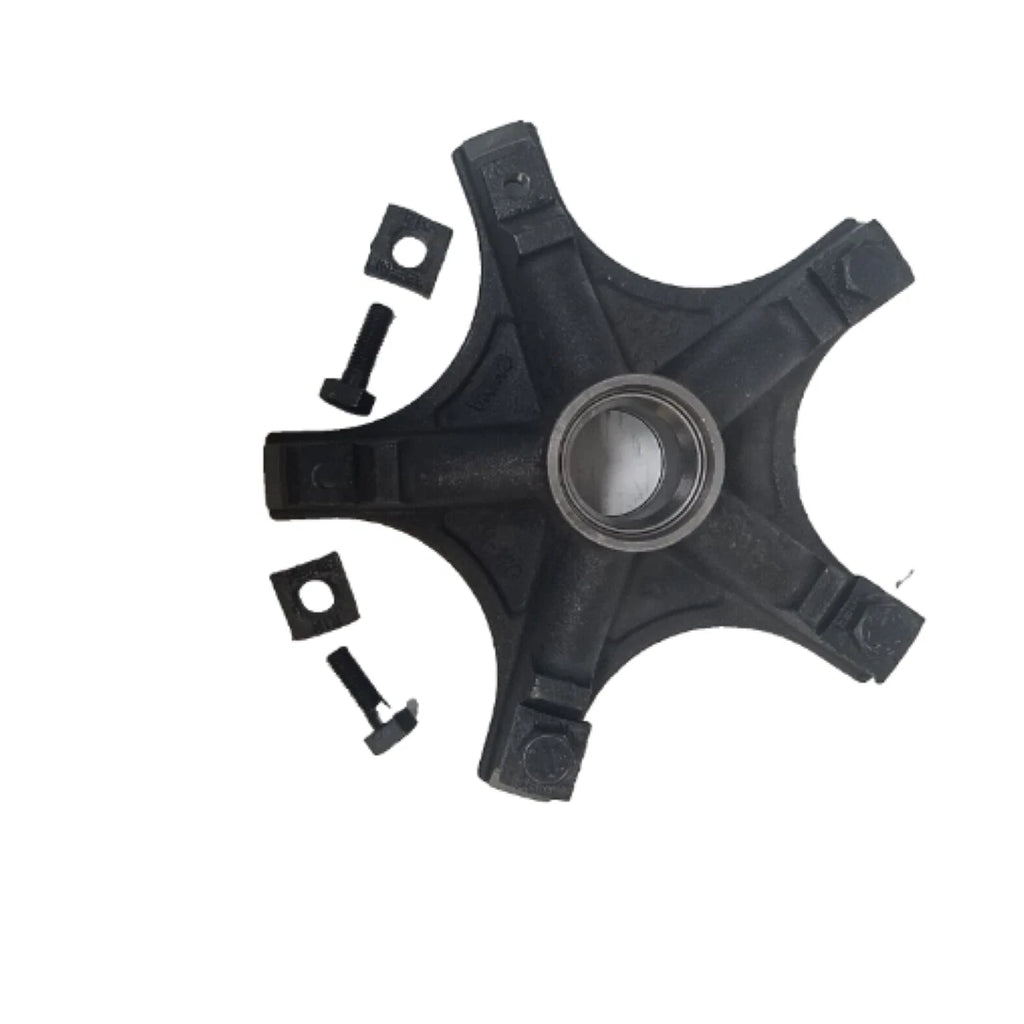

Mobile Home Style Idler Hub – 5 Lug – 14.5" Rim – Cupped
Part Number: MHI-122458-RCB
Replacement mobile home / utility idler hub with bearing cups pressed in.Designed for 5-lug open-center mobile home style wheels and 14.5" rims.Fits Dexter reference 8-261-24.This listing is for one (1) hub only. Bearings, seal, and dust cap are not included.
R&P Knowledge Hub
“Cupped” means the bearing races are installed in the hub.This hub is designed for mobile home / utility trailer applications that use open-center 14.5" wheels.
Before ordering, verify your bearing numbers, seal dimensions, and axle configuration.This hub requires specific bearing and seal combinations listed below and does not include them.
Features
- 5 lug mobile home style idler hub
- Fits 14.5" open-center rims
- Bearing cups (races) pre-installed
- Compatible with Dexter 8-261-24 reference
- Hub only — no bearings, seal, or dust cap included
Specifications
| Specification | Detail |
| Bolt Pattern | 5 Lug (Mobile Home Style) |
| Wheel Type | 14.5" Open Center Rim |
| Inner Bearing Required | L68149 – 1.378" I.D. |
| Outer Bearing Required | LM67048 – 1.25" I.D. |
| Seal Required | 010-040-00 – 1.938" x 2.51" |
| Dust Cap Required | DC-250L – 2.44" |
Verify specifications before installation.
