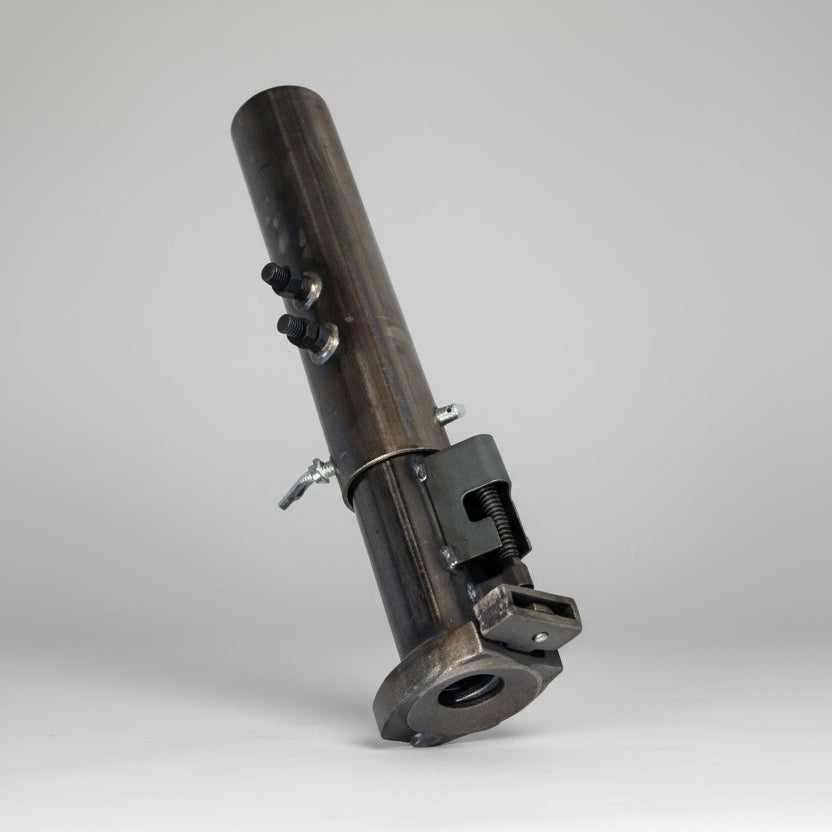

2-5/16" Round Adjustable Gooseneck Coupler — 25,000 lb Capacity
Part Number: GCPN25000
Adjustable round gooseneck coupler designed for use with a 2-5/16" hitch ball. This coupler features a one-piece cast head with an internal curved ball clamp bar and a concealed spring latch mechanism. The adjustable inner tube allows height adjustment to match trailer applications.
Features
- Designed for 2-5/16" gooseneck hitch balls

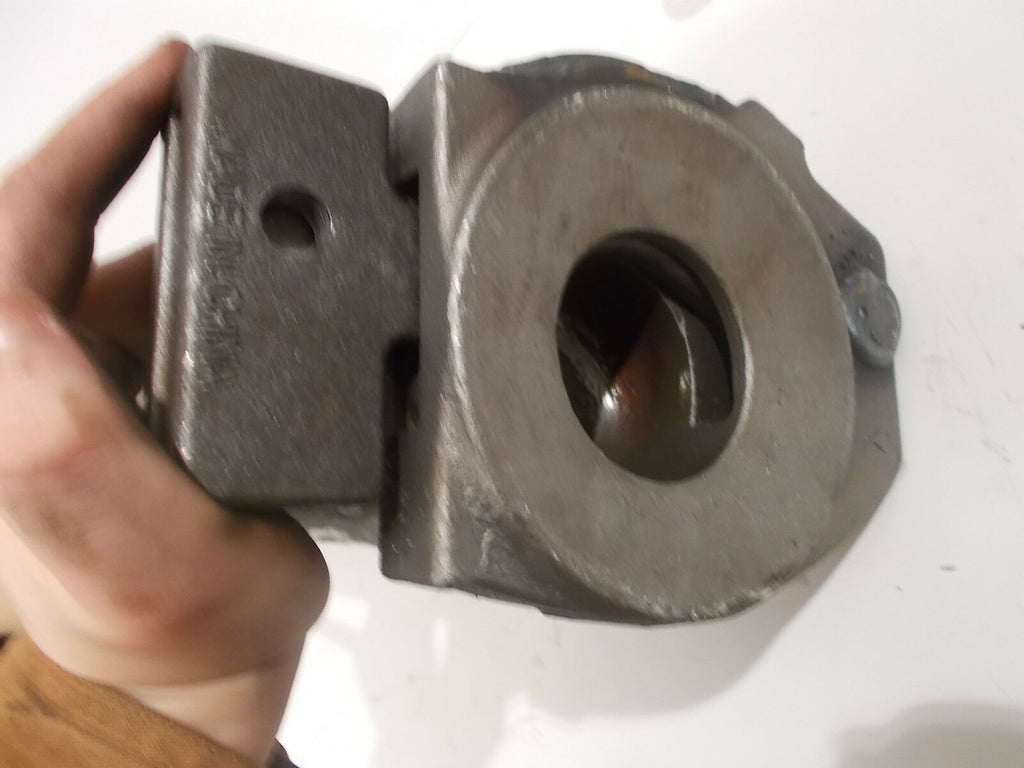

- One-piece cast coupler head
- Curved internal ball clamp bar
- Hidden spring latch mechanism within casting

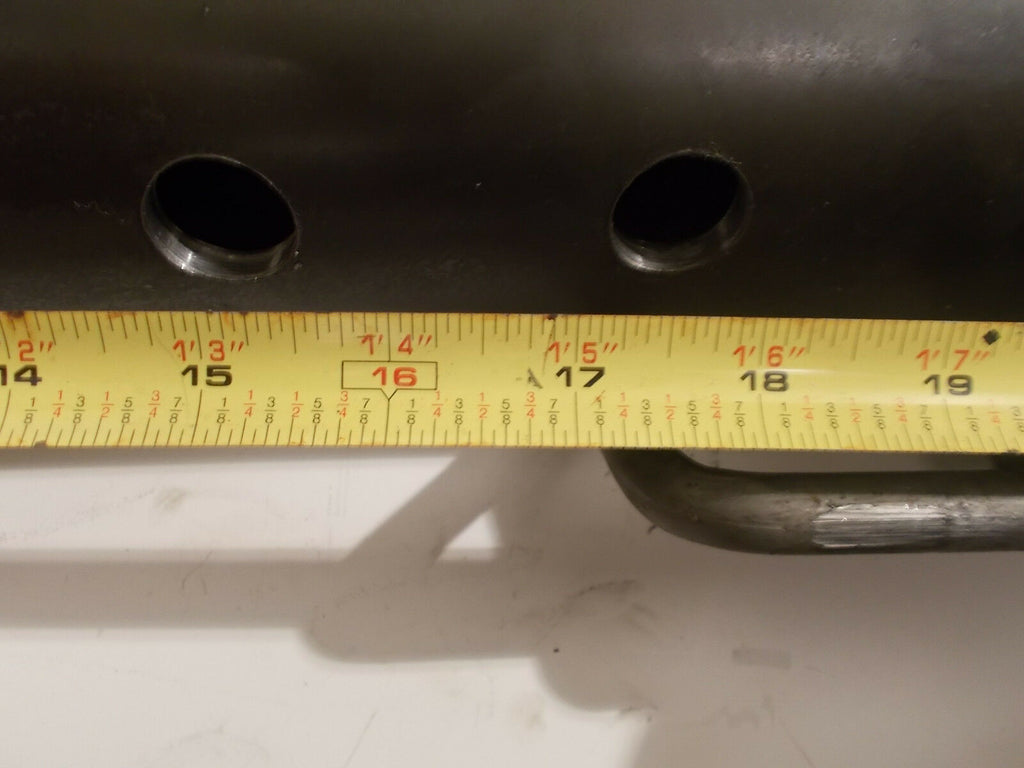

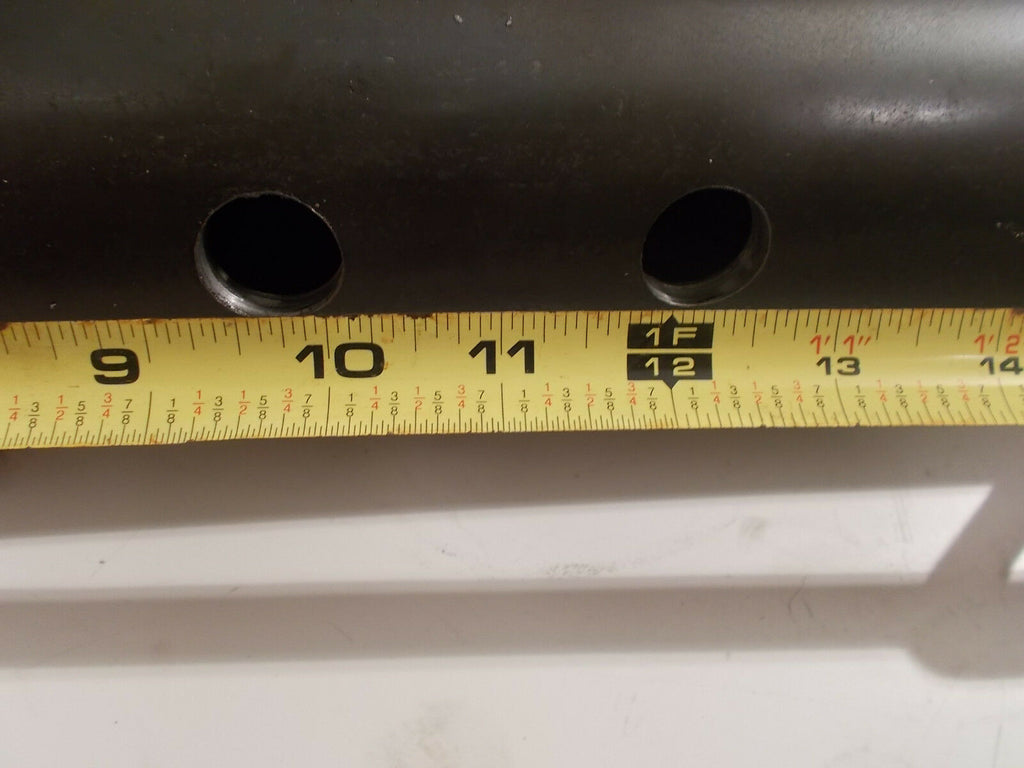

- Adjustable inner tube for height positioning

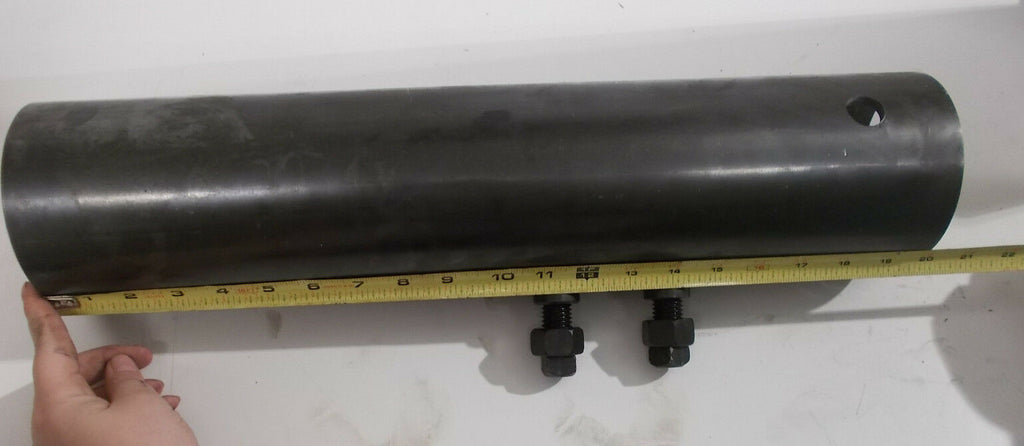

- Outer tube intended for welding to trailer frame

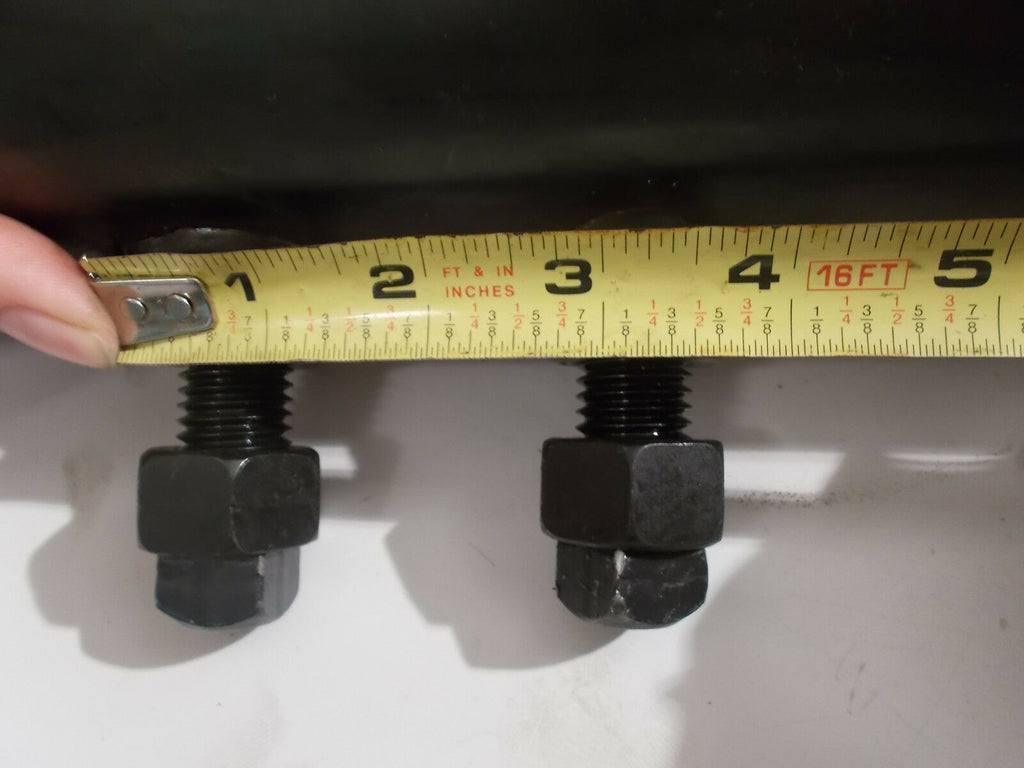

- Includes inner tube, outer tube, set screws, and pins
Specifications
| Ball Size | 2-5/16" |
| Rated Capacity | 25,000 lb |

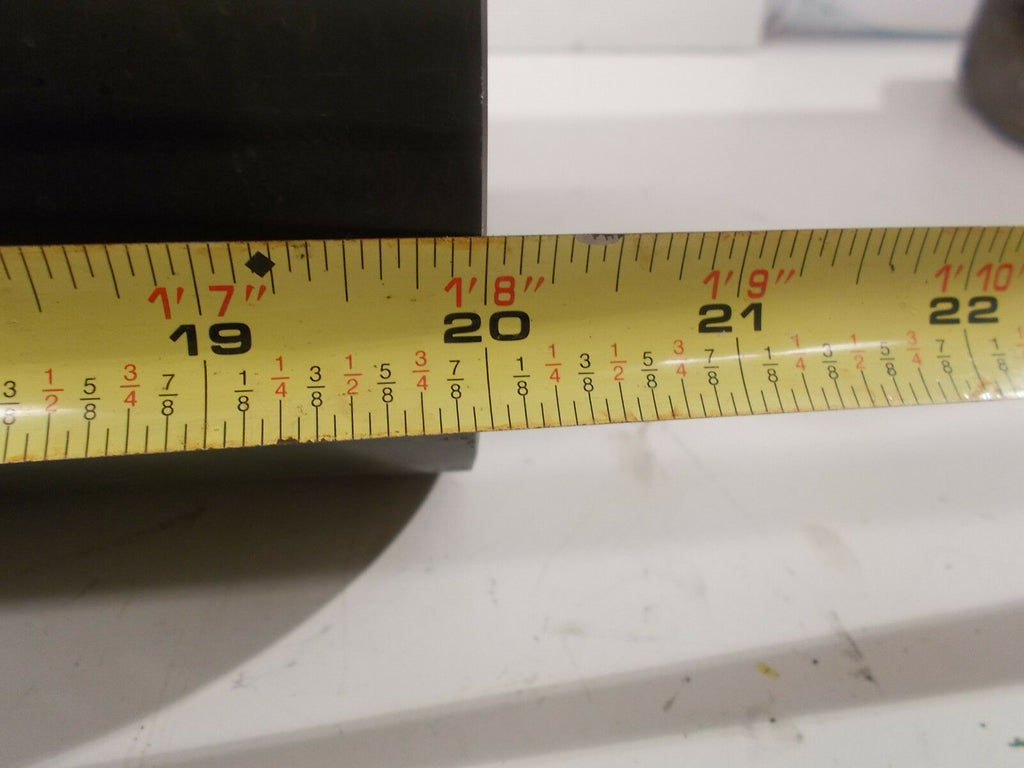

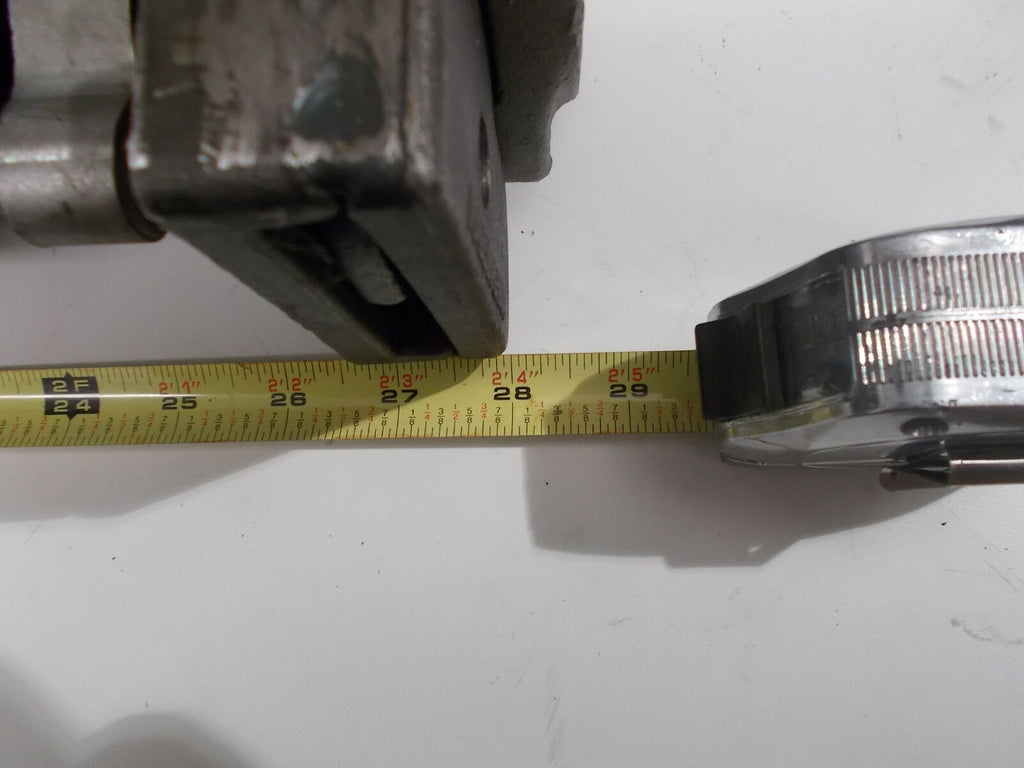

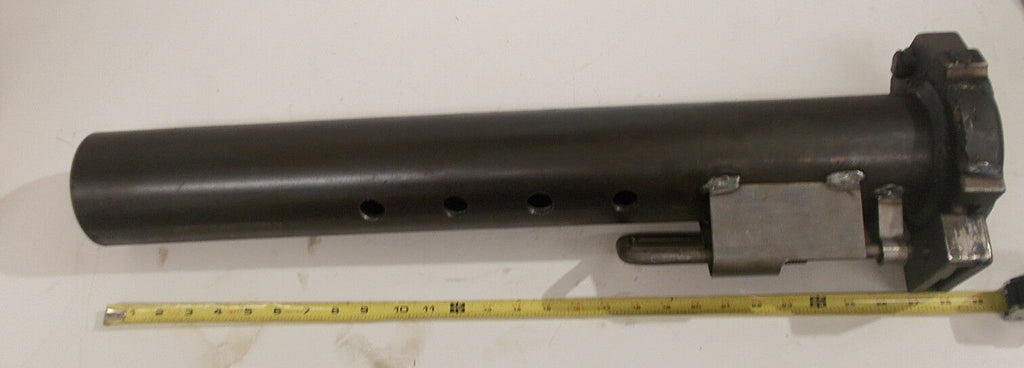

| Length (Unadjusted) | 29-1/2" |
| Length (Fully Adjusted) | 37-1/2" |

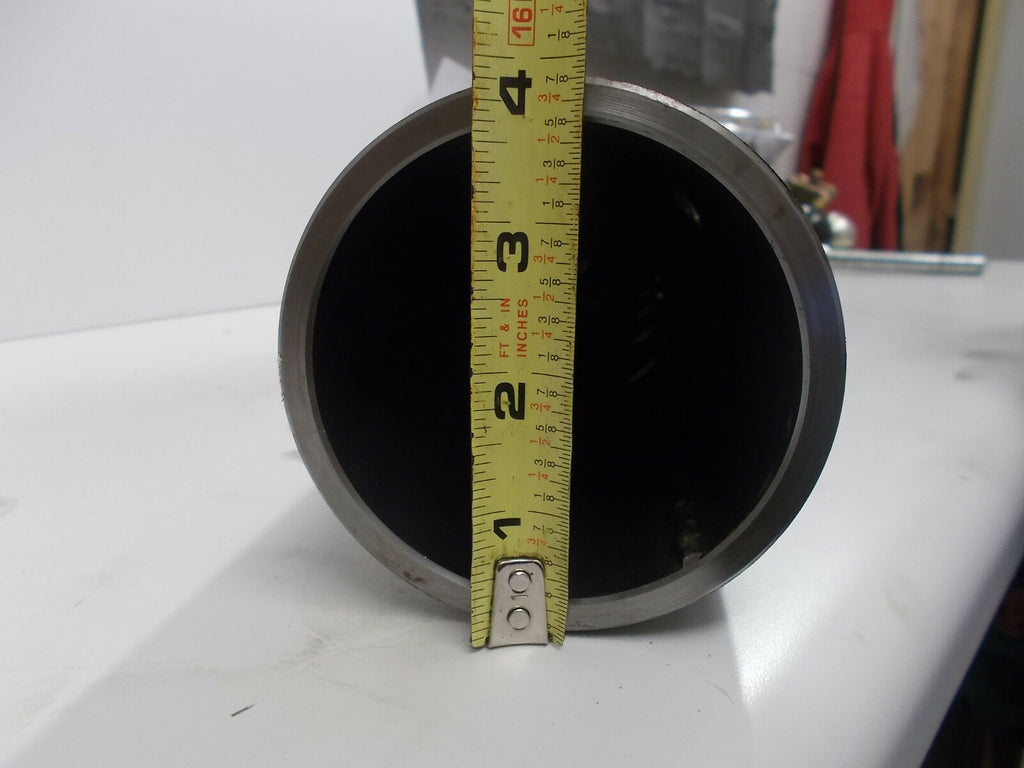

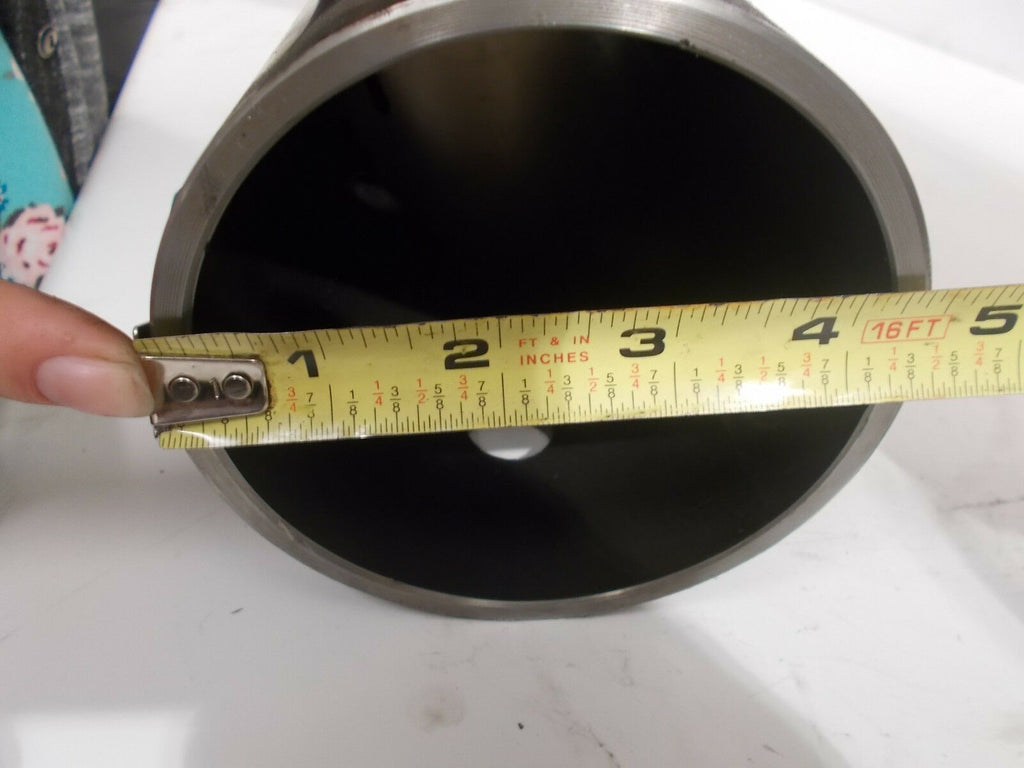

| Outer Tube Diameter | 4-1/2" |

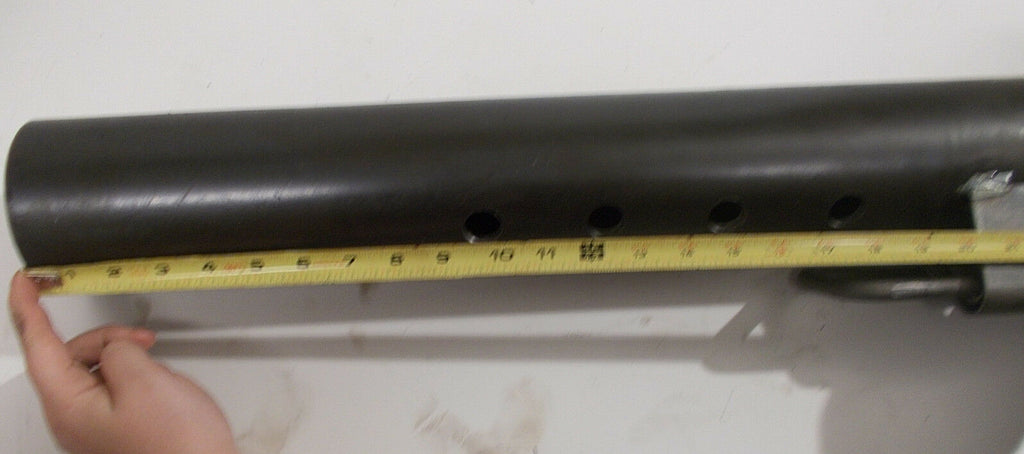

| Inner Tube Diameter | 4" |
Verify trailer tube dimensions, welding requirements, and coupler compatibility before installation.
