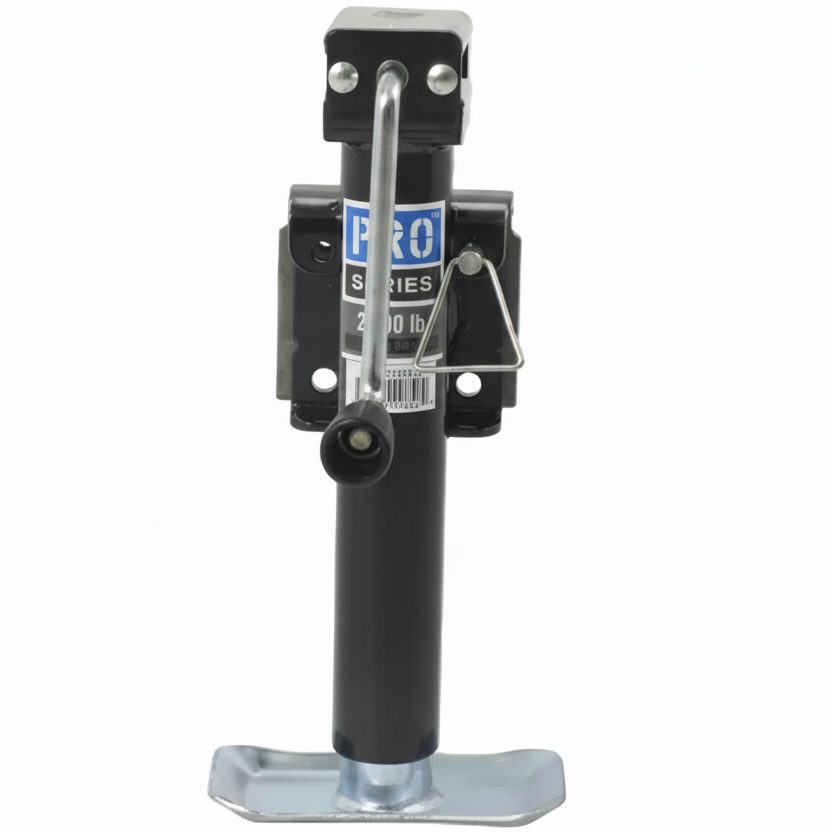

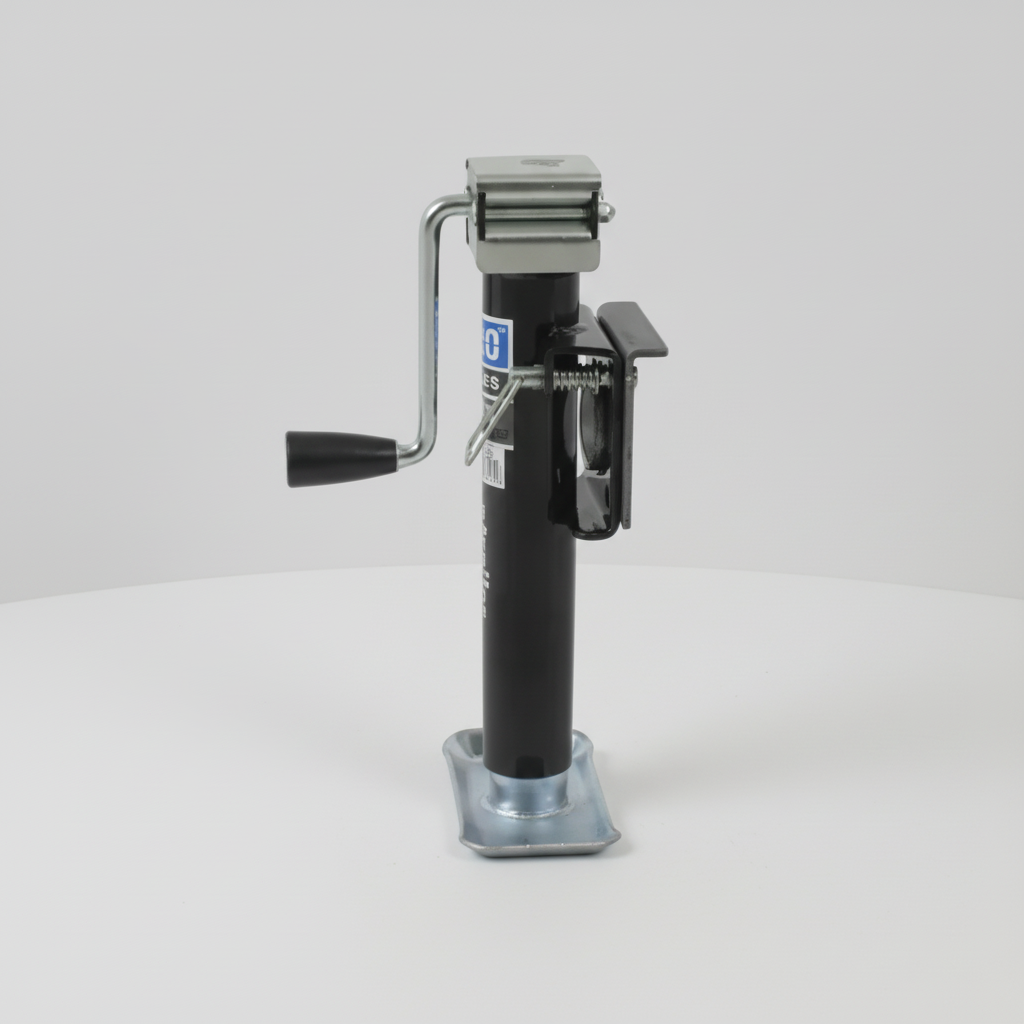

2,000 lb Round Swivel Trailer Jack | 10" Lift Side Mount Sidewind
A heavy-duty 2k capacity swivel jack featuring a weld-on side mount and spring-loaded plunger pin for easy rotation and stowing during transit.
Overview
This R&P Carriages 2,000 lb round swivel jack is a high-quality replacement solution designed for agricultural and commercial utility trailers. It features a convenient weld-on side mount and a plunger pin mechanism that allows the jack to swing parallel to the trailer tongue for travel, making it a smart buy for those needing reliable ground clearance and smooth operation.
R&P Knowledge Hub
Compatibility: Designed for use with straight-tongue utility, commercial, or agricultural trailers where a weld-on application is preferred.
Vehicle / System Fit: Fits standard trailer frames capable of supporting a side-mount weld-on bracket; works best on medium-duty utility trailers.
Installation Notes: Requires professional welding of the L-bend bracket to the frame. Ensure sufficient clearance for the jack to rotate 90 degrees into the stowed position.
Performance Insight: The swivel design significantly increases ground clearance during transit, preventing damage on steep inclines.
Features
Swivel Design
Spring-loaded plunger-pin allows jack to swing up for travel and lock upright for immediate use.
Smooth Operation
Ergonomic sidewind handle and precision internals provide exceptional stability and easy cranking.
Weld-On Ready

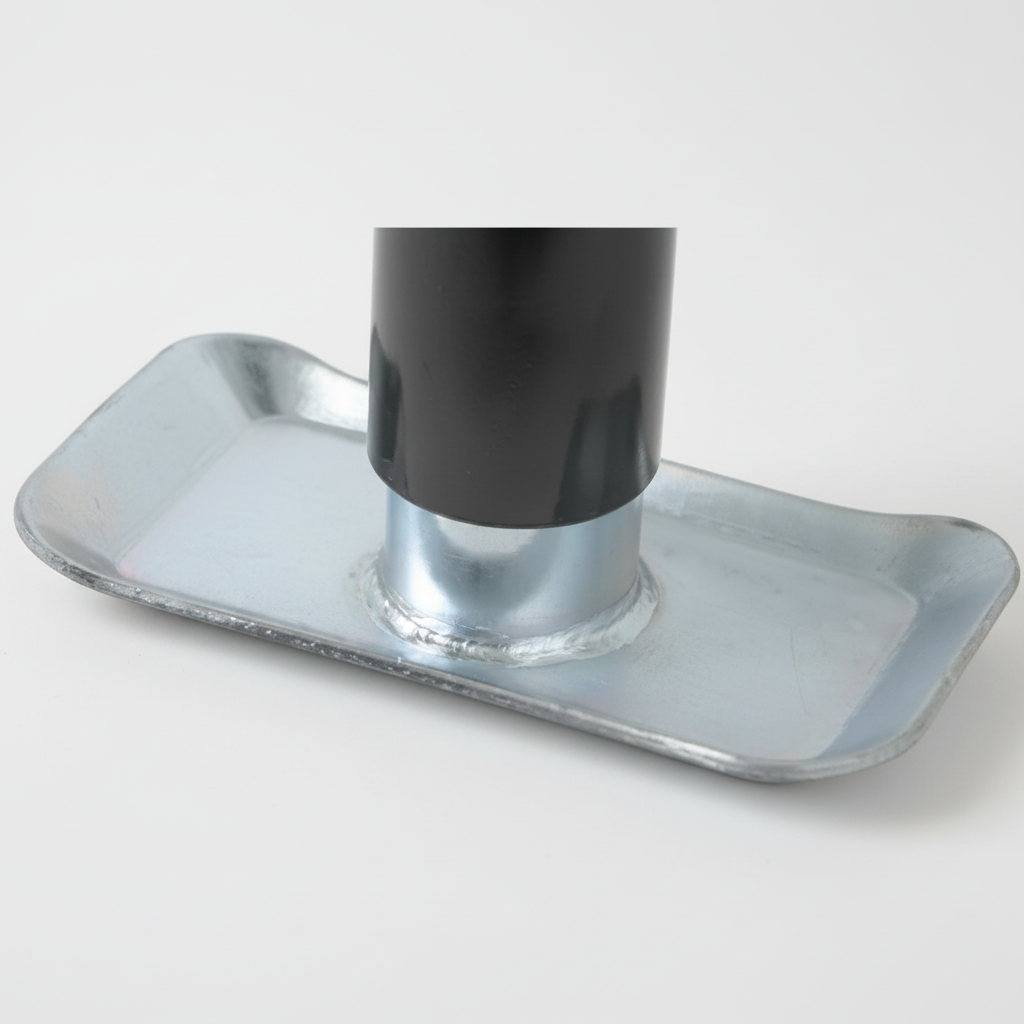

Includes a heavy-duty L-bend mounting bracket and integrated footplate for a permanent, secure installation.
Durable Finish
Black powder-coated outer tube and zinc-plated inner tube offer superior long-term corrosion resistance.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 1401020303 |
| Brand | R&P Carriages |
| Type | Round Swivel Side-Mount |
| Lift Capacity | 2,000 lbs |
| Travel / Lift | 10" Total Lift |
| Tube Diameters | 2" Inner | 2-1/4" Outer |
| Material / Finish | Black Powder (Outer) / Zinc (Inner) |
| Fitment | Weld-on L-bend Bracket |
Fitment / Application
| Category | Details |
|---|---|
| System | Utility, Agricultural, Commercial Trailers |
| Primary Fit | Straight Tongue Frames |
| Bracket Height | 10-3/8" Retracted | 20-3/8" Extended |
| Notes | 6-5/16" Clearance from bracket to top (excluding handle). Professional welding required. |
Included Components
| Quantity | Item |
|---|---|
| 1 | 2k Round Swivel Jack Assembly |
| 1 | Weld-on L-Bend Mounting Bracket |
| 1 | Plunger Pin and Retaining Ring |
| 1 | Integrated Footplate |
