At a Glance
- SKU: SB116
PRODUCT INFORMATION
Product Details
Gooseneck Trailer Coupler

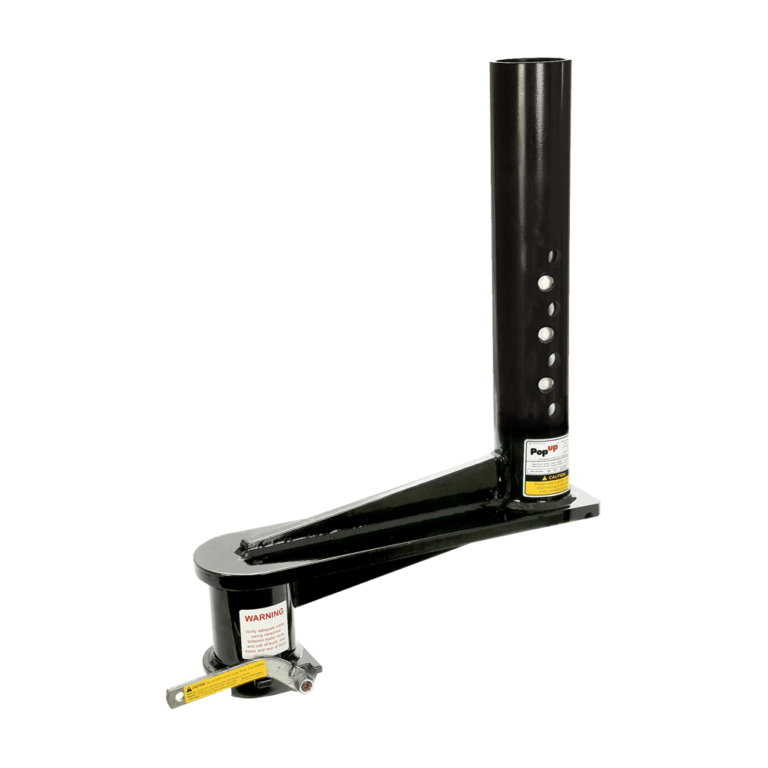

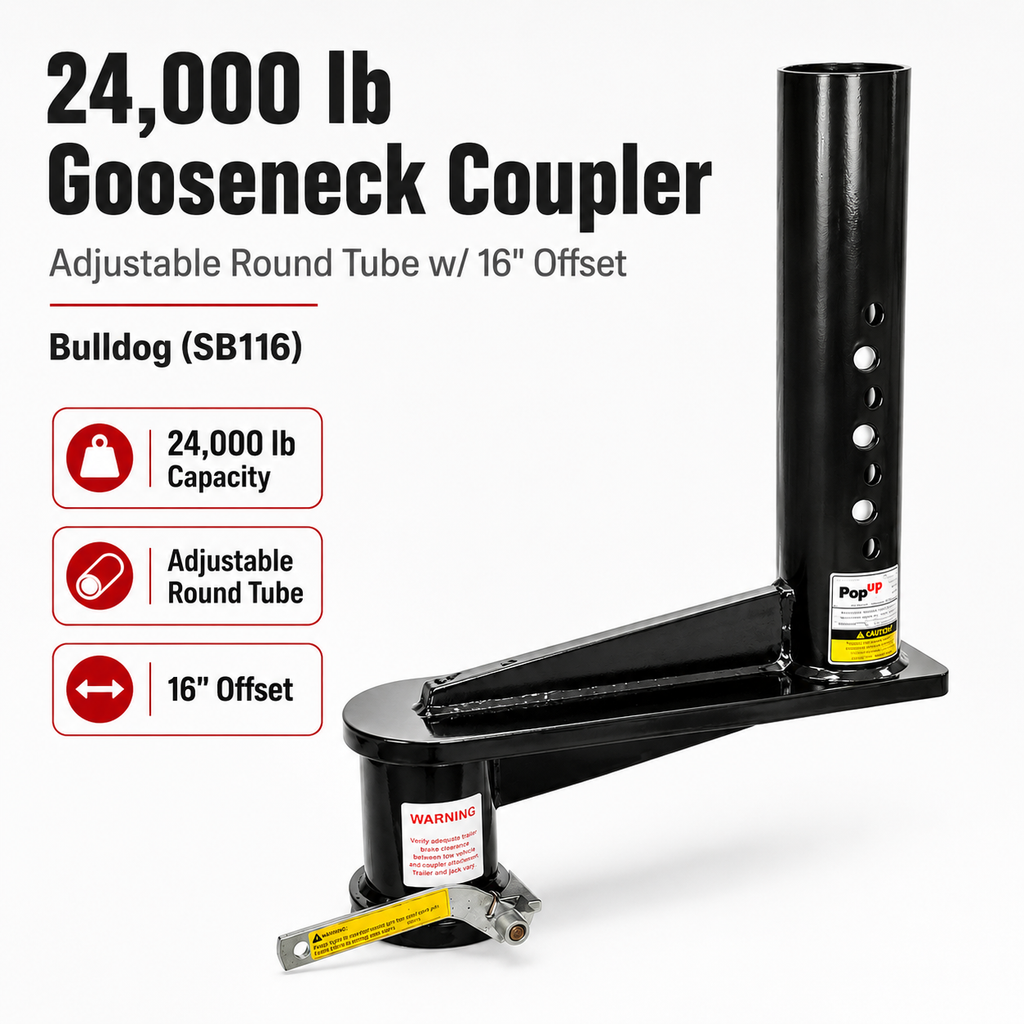

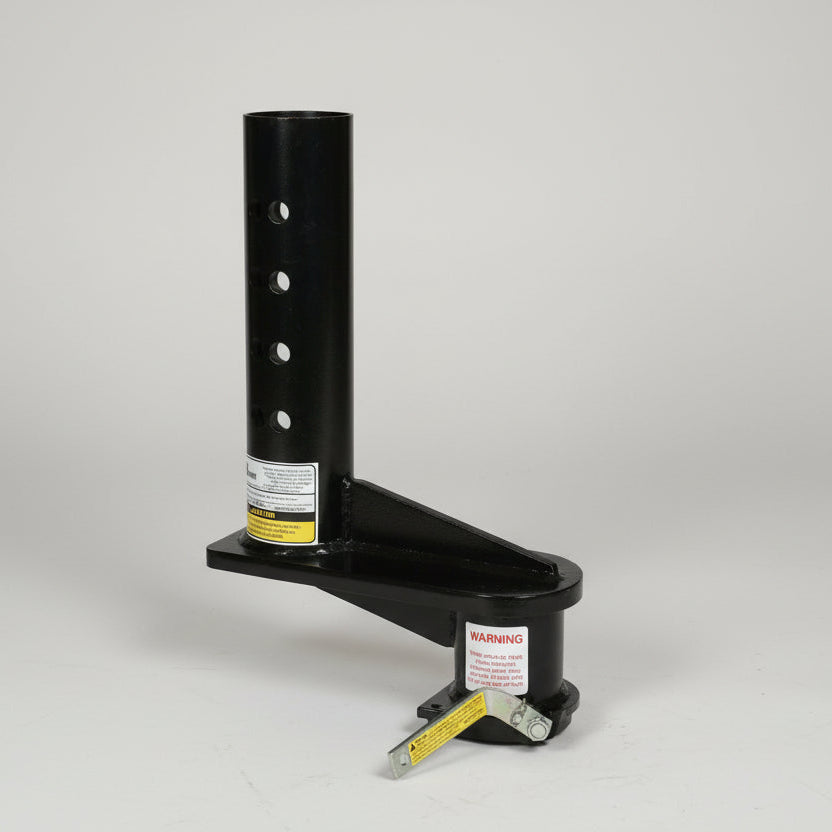

Bulldog 24,000 lb Gooseneck Coupler – Adjustable Trailer Round Tube – 16" Offset
Heavy-duty adjustable gooseneck coupler for trailer applications that require a 2-5/16" gooseneck ball, 24,000 lb capacity, and added clearance from a 16" offset design.
Part Number: SB116 24,000 lb Capacity 16" Offset
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | SB116 |
| Product Type | Adjustable gooseneck trailer coupler |
| Capacity | 24,000 lbs |
| Ball Size | 2-5/16" |
| Tube Style | Round tube |
| Offset | 16" |
| Overall Height | 28-5/8" |
| Finish | Black |
| Quantity Included | 1 coupler assembly |
Fitment / Application
| Category | Details |
|---|---|
| Trailer System | Gooseneck trailer coupler system |
| Primary Fit | Designed for trailers with a compatible 4" ID round tube application |
| Connection | For use with 2-5/16" gooseneck hitch ball |
| Fitment Method | Verify inner tube diameter, coupler style, offset requirement, ball size, trailer clearance, and installed height before ordering |
| Important Note | Do not order by part number alone if your trailer tube size, coupler style, or clearance requirement is unknown |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 24K Capacity | Built for heavy-duty gooseneck trailer applications where the rated coupler capacity must match the trailer setup |
| 16" Offset | Provides additional clearance between the truck and trailer nose compared with a straight coupler setup |
| Adjustable Design | Helps set trailer height for proper towing attitude when matched to the correct trailer tube |
| Round Tube Fitment | Made for compatible round tube gooseneck trailer applications; verify tube size before installation |
Overview
The SB116 is a heavy-duty adjustable gooseneck coupler with a 24,000 lb rating, 16" offset, round tube configuration, and 2-5/16" ball application. The offset design is commonly used where additional truck cab, tailgate, bed rail, or trailer nose clearance is needed. Always verify trailer tube size, installed height, and clearance requirements before ordering.
R&P Service Insight
Gooseneck coupler fitment depends on more than weight rating. Tube diameter, coupler style, offset, installed height, ball size, and trailer clearance all need to match the trailer and tow vehicle setup.
- Tube Check: Confirm your trailer accepts a compatible 4" ID round tube coupler before ordering.
- Clearance Check: Offset couplers can help with clearance, but the trailer nose and tow vehicle bed still need to be measured.
- Capacity Check: Coupler capacity must be appropriate for the trailer’s rated towing requirements.
R&P Knowledge Hub
Compatibility: Verify the receiving tube style and size before ordering. This coupler is listed for compatible 4" ID round tube applications.
Vehicle / System Fit: Used on gooseneck trailer coupler systems with a 2-5/16" hitch ball connection.

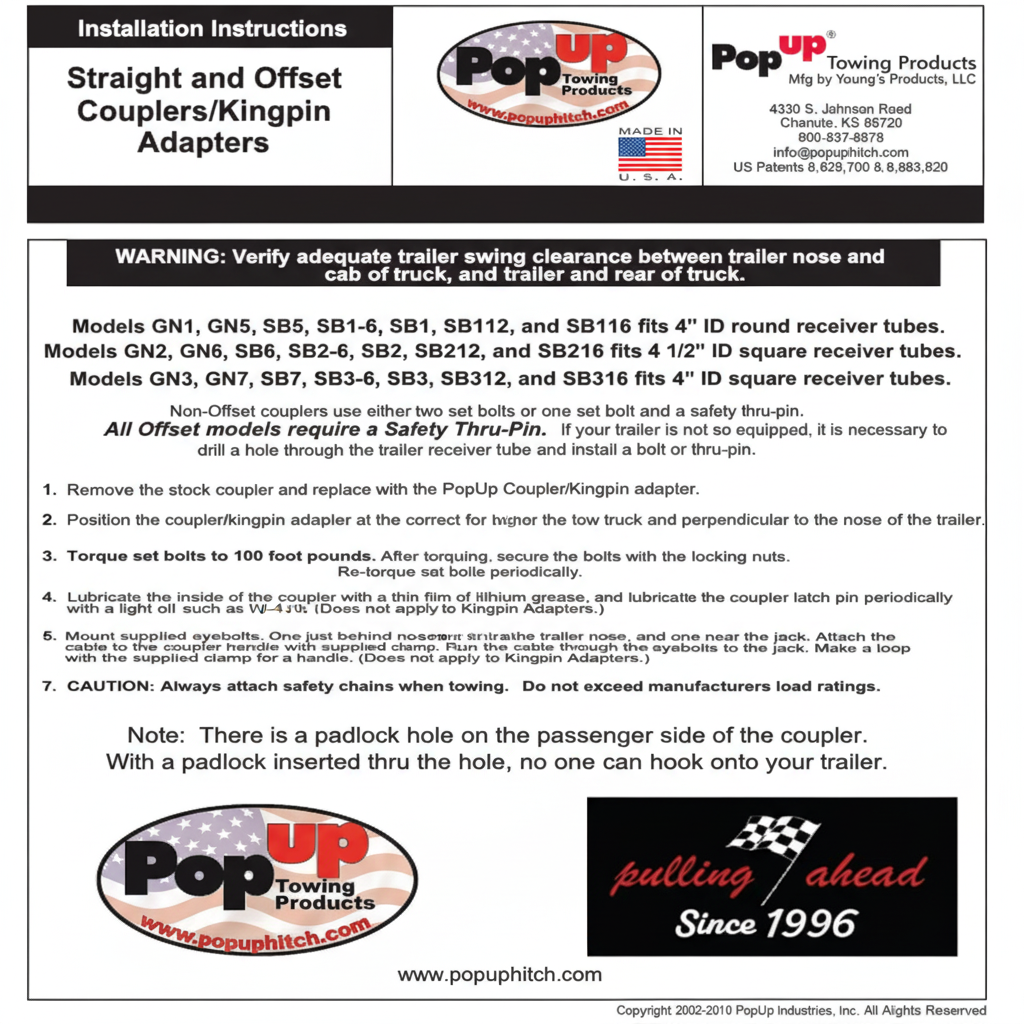

Installation Notes: Confirm installed height, pin or adjustment hardware requirements, coupler engagement, and clearance around the truck bed and trailer nose before towing.
Performance Insight: The 16" offset design is intended to create additional working clearance compared with a straight coupler, especially on setups where truck-to-trailer spacing is tight.
Brand & Fitment Note
Selling Brand: Verify before ordering. SB116 is commonly listed as a 16" offset gooseneck coupler application; brand references may vary by supplier listing.
Application Reference: Brand or platform names should be treated as application references unless the product label, packaging, or manufacturer documentation confirms otherwise.
What This Means: This listing is for one SB116 adjustable gooseneck coupler assembly, not a guaranteed OEM-branded item unless specifically stated and verified on the product received.
Before Ordering: Verify capacity, ball size, offset, receiving tube size, coupler style, installed height, hardware requirements, and trailer clearance before installation.
R&P Repair Insight
When replacing a gooseneck coupler, compare the old coupler against the new one before removing or modifying any trailer components. A mismatch in tube diameter, height range, or offset can prevent proper installation or safe towing.
- Measure First: Measure the trailer’s receiving tube and confirm round tube compatibility.
- Check Offset Need: Confirm that a 16" offset is appropriate for your truck and trailer combination.
- Inspect Hardware: Verify adjustment hardware, pins, bolts, and coupler engagement before use.
Features
24,000 lb Rated Coupler
Designed for heavy-duty gooseneck trailer applications where a 24K coupler rating is required.
16" Offset Design
Provides additional clearance between the truck and trailer compared with a straight coupler design.
Adjustable Height Setup
Allows coupler height adjustment when matched with the correct trailer tube and installation setup.
Round Tube Application
Built for compatible round tube gooseneck trailer applications. Confirm tube size before ordering.
Included Components
| Quantity | Item |
|---|---|
| 1 | SB116 adjustable gooseneck coupler assembly |
| Verify | Adjustment hardware / release components may vary by supplier packaging. Confirm included parts before installation. |
Important Fitment Note: Verify all measurements, trailer tube size, ball size, capacity requirements, installed height, coupler style, offset clearance, hardware, and included components before installation. Brand references describe application fitment only unless OEM or manufacturer status is specifically verified.
