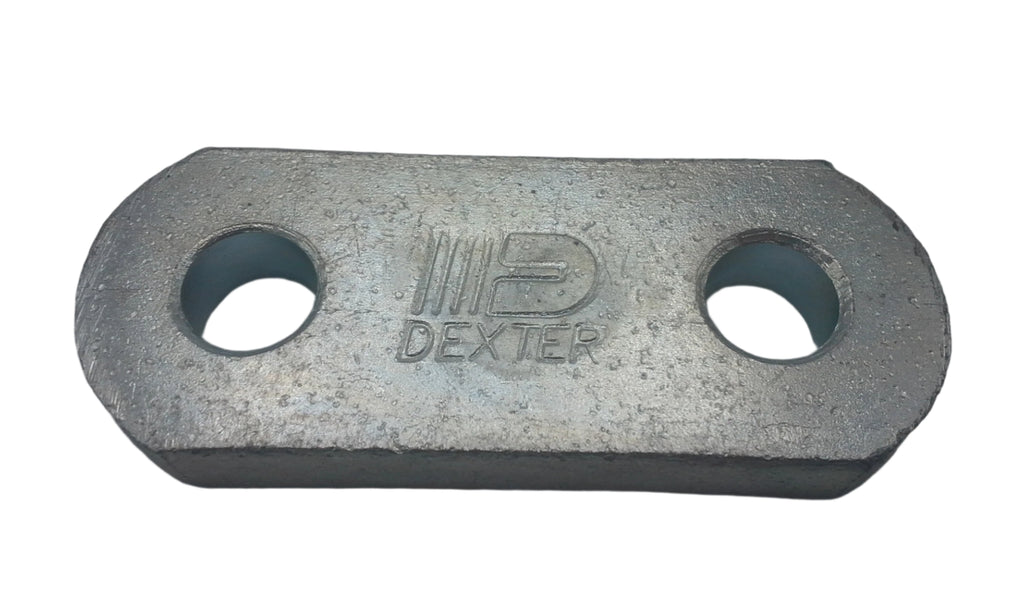

Dexter HD Trailer Shackle Strap – 2.25" Hole Center – 1/2" Reamed – 018-024-01
Part Number: 018-024-01
Heavy-duty shackle strap manufactured by Dexter for trailer leaf spring suspension systems. Designed for HD applications requiring precise 2.25" center-to-center bolt spacing.
Commonly used in tandem and multi-axle trailer suspension assemblies where proper articulation between the spring eye and equalizer is critical.
Features
- Manufactured by Dexter
- Heavy-duty steel construction
- 2.25" hole center to center
- Reamed 1/2" diameter bolt holes
- Designed for HD suspension systems
- Precision-machined for proper bolt fitment
- Quantity: One (1) Shackle Strap
R&P Knowledge Hub
Shackle straps connect the leaf spring eye to the equalizer or hanger bracket,
allowing the suspension to pivot as the trailer travels over uneven surfaces.
Correct center spacing and hole diameter are essential to maintain alignment
and prevent premature wear of bolts and bushings. Reamed holes provide a
tighter tolerance fit compared to punched holes in heavy-duty suspension systems.
Always verify center-to-center measurement, hole diameter, width, and thickness before installation.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 018-024-01 |
| Manufacturer | Dexter |
| Application | Heavy Duty Trailer Suspension |
| Hole Center to Center | 2.25" |
| Hole Diameter | 1/2" (Reamed) |
| Overall Length | 3.69" |
| Width | 1.50" |
| Thickness | 0.50" |
| Material | Steel |
| Quantity | One (1) Strap |
Verify specifications before installation.
