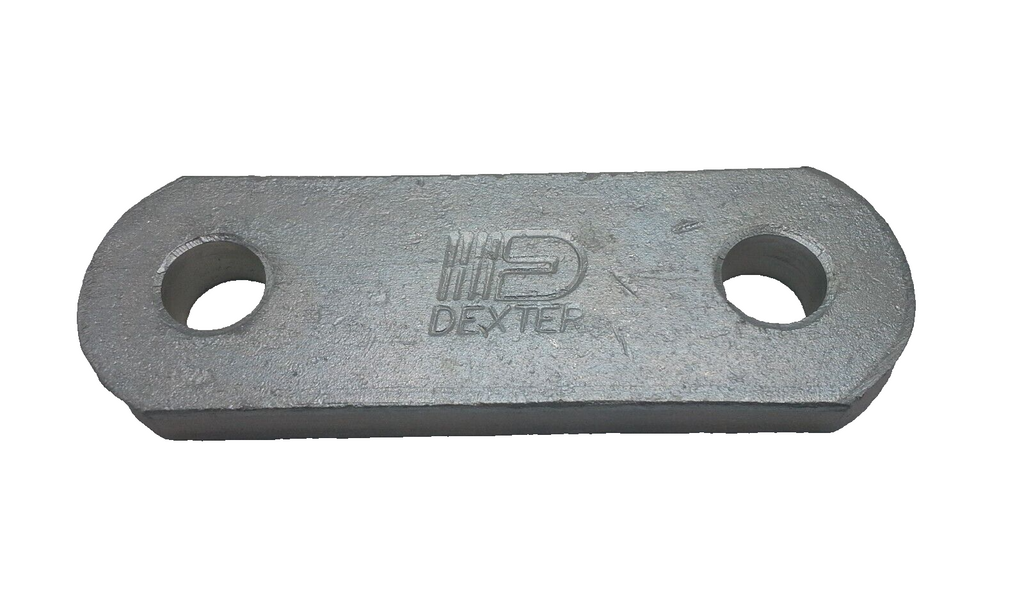

HD Suspension Shackle Strap – 3.13" Center to Center – Reamed 1/2" Holes
Part Number: 018-022-01
Heavy-duty suspension shackle strap used in trailer leaf spring suspension systems. Designed with a 3.13" center-to-center hole spacing and reamed 1/2" bolt holes for precise bolt fitment.
This listing is for one (1) shackle strap.
R&P Knowledge Hub
Shackle straps connect the leaf spring eye to the equalizer in tandem axle suspension systems. Proper center-to-center measurement is critical to maintain correct suspension geometry and axle alignment.
Reamed bolt holes provide a tighter, more precise fit compared to punched holes, reducing movement and wear in heavy-duty suspension applications. Always verify hole spacing and bolt diameter before installation.
Features
- 3.13" hole center-to-center spacing
- Reamed 1/2" diameter bolt holes
- Heavy-duty suspension application
- Precision hole alignment
- Steel construction
- Sold individually
Specifications
| Specification | Detail |
| Part Number | 018-022-01 |
| Hole Center to Center | 3.13" |
| Hole Diameter | 1/2" (Reamed) |
| Overall Length | 4.6" |
| Width | 1.50" |
| Thickness | 0.50" |
| Application | Heavy-Duty Trailer Suspension |
| Quantity | One (1) Strap |
Verify hole spacing and bolt diameter before installation.
