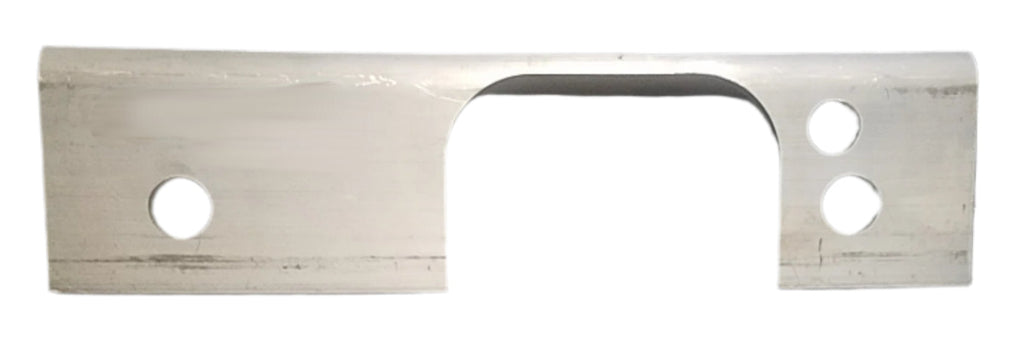

Dexter #10 Torflex Side Mount Bracket Hanger – Aluminum – Left Hand
Aluminum left-hand side mount bracket hanger designed for Dexter #10 Torflex torsion axle installations. This bracket attaches the torsion axle assembly to the trailer frame and maintains proper mounting geometry for correct ride height and alignment.
Constructed from aluminum to reduce overall weight while maintaining structural support for side-mount torsion configurations.
Features
- Compatible with Dexter #10 Torflex torsion axles
- Left-hand orientation
- Aluminum construction
- Side-mount frame installation
- Pre-drilled mounting holes
Specifications
| Specification | Detail |
| Axle Compatibility | Dexter #10 Torflex |
| Orientation | Left Hand |
| Material | Aluminum |
| Overall Length | 11" |
| Mounting Face Dimensions | 3" x 2.25" |
| Bolt Hole Diameter | 5/8" |
| Bolt Hole Spacing | 8" Center-to-Center |
R&P Knowledge Hub
Side-mount torsion hangers are structural frame components that support and position torsion axles. Proper bracket selection ensures correct axle alignment, camber orientation, and load distribution.
Left-hand orientation refers to the driver side of the trailer when facing forward. Confirm axle series, side orientation, bolt diameter, and hole spacing before installation.
IMPORTANT: Verify compatibility with Dexter #10 Torflex torsion axles and confirm left-hand orientation prior to installation.
