6" Oval Red LED Stop, Tail & Turn Lights — Set of 6
Part Number: J-66-RK-LOTOF6
This listing includes six super bright 6" oval red LED lights designed for stop, tail, and turn signal functions. Each light is supplied with a standard three-pin plug and rubber grommet, allowing direct replacement of common sealed-beam 6" oval trailer lights.
Features

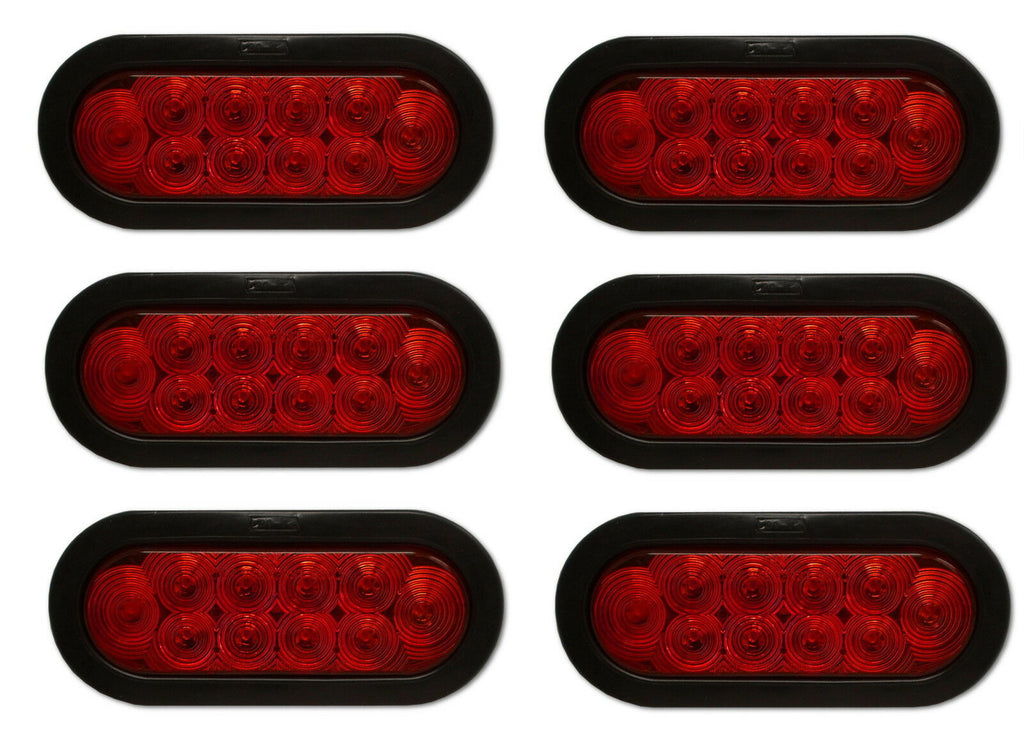

- Six 6" oval red LED lights (three pairs)
- Stop, tail, and turn signal functions

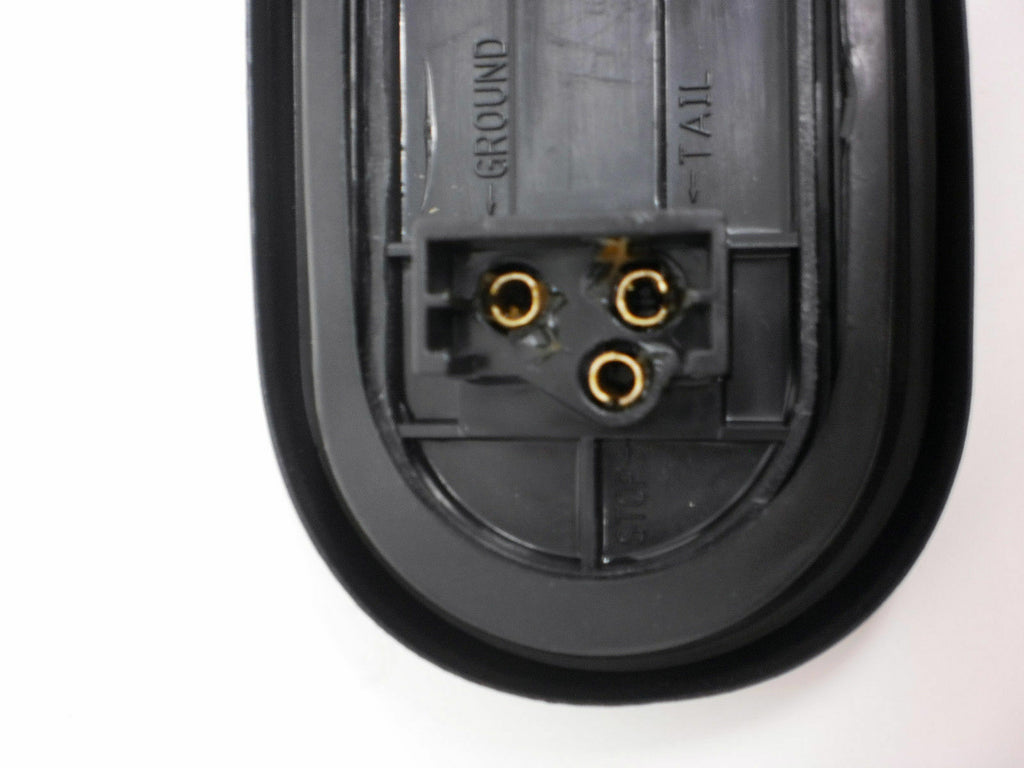

- Standard three-pin rear connector

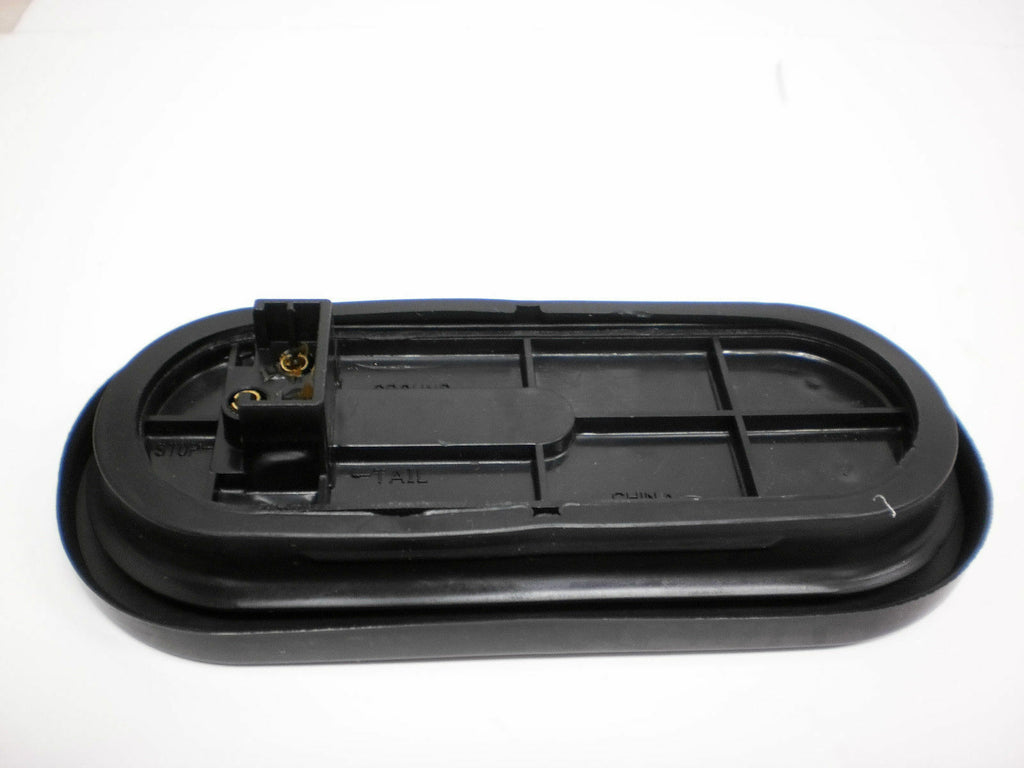

- Includes rubber grommet and wire plug for each light
- Operates on 9–16V DC systems
- 10-LED internal configuration
- Sonically sealed polycarbonate housing
- Impact-resistant design
- Can be mounted vertically, horizontally, or at 45°
Specifications
| Lens Color | Red |
| Light Size | 6" oval |
| Overall Dimensions | 6.50" L × 2.20" W × 1.00" D |
| Operating Voltage | 9–16 V DC |
| Current Draw | Approximately 250 mA |
| Service Life | Up to 100,000 hours (as provided) |
| Mounting Opening | 2-1/2" × 6-3/4" oval cutout |
Verify mounting opening size, wiring configuration, and vehicle requirements before installation.
