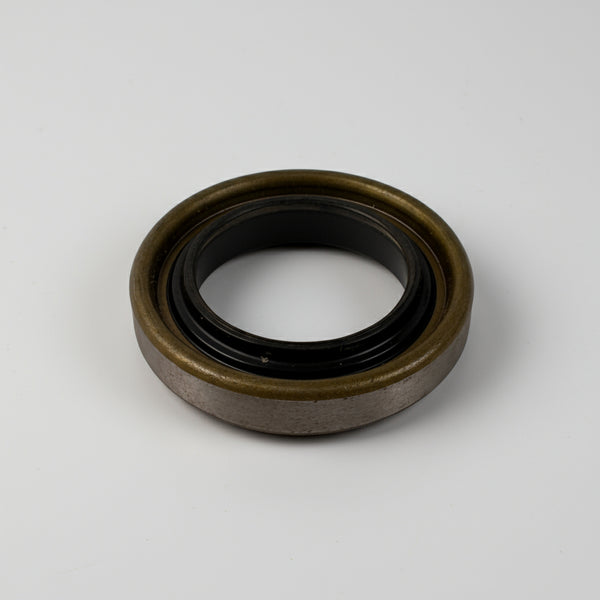

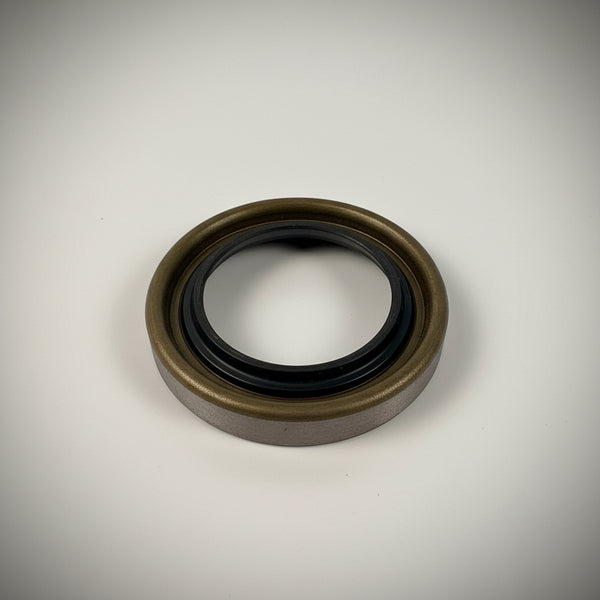

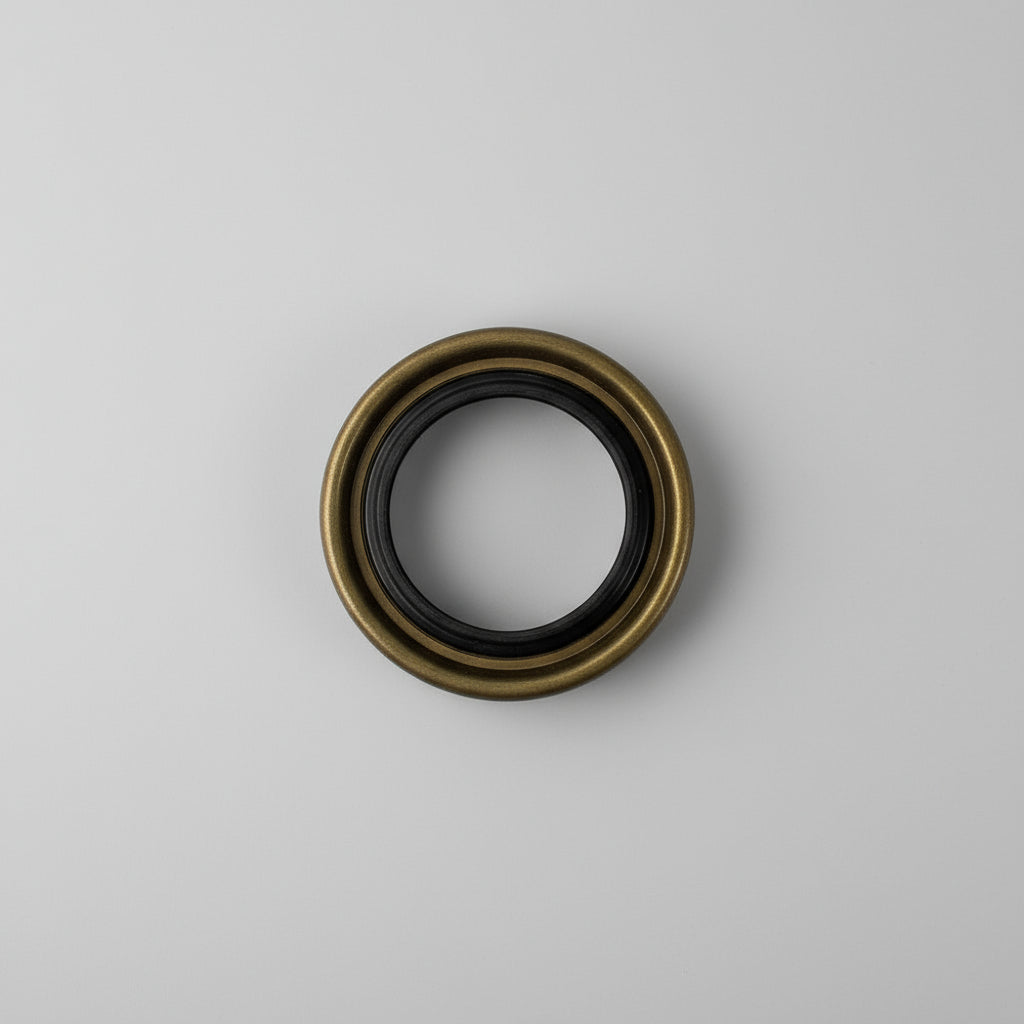

Dichtomatik Rotary Shaft Oil Seal – 1.500" ID x 2.328" OD x 0.390" Width
Part Number: 15233VHY
This listing is for a Dichtomatik rotary shaft oil seal used to retain lubrication and protect rotating shafts and bearing assemblies from contamination. Oil seals are commonly installed in hubs, gearboxes, and mechanical assemblies where rotating shafts pass through a housing.
This seal measures 1.500" inside diameter, 2.328" outside diameter, and 0.390" width. It may be used in trailer hub applications as well as other industrial, agricultural, or mechanical equipment requiring this seal size.
Features
- Rotary shaft oil seal
- Helps retain oil or grease within hub assemblies
- Blocks dirt, dust, and moisture contamination
- Common replacement for worn or leaking seals
- Suitable for trailer, agricultural, and industrial applications
R&P Knowledge Hub
Rotary shaft oil seals are designed to retain lubricants while preventing contamination from entering rotating mechanical assemblies. In trailer hubs, seals are installed at the rear of the hub to keep grease inside the bearing cavity while blocking water, dust, and debris from entering. Seal size must match both the shaft diameter and the hub bore to ensure a proper fit and sealing surface. When replacing seals, installers should verify inside diameter, outside diameter, and width to ensure compatibility with the hub assembly.
| Specification | Details |
| Brand | Dichtomatik |
| Part Number | 15233VHY |
| Product Type | Rotary Shaft Oil Seal |
| Inside Diameter (ID) | 1.500" |
| Outside Diameter (OD) | 2.328" |
| Width | 0.390" |
Verify specifications before installation.
