Leaf Spring, Slipper Style, 30" Long, 6 Leaf, 4,500 lb Rated, 2" Wide
Part Number: 072-010-02
Slipper-style leaf spring designed for trailer suspension applications requiring a 30-inch free length, 2-inch wide spring with a six-leaf stack. This spring is commonly used in higher-capacity trailer axle configurations where a slipper (open-end) spring design is specified.
Features
- Slipper-style leaf spring (open rear end)
- Six-leaf construction
- Rated for 4,500 lb capacity per spring
- Designed for use in heavy-duty trailer suspension systems
Specifications
| Spring Type | Slipper |
|---|---|
| Free Length | 30 inches |
| Width | 2 inches |
| Leaf Count | 6 |
| Spring Eye Bolt Size | 5/8" |
| Typical Axle Application | 9,000 lb axle |

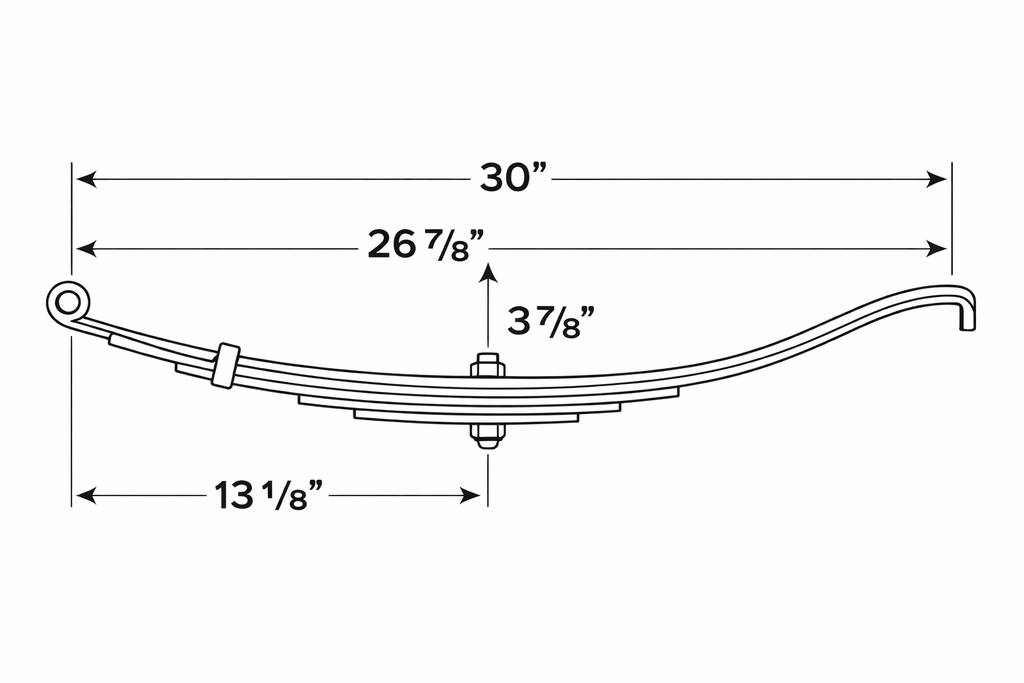

Spring Dimensions:
Dimension A: 30"
Dimension B: 3 7/8"
Dimension C: 13 1/8"
Dimension D: 26 7/8"
Width: 2"
Eye Diameter: 5/8"
Bushing: Rubber
How to Measure a Leaf Spring

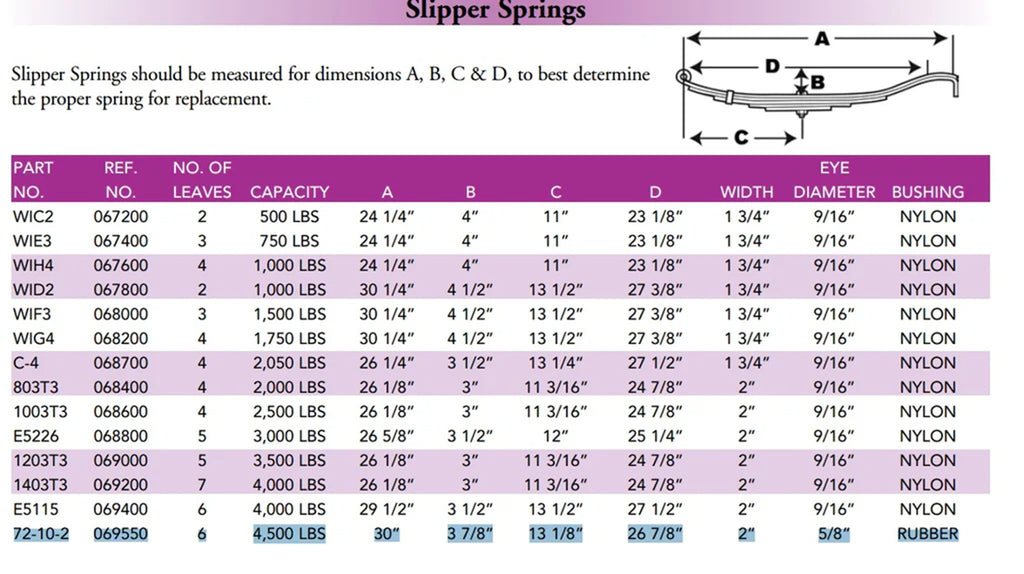

Correct measurement is critical when replacing a leaf spring. Different spring end styles require different measurement methods, as shown in the reference diagram below.
- Double Eye Leaf Springs: Measure from mounting point center to mounting point center.
- Open Eye Leaf Springs: Measure from the mounting point to the furthest inside point of the open eye. Arch height (B) is measured vertically from the spring center to the free length line.
- Slipper / Hook / Flat / Radius End Springs: Measure from the front mounting bolt to the end of the spring.
Free length is measured with the spring unloaded. Installed length may differ once mounted under vehicle weight.
