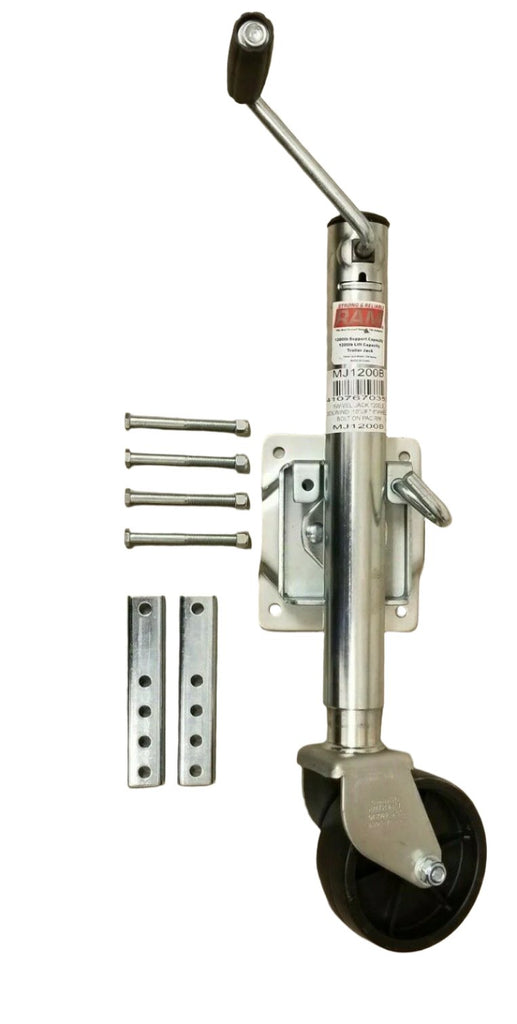

RAM 1200# Sidewind Swivel, Flip Up, Jack with Wheel
Part Number: MJ1200B
This Listing Contains:
1x Ram Jack
2x Mounting Plates
4x Mounting Bolts w/Nuts
Specs:
Jack Heights: 12-1/2" Retracted (Measured From Ground to Center of MountingBracket)
23-1/2" Extended (Measured From Ground to Center of Mounting Bracket)
11" Rise
Jack Capacity: 1200lbs
Inner Tube Dia: 1-3/4" Dia
Outer Tube Dia: 2" Dia
Spring Pin for Flip Up Feature: 1/2"
Wheel Size: 5-3/4"Dia x 2" Wide
Handle: 6-1/2"L with 1-1/4" Radius Handle
Mounting Rotatable Bracket: 6-7/8" x 5-3/4" (this plate is rotatable)
Fits Frames: 2", 3", 4", & 5"
4 Mounting Bolts: 4"L (including 2" Threads) x 3/8" Dia x 16 Threads per Inch, Coarse
Nuts: 3/8" Coarse Lock Nut
2 Mounting Plates: 6-1/2"L x 1-1/4"W x 1/2"D
This swivel jack flips up for easy convenience. Caster wheel helps moving trailer easier. Zinc Plated for durability. All Hardware Included. 11" Rise. Rotatable mounting bracket makes this jack work for 2", 3", 4", and 5" Frames. Very Easy Installation!!!
