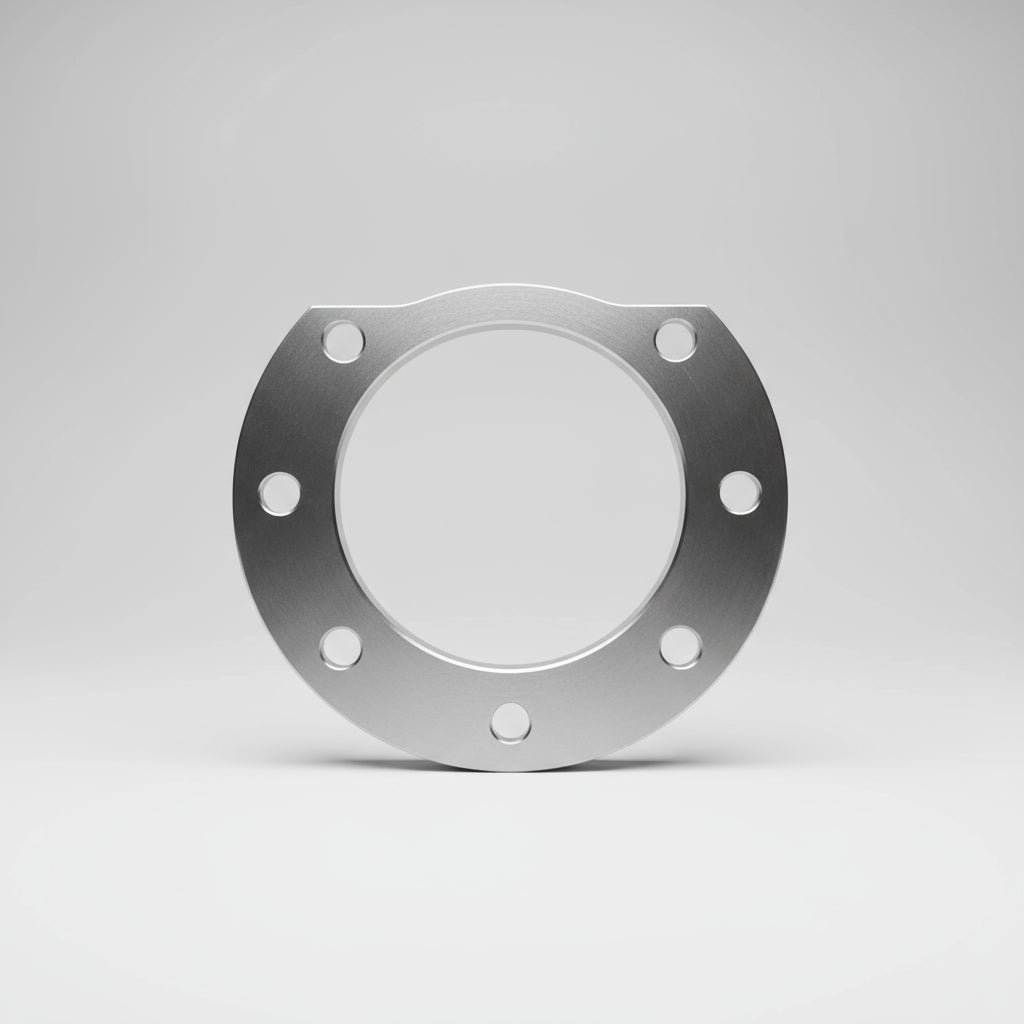

7-Bolt Weld-On Brake Flange for Dexter-Style Spindles
Part Number: TAD-FLANGE
Weld-on 7-bolt brake flange designed for use on Dexter-style trailer spindles commonly found on 10,000–15,000 lb axle assemblies. This flange is precision machined to support proper brake backing plate alignment during axle fabrication or spindle replacement.
Features
- 7-bolt brake flange configuration
- Designed for weld-on installation
- Machined for concentric accuracy
- Heavy-duty steel construction
- Commonly used with Dexter-style brake assemblies
Specifications
| Center Bore Diameter | 4.20" |
|---|---|
| Outside Diameter | 6.80" |
| Flange Thickness | 0.475" |
| Bolt Pattern | 7-bolt |
| Installation Type | Weld-on |
| Quantity | One (1) flange |
Included: One (1) weld-on brake flange only.
Bearings, seals, brake components, and mounting hardware are not included.
Fitment & Installation Notes:
- Typically used on Dexter-style spindles for 10K–15K axles
- Compatibility with non-Dexter axles not confirmed
- Verify spindle shoulder location and brake alignment before welding
- Professional welding recommended to prevent distortion
Replacement axle spindles are available.
