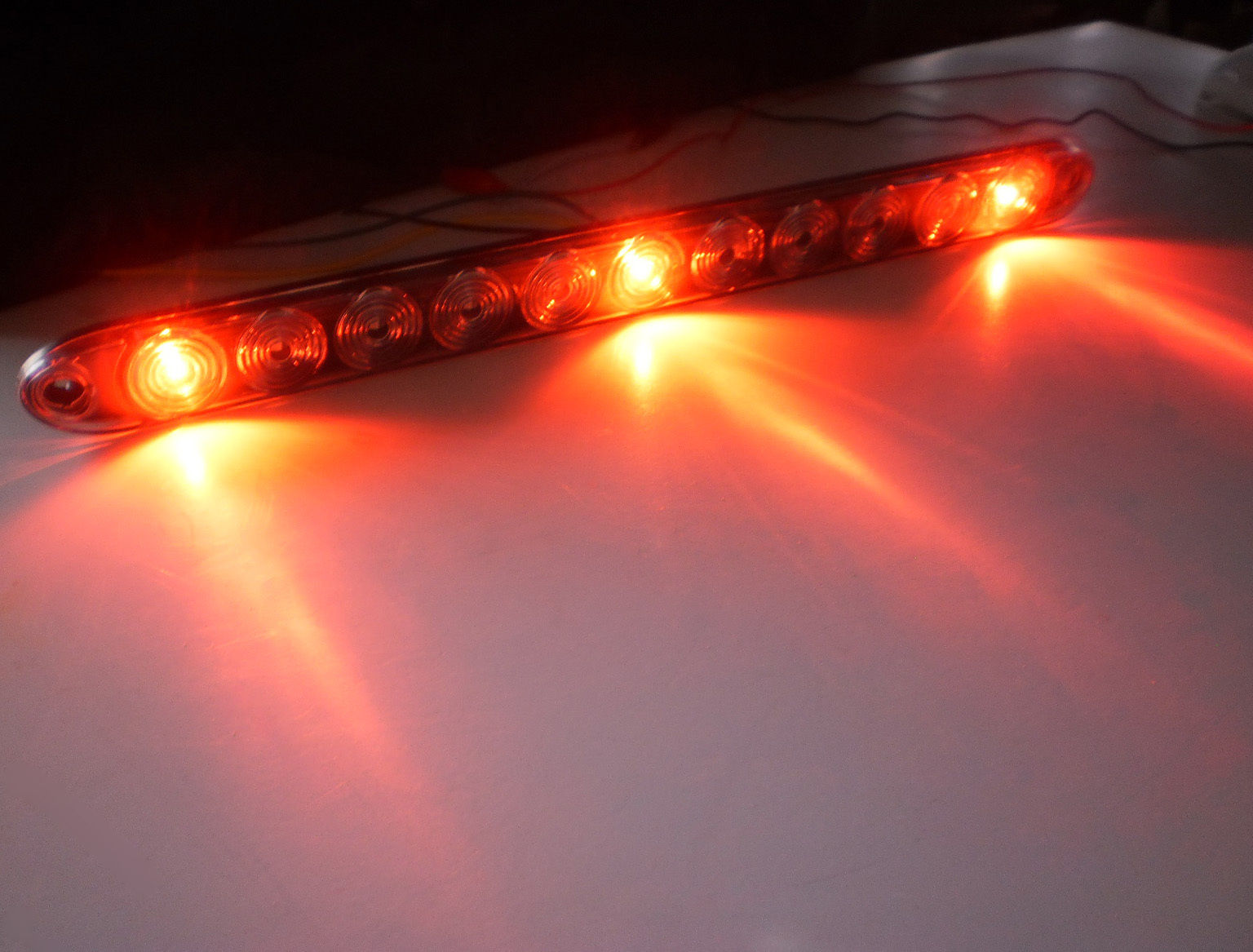

ONE - (1) TecNiq 15" LED Red Clear
Center "High Mount" Brake light Combination ID Bar
(Four Wire Hookup)
Part Number: T13-RC00-1

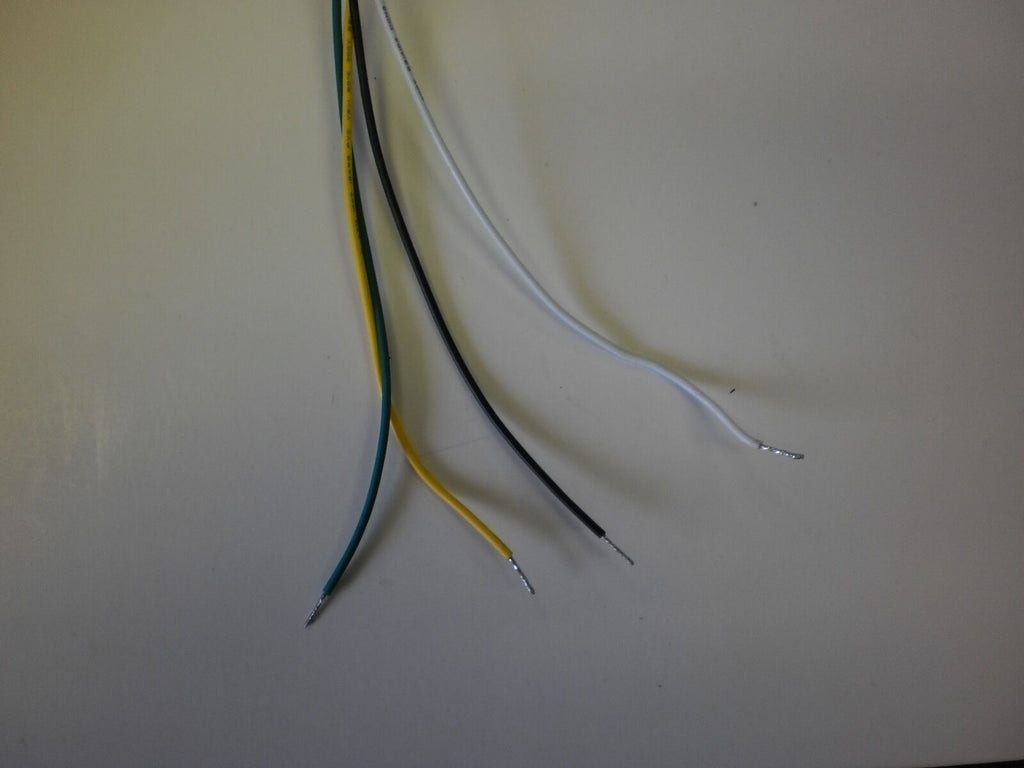

Wire instructions:
White - Ground
Yellow - Left turn/stop
Green - Right turn/stop
Black - ID Bar
Center "High Mount" Brake light Combination ID Bar
(Four Wire Hookup)
Part Number: T13-RC00-1
Wire instructions:
White - Ground
Yellow - Left turn/stop
Green - Right turn/stop
Black - ID Bar
This is a high quality light, Manufactured in the USA, using globally sourced parts by TecNiq. All TecNiq lights use some of the best 3rd Generation LED's available today.
This is not one of those China lights that uses the old style "Christmas Tree Bulb" type LED that is so dim, you have to use large numbers of them to produce a bright light. Due to the large number of solder joints and electrical connections in those lights, they are prone to failure.
The TecNiq lights are fully tested, produce bright, crisp light, and we are so confident in our light, we offer a Limited Lifetime warranty, no hassle warranty.
This is not one of those China lights that uses the old style "Christmas Tree Bulb" type LED that is so dim, you have to use large numbers of them to produce a bright light. Due to the large number of solder joints and electrical connections in those lights, they are prone to failure.
The TecNiq lights are fully tested, produce bright, crisp light, and we are so confident in our light, we offer a Limited Lifetime warranty, no hassle warranty.
This quality waterproof 15" lamp can be mounted where space is a premium. While narrow and thin, it meets FMVSS requirements with a wide angle of bright illumination for maximum safety. Unlike similar lamps, ours is TRULY vacuum sealed for a lifetime of care-free service.
Made with top-quality circuit board materials, urethane potting and durable polycarbonate construction that you've come to expect from TecNiq, the quality and value of this lamp are unsurpassed in the industry.
Get one light that does it all! Add a extra measure of safety to any trailer!

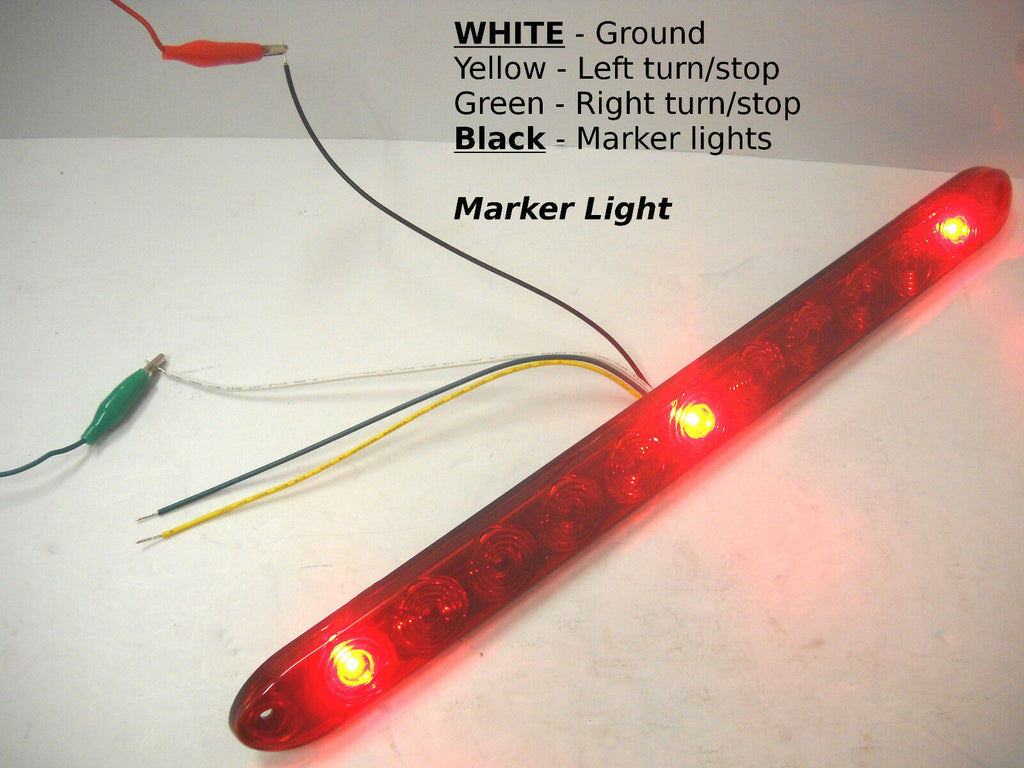

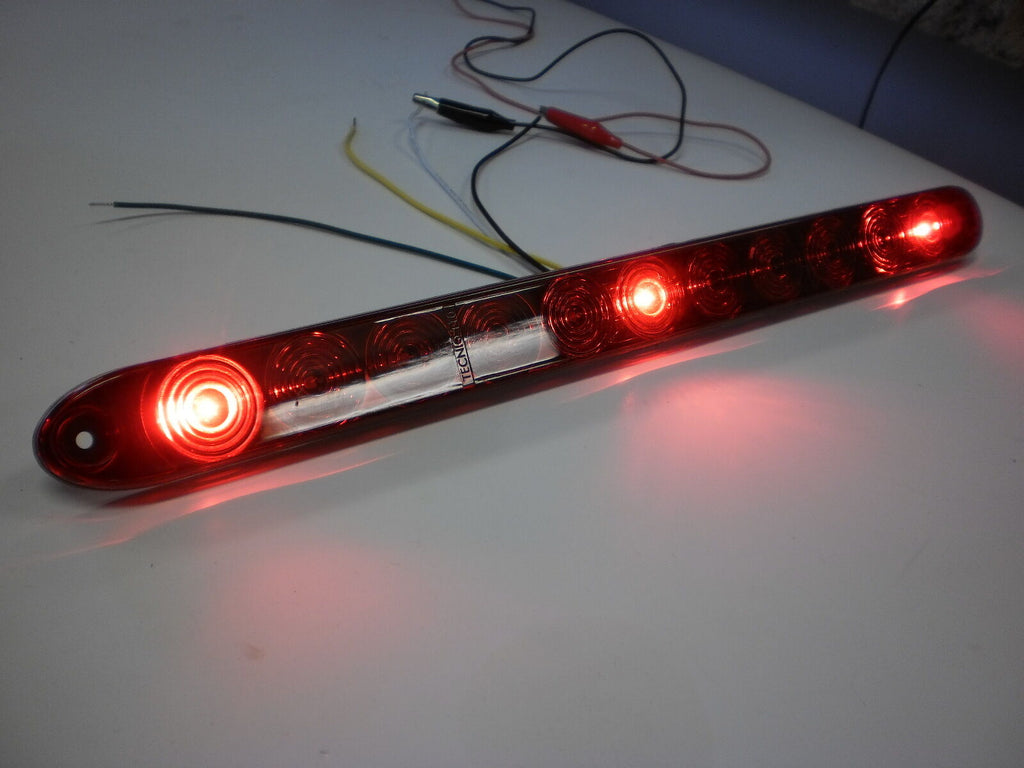

With your headlights on, this unit acts as a normal 3 light bar.

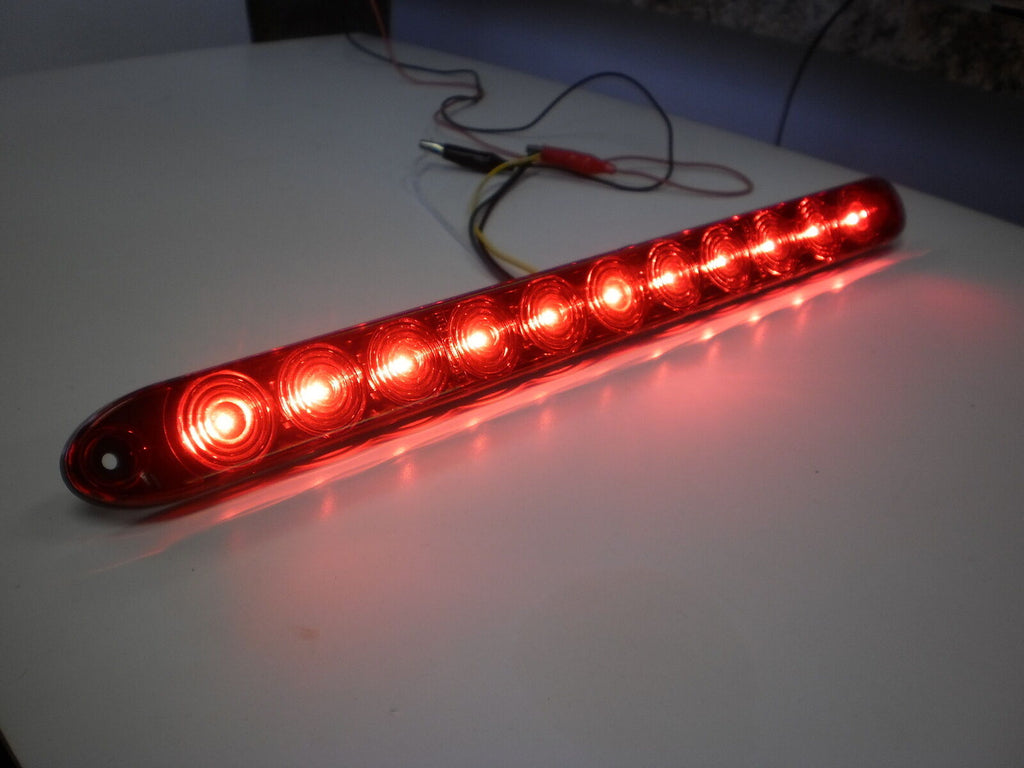

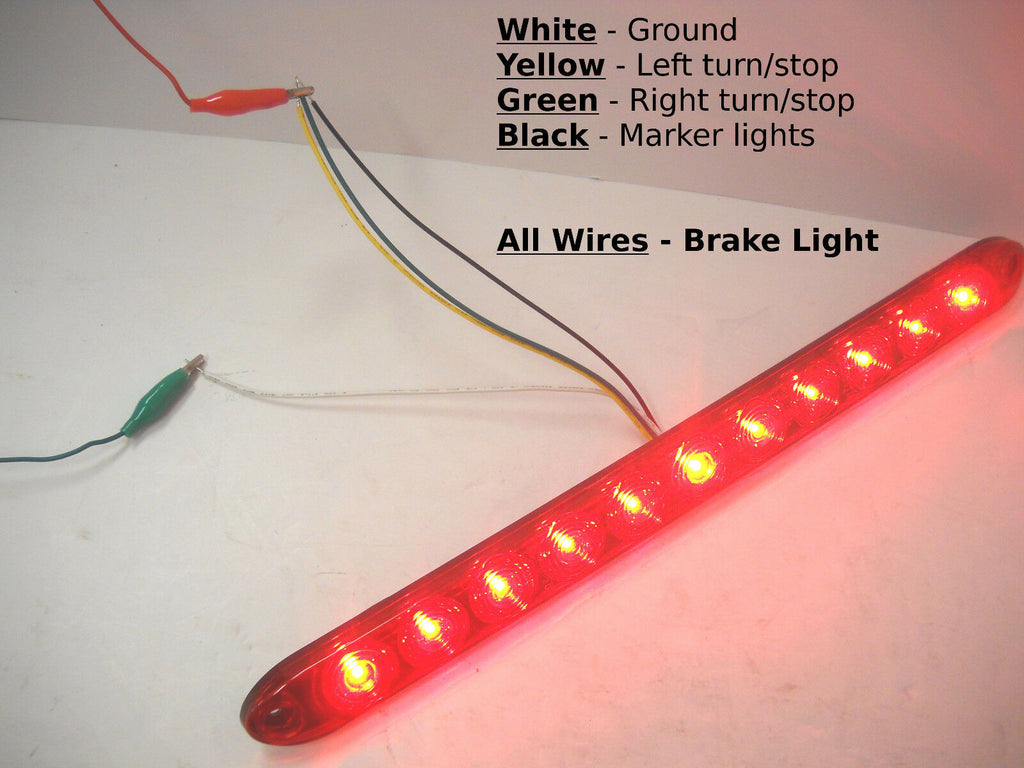

Step on the brakes, and EIGHT SUPER BRIGHT LED's light up (between the 3 light bar) and let people know you are stopping!

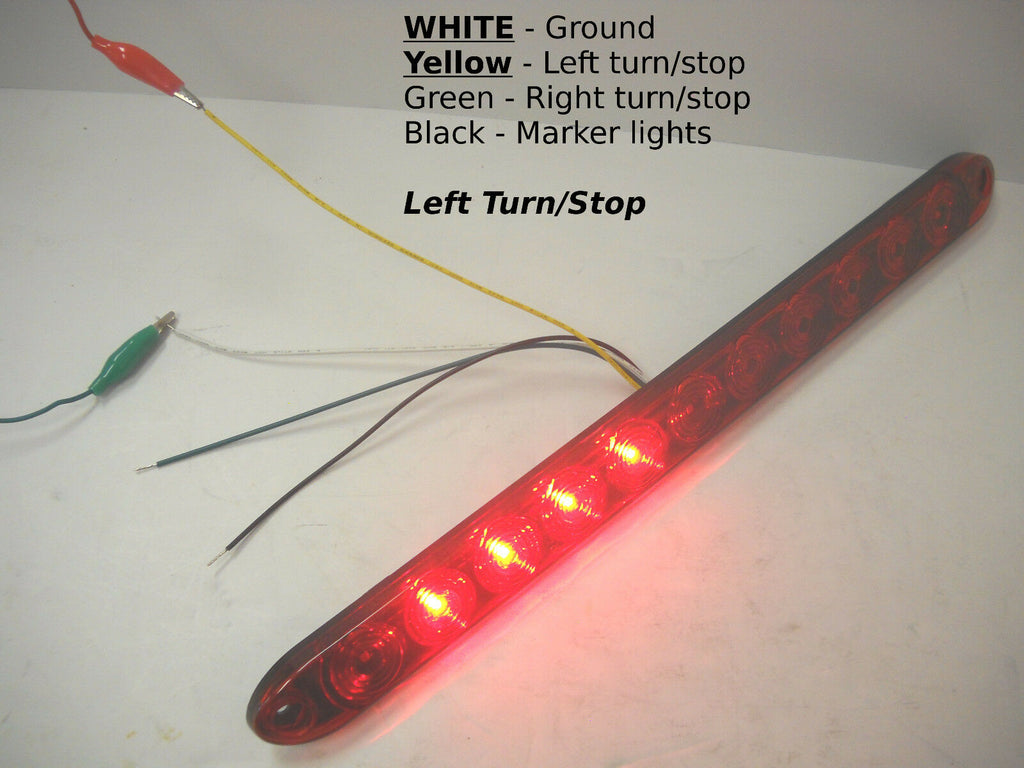

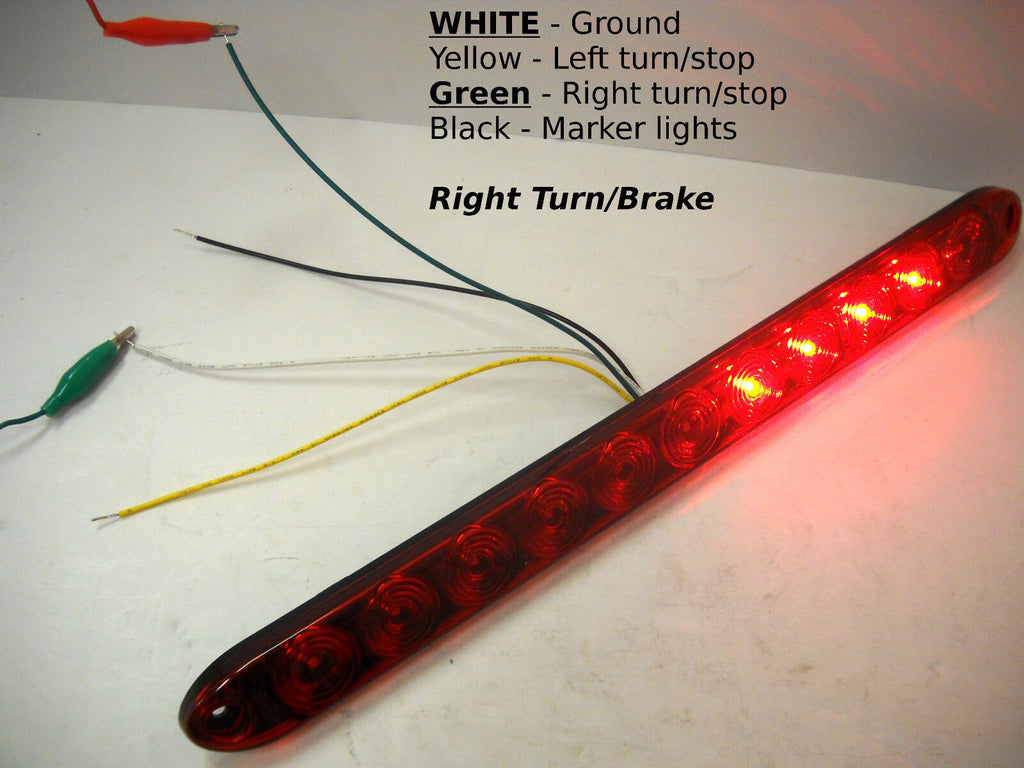

And, when you are turning, 4 LED's each side blink with your turn signals, letting everyone know you plan to turn!
Wire instructions:
White - Ground
Yellow - Left turn/stop
Green - Right turn/stop
Black - ID Bar
Wire instructions:
White - Ground
Yellow - Left turn/stop
Green - Right turn/stop
Black - ID Bar
 |
 |
Features
- Stop/Turn/Tail with ultra-low profile and narrow width
- Can be mounted horizontal, vertical or at an angle

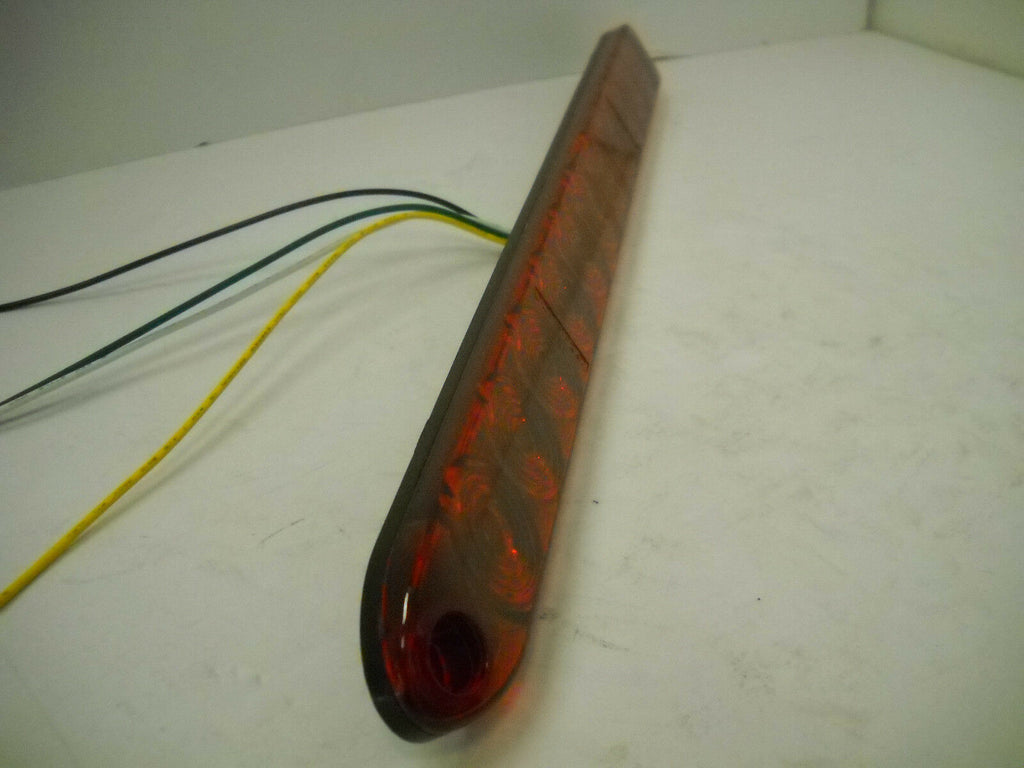

- Slim design for use where space is a premium
- Reliable performance over 100,000 hours
- Waterproof, sealed body that is immune to shock and vibration
- Meets all FMVSS 108 requirements for wide and narrow vehicles
- Manufactured in the USA with a Lifetime Warranty
- Stop/Turn/Tail lamp for use on Heavy duty trucks, Semi-trailers, Cargo and Utility trailers, Boat trailers, Work vehicles and any wide or narrow motor vehicle requiring quality DOT rated lighting
Specifications

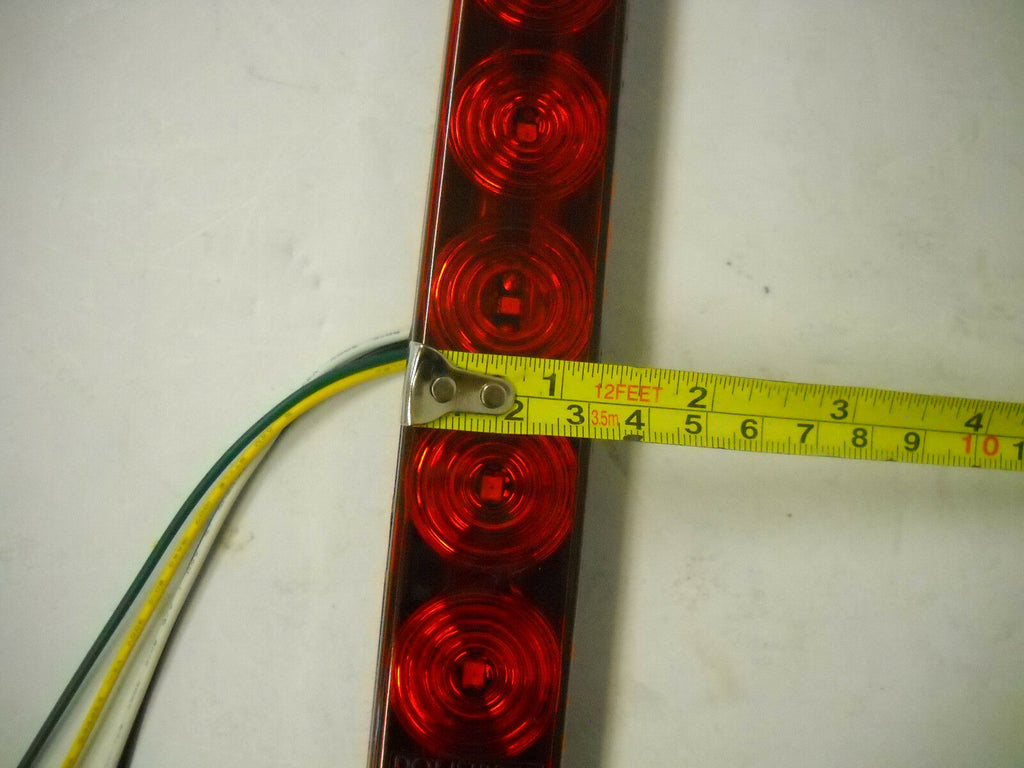

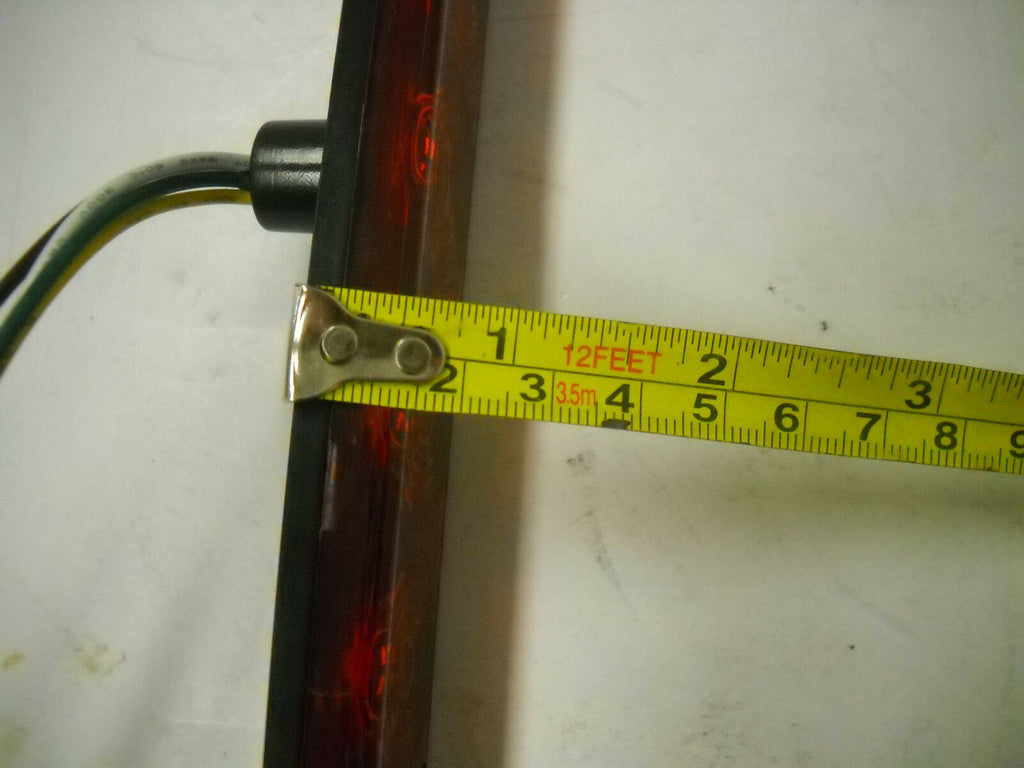

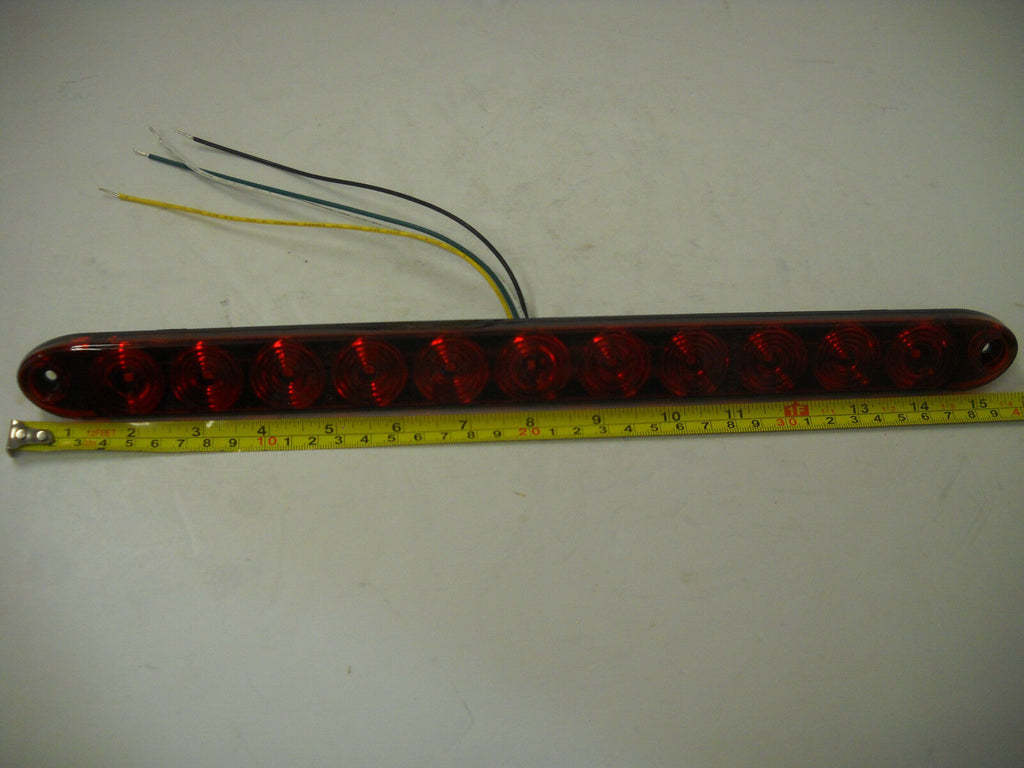

- Dimensions: 15" x 1.25" x 0.5"
- Voltage: 9 - 14V DC
- Current: 0.19A (red or amber)
- LED's: 11

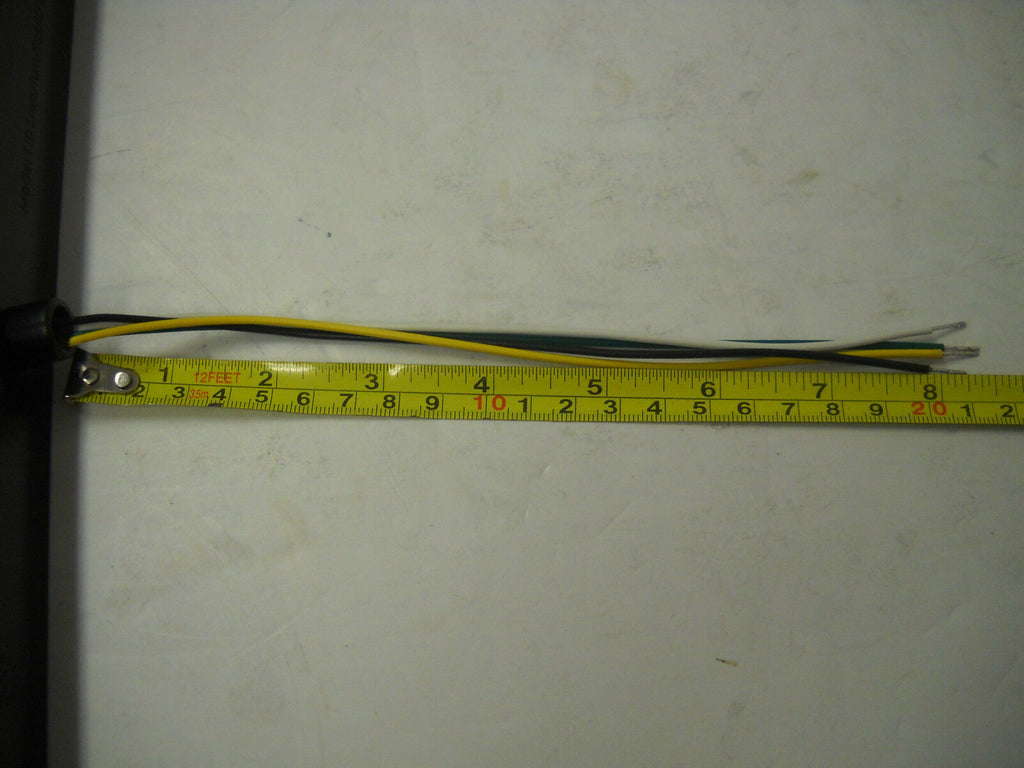

- Wire: 9 Pigtail
- Mounting: Surface mount using (2) #8 screws, Hole center to Hole Center is 14-1/2"
- LED Colors: Red
- WHITE - Ground
Yellow - Left turn/stop
Green - Right turn/stop
Black- ID Bar
