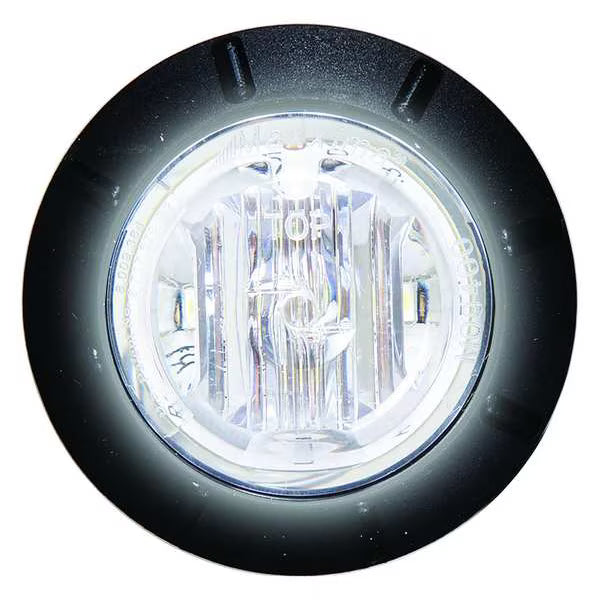

10-Pack Maxxima M09400 1-1/4" LED Mini Clearance / Marker Lights – Amber Clear Lens
Part Number: M09400YCL-L10 | Quantity: 10 Lights

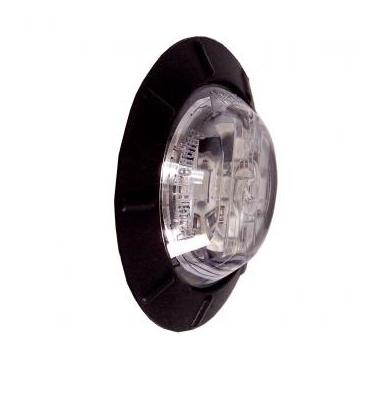

Set of ten Maxxima M09400 series 1-1/4" P2PC combination mini-clearance and auxiliary LED lights. These compact marker lights feature an integrated rubber grommet for quick installation and sealed construction for long-term durability on trailers and commercial vehicles.
Features
| Feature | Description |
|---|---|
| Light Type | LED clearance / marker light |
| LED Count | 6 LEDs per light |
| Lens Color | Amber LED with clear lens |
| Design | Compact, space-saving mini light |
| Construction | Fully resin-sealed, one-piece design |
| Mounting | Rubber grommet included |
| Warranty | 5-year manufacturer warranty |
Specifications
| Specification | Detail |
|---|---|
| Diameter | 1-1/4" light body (grommet OD approx. 1-3/4") |
| Mounting Hole Size | 1.375" (1-3/8") hole required |
| Required Depth | Approx. 3/4" behind mounting surface |
| Overall Thickness | Approx. 1" |
| Voltage | 12.8 VDC |
| Max Amp Draw | 80 mA |
| Connector Type | (2) .180 male bullet connectors |
| Lens Material | Polycarbonate |
Additional Images

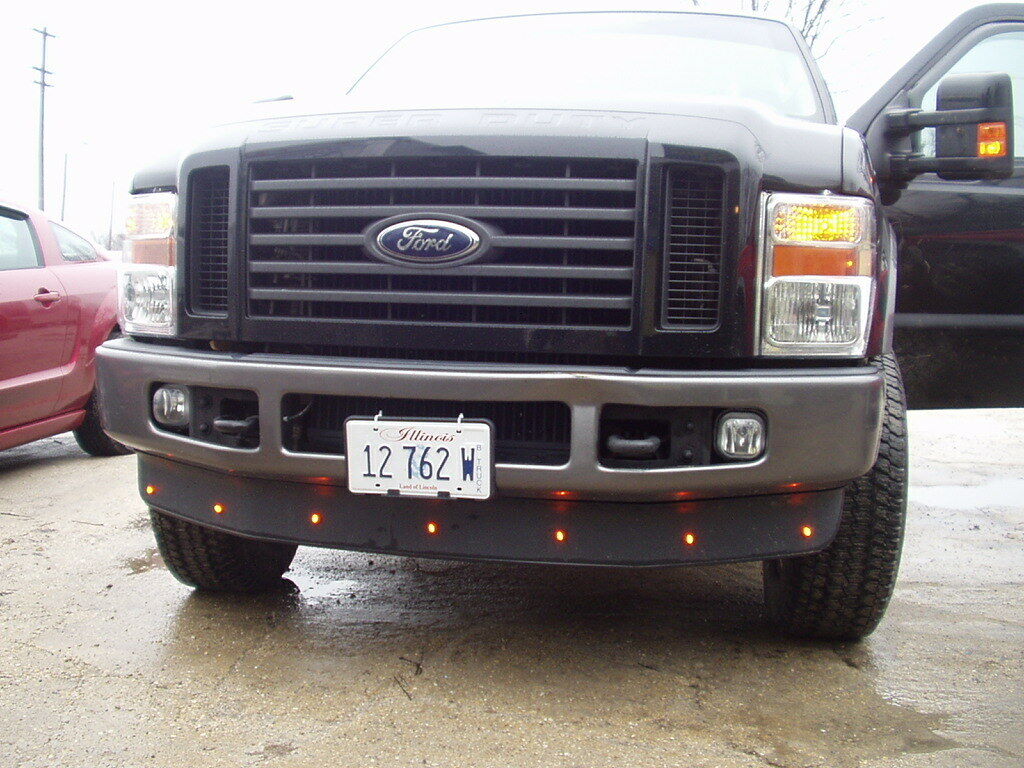

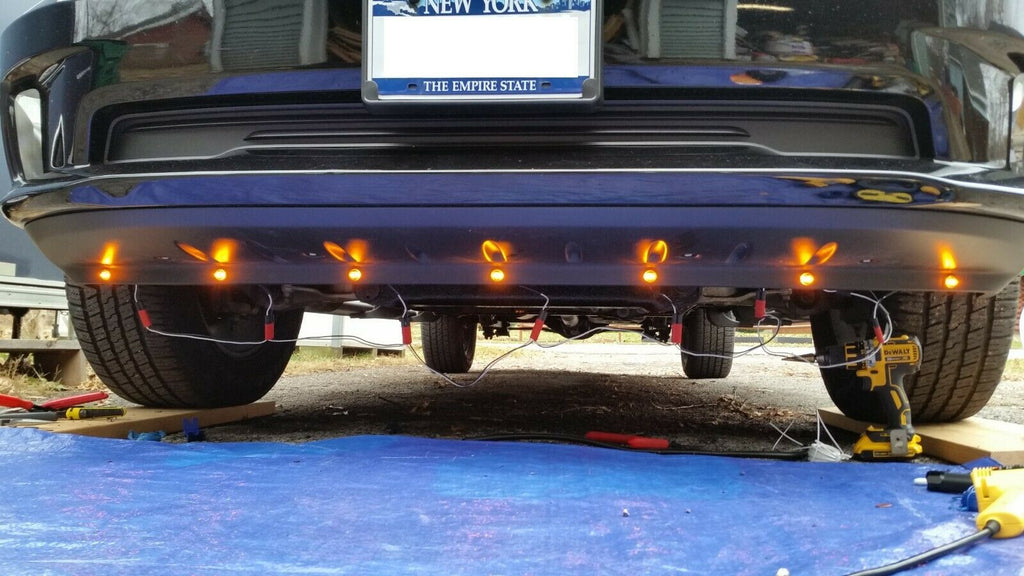

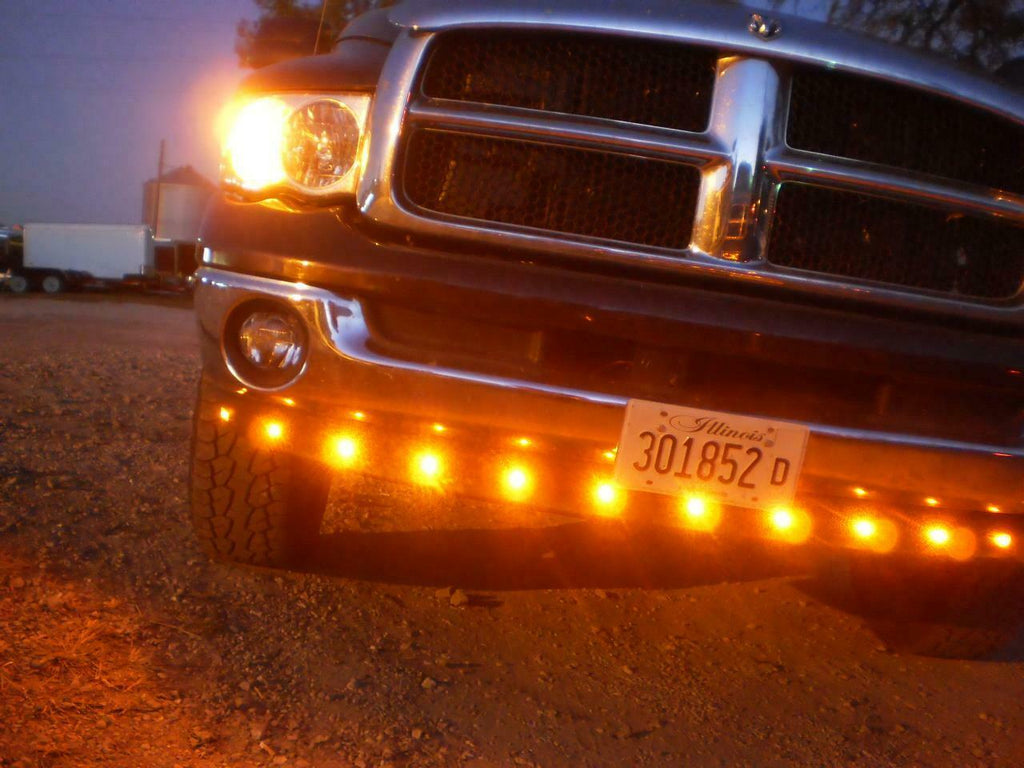

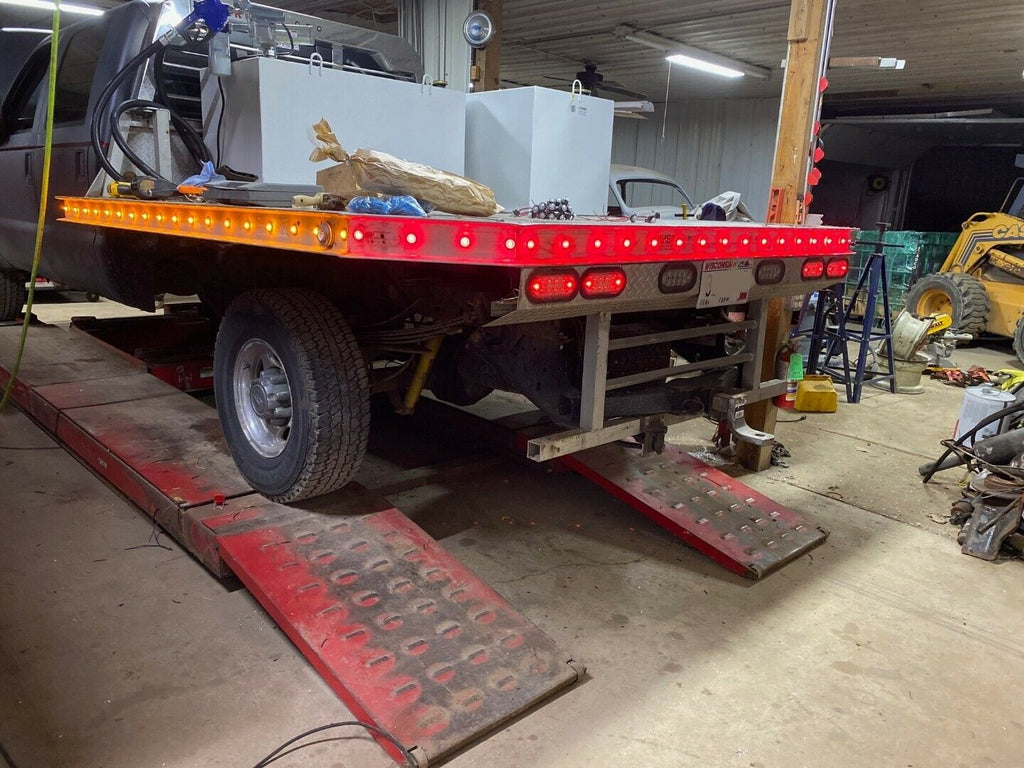

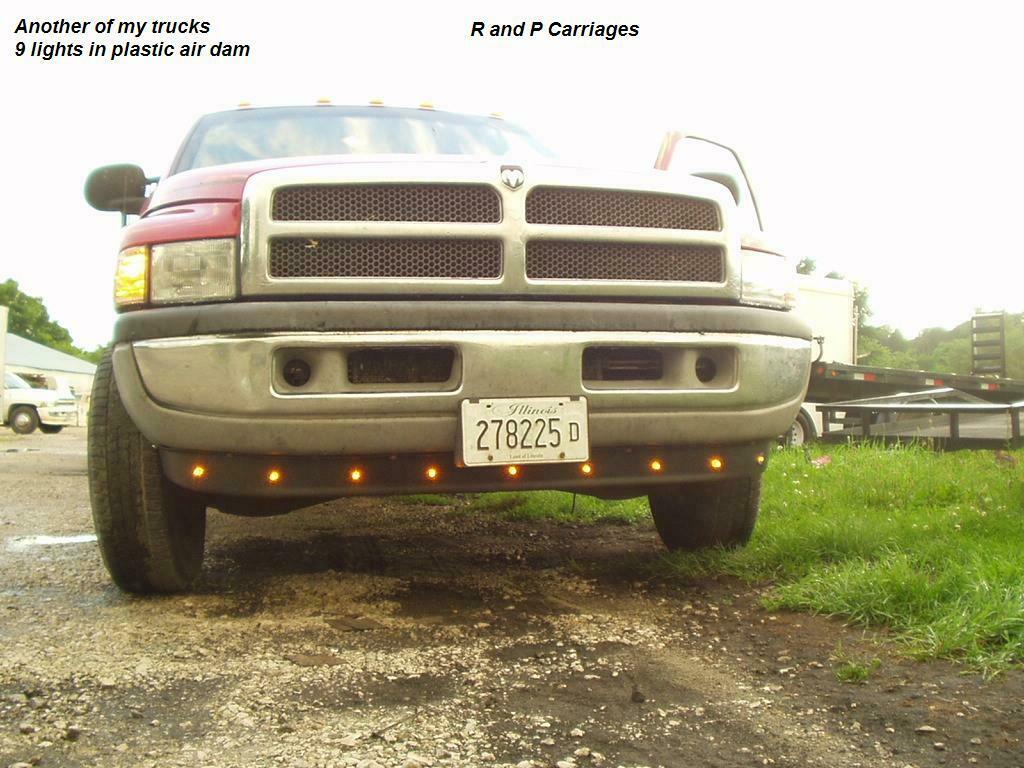

Commonly used on utility trailers, equipment trailers, flatbeds, and commercial vehicles requiring compact LED clearance or marker lighting. Optional stainless steel grommet covers are available separately.
Verify hole size, mounting depth, and wiring connections before installation.
