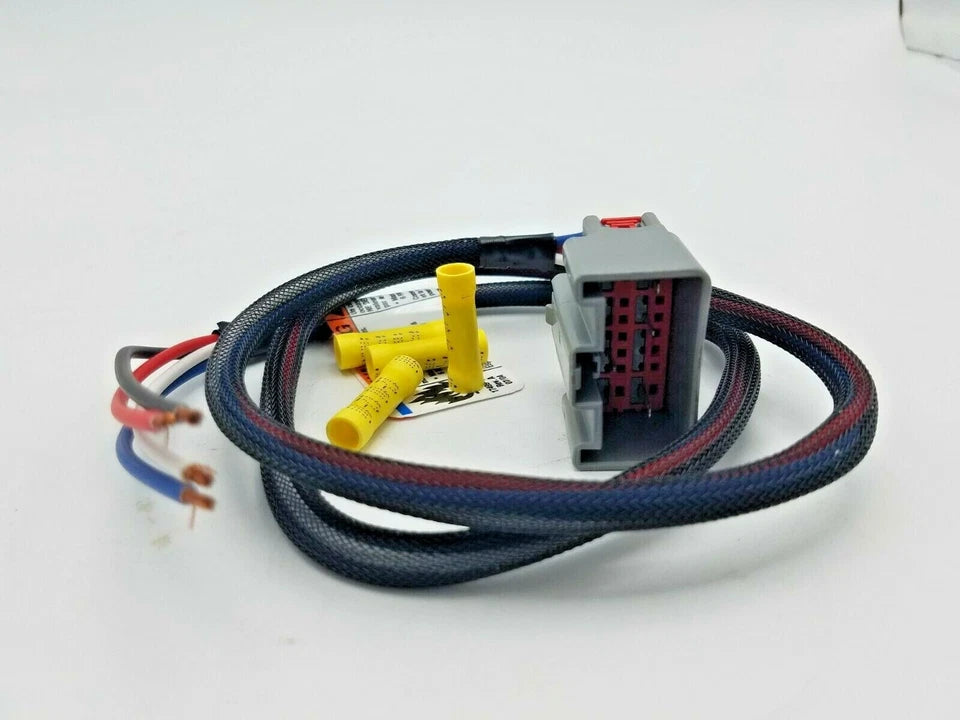

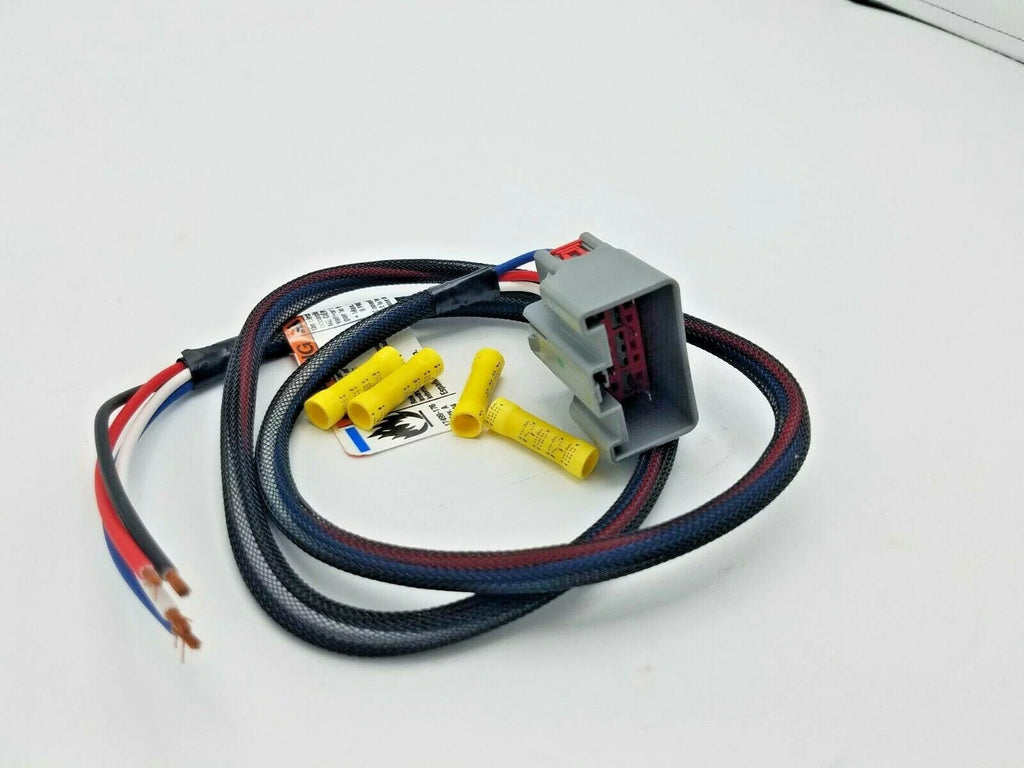

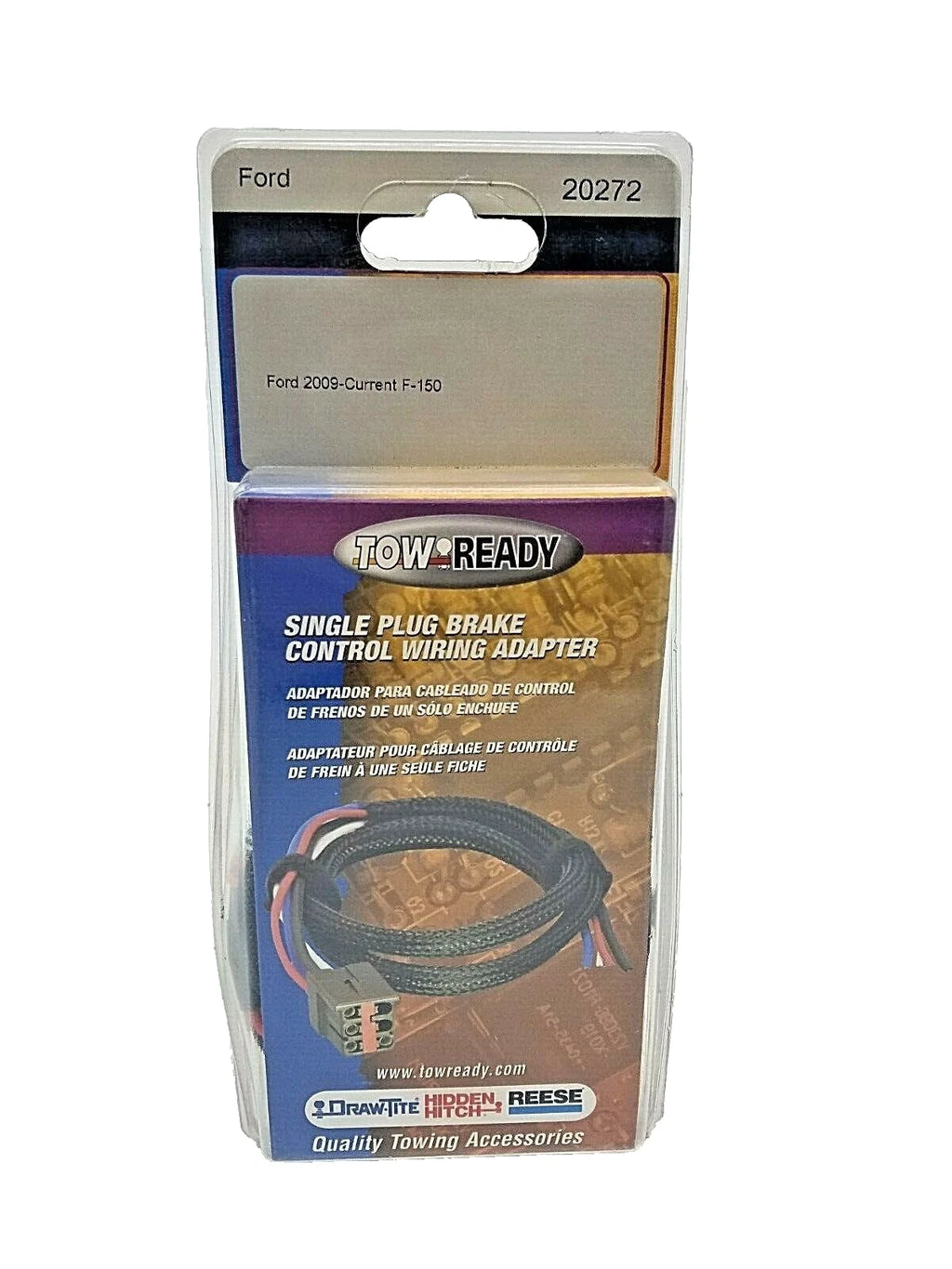

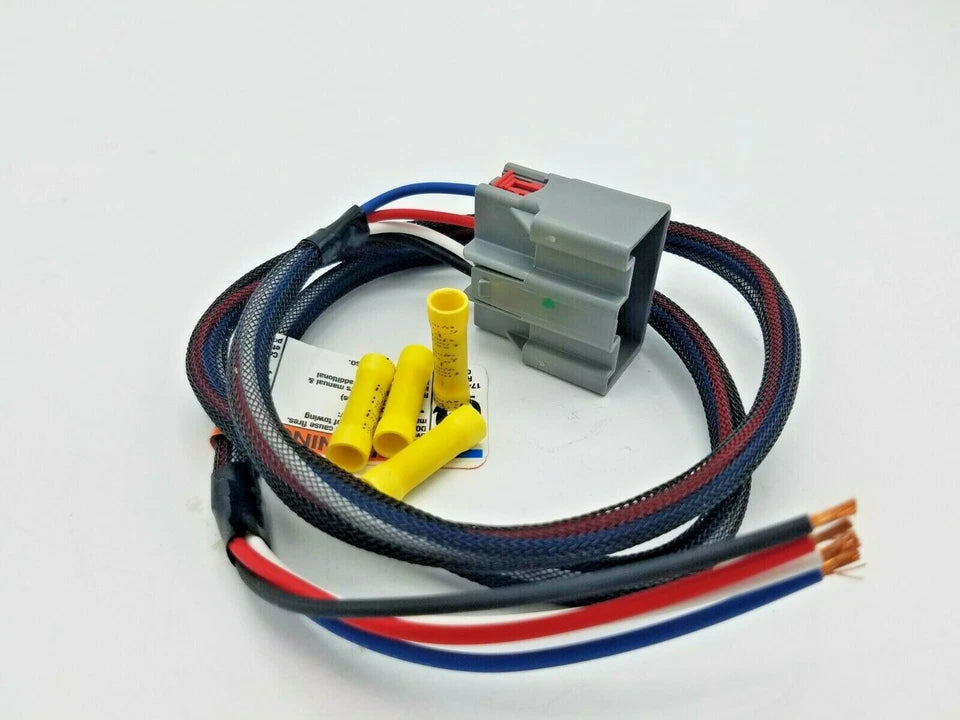

Brake Controller Wiring Harness – Ford (2009–2016) · One-Plug Adapter
Part Number: 20272
This plug-and-play brake controller wiring harness is designed for select Ford vehicles from 2009–2016 equipped with the factory under-dash brake control port. It connects directly to most major aftermarket brake controllers, eliminating the need for splicing or modifying factory wiring.
Features
- OEM-style one-plug connection under the dash
- Makes brake controller installation fast and simple
- No cutting or splicing required
- Works with most proportional and time-delay brake controllers
- Designed for Ford vehicles with factory tow package wiring
Specifications
| Specification | Detail |
|---|---|
| Part Number | 20272 |
| Type | Brake Controller Plug-In Wiring Adapter |
| Vehicle Connection | Single OEM-style Ford under-dash plug |
| Brake Controller End | Standard aftermarket controller connector |
| Installation | Plug-and-play |
Vehicle Compatibility
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | F-150 | 2009–2014 | Requires factory tow package |
| Ford | F-250 / F-350 Super Duty | 2008–2016 | Under-dash port required |
| Ford | Expedition | 2009–2016 | Factory 7-way required |
| Lincoln | Navigator | 2009–2016 | Factory tow wiring required |
Fitment varies by trim level and equipment package. Always confirm the presence of the factory under-dash brake controller connector before ordering. This adapter is intended for plug-in compatible Ford tow-package vehicles from the listed model years.
