Trailer Hub Brake Drum 8K Axle 12-1/4"x3-3/8" 5/8 stud Oil/grease 8000# Lippert (99-86580-46-KIT)

Unbranded

Regular price $233.00


Trailer Hub Drum 8K Axles 12 1/4" x 3-3/8"
Compare to Dexter 8-285 (008-285-11)
5/8" studs,  8 on 6-1/2
Oil Bath/Greaseable
Also fits Lippert (LCI) HD 8000# axles
Part Number: 99-86580-46-KIT

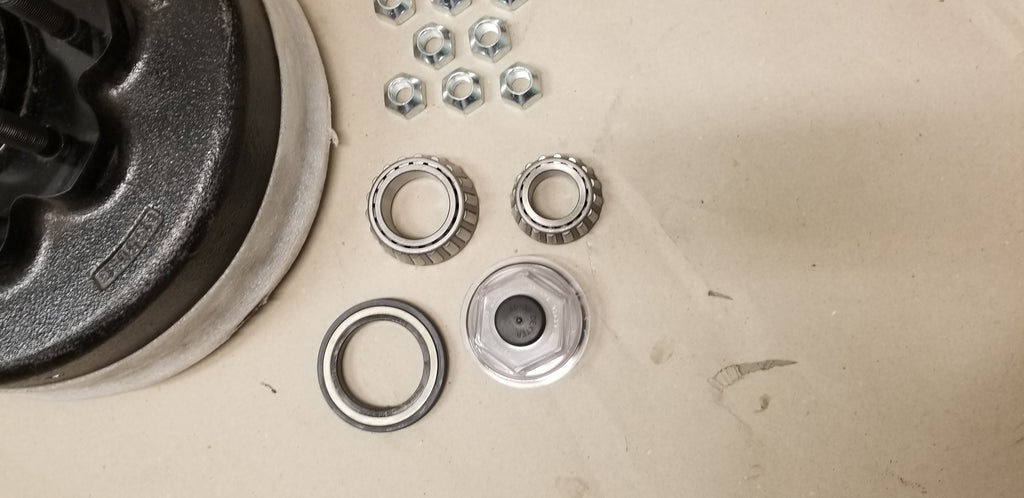

This kit contains:
99-86580-46 Hub Drum x1
5/8" Cone Lug Nuts x8
25580 Bearing x1
25520 Race x1 (Pressed into Drum)
2475 Bearing x1
2420 Race x1 (Pressed into Drum)
10-225-15 Oil Seal x1

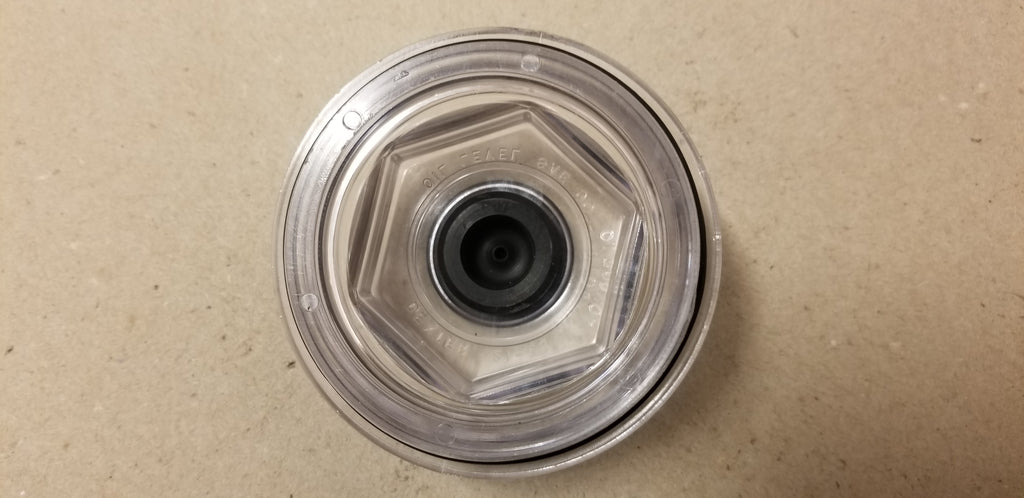

21-35 Oil Cap x1
046-032-00 Oil Plug x1
010-045-00 O-Ring x1


  • Additional Information:
  • Pilot: 4.75"
  • Application: 8,000-LB E-Z Lube
  • Stud Size: 5/8"
  • No of Studs: 8
  • Bolt Circle: 6.50"
  • Inner Bearing Cone: 25580 (Included)
  • Outer Bearing Cone: 02475 (Included)
  • Oil Seal: 10-225-15 (Included)
  •  Grease Seals: 10-36 (NOT INCLUDED)
  • Oil Cap: 21-35 (Included)
  • Oil Plug:  046-032-00 (Included)
  • O-Ring: 010-045-00 (Included)
