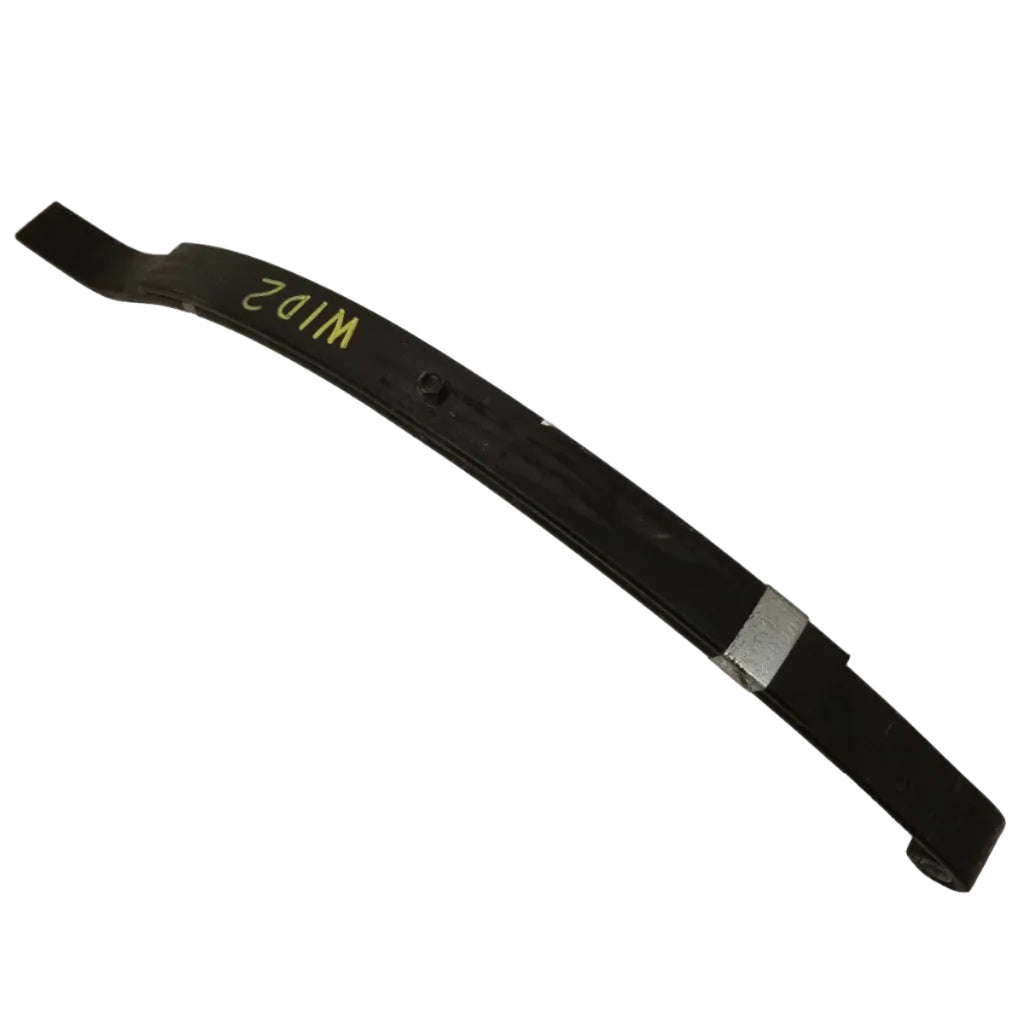

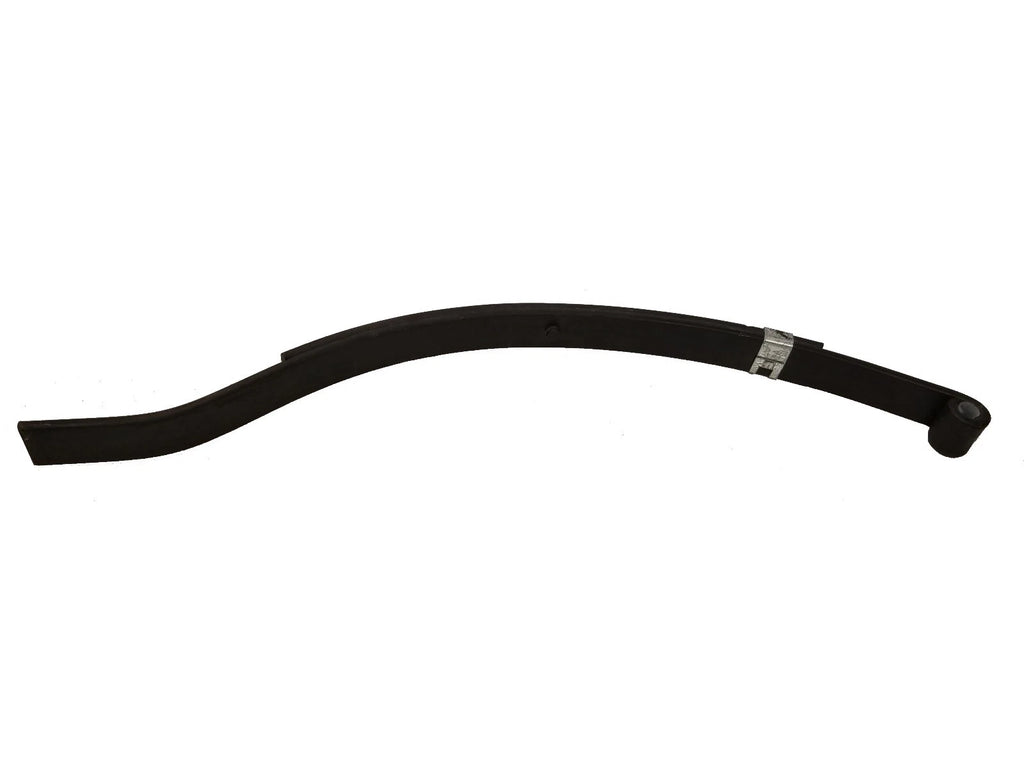

2-Leaf Slipper Flat Trailer Leaf Spring | 1,000 lb Capacity | 30.25" Long
High-quality replacement 2-leaf slipper spring designed for light-duty utility trailers, featuring a flat-end slipper design for a smoother ride and simplified maintenance.
Overview
The WD-2 is a specialized slipper-style spring with a flat end, offering a distinct ride dynamic compared to standard double-eye springs. Engineered for 2,000 lb total axle capacities (when paired), this 2-leaf design is a high-quality replacement solution ideal for light-duty utility and boat trailers where simplified hardware and reliable shock absorption are required.
R&P Service Insight
Slipper springs are the "workhorses" of utility trailers because they eliminate the need for shackle links at the rear, reducing the number of wear points.
- Simplified Setup: The rear flat tail slides freely, allowing the spring to flex without binding.
- Better for Light Loads: The 2-leaf configuration provides enough flex to prevent empty trailers from bouncing excessively.
- Replace in Pairs: If one spring has flattened, the other is likely fatigued. Replace both to maintain a level trailer.
R&P Knowledge Hub
Orientation: The "Eye" end must always face the front of the trailer. The "Slipper" flat end faces the rear.

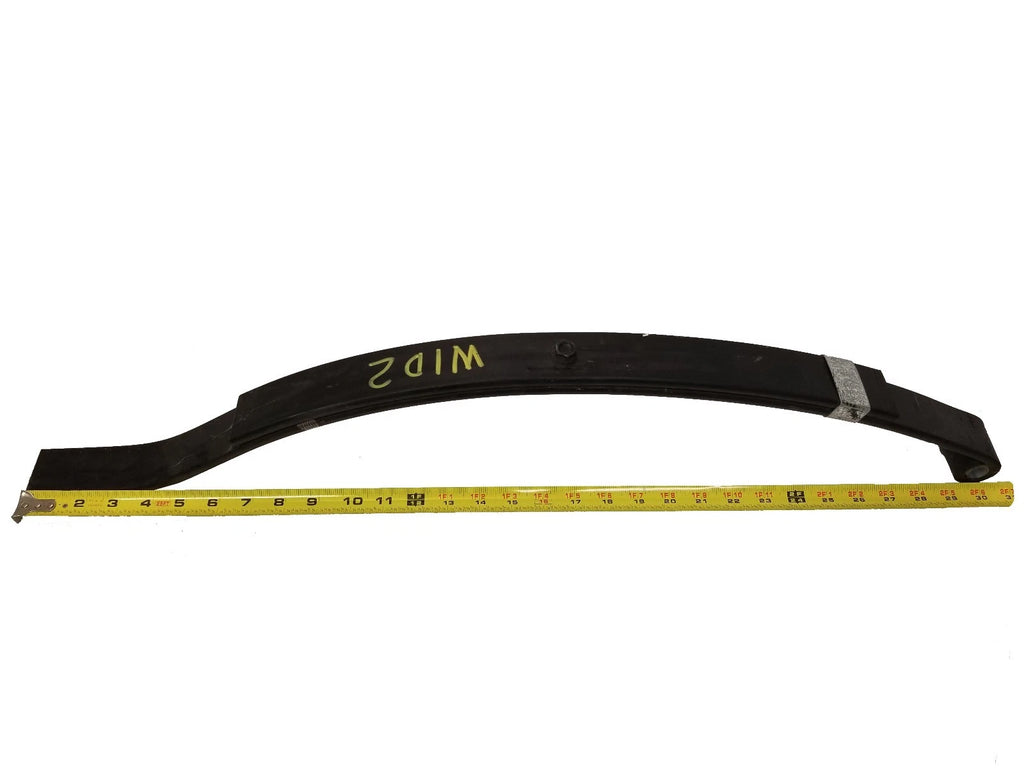

Measurement Tip: The 30.25" length is measured from the center of the front eye to the absolute end of the flat tail.
Mounting: The front eye uses a 9/16" shackle bolt, while the rear tail rests inside a slipper hanger underneath a keeper pin or bolt.
The "Flat" Advantage: Unlike "hook" slipper springs, the flat tail provides a wider range of motion and is easier to fit into various aftermarket rear hangers.
Brand & Fitment Note
Selling Brand: R&P Carriages / Verified Aftermarket Replacement
Application Reference: Any OEM or platform names in this listing describe compatibility, fitment target, or application style only where supported by verified dimensions, mounting points, and configuration details.
What This Means: This listing is for a high-quality replacement component designed to fit standard 2,000 lb utility axles, not a guaranteed OEM-branded item unless specifically stated.
Before Ordering: Verify length (30.25") and width (1.75") match your existing hanger spacing for a proper fit.
R&P Installation Insight
Successful installation depends on proper axle alignment. Ensure the center tie bolt is seated perfectly into the hole on the axle's spring seat before tightening your U-bolts.
- Bushing Check: If your old eye bolt is touching raw steel, your nylon bushing is gone. Replace it now to prevent hanger damage.
- U-Bolt Placement: Always "sandwich" the axle to the center of the spring using a 1.75" compatible U-bolt kit.
- Rust Prevention: Apply a quick coat of chassis paint or heavy grease on the "slipper" contact point to reduce noise and friction.
Features
Slipper Flat Design
Eliminates complex shackle setups. The flat tail slides within the rear hanger for smooth, reliable suspension travel.
1,000 lb Rated Capacity
Specifically rated for 1,000 lbs per spring, perfectly supporting a standard 2,000 lb utility trailer axle.
2-Leaf Stack
The 2-leaf configuration offers superior shock absorption for lighter trailers, preventing high-speed bouncing.
Pre-Bushed Front Eye
Includes a pre-installed nylon bushing for 9/16" bolts, making it ready for immediate installation.
Specifications
| Specification | Detail |
|---|---|
| Part Number | WD-2 |
| Spring Type | Slipper Flat |
| Weight Capacity | 1,000 lbs (2,000 lb Axle) |
| Number of Leaves | 2 |
| Total Length | 30.25" |

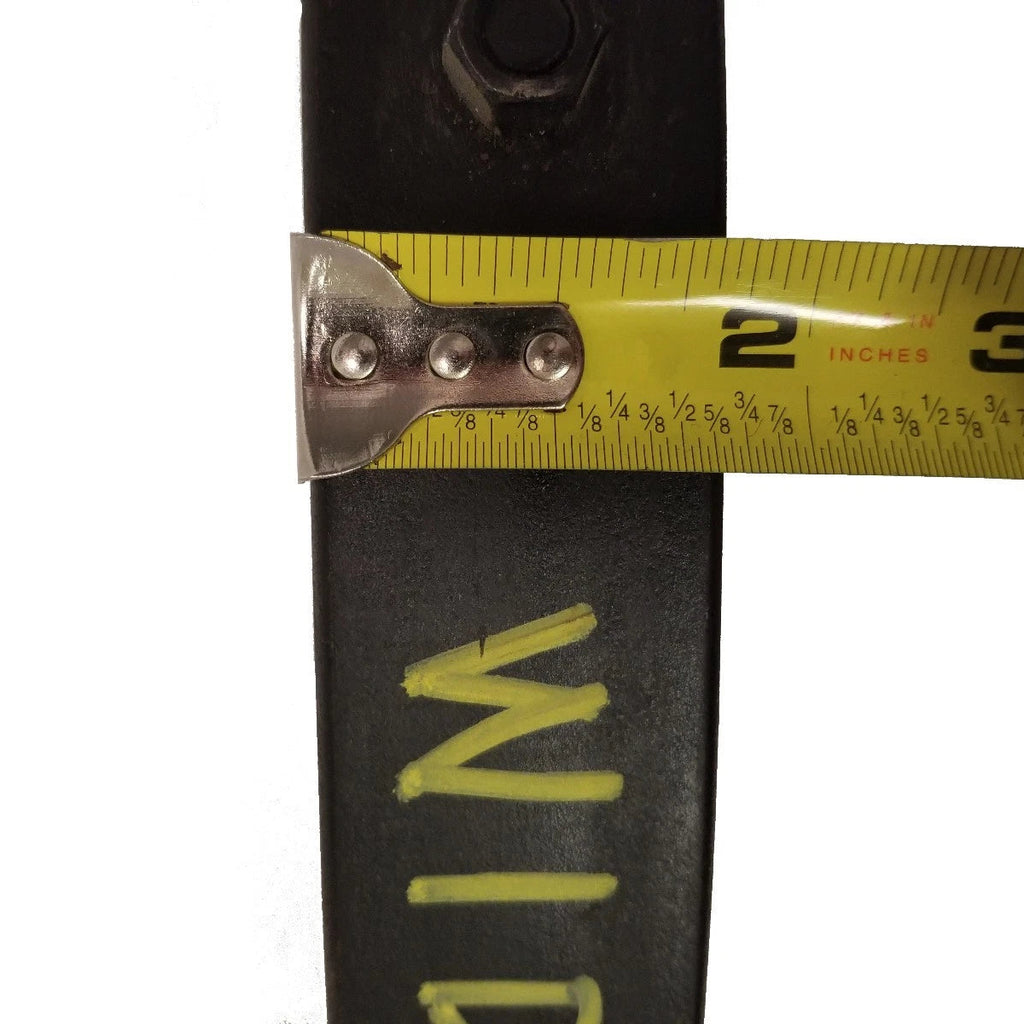

| Width | 1.75" |
| Eye Diameter | 9/16" |
| Free Arch | Approx. 4.5" - 4.75" |
Fitment / Application
| Category | Details |
|---|---|
| Axle Type | Standard 2,000 lb Utility Axles |
| Trailer Types | Utility, Boat, PWC, and Light Cargo Trailers |
| Hanger Style | Front Eye Hanger & Rear Slipper Hanger |
| Notes | Confirm length (30.25") and width (1.75") match your existing hanger spacing. |
Included Components
| Quantity | Item |
|---|---|
| 1 | WD-2 Leaf Spring (30.25" Slipper Flat) |
| 1 | Pre-installed Nylon Bushing (9/16" ID) |
