Trailer Plug Light Adapter RV 7 Way Round 5 Pin Flat with Backup Alarm (F75FB)

brophy

Regular price $12.99

R and P Carriages 270 E Jackson St Seneca IL 61360
              815-357-****


7 Way Round Truck End to 5 Way Flat Trailer End Adapter with Backup Alarm
You are looking at a special trailer plug adapter we sell which allows you
to pull a trailer with the 5 way Flat Plug with your 7 way on your truck.

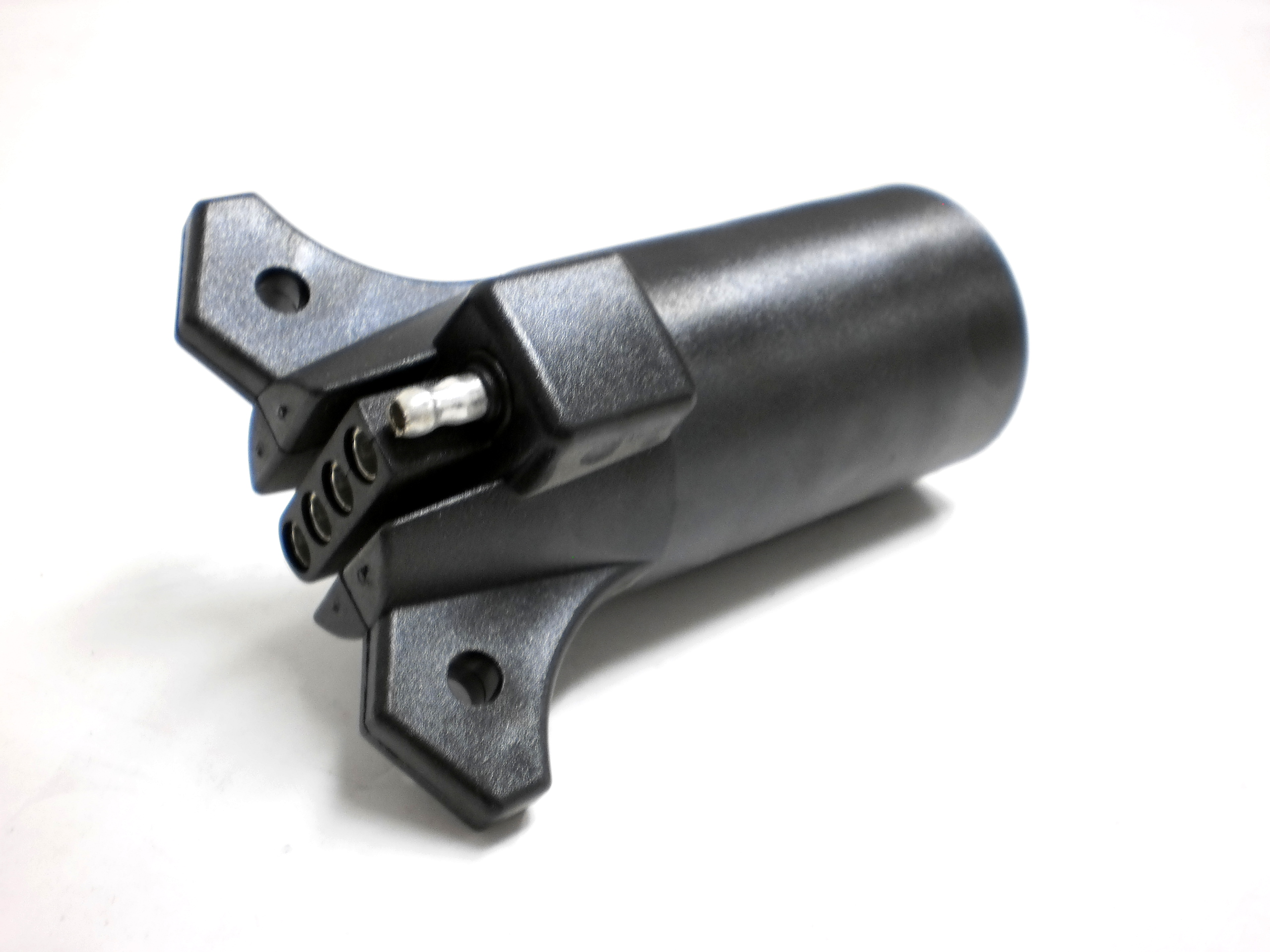

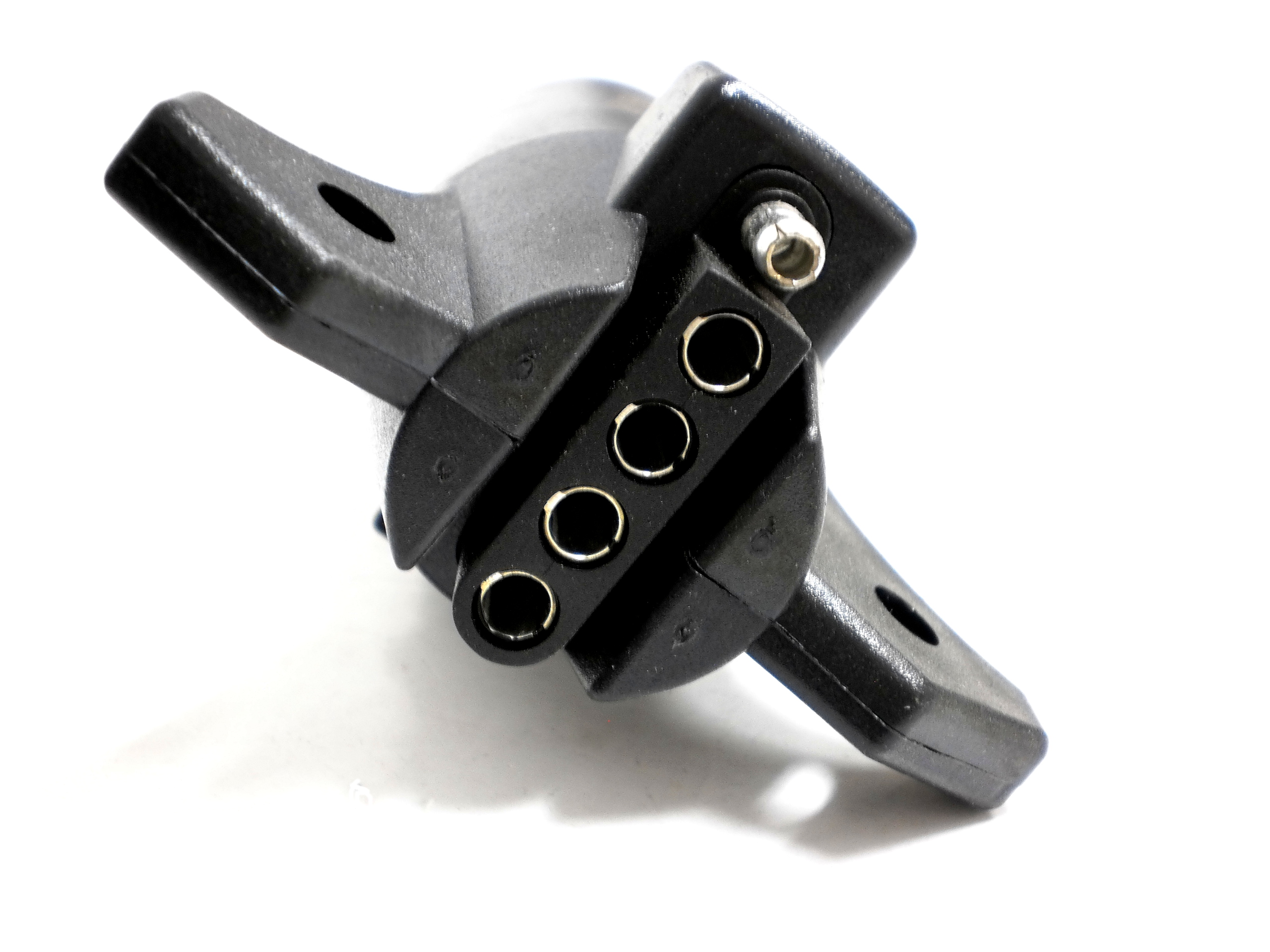

This plug consists of a female 5 way flat connector that the trailer plugs into,

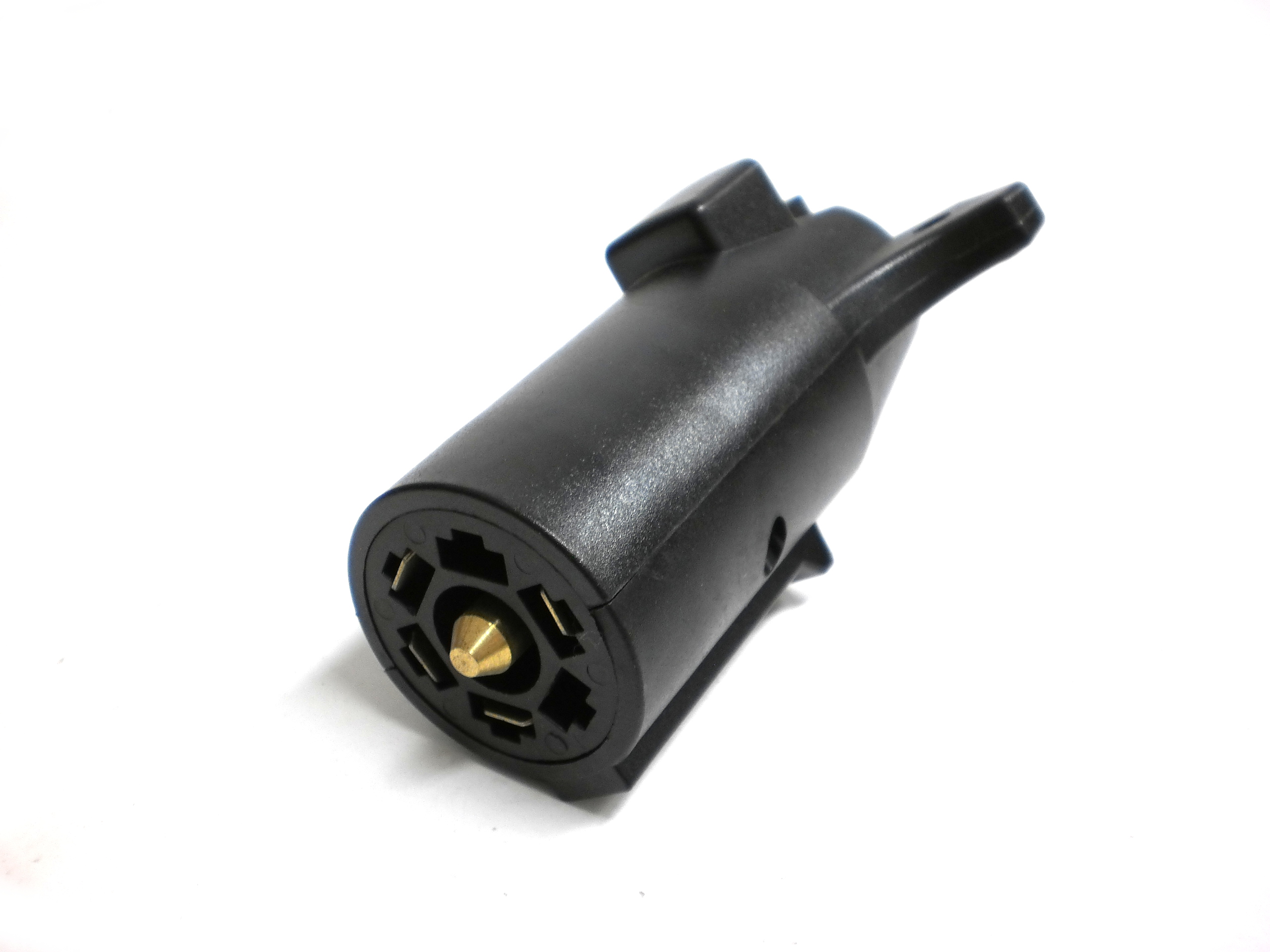

and a 7 way round plug to plug into the back of your tow vehicle.
Again, the 7 way round end fits your truck, and the 5 way flat end fit the trailer.




Wiring Code
Molded Connector
Function
Usual Trailer Wire
White Wire Ground White Wire
Red Wire Left Turn and Brake Yellow Wire
Brown Wire Right Turn and Brake Green Wire
Green Wire Tail Lights Brown Wire
Blue Wire Brake Power Blue Wire
Black Wire 12 volt (hot lead) Black Wire
Yellow Wire Aux. -








Click                               Here to Enlarge

Click                               Here to Enlarge

Free Shipping
