Trailer Wheel Bearing Kit – Dexter Vault / UFP (3,700 lb)
Part Number: BK2-256-VWS

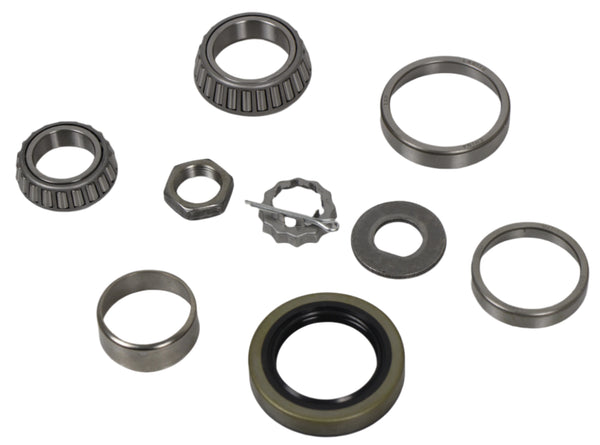

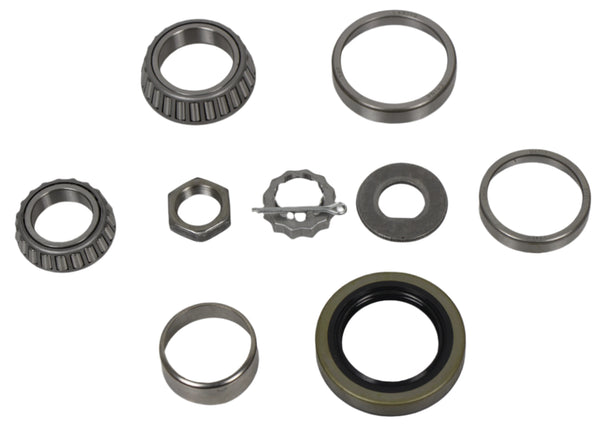

Complete trailer wheel bearing service kit for UFP and Dexter Vault applications. This kit includes bearings, races, oil seal, wear sleeve with lubrication hole, and UFP spindle end components.
Features
- Complete wheel bearing replacement kit
- Designed for UFP and Dexter Vault hub systems
- Includes wear sleeve with lube hole
- Includes UFP-specific spindle end hardware
Specifications
| Outer Bearing | L44649 (1.0625" ID) |
|---|---|

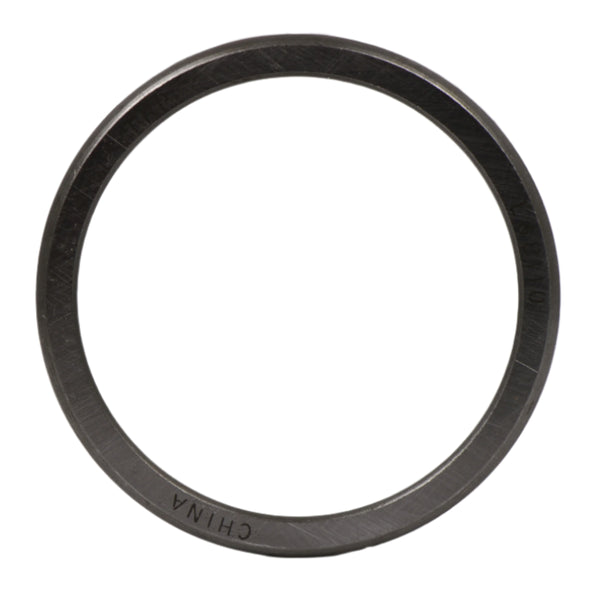

| Outer Race | L44610 (1.98" OD) |
| Inner Bearing | L68149 (1.378" ID) |
| Inner Race | L68110 (2.328" OD, UFP) |

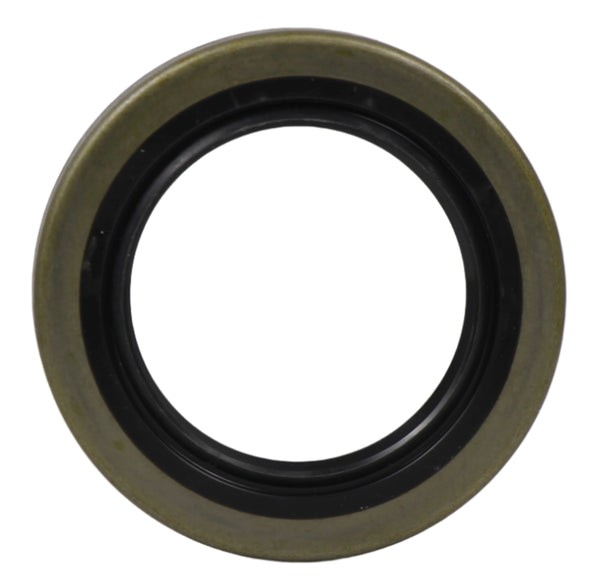

| Oil Seal | 32123 (1.68" x 2.56") |

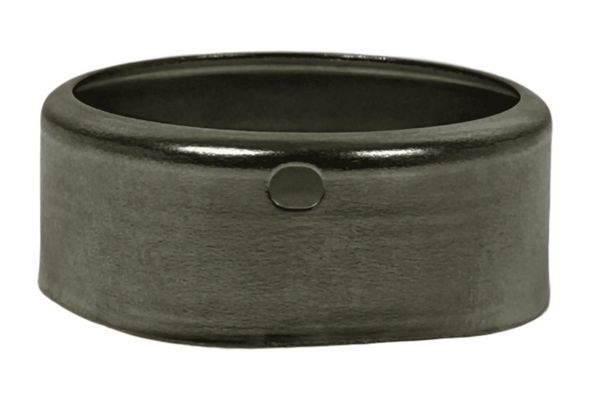

| Wear Sleeve | 33517U (3.5K with lube hole) |

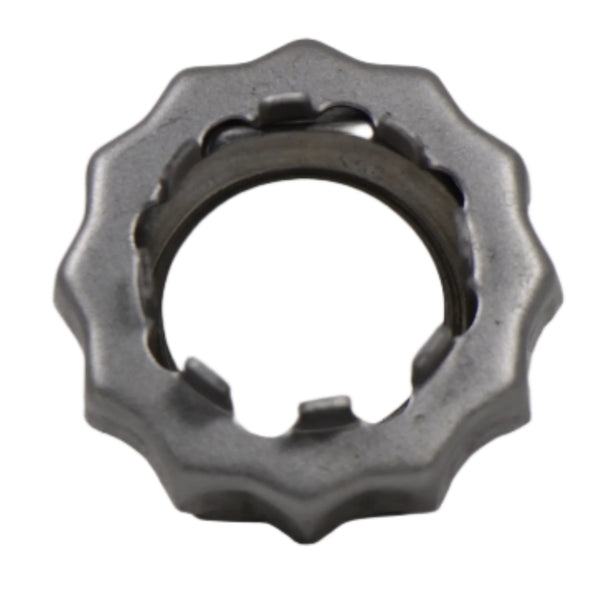

| Spindle End Kit | DW-813 washer, SN-813 lock nut, LS-813 shield, cotter pin |
Verify specifications before installation.
