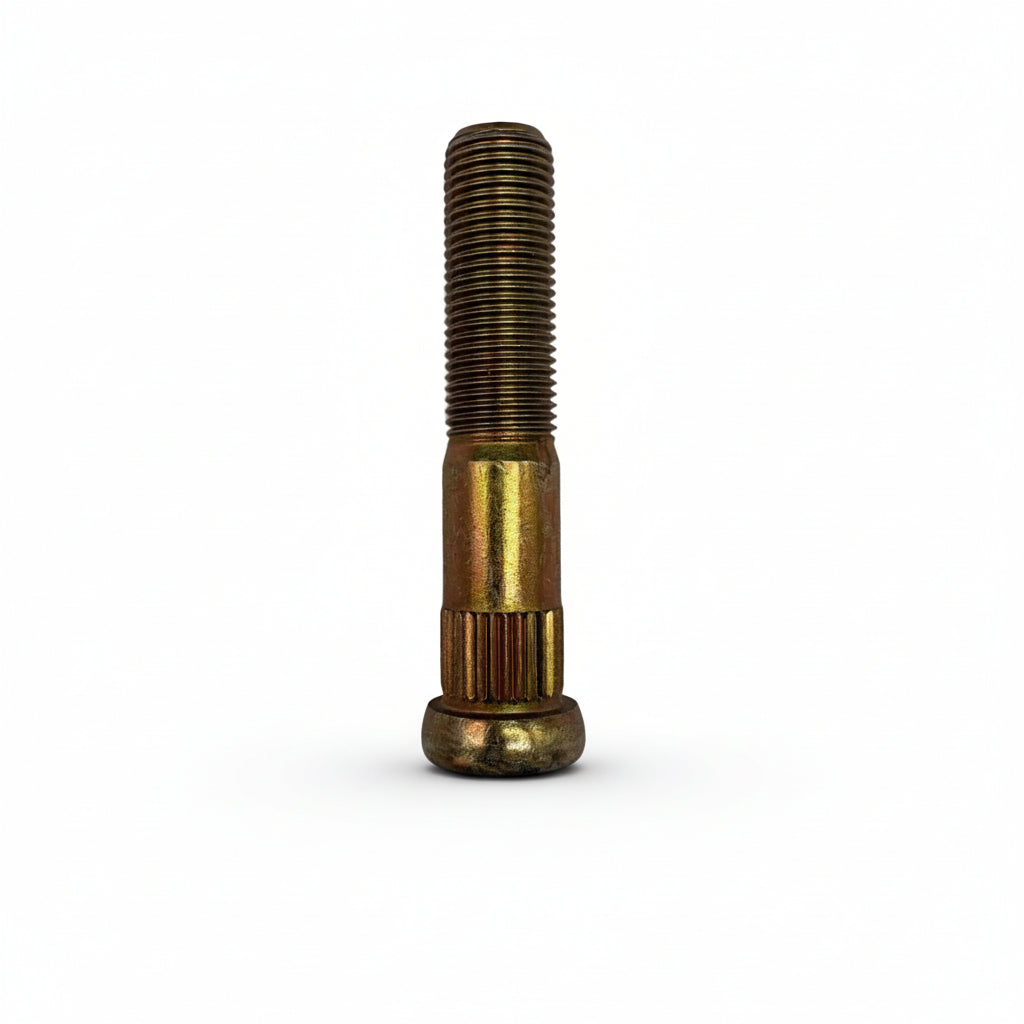

Trailer Wheel Studs 1/2"-20 x 2.70" Press-In Splined – Lot of 8 (WS-115-LOTOF8)
Part Number: WS-115-LOTOF8

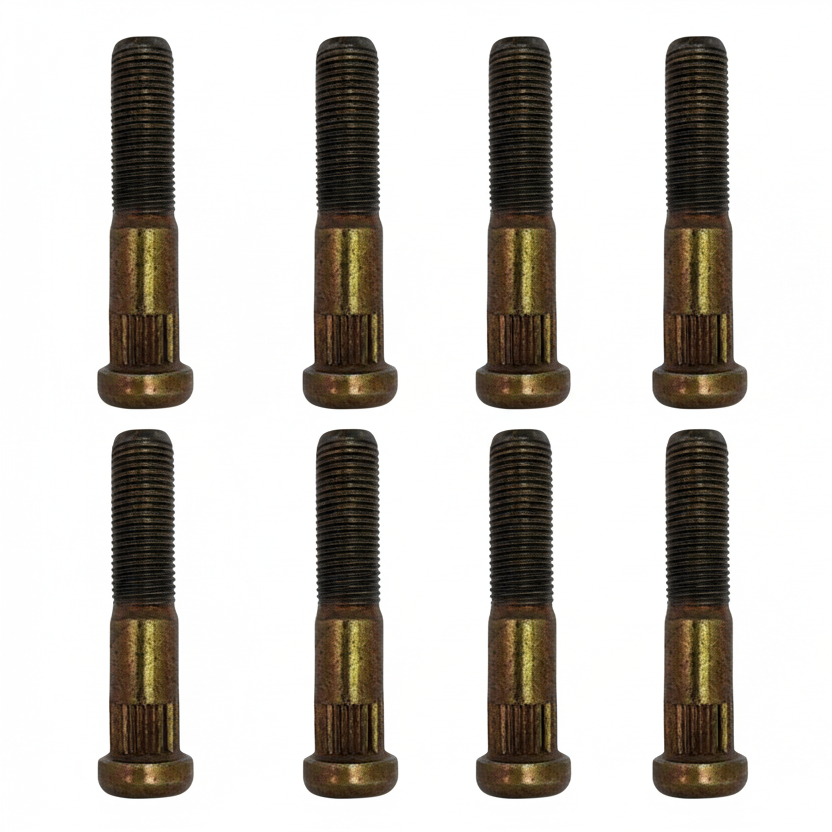

Set of 8 press-in trailer wheel studs with 1/2"-20 threads, 2.70" length, and 0.54" knurl diameter for hub, drum, or rotor applications.
R&P Knowledge Hub
Compatibility: Fits trailer hub, brake drum, or rotor assemblies designed for press-in studs with a 0.54" knurl diameter.
Vehicle / System Fit: Common on utility, enclosed, and equipment trailers using 1/2"-20 wheel hardware.
Installation Notes: Studs must be pressed into the flange—never hammered. Knurl diameter must match the bore for proper interference fit.
Performance Insight: Splined knurl locks the stud into the hub flange, preventing rotation and maintaining clamp force under repeated torque cycles.
Features
- 1/2"-20 thread size for standard trailer lug nut compatibility
- Press-in splined design for secure, permanent installation
- 2.70" overall length supports thicker wheel assemblies
- Precision 0.54" knurl diameter for proper hub interference fit
Specifications
| Specification | Detail |
| Thread Size | 1/2"-20 |
| Overall Length | 2.70" |
| Knurl (Spline) Diameter | 0.54" |
| Spline Length | 0.68" |
| Base / Shoulder Diameter | 1.38" |
| Installation Type | Press-in (splined) |
| Reference Numbers | Rockwell 7-262 / 4759-25Z / 007-262-00 |
| Part Number | WS-115-LOTOF8 |
Fitment / Application
| Category | Details |
| Vehicle / System | Trailer hubs, brake drums, or disc brake rotor assemblies |
| Axle / Capacity | Varies by hub design using 1/2"-20 studs |
| Notes | Knurl diameter must match hub bore; verify length and thread compatibility before purchase |
Included Components
| Quantity | Item |
| 8 | Wheel Studs (press-in, splined) |
Verify all specifications, measurements, and compatibility before installation.
