Match the part number, measurements and connection points that apply to your trailer.
| Bearings | Match inner and outer bearing numbers. |
|---|---|
| Seal | Match the seal number or dimensions. |
| Bolt Pattern | Verify the complete lug pattern. |
| Brake Size | Confirm when applicable. |
A comprehensive kit designed to add electric brakes to a single 3500# axle. Features self-adjusting backing plates and 10" drums with a 5-on-4.5" bolt pattern.
This R&P Carriages curated kit provides everything needed to add braking power to a single 3500# trailer axle. Specifically engineered for standard 3500# axle tubes (approx. 2-3/8" OD), this kit includes self-adjusting backing plates which automatically maintain the correct shoe-to-drum clearance, ensuring consistent stopping power and reduced maintenance. It is an ideal aftermarket solution for Spring or Torsion axles, including EZ Lube and standard spindles.
Compatibility: Fits most 3500# axles with a 4-bolt brake flange (2-7/8" center-to-center measurement).
Vehicle / System Fit: Designed for trailers with 5-bolt wheels on a 4.5" diameter bolt circle.
Installation Notes: Your axle must have a square brake flange welded behind the spindle with 4 mounting holes to accept the backing plates.
Performance Insight: 10" x 2.25" brakes provide the standard braking force required for 3500# G.V.W.R. applications.
Before ordering, please verify your axle dimensions to ensure this kit matches your configuration:
Brakes automatically adjust to the proper clearance during forward travel, ensuring peak performance.
Drums come with bearing races pre-pressed for a faster, cleaner installation process.
Includes EZ Lube dust caps, allowing for easy greasing without removing the hub.
Includes all necessary 7/16" mounting nuts and 1/2-20 lug nuts for the wheels.
| Specification | Detail |
|---|---|
| Axle Rating | 3500 lbs. |
| Brake Size | 10" x 2.25" |
| Bolt Pattern | 5 on 4.5" |
| Brake Type | Electric Self-Adjusting |
| Flange Pattern | 4-Bolt (2-7/8" Spacing) |
| Stud Size | 1/2"-20 |
| Axle Tube Compatibility | 2-3/8" OD |
| Category | Details |
|---|---|
| Axle Brands | Dexter, AL-KO, AXIS, Quality, Lippert |
| Axle Types | Spring or Torsion |
| Spindle Style | Standard or EZ Lube |
| Notes | Does not fit 2000# axles (1-5/8" tube) or 5200#+ axles (2.75" tube). |
| Quantity | Item |
|---|---|

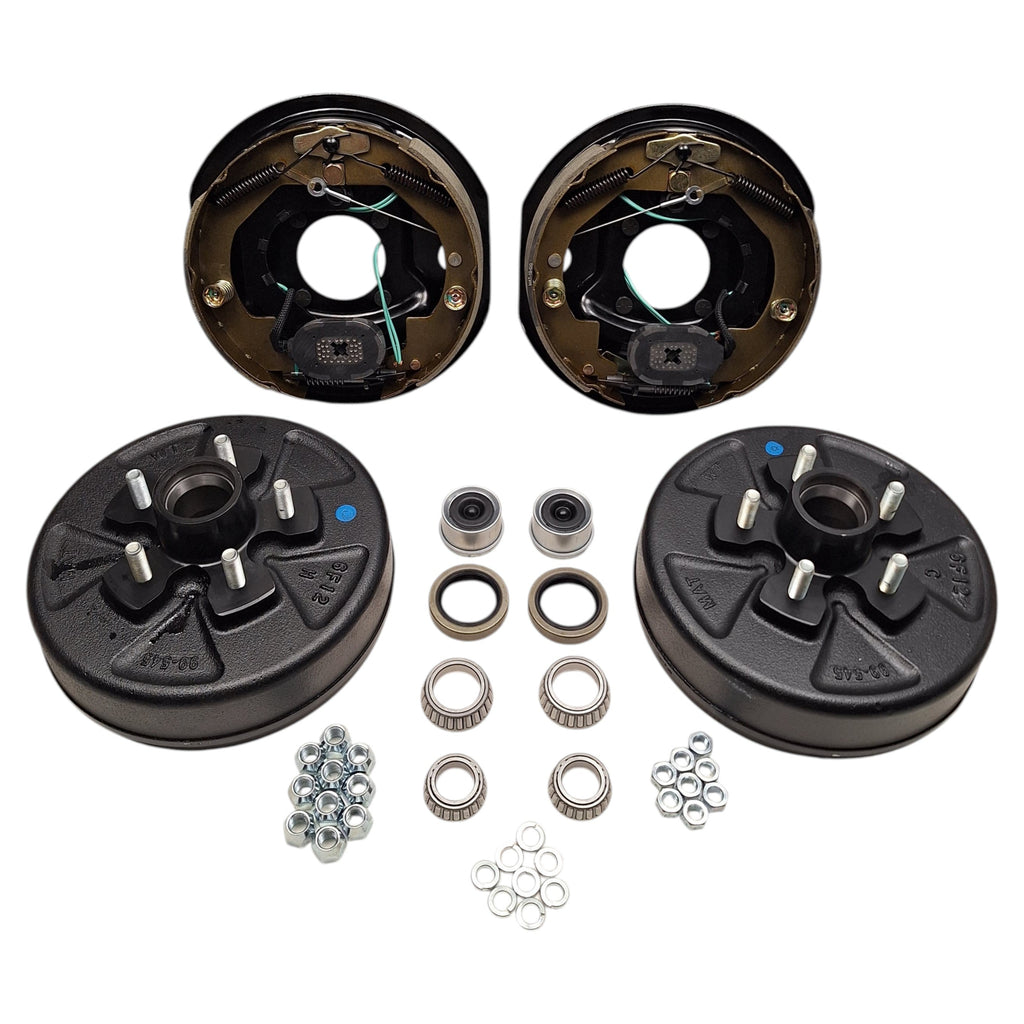

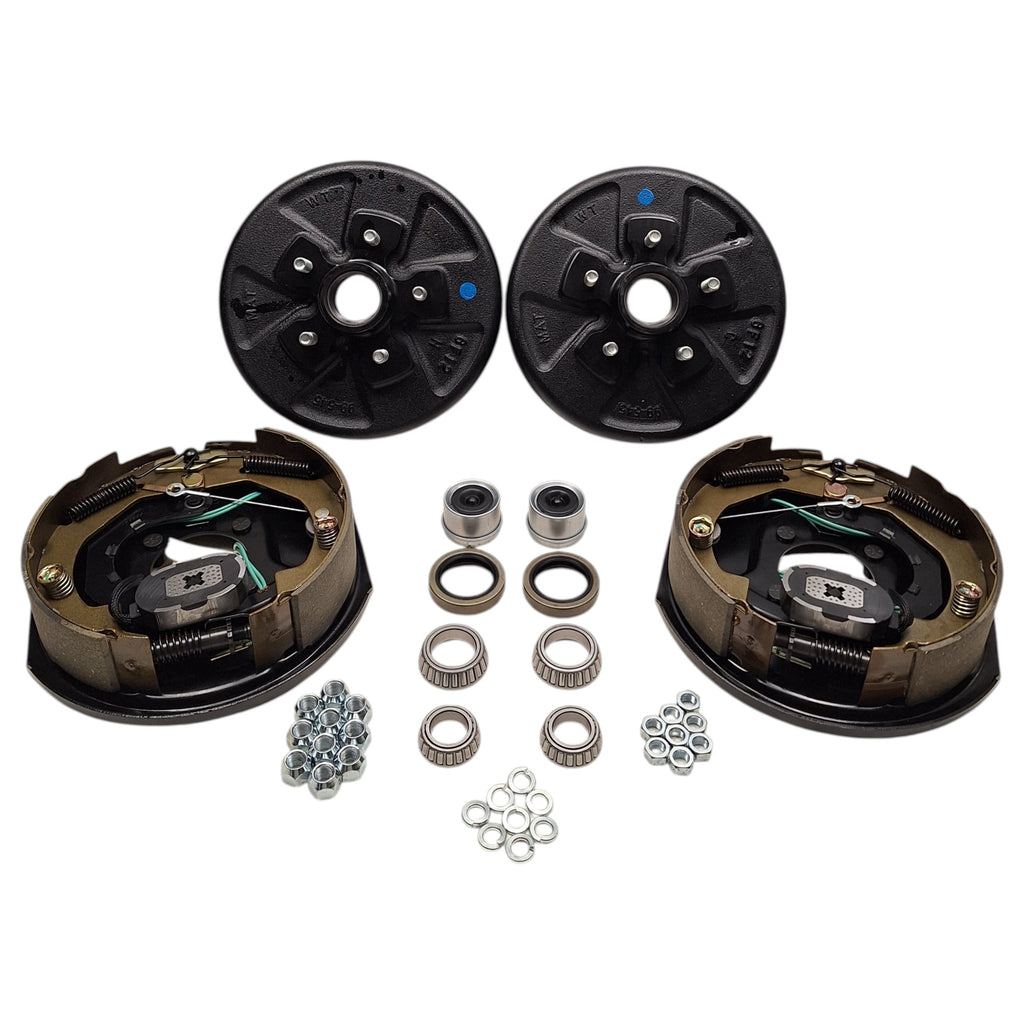

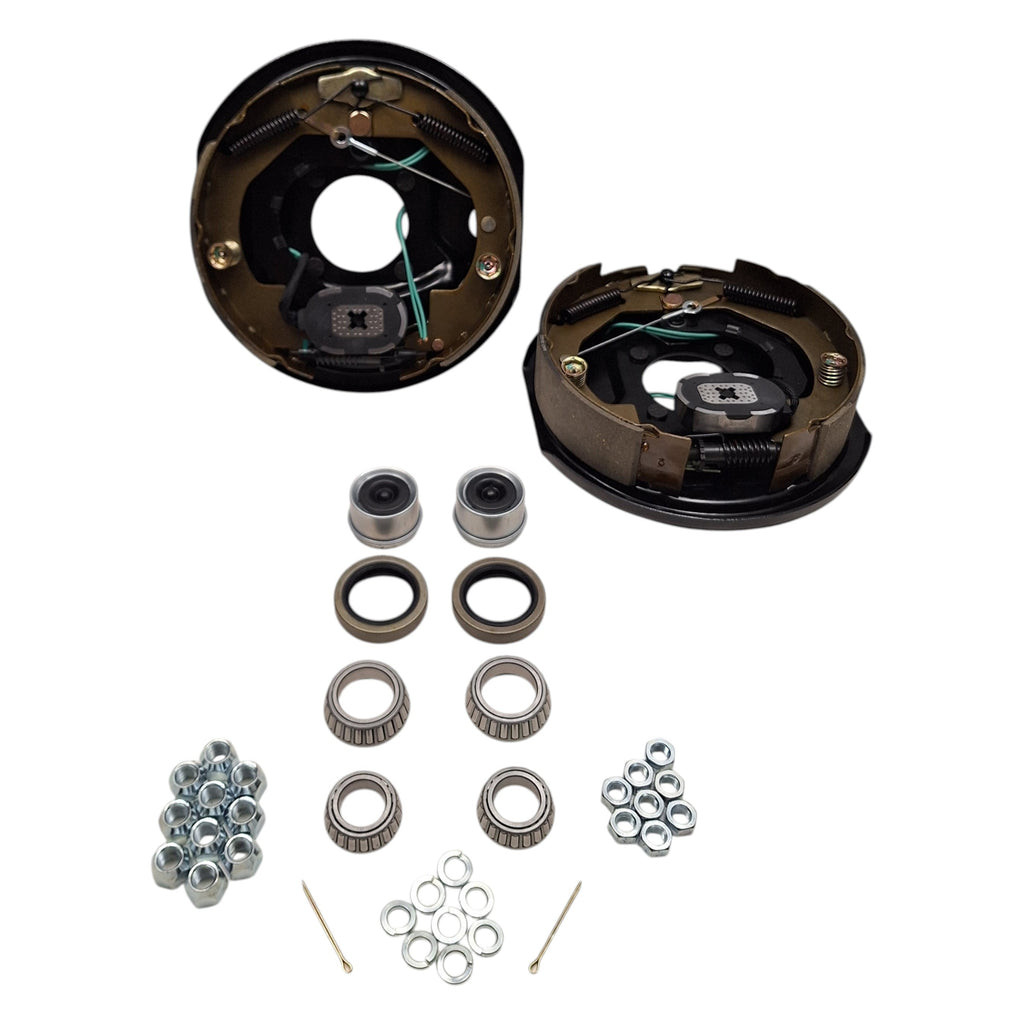

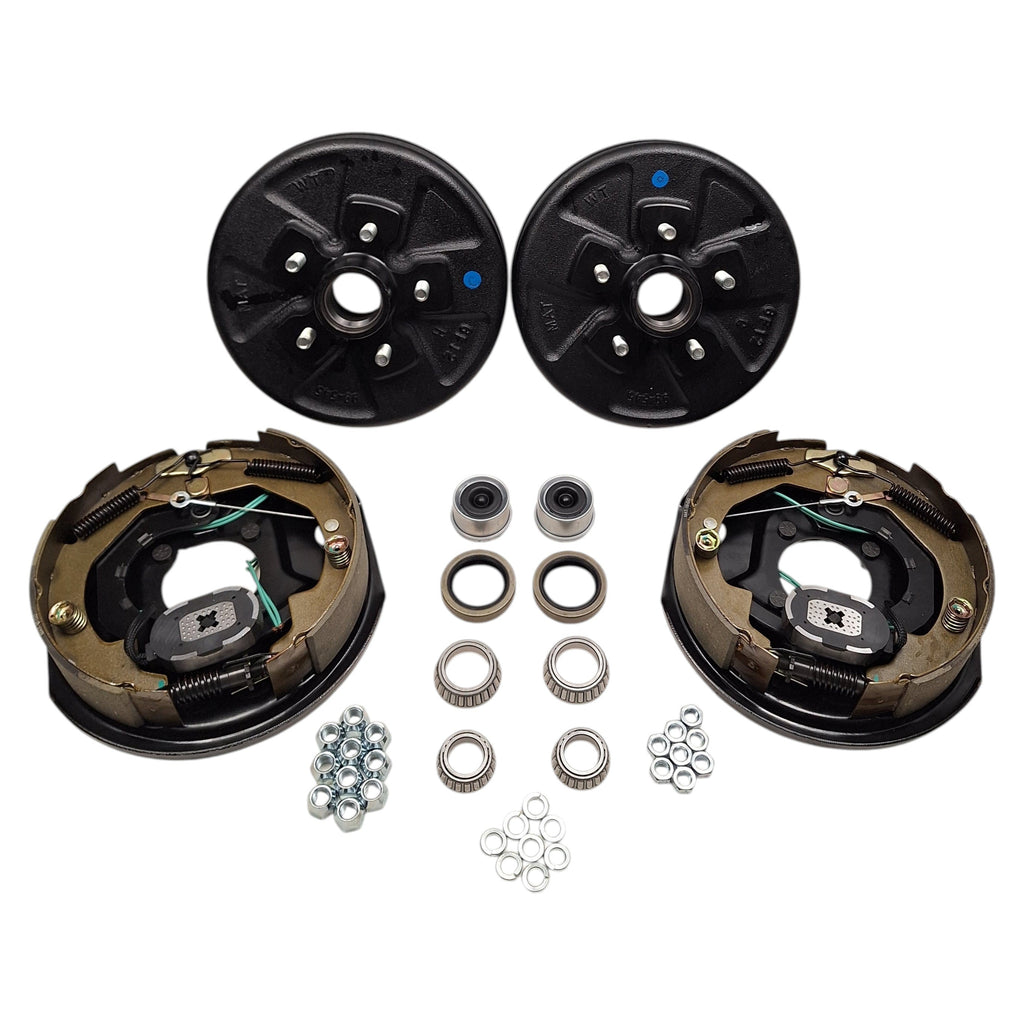

| 2 | 10" x 2.25" Backing Plates (1 Left, 1 Right) - Self-Adjusting |

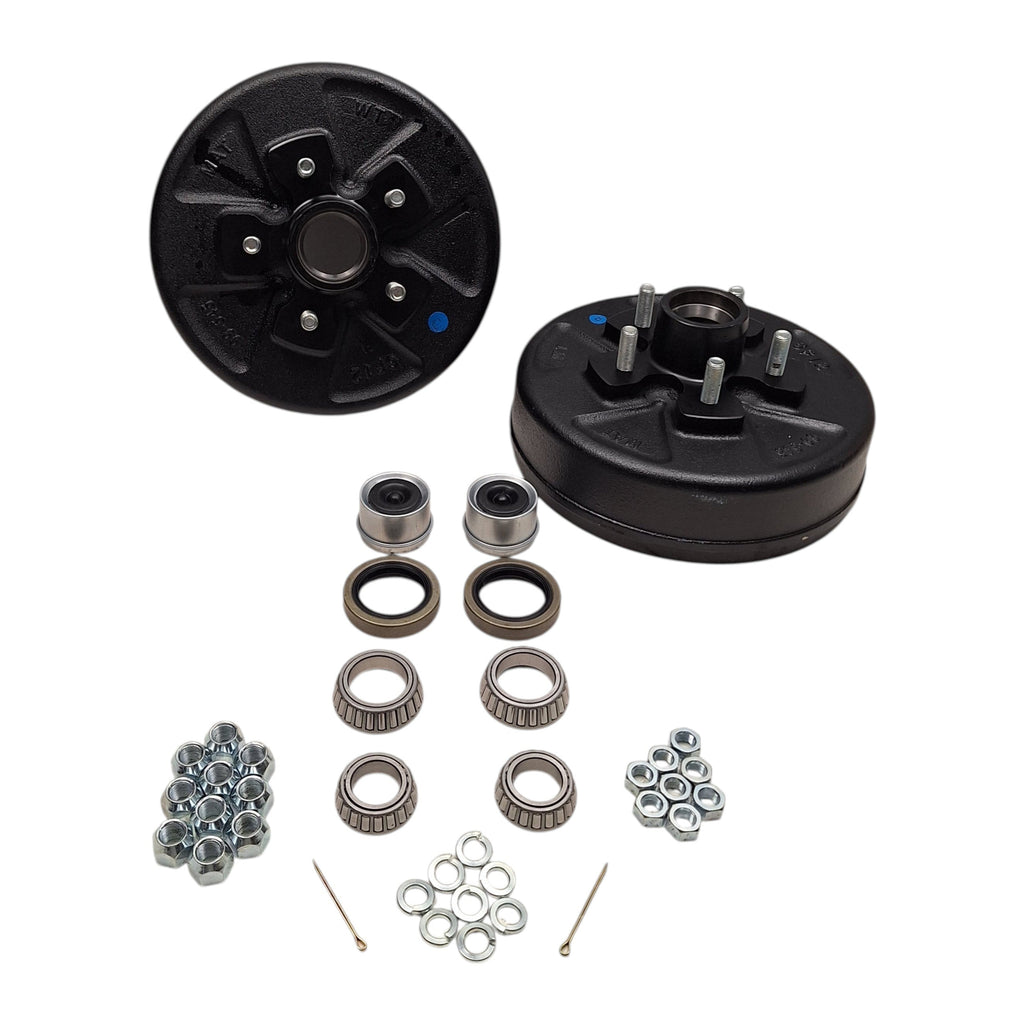

| 2 | 10" Brake Drums (5 on 4.5") with Pressed Races |

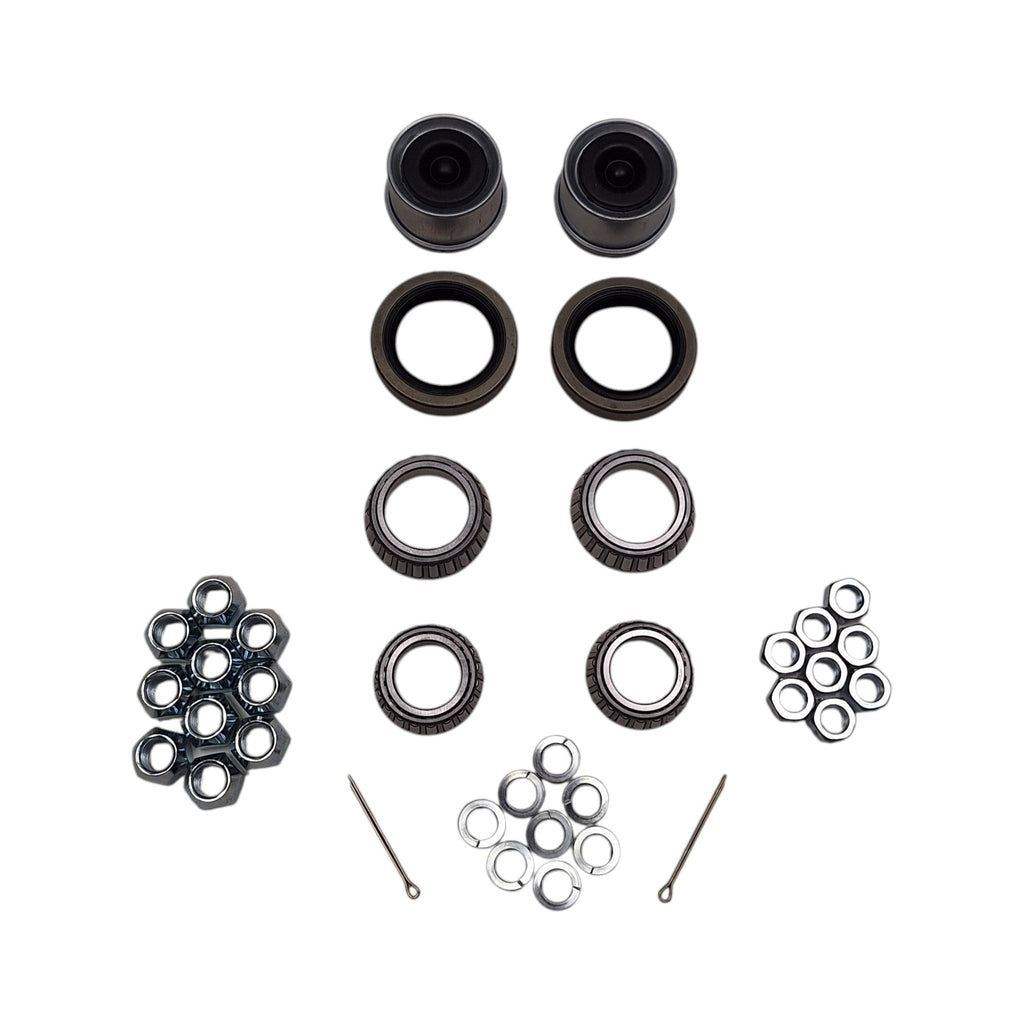

| 2 | L44649 Outer Bearings |
| 2 | L68149 Inner Bearings |
| 2 | 1.7" 10-19 Grease Seals |
| 2 | EZ Lube Dust Caps |
| 10 | 1/2-20 Matching Lug Nuts |
| 8 | 7/16" Backing Plate Mounting Nuts |
