Add Brakes Complete Kit 6x5.5 Drums, 12" Electric Backing Plates, 7000# Trailer (92655-C-IMP)

R & P Carriages

Regular price $325.99

Complete Add Brakes to Your Trailer Kit with a 6 x 5.5 Bolt Pattern
Part#: 92655-C-IMP


Complete Trailer Brake Setup, with drums, seals, Brake shoes, Bearings, new hardware, backing plates, Battery Break Away, EVERYTHING for one axle!
for 7000# axles from Dexter, AL-KO, AXIS, Quality, and others


In order for these brakes to work, you must have a brake controller and a 7 way plug installed in your truck


If you have a trailer without brakes, and you want to add them, this kit has EVERYTHING you will need. This kit fits standard 7000# axle, either Spring or Torsion, EZ lube or Standard.

Most 6 OR 8 bolt wheel trailers are 7000# axles. Some small trailers (usually with small tires and a 1-5/8" axle tube) will have the smaller spindles, and for those you will need a smaller brake kit  Look at the measurements below if you are not sure.

Measurements from Center Bolt Hole to Center Bolt Hole is 2 7/8" on Backing Plate

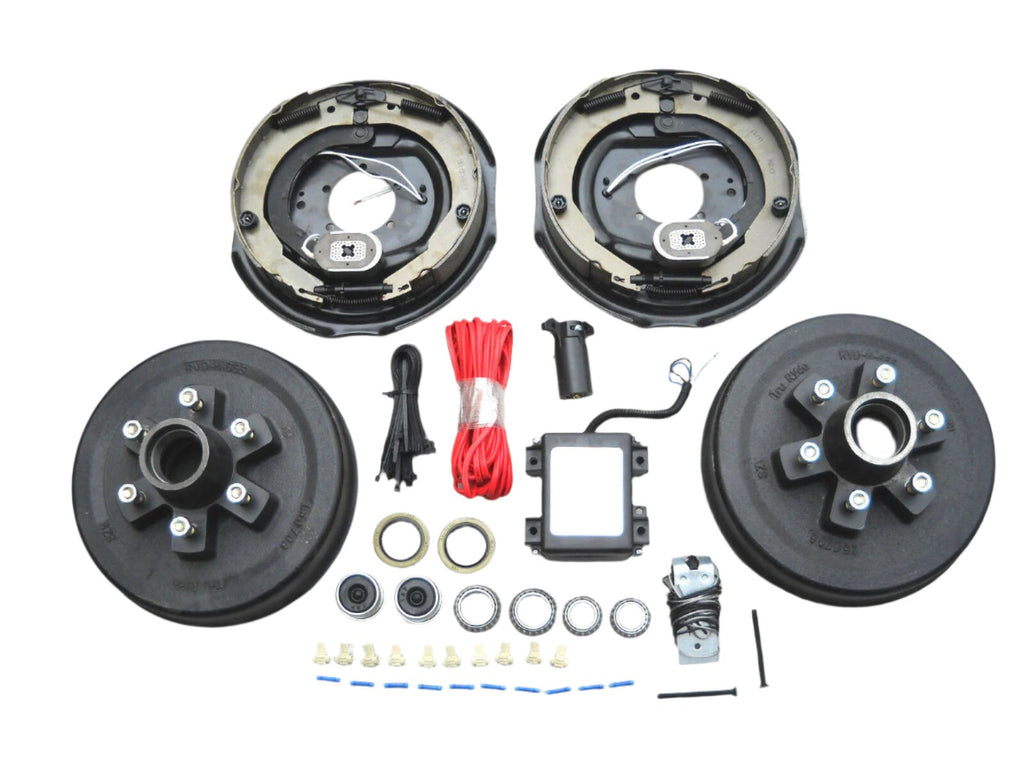

This Kit Includes:

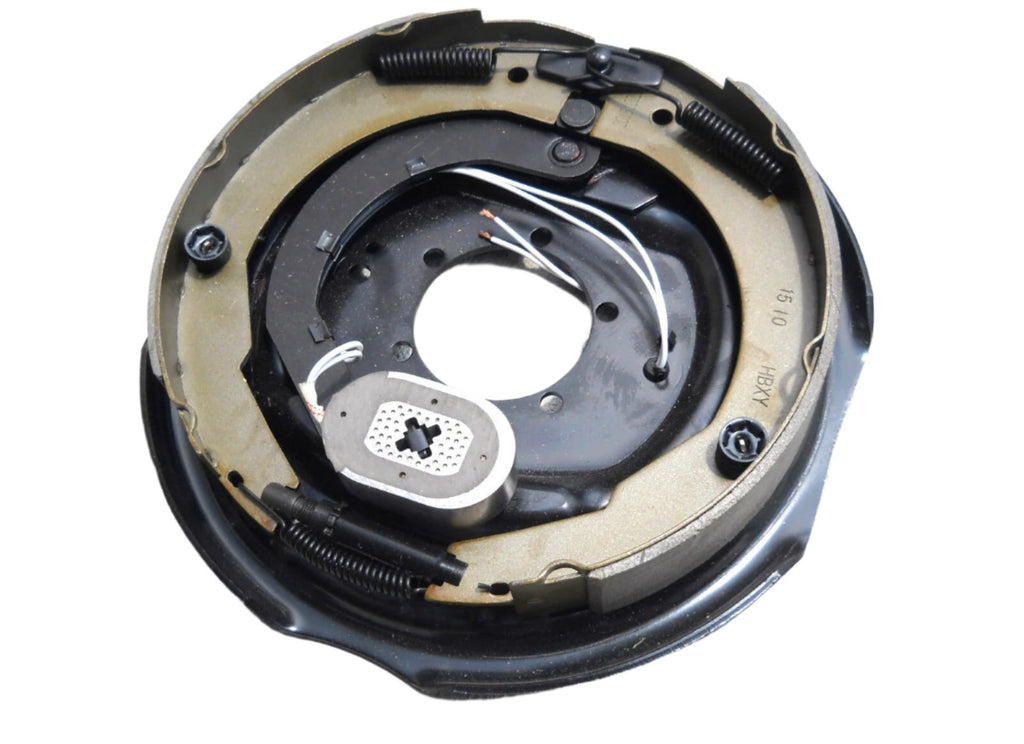

TWO - Electric Brake backing plates, 7000# per pair, 12" x 2.25, one left, one right
TWO - New 12" brake drums, 6 x 5.5" bolt pattern with races already pressed in
All

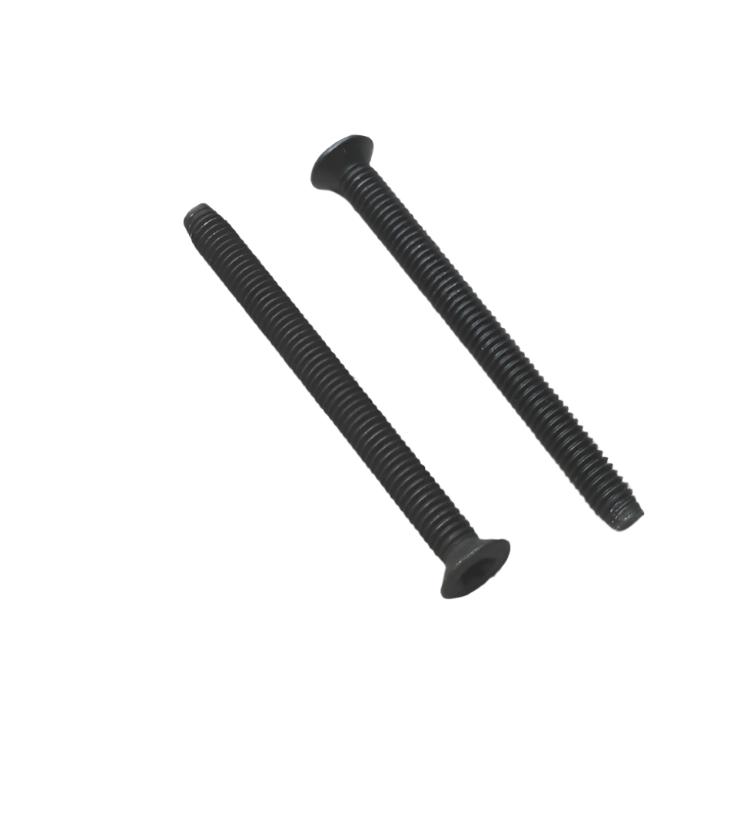

 hardware to attach backing plates to axle mount plate (special 7/16 nuts).
All brake hardware, springs, levers, magnets, shoes, etc.

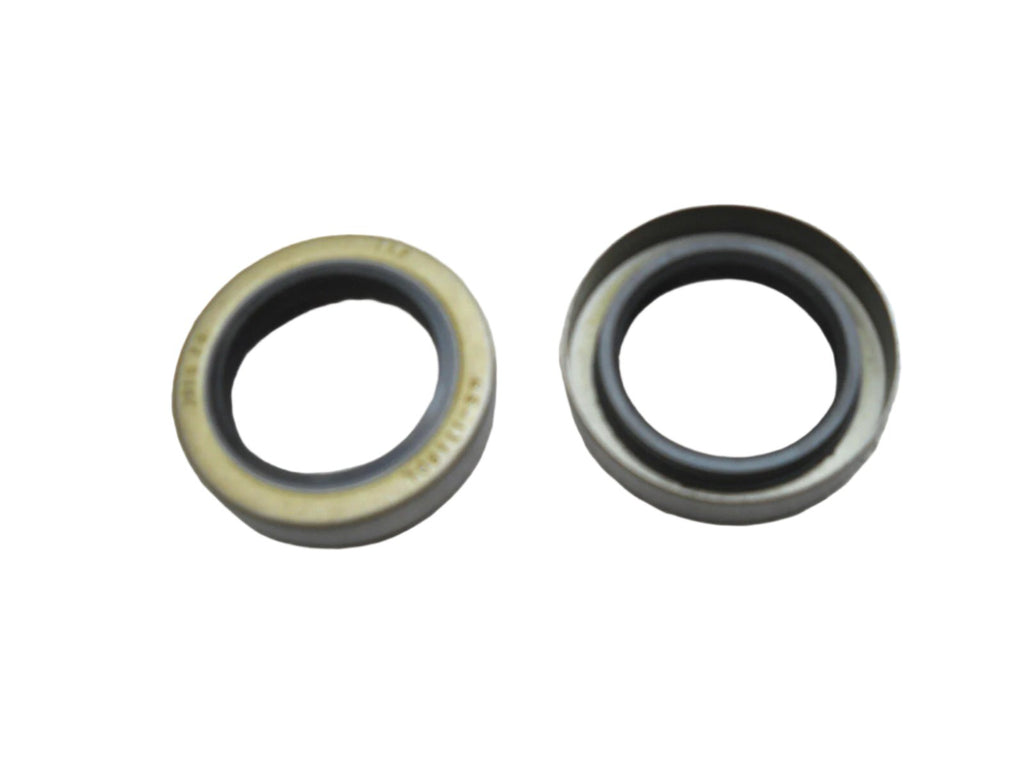

New inner grease seals

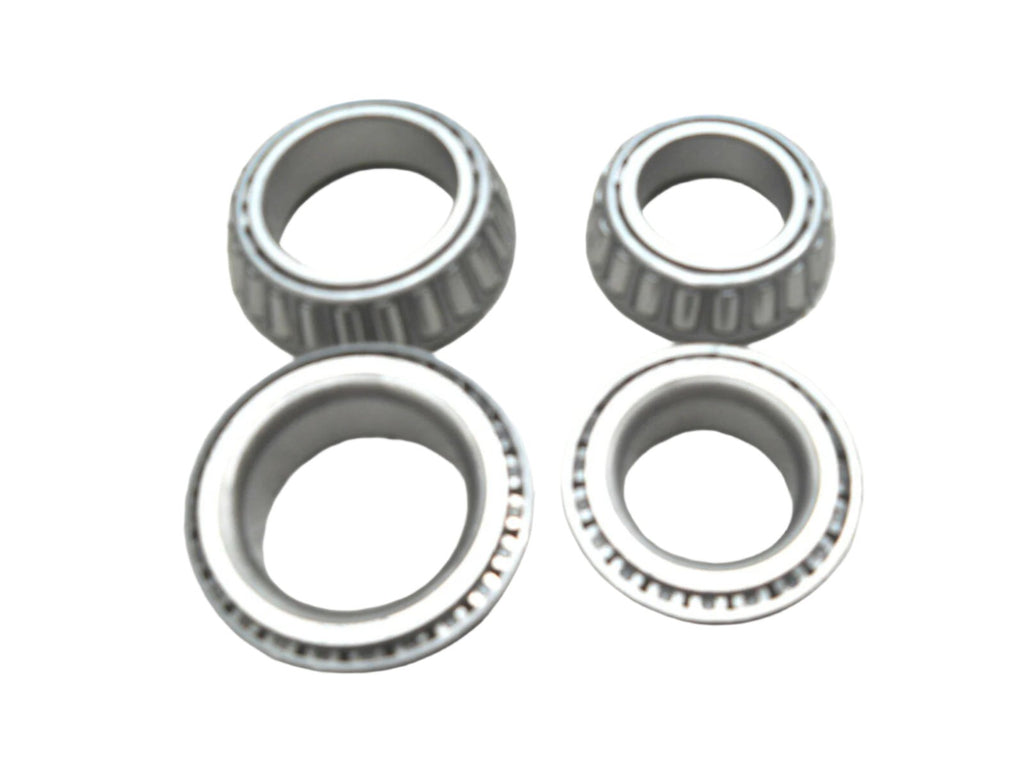

All New Wheel Bearings (Shipping loose with kit):
TWO - 2.25" 10-46 seals
TWO - 14125A bearings
TWO - 25580 bearings

TWELVE - Matching lug nuts, 1/2-20

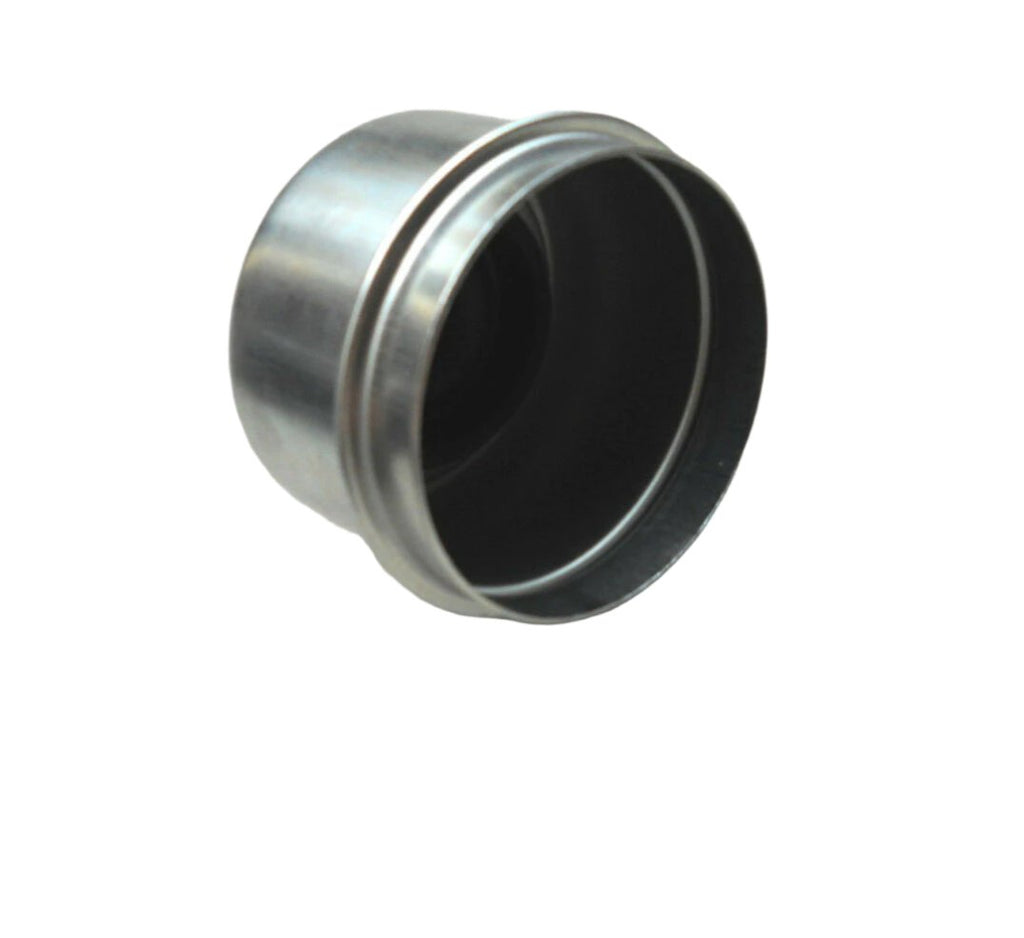

TWO - New EZ Lube Dust Caps

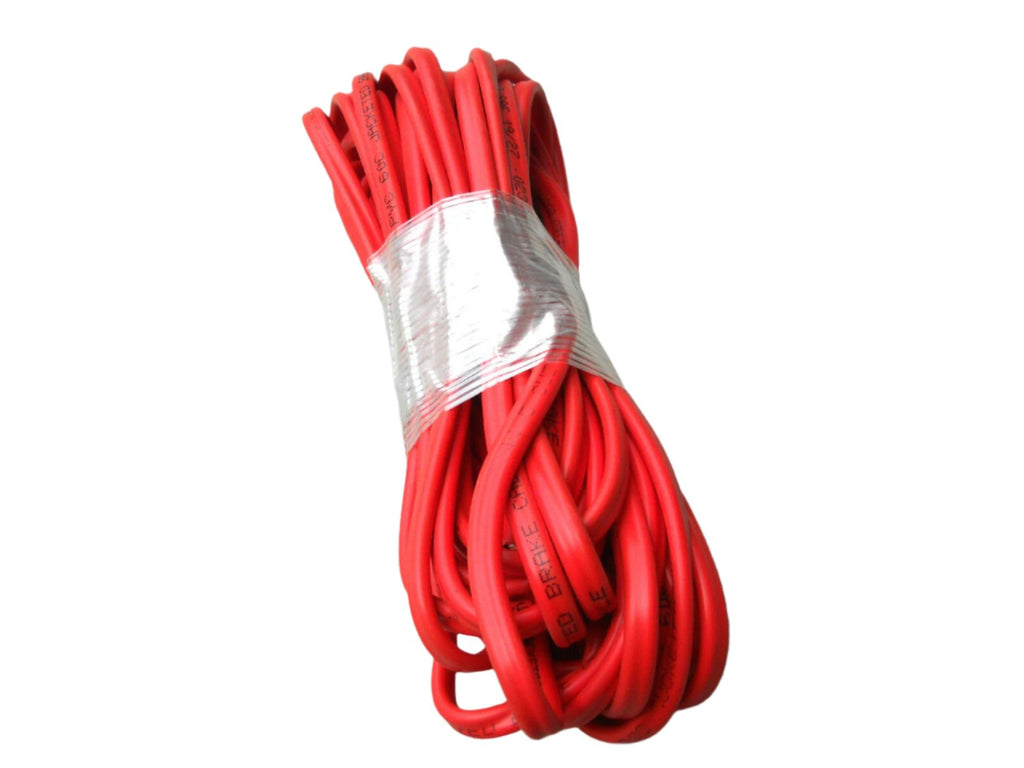

25' Ft of 14 Gauge Two Conductor High Temperature Brake Wire (Enough for a 23 ft long trailer!)

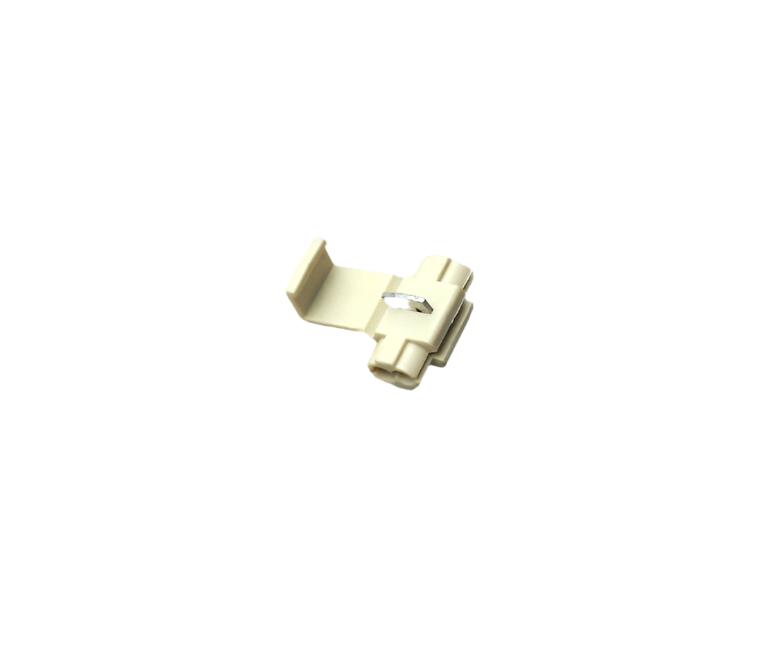

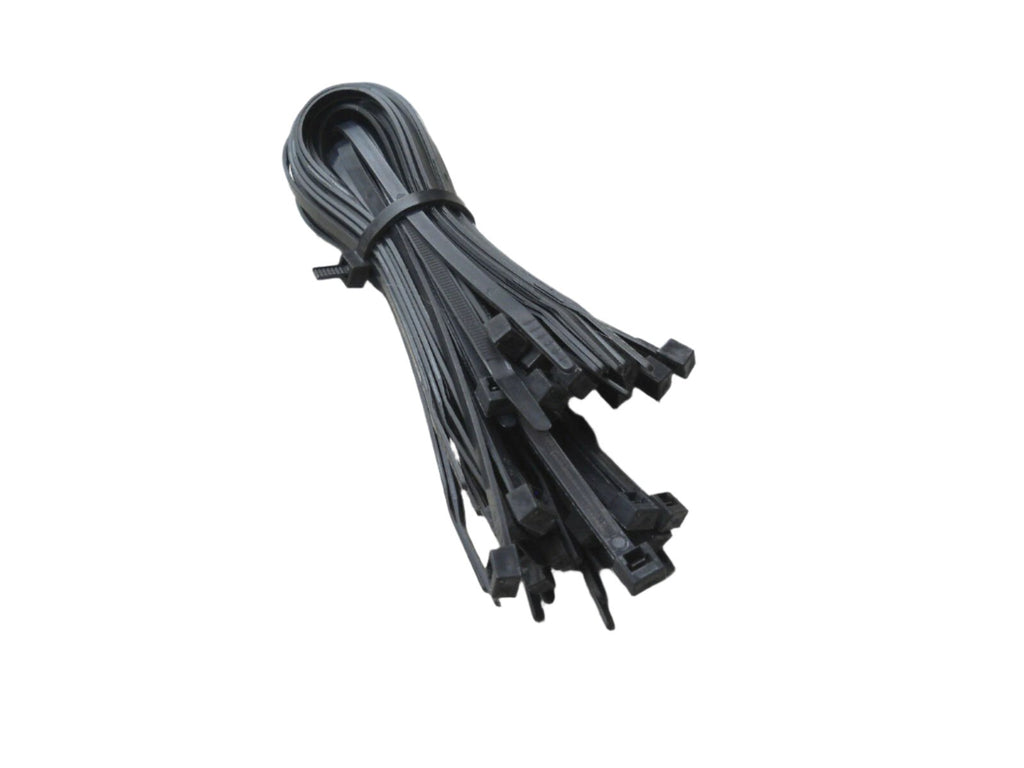

Assorted wire connectors and wire ties (Everything you need!)

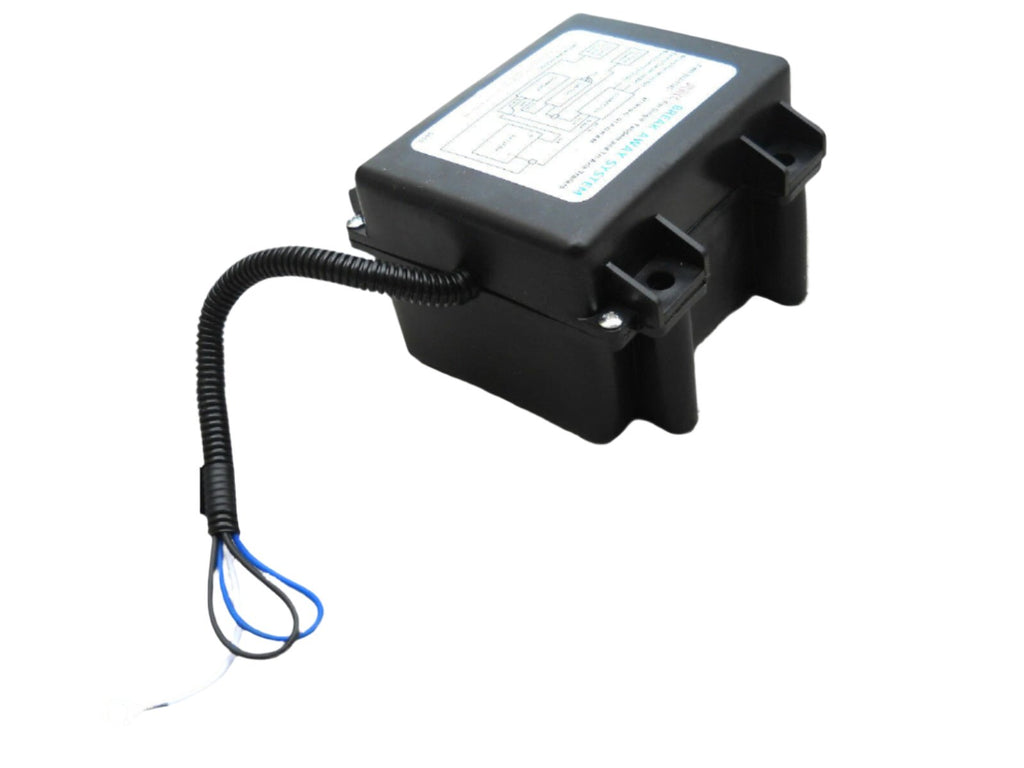

4.5 Amp Hour, 12 Volt Gel Cell Rechargeable break away battery with built in battery charger
Battery Case to mount to trailer
Pull pin emergency break away switch

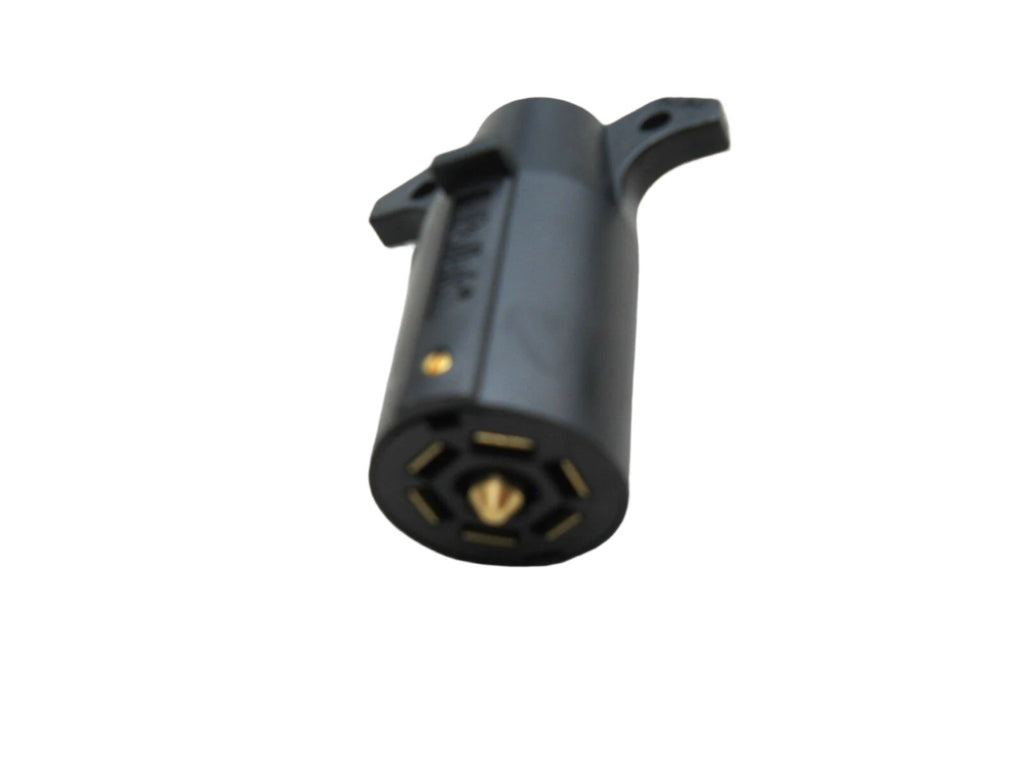

New 7 Way Trailer Plug

In addition, you should see a small square plate welded to the axle tube (to bolt the brake plate to)

If you have a 3500# axle the tube tube will be about 2 1/4" OD. If you have a 2.75" axle tube, it is the larger 5200, 6000, or 7000# axle, and if you have the smaller 1-5/8" axle tube, it has the smaller 2000/2200# axle

This auction is for a trailer with a 6 bolt, 5.5 " bolt pattern!  I stock all sizes, so please check my other auctions or specify you want a different size!

Note: We offer two different types of brake kits. Basic Kits & Complete Kits
Complete Kits are for adding brakes for the first time
Basic Kits are for adding brakes to a second axle or replacing them.

Make sure you double check that you are ordering the right bolt pattern before you pay
