Two Pack - Trailer Rebuild Kit – 13" Equalizers for 2" Slipper Springs
Complete paired equalizer and hardware kit for 2" wide slipper spring trailer suspension systems. Includes two EQ-13 equalizers with matching bolts, nuts, retainer hardware, and nylon bushings.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Kit SKU | EQ-13-REBUILD-KIT |
| Equalizer Part Number | EQ-13 |
| Product Type | Trailer equalizer rebuild kit |
| Quantity Included | Two equalizers with related hardware |
| Spring Width | For 2" wide slipper springs |
| Equalizer Length | 13" overall length reference |
| Center Bolt Hole | 7/8" diameter |
| Side Bolt / Spring Eye Hole | 9/16" diameter |
| Keeper / Retainer Hole | 3/8" diameter hole reference; kit includes 5/16" retainer hardware |
| Equalizer Material | 1/4" thick hot-rolled steel |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer slipper spring suspension |
| Primary Fit | 2" wide slipper leaf springs |
| Common Uses | Tandem-axle and triple-axle trailers using center-hanger equalizer suspension |
| Center Mount | Equalizer suspends from the center hanger using a 7/8" grease bolt |
| Fitment Method | Verify existing equalizer length, spring width, bolt-hole diameters, retainer hardware, and hanger spacing before ordering |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Paired Equalizer Kit | Includes two EQ-13 equalizers for servicing both sides of a compatible suspension setup. |
| For Slipper Springs | Designed for trailer suspension systems using 2" wide slipper leaf springs. |
| Load Transfer Function | Allows controlled suspension articulation between axles to help distribute load and absorb road shock. |
| Hardware Included | Includes grease bolts, lock nuts, equalizer bolts, retainer bolts, retainer nuts, and nylon bushings shown in the kit BOM. |
Overview
This listing is for one R&P Carriages EQ-13 equalizer rebuild kit containing two 13" slipper spring equalizers with matching bolts, nuts, retainer hardware, and nylon bushings. These equalizers connect 2" wide slipper leaf springs on tandem- or triple-axle trailers, allowing controlled suspension movement between axles to help distribute load and absorb road shock.
R&P Service Insight
Equalizers are wear-point suspension parts. Replacing the equalizers and related hardware together helps restore proper movement through the suspension system.
- Spring Type: Built for 2" wide slipper spring suspension setups.
- Center Mount: Equalizer suspends from the center hanger using a 7/8" grease bolt.
- Best Practice: Verify existing equalizer length, bolt-hole diameters, retainer hardware, and hanger spacing before ordering.
R&P Knowledge Hub
Compatibility: Designed for trailer suspension systems using 2" wide slipper springs and EQ-13 style 13" equalizers.
Trailer Suspension Fit: Commonly used on tandem- and triple-axle slipper spring trailers.
Installation Notes: Confirm center bolt size, spring-eye bolt size, retainer hardware, equalizer length, and hanger spacing before installation.
Performance Insight: A properly matched equalizer allows the suspension to articulate between axles, helping reduce harsh impact transfer through the trailer frame.
Brand & Fitment Note
Selling Brand: R&P Carriages bundled trailer suspension kit.
Application Reference: 13" equalizer rebuild kit for 2" wide slipper spring suspension systems.

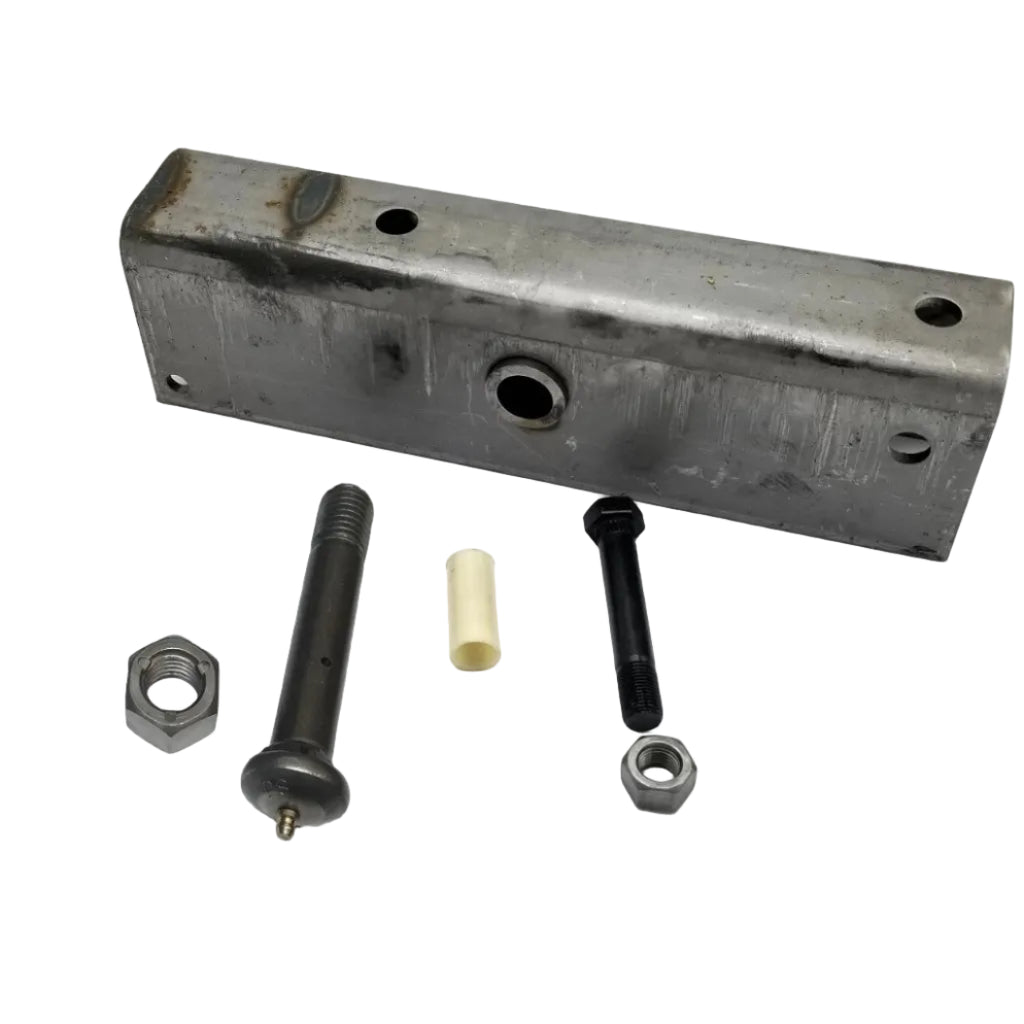

What This Includes: Two equalizers, grease bolts, lock nuts, equalizer bolts, spring retainer bolts, retainer nuts, and nylon bushings.
Before Ordering: Match your existing equalizer length, spring width, center bolt size, side bolt size, and retainer hardware to the measurements shown below.
R&P Repair Insight
Worn equalizers, elongated bolt holes, seized bolts, missing retainer hardware, and deteriorated bushings can create sloppy suspension movement, uneven axle loading, and extra stress through the trailer frame. Inspect both sides of the suspension before replacing individual parts.
- Check the Hangers: Look for cracks, wallowed holes, or bent hanger brackets.
- Check the Springs: Confirm spring width and inspect the spring ends for wear.
- Check the Hardware: Replace worn bolts, nuts, retainers, and bushings instead of reusing damaged parts.
Features
Paired Equalizer Kit
Includes two EQ-13 equalizers for servicing both sides of a compatible trailer suspension setup.
For Slipper Spring Suspensions
Designed to connect 2" wide slipper leaf springs on tandem- or triple-axle trailer suspension systems.
Load Transfer Function
Allows controlled articulation between axles to help distribute load and reduce impact stress through the trailer frame.
Hardware Included
Includes the equalizer bolts, lock nuts, retainer bolts, retainer nuts, grease bolts, and nylon bushings shown in the kit BOM.
Specifications
| Specification | Detail |
|---|---|
| Kit SKU | EQ-13-REBUILD-KIT |
| Equalizer Part Number | EQ-13 |
| Product Type | Trailer equalizer rebuild kit |
| Quantity Included | Two equalizers with related hardware |
| Spring Width | 2" slipper springs |
| Application | Tandem- or triple-axle slipper spring trailer suspension |
| Equalizer Material | 1/4" thick hot-rolled steel |
| Key Measurement | 13" overall equalizer length reference |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer slipper spring suspension |
| Primary Fit | 2" wide slipper leaf springs |
| Common Uses | Tandem-axle and triple-axle trailers using center-hanger equalizer suspension |
| Notes | Confirm spring width, equalizer length, center bolt diameter, side bolt diameter, and retainer bolt setup before installation. |
Detailed Measurements
| Key Dimension | Measurement |
|---|---|
| Overall Length | 13" |
| Center Bolt Hole | 7/8" diameter |
| Side Bolt Hole / Spring Eye Hole | 9/16" diameter |
| Keeper / Retainer Bolt Hole | 3/8" diameter hole reference; kit includes 5/16" retainer hardware |
| Spring Width Reference | For 2" wide slipper springs |
Included Components
| Quantity | Item |
|---|---|
| 2 | 006-111-00 — 7/8"-9 Lock Nuts |

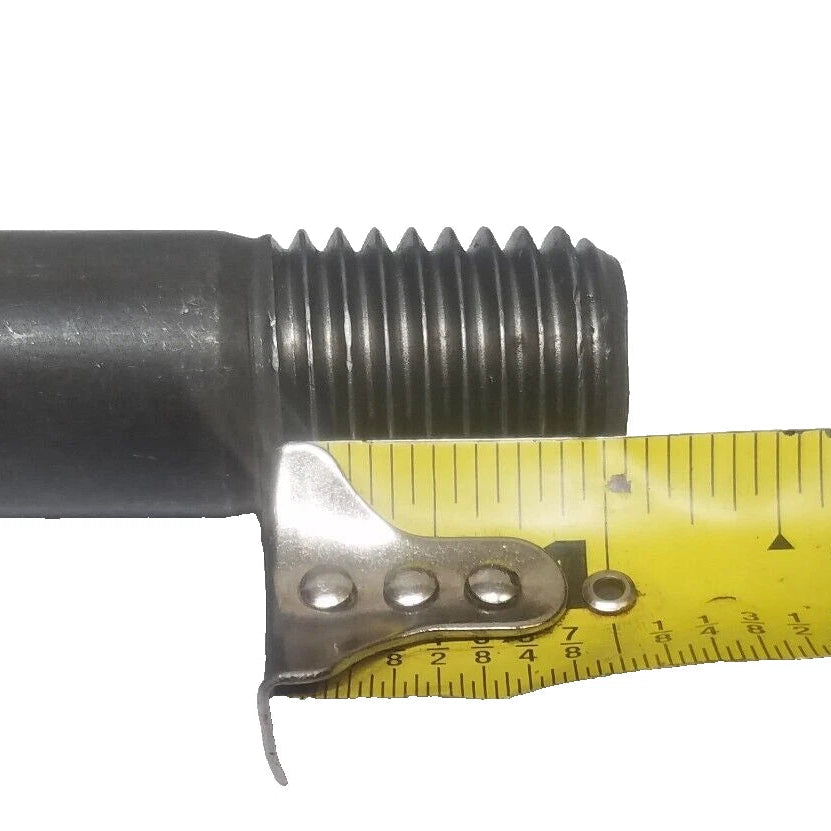

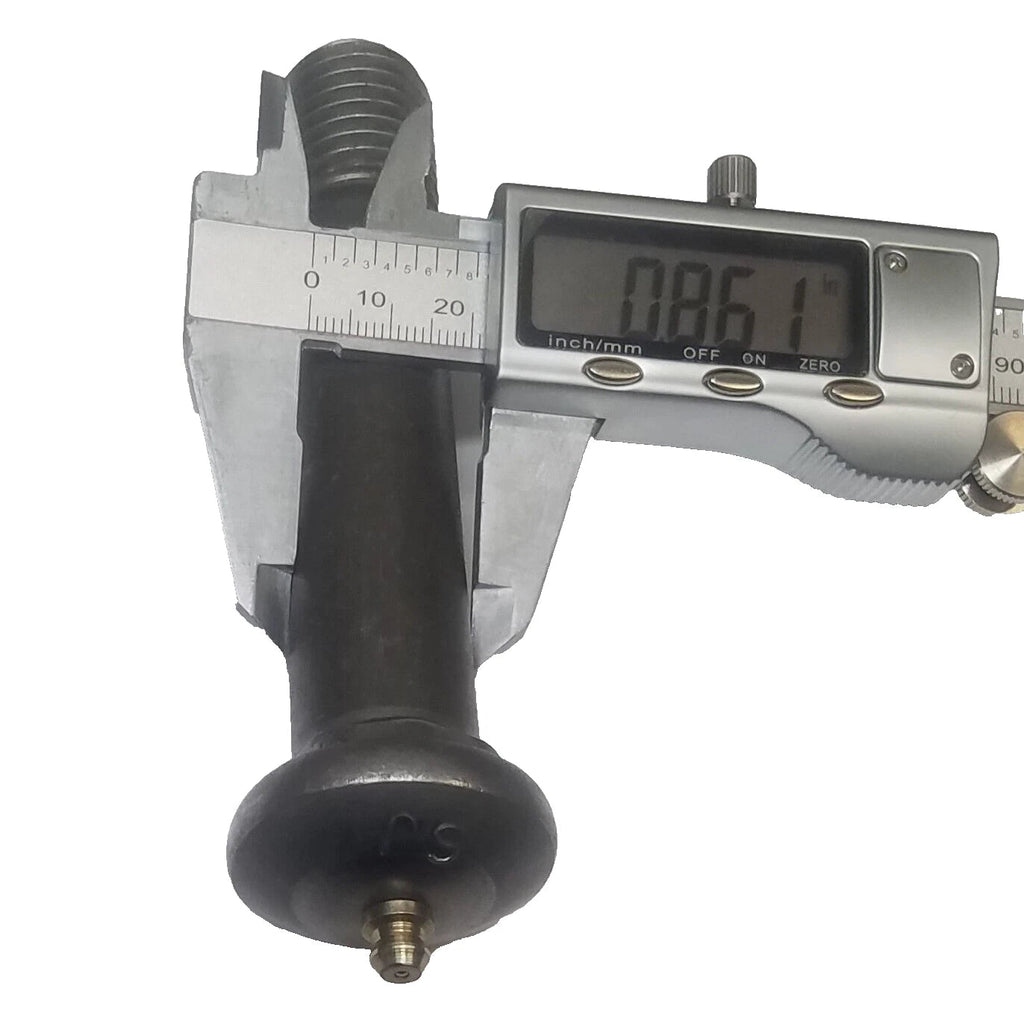

| 2 | 007-001-01 — 7/8"-9 x 4.62" Grease Bolts |

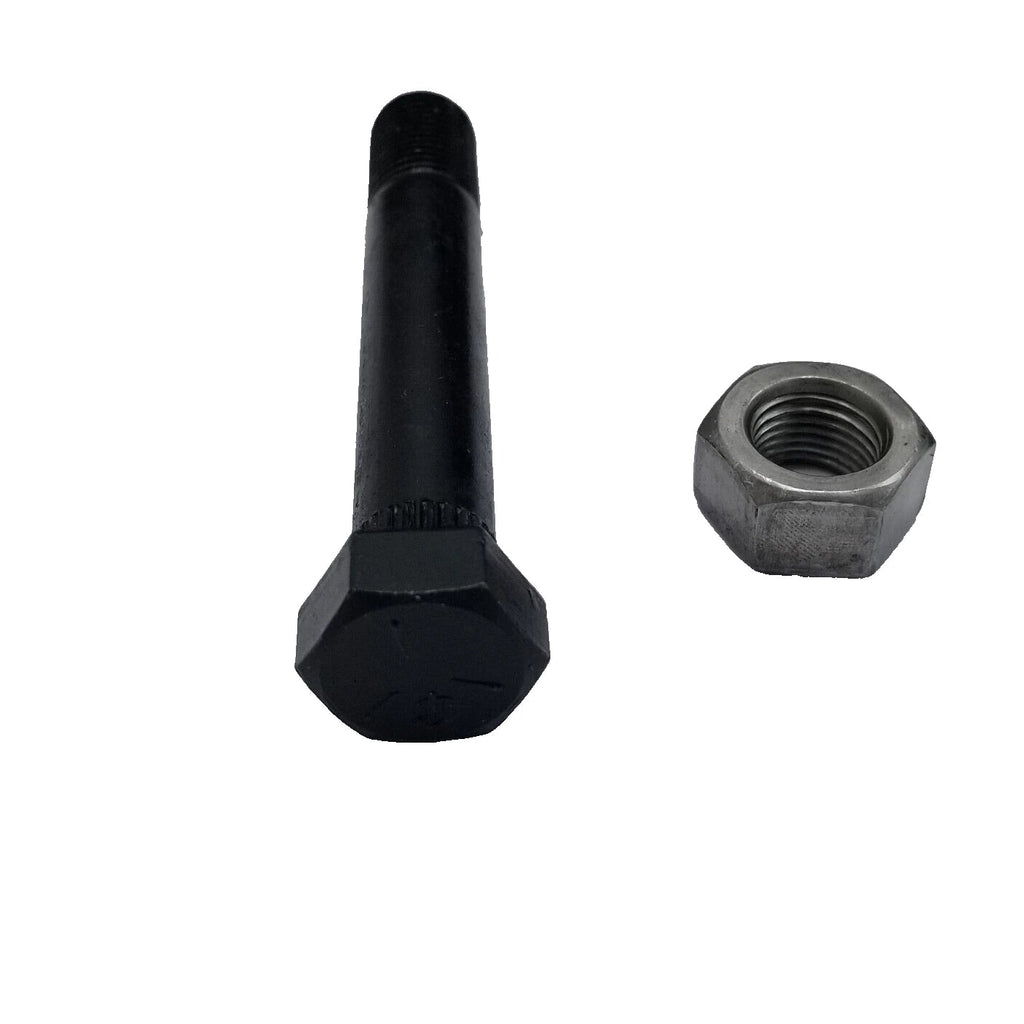

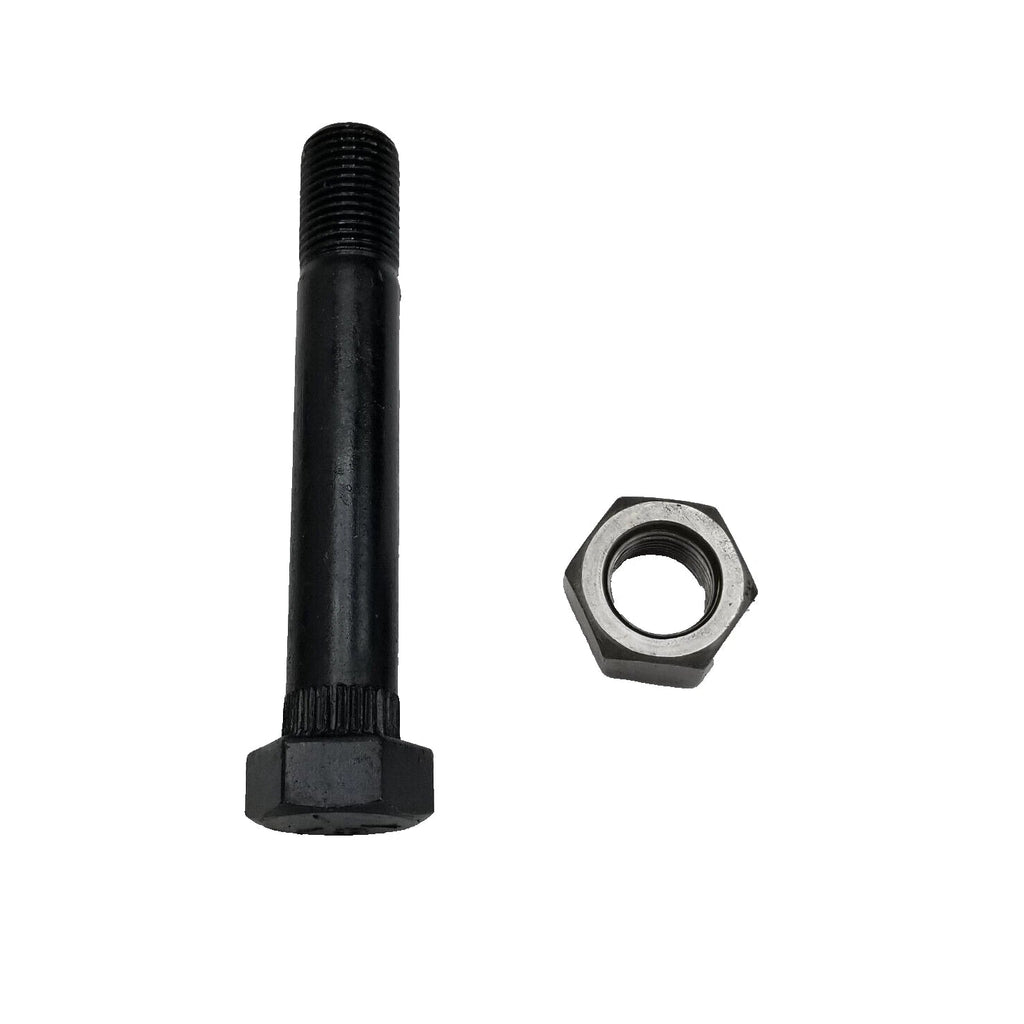

| 8 | 91635B — 9/16"-18 x 3.50" Equalizer / Shackle Bolts |

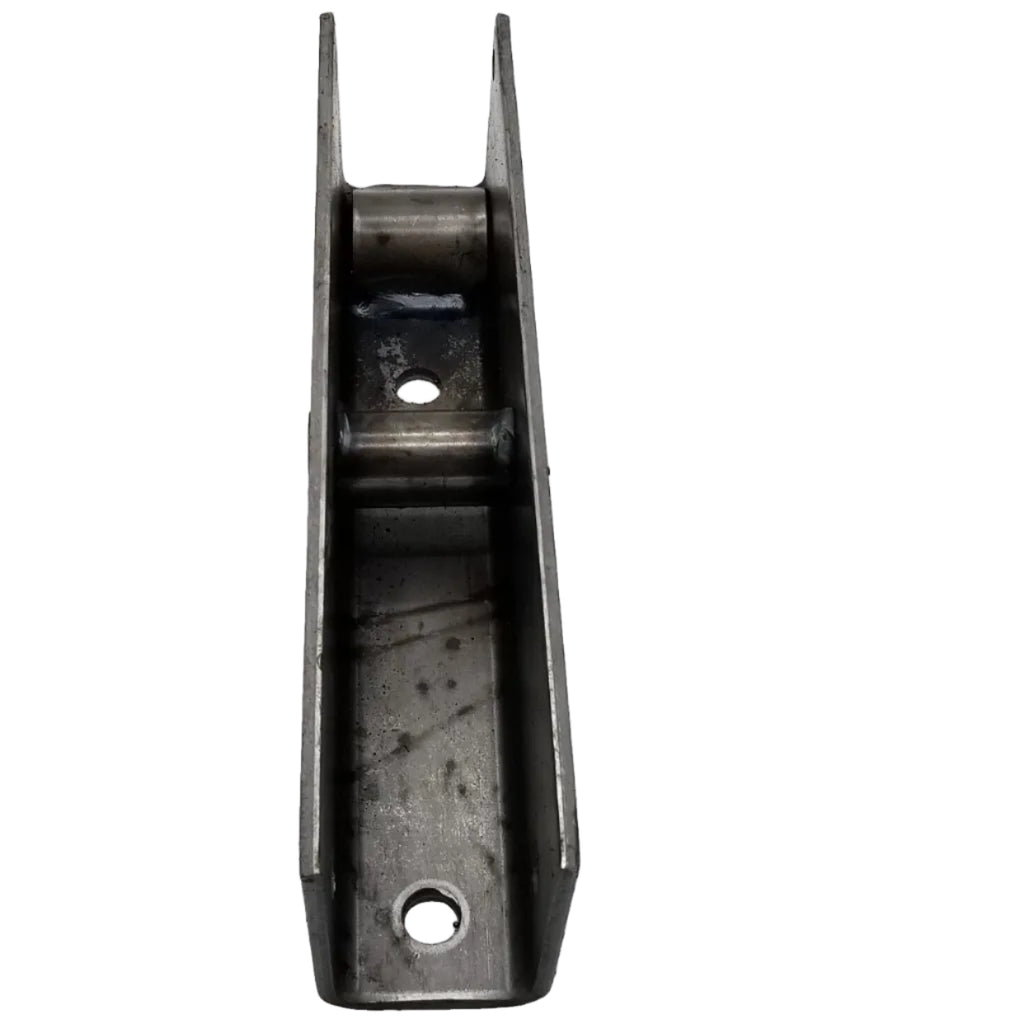

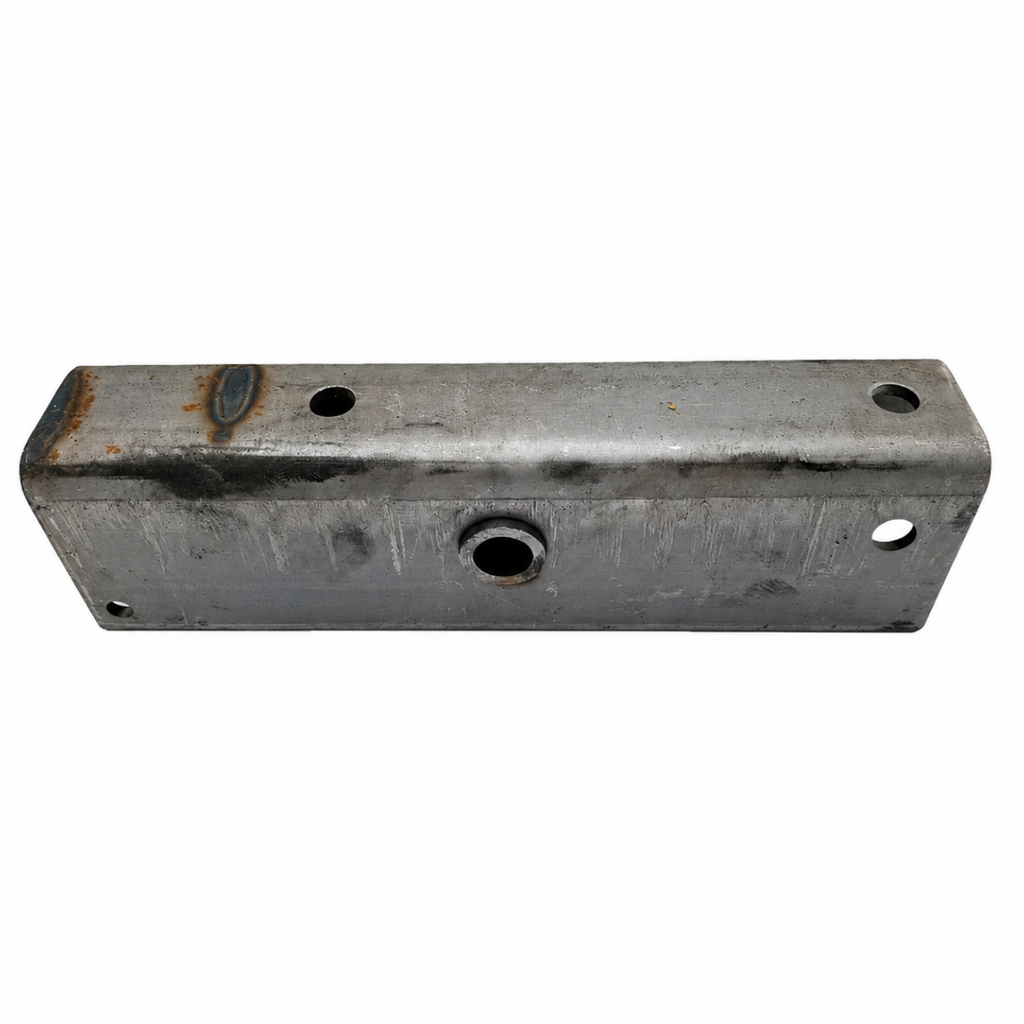

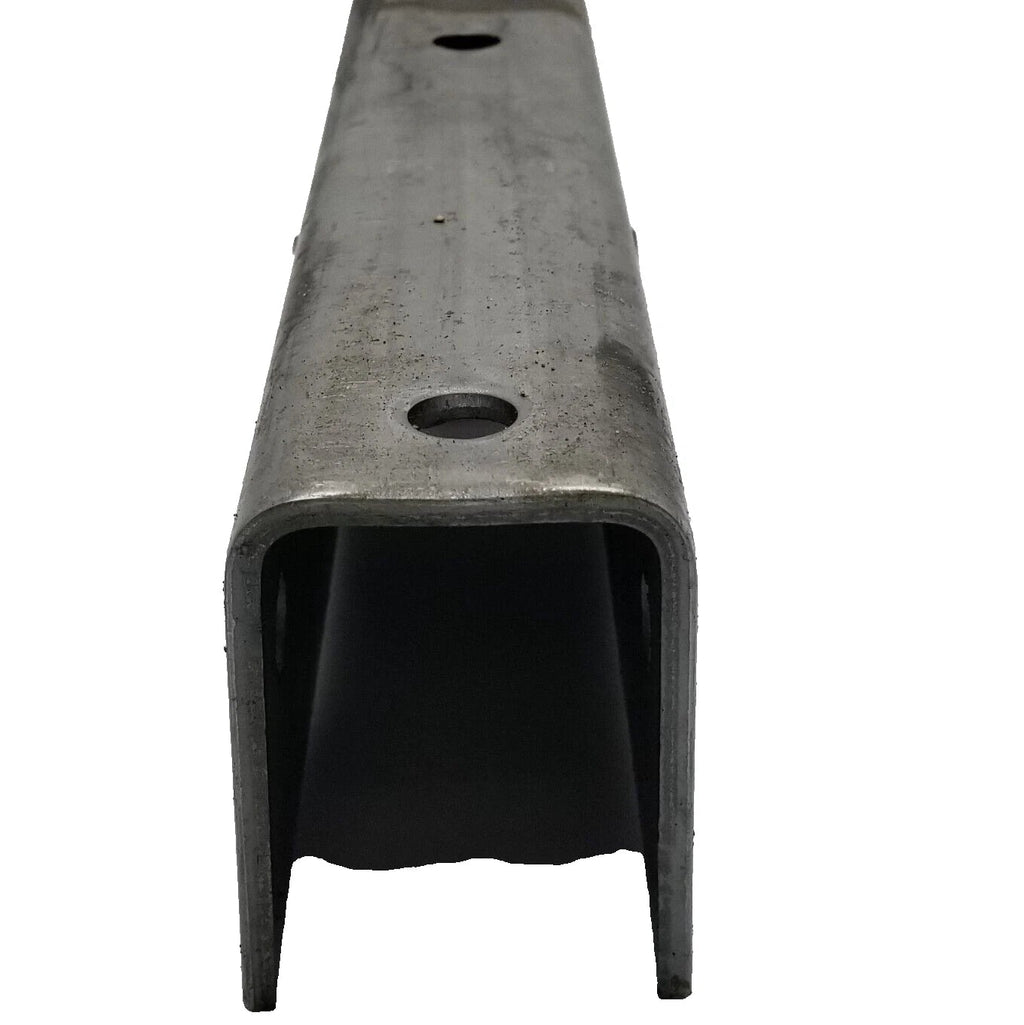

| 2 | EQ-13 — 13" Slipper Spring Equalizers |
| 2 | FA 7-254 — 5/16" x 3.25" Grade 2 Spring Retainer / Keeper Bolts |
| 2 | FA 7-254-NUT — 5/16"-18 Grade 2 Coarse Thread Nuts |

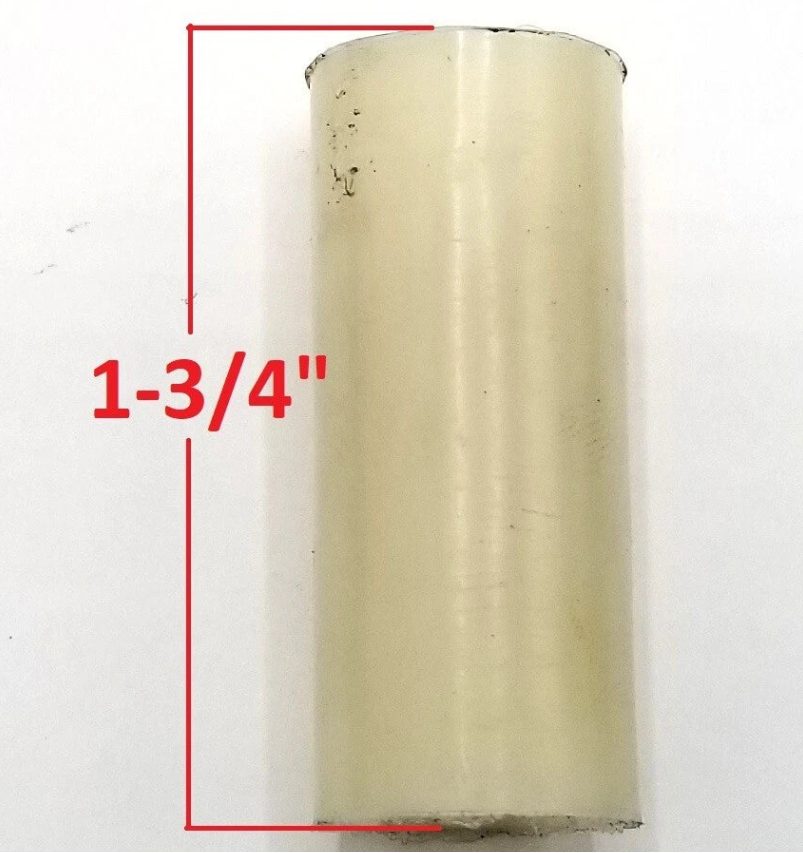

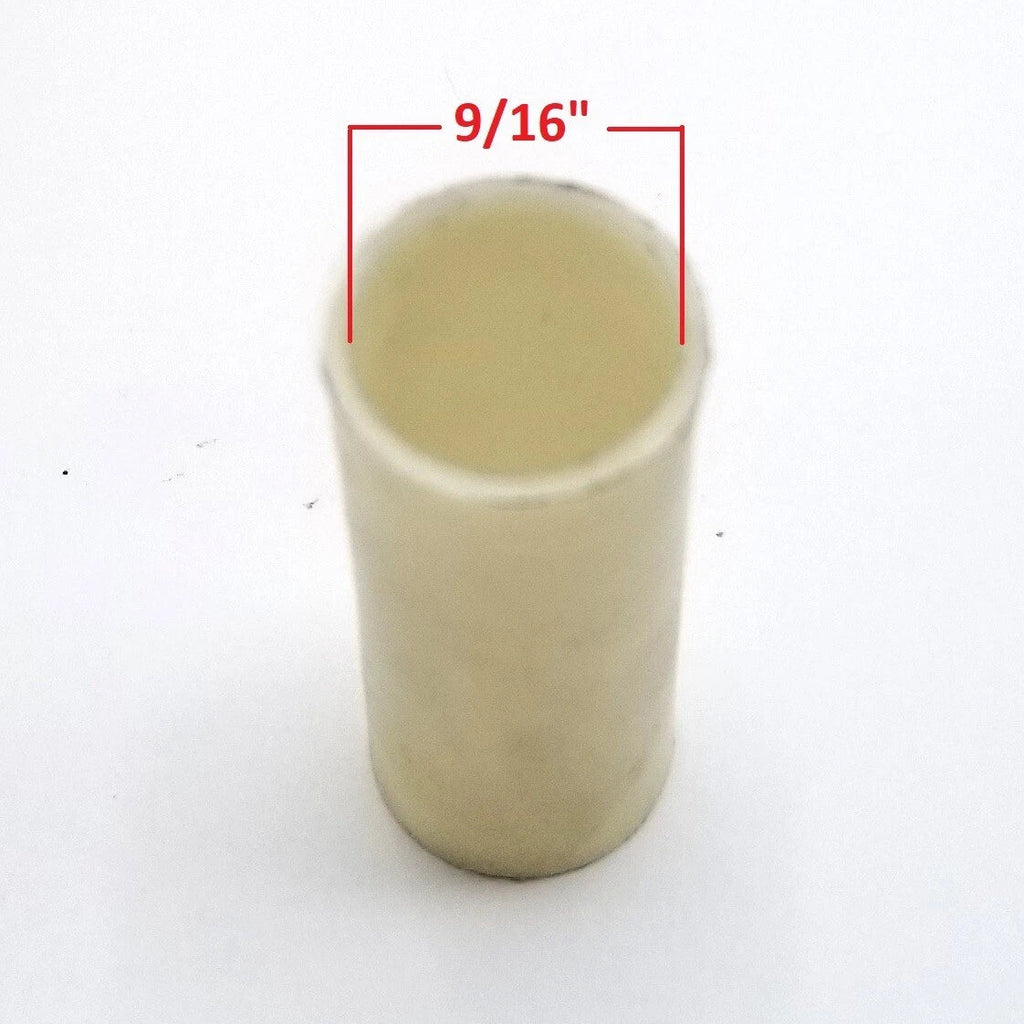

| 4 | NBI-2566 — Nylon Spring Eye Bushings, approximately 0.57" x 0.69" x 2" |
| 8 | SB-LN-9 — 9/16" Lock Nuts for 91635B Equalizer / Shackle Bolts |
