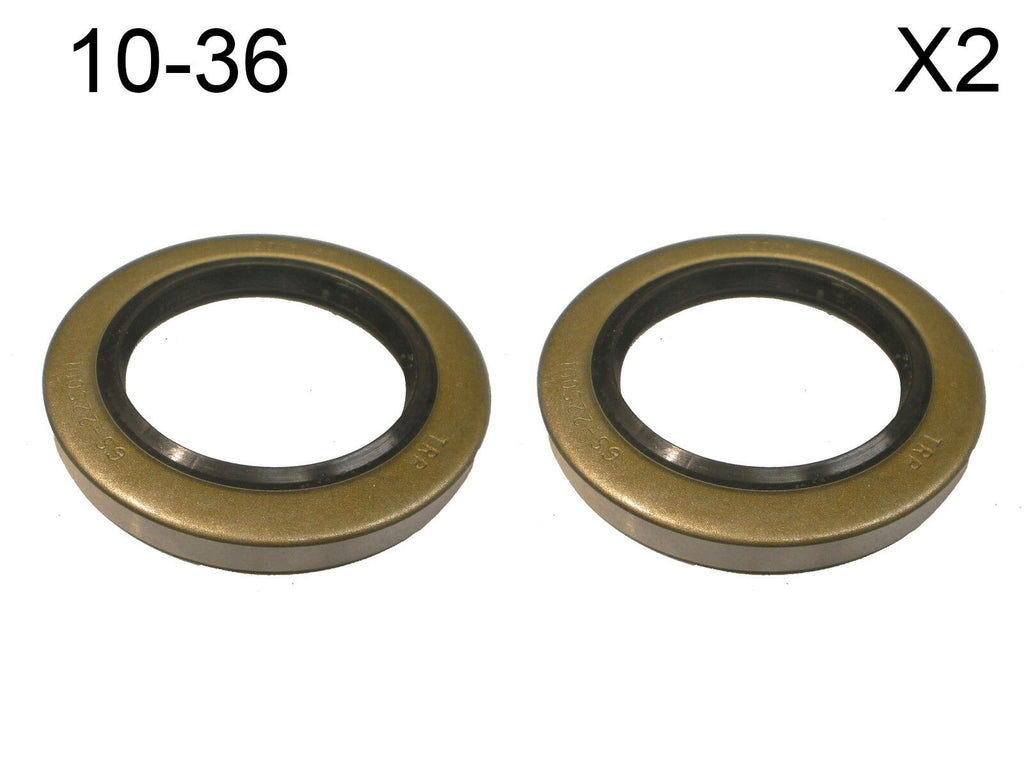

(2) Double Lip Grease Seals – 2.25" ID x 3.376" OD – 5.2K–7K Axles
Part Number: 10-36X2
Pair of double lip grease seals designed for trailer hubs requiring a 2.25" inner diameter and 3.376" outer diameter seal. Commonly used on 5,200 lb, 6,000 lb, and 7,000 lb grease-lubricated trailer axles.
Compatible with standard grease and EZ-Lube style hub assemblies. Includes two seals.
R&P Knowledge Hub
A double lip grease seal uses a primary sealing surface to retain lubricant and a secondary lip to help prevent contamination from entering the bearing cavity. Proper fitment requires matching both the spindle seal surface (ID) and hub bore (OD).
Some 7K and 8K axles may use a different 2.125" or oil bath style seal. Always verify dimensions before ordering.
Features

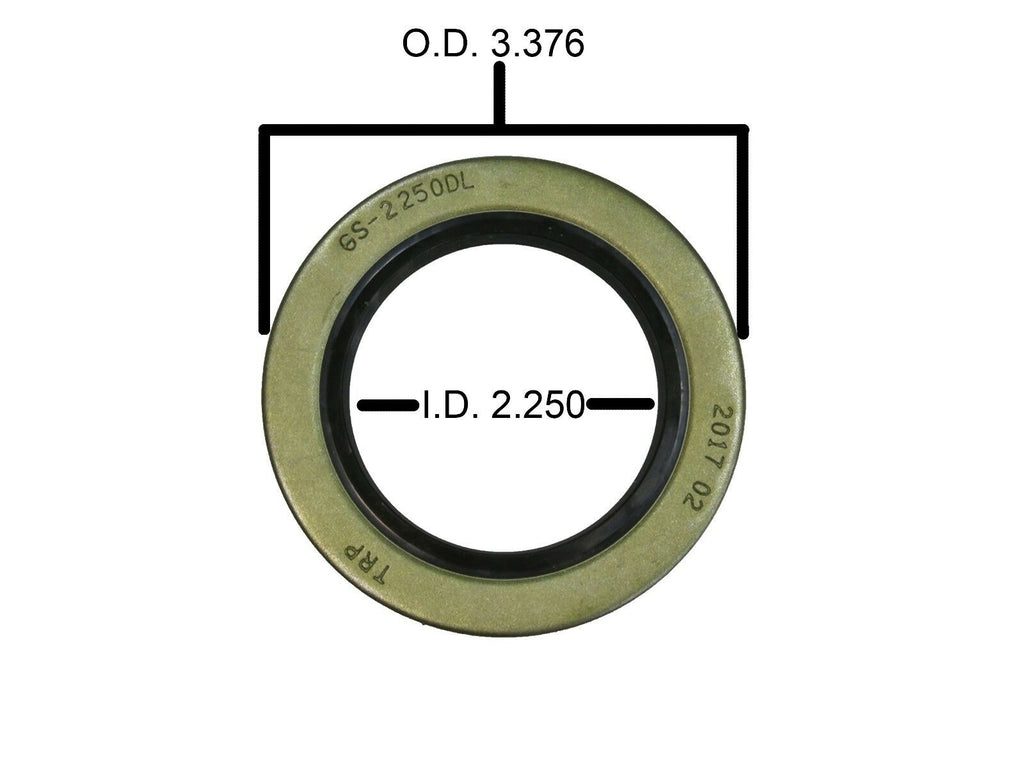

- 2.25" inner diameter
- 3.376" outer diameter

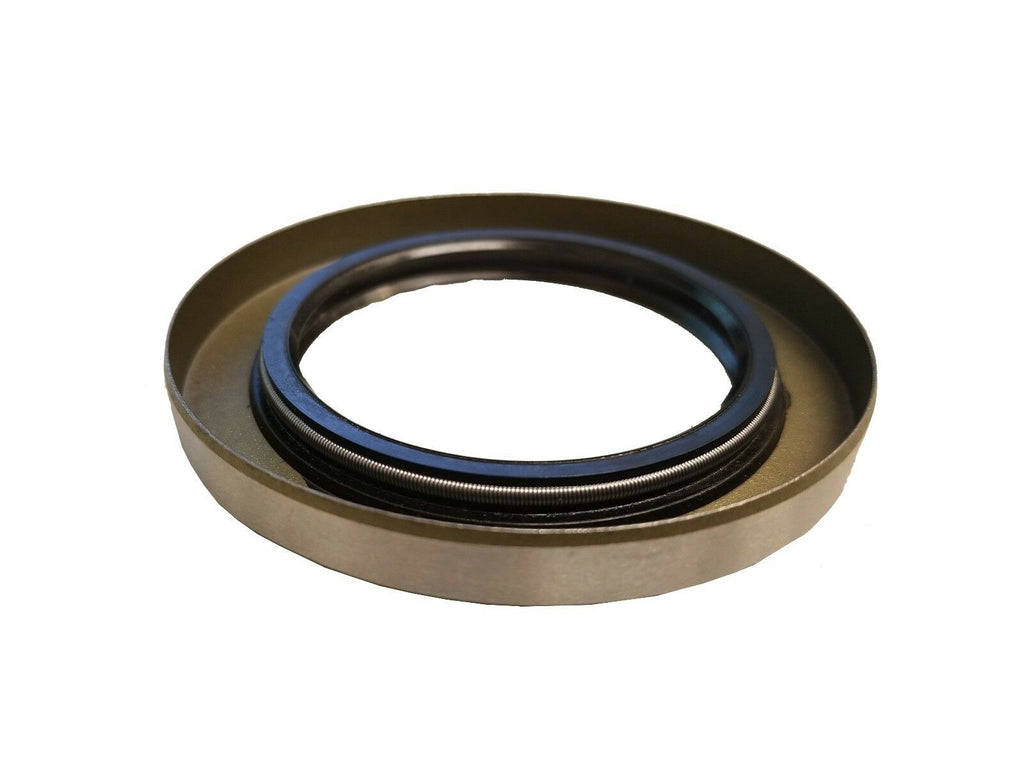

- Double lip, spring-loaded design
- For grease and EZ-Lube hub systems
- Two seals included
Specifications
| Specification | Detail |
| Inner Diameter | 2.25" |
| Outer Diameter | 3.376" |
| Seal Type | Double Lip Grease Seal |
| Typical Axle Rating | 5,200 lb – 7,000 lb |
| Quantity | 2 Seals |
Verify seal dimensions before installation.
