TWO Trailer Axle Spindle #42 6000# 7000# W/ Brake flange EZ Lube Hub Stub shaft (SP25042FZ-2)

R & P Carriages

Regular price $139.99


(TWO) - #42 (5200, 6000, 7000# Axle)  Spindle with Brake Flange Installed

This listing is for TWO trailer axle spindles, used on 7000# axles, it is Easy Lube grease type. It will include the axle spindle nut (not shown). Use this to build your own axle, or any application where you need a heavy duty spindle. The spindle is standard 1" threads, 14125A (1.25") outer bearing, 25580 (1.75") inner bearing, and 2.25" (10-36) common grease seals. This is a spindle found on many 5200#, 6000# and 7000# axles. Compare to Redneck
R50342EZ Uses standard 12x2 Brakes (see my other auctions

The end of the spindle (that you would weld to) is 2.50" diameter, and about 3.5" long from the brake flange (see pictures)

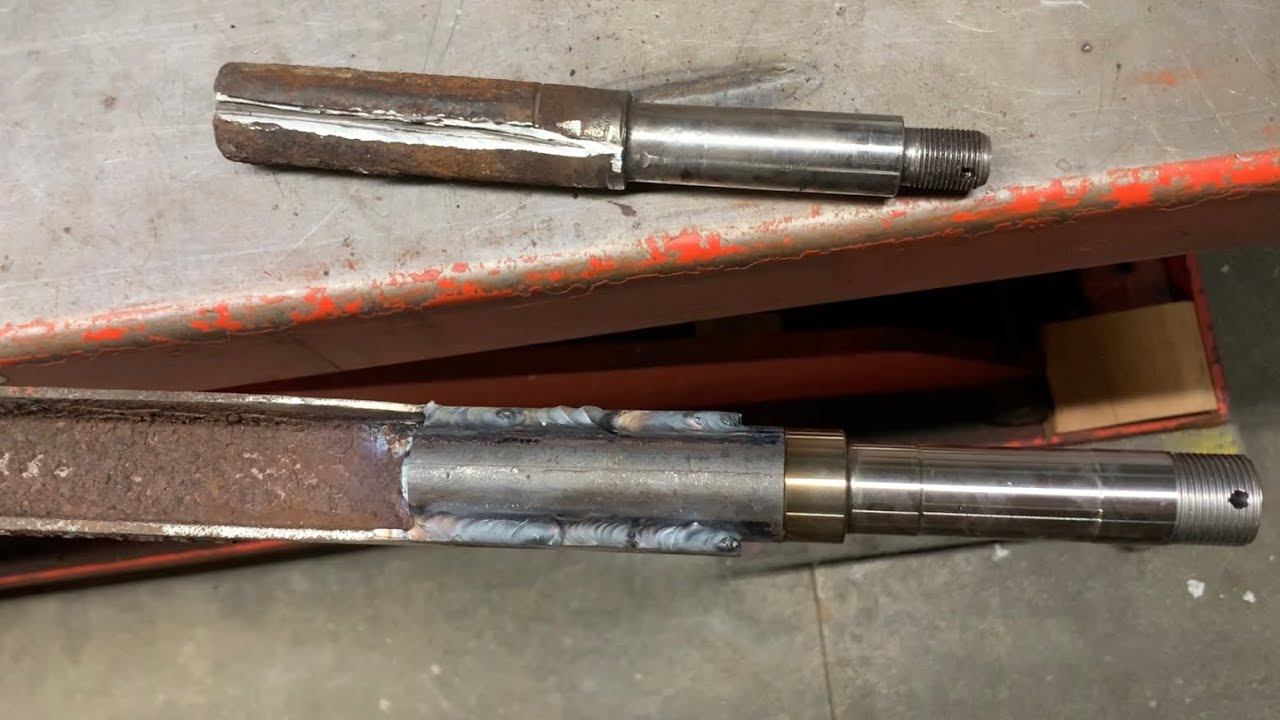

Copy and paste the You Tube video link below, we are puttng one in a 6000# axle tube, we just cut the old damaged spindle off:

https://www.youtube.com/watch?v=l1pB7-uXw1o&feature=youtu.be




Price is for TWO spindles






11 3/4 inches Long
4 1/2 inches wide (Bracket)
2 1/2 inch on the bottom
Top is 7/8 inch
7 1/2 inches long above bracket
3 1/2 inches below bracket
Weld end part is 2 1/2" Diameter Shaft
11 lbs.

                                                            This is a EZ Lube style (includes grease fitting to grease bearings, right on the end of the spindle!)












Spindle measures a standard length
(about 4-1/2" from the inner bearing shoulder to end+/- 1/4")
