U-Bolt Kit – Dexter HDSS Suspension – Underslung Only – 12K–16K Axles (UBK-HDSS-US)

$179.99

Most items ship free — select items ship for $6.39

Only 2 left

UBK-HDSS-US U-Bolt Kit – Dexter HDSS Suspension – 12K–16K Axles

Includes 4× 011-94-00 U-Bolts | 8× 006-113-00 Nuts | 2× 012-068-01 Cast Tie Plates

UBK-HDSS-US is a complete suspension hardware kit designed for Dexter HDSS heavy-duty suspension systems used on 12,000 lb to 16,000 lb trailer axles. This kit includes matched U-bolts, lock nuts, and cast bottom tie plates required to properly clamp the axle to the spring assembly.

IMPORTANT – CONFIGURATION REQUIREMENT

This kit is designed for suspension setups where the axle tube sits on top of the leaf springs. The included cast bottom tie plates (012-068-01) are engineered for that configuration only.

It will NOT fit setups where the springs sit on top of the axle tube.

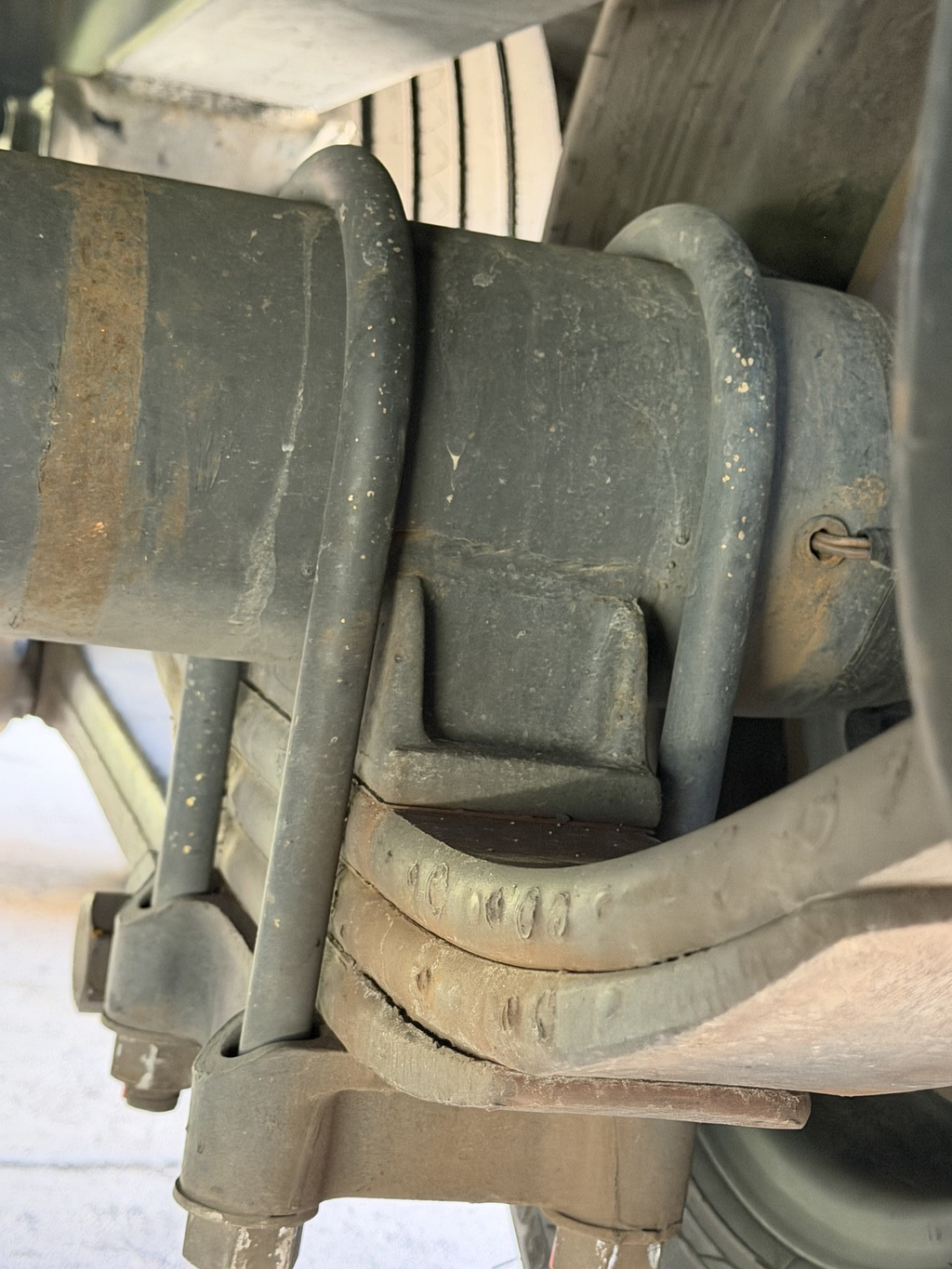

Dexter HDSS axle positioned above leaf springs installed configuration

Component	Quantity & Detail
U-Bolts	4 × 011-94-00 – 3/4"-10 Thread, 5" Round Bend, 11-1/32" Length
Lock Nuts	8 × 006-113-00 – 3/4"-10

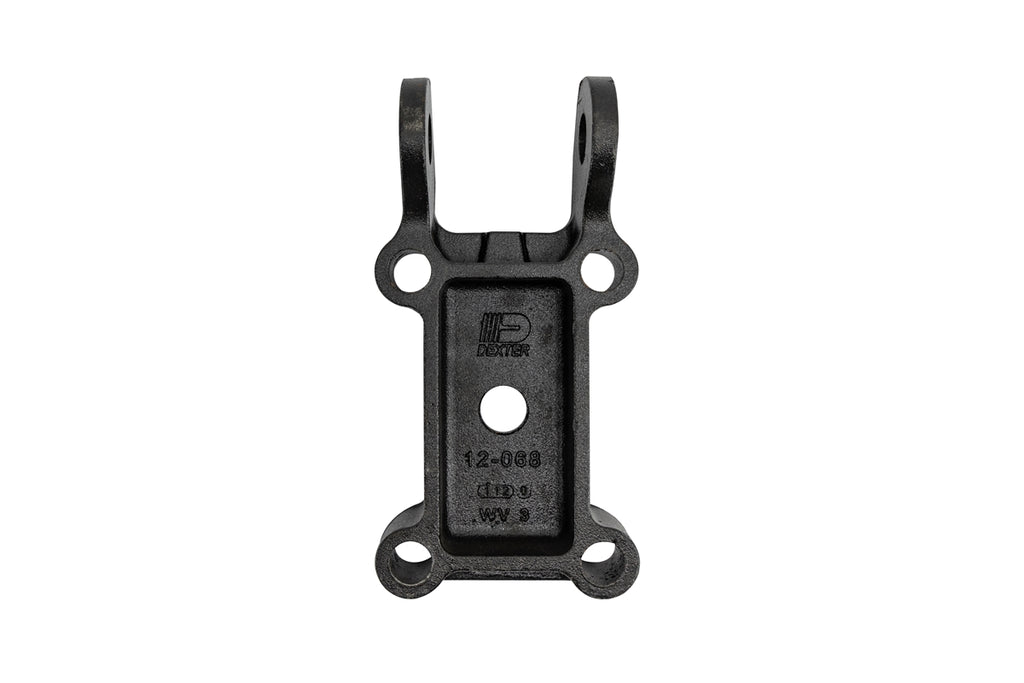

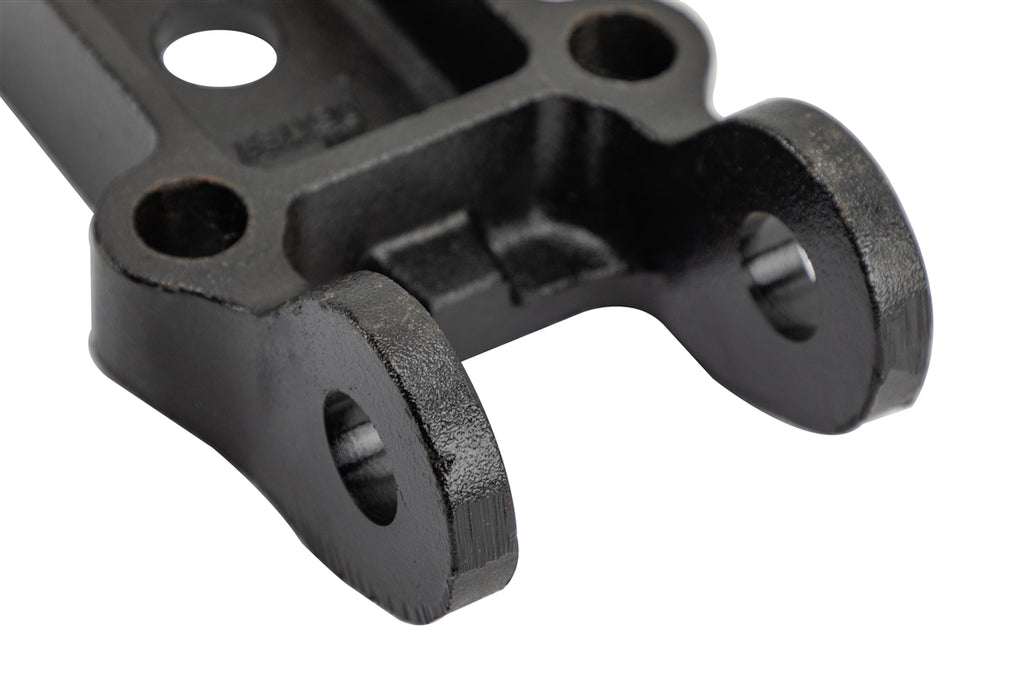

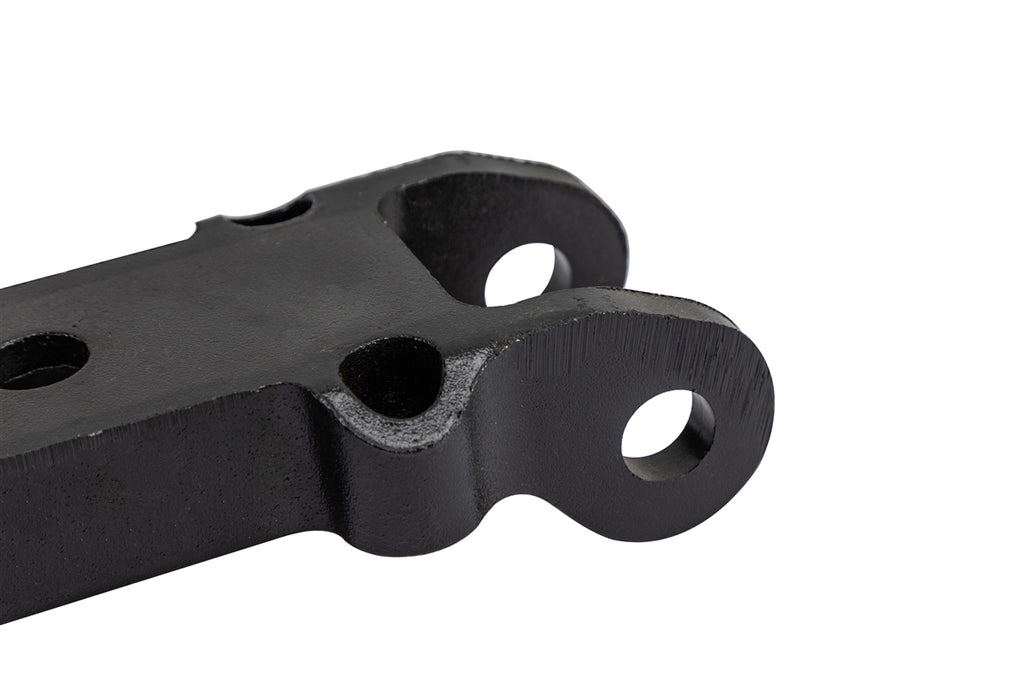

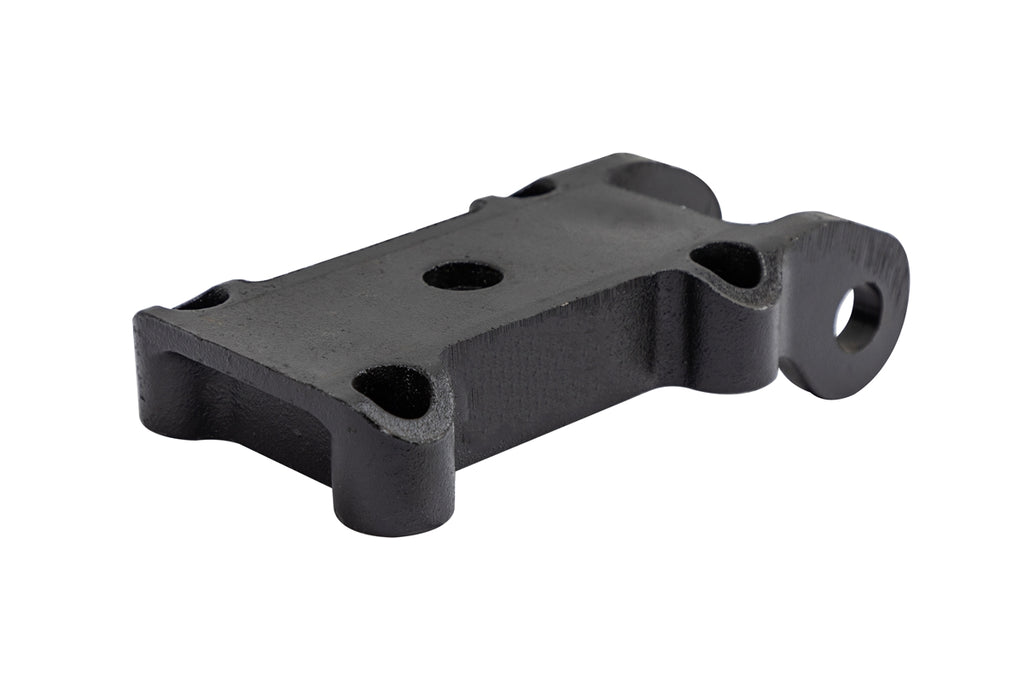

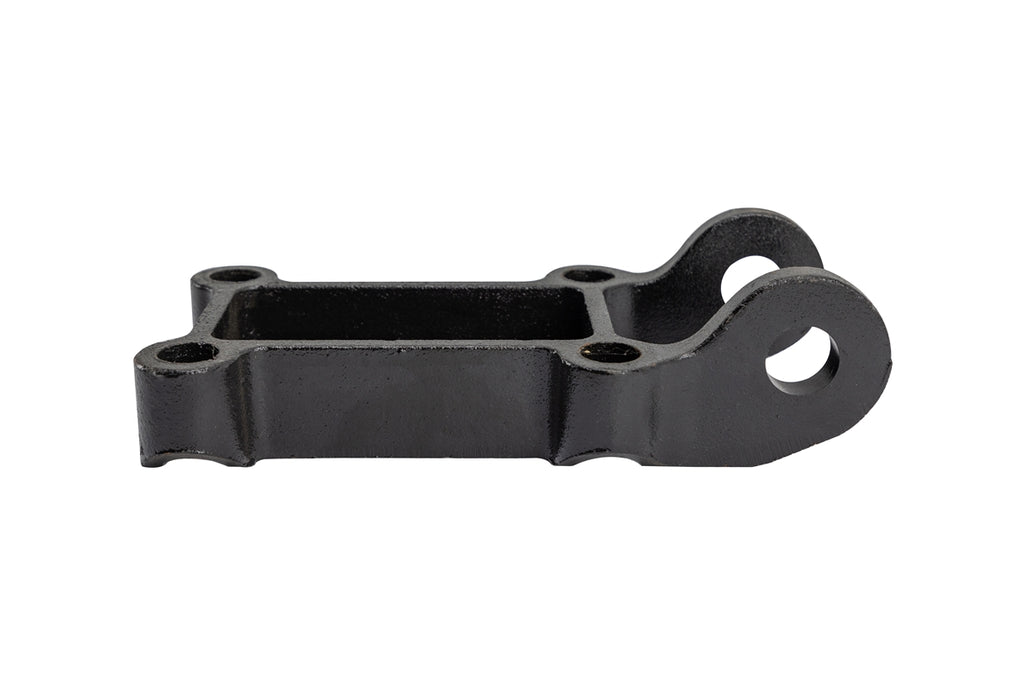

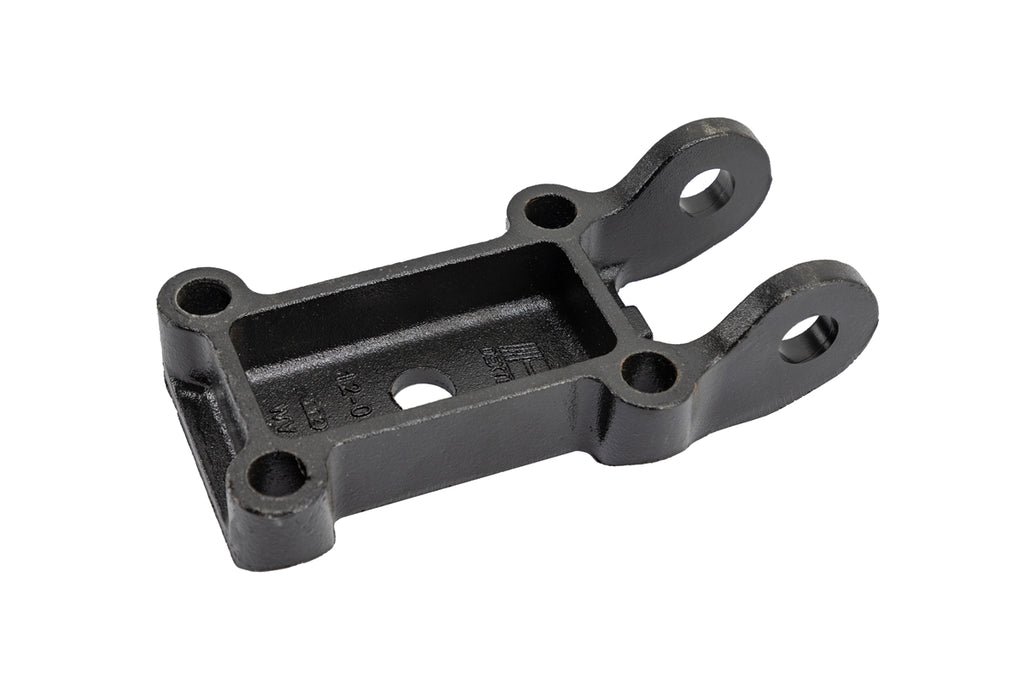

Tie Plates	2 × 012-068-01 – Cast Bottom Plate for HDSS Systems

R&P Knowledge Hub

In Dexter HDSS systems, U-bolts wrap over the axle tube and clamp it to the leaf spring pack. The cast bottom tie plate distributes clamping force evenly across the spring pack and maintains axle alignment.

U-bolts should not be reused after removal, as previously torqued hardware may not maintain proper clamping force. Always verify axle rating, tube diameter (5" round), and suspension geometry before installation.

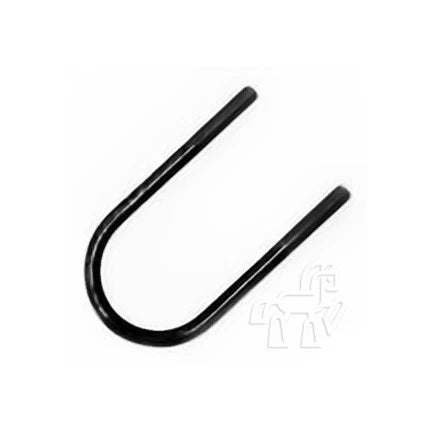

Dexter 011-94-00 U-Bolt 3/4-10 5 inch round

U-Bolt Dimension Diagram A Thread Diameter B Inside Width C Overall Length

U-Bolt Specification	Detail
Axle Tube Diameter	5" Round
Thread Size	3/4"-10 (10 TPI)
Overall Length	11-1/32"
Bend Type	Round

Important: Confirm axle diameter, rating, and suspension geometry before installation.
