Aluminum 2" Locking Adjustable Ball Mount – 8" Drop / 9" Rise – 10,000 lb Rated
Includes 2" & 2-5/16" Stainless Steel Balls
Part Number: WS8-2-KA
Adjustable aluminum ball mount designed for 2" truck receiver tubes. This keyed-alike locking system includes dual stainless steel hitch balls, integrated locking components, and a built-in tongue weight scale. Adjustable in 1" increments with up to 8" drop or 9" rise to properly level your trailer.
R&P Knowledge Hub
Proper trailer leveling improves braking efficiency, weight distribution, and overall towing stability. Always match the drop or rise height to your coupler height when the trailer is level.
Never exceed the lowest-rated component in your towing system. Receiver, hitch, ball, and trailer ratings must all be verified.

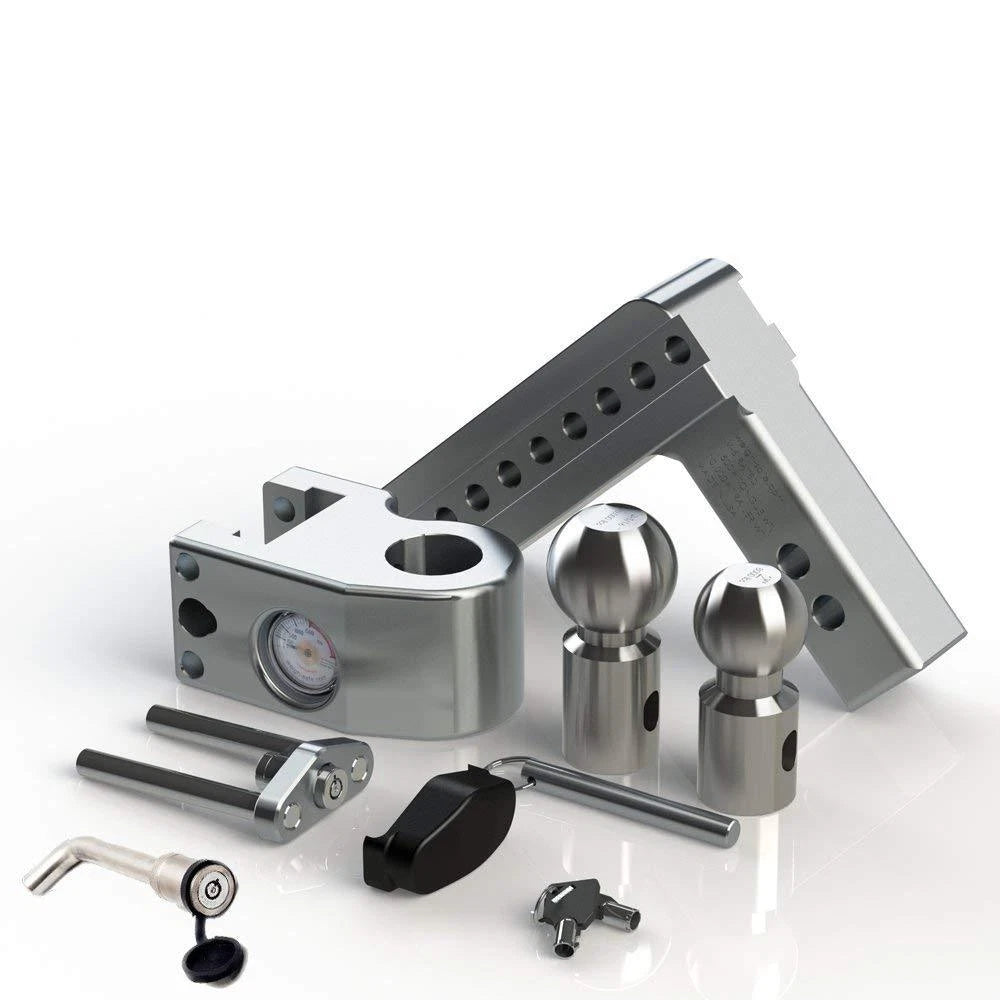

Included
- 1 × Aluminum Ball Mount with Built-In Scale
- 2 × Stainless Steel Hitch Balls (2" & 2-5/16")
- 1 × Locking Ball Platform Mechanism
- 1 × Ball Security Pin
- 1 × Locking Hitch Pin
- 1 × Dust Cap for Lock
- 2 × Keyed-Alike Keys
Features

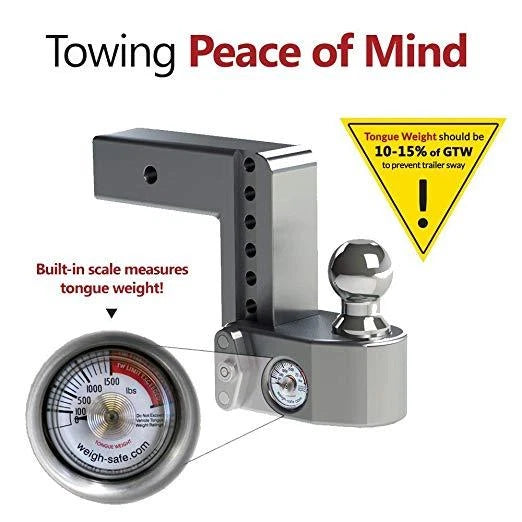

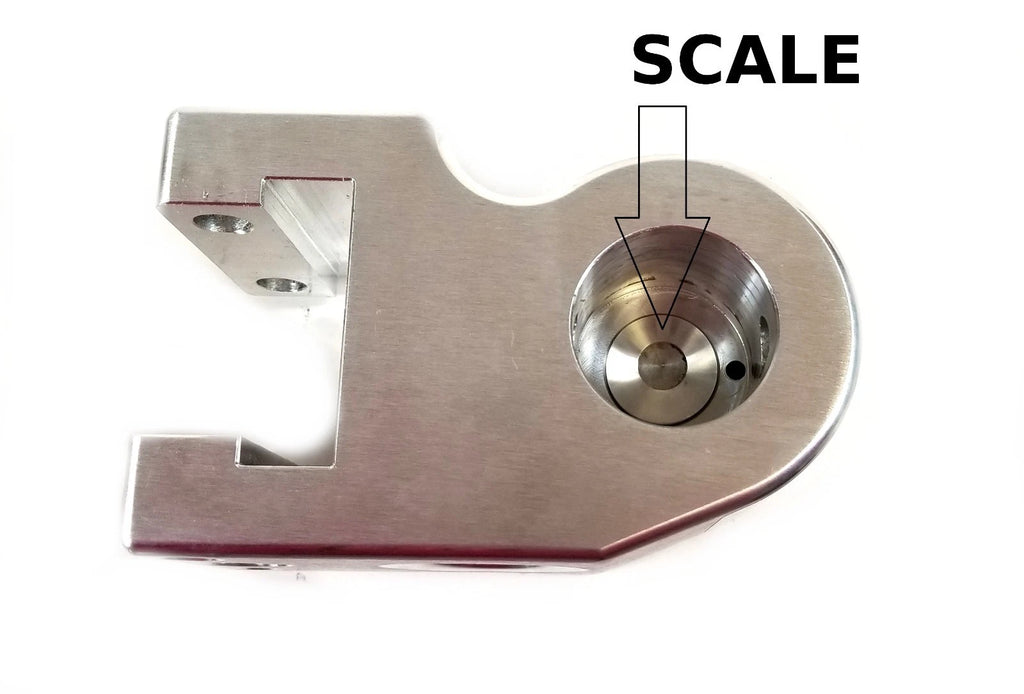

- Built-in tongue weight scale
- Adjustable from 8" drop to 9" rise
- 1" height adjustment increments
- Keyed-alike hitch pin and ball platform
- Aluminum mount with stainless steel balls
- Fits 2" receiver tube

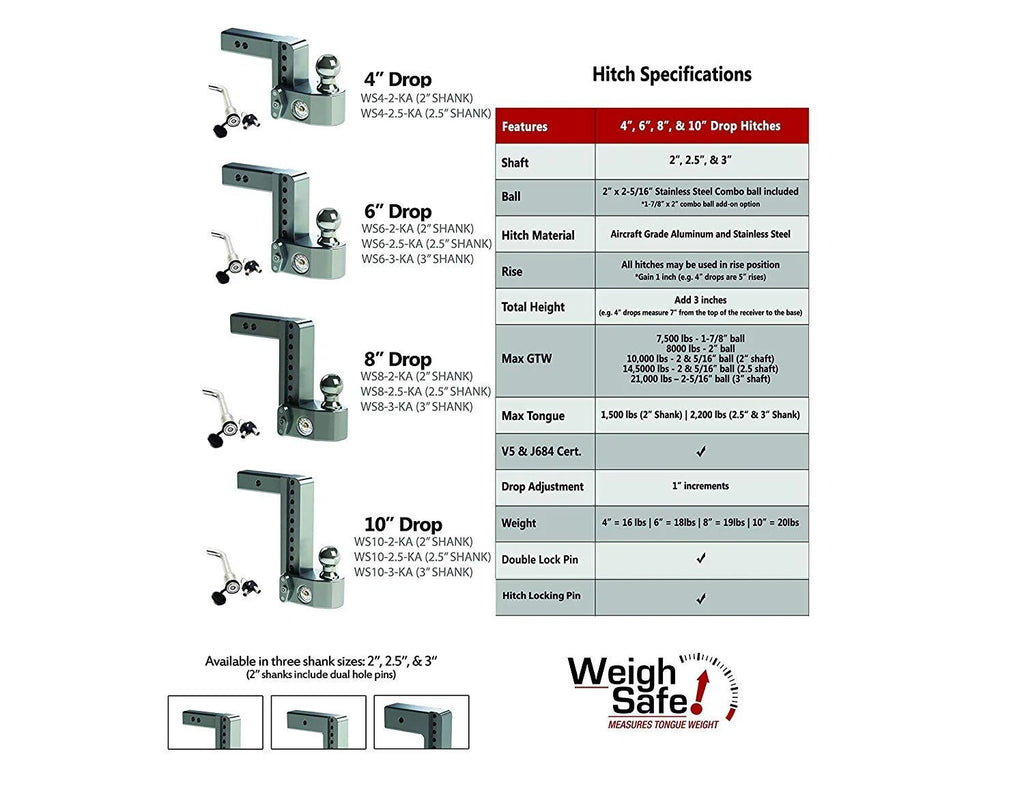

Specifications
| Specification | Detail |
|---|---|
| Receiver Size | 2" |
| Adjustment Range | 8" Drop / 9" Rise |
| Ball Sizes Included | 2" and 2-5/16" |
| Max GTW (2" Ball) | 8,000 lb |
| Max GTW (2-5/16" Ball) | 10,000 lb |
| Max Tongue Weight | 1,500 lb |

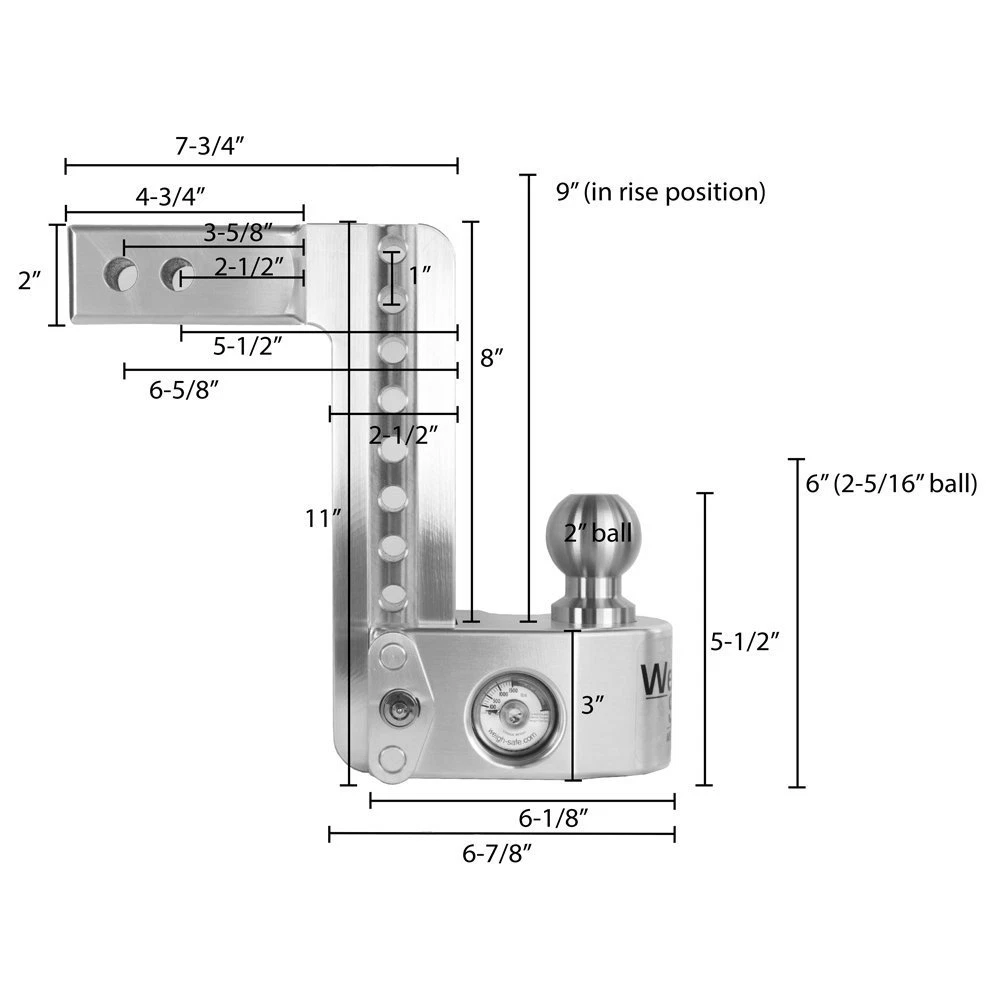

WS8-2-KA Dimensional Diagram
Overall & Structural Measurements
| Overall Horizontal Reach | 7-3/4" |
| Top Arm Flat Length | 4-3/4" |
| Top Arm Height | 2" |
| Rear Hole Position | 2-1/2" |
| Forward Hole Position | 3-5/8" |
| Horizontal Length to Vertical Support | 5-1/2" |
| Lower Horizontal Measurement | 6-5/8" |
| Main Vertical Section Height | 8" |
| Overall Vertical Column Length | 11" |
| Rise Height | 9" |
| Vertical Column Width | 2-1/2" |
| Hole Spacing | 1" |
| Base Housing Height | 3" |
| Height to Ball Platform (2") | 5-1/2" |
| Height to Ball Platform (2-5/16") | 6" |
| Base Depth (Short) | 6-1/8" |
| Overall Base Depth | 6-7/8" |
