Aluminum 2" Locking Adjustable Ball Mount – 10" Drop / 11" Rise – 14,500 lb Rated
Includes 2" & 2-5/16" Stainless Steel Balls
Part Number: WS10-2-KA
Heavy-duty adjustable aluminum ball mount designed for 2" truck receiver tubes. This keyed-alike system includes dual stainless steel hitch balls, integrated locking components, and a built-in tongue weight scale. Adjustable in 1" increments with up to 10" drop or 11" rise for proper trailer leveling.
R&P Knowledge Hub
Adjustable ball mounts allow proper trailer leveling when tow vehicle and trailer coupler heights differ. A level trailer improves braking balance, weight distribution, and overall handling.
Always confirm receiver size, drop/rise requirement, and weight ratings. The lowest-rated component in your towing system determines maximum safe capacity.
Included
- 1 × Aluminum Ball Mount with Built-In Scale
- 2 × Stainless Steel Hitch Balls (2" & 2-5/16")

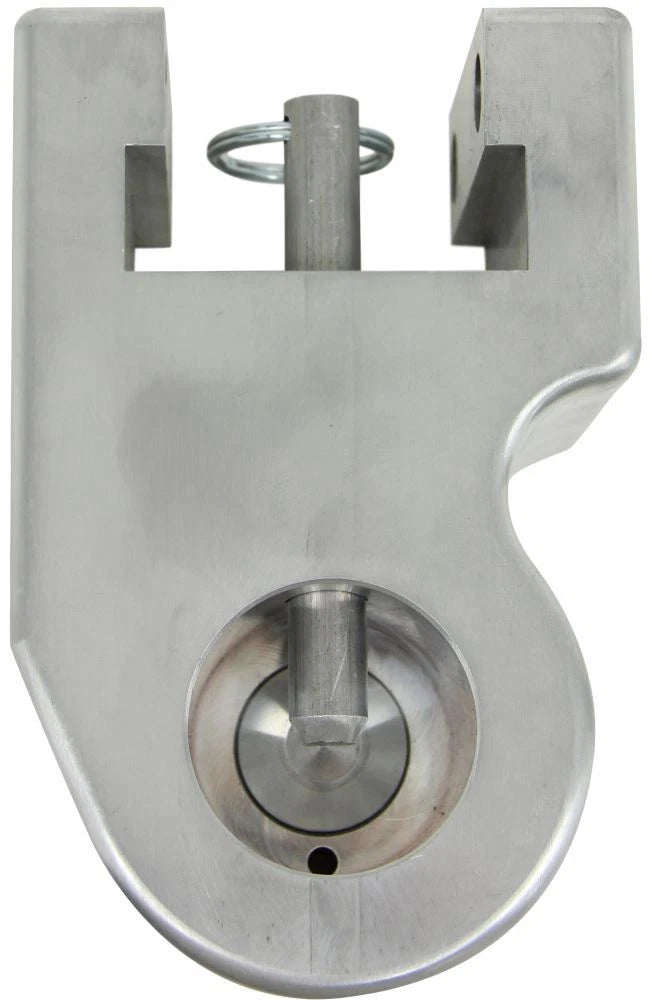

- 1 × Locking Ball Platform Mechanism
- 1 × Ball Security Pin
- 1 × Locking Hitch Pin
- 1 × Dust Cap for Lock
- 2 × Keyed-Alike Keys
Features

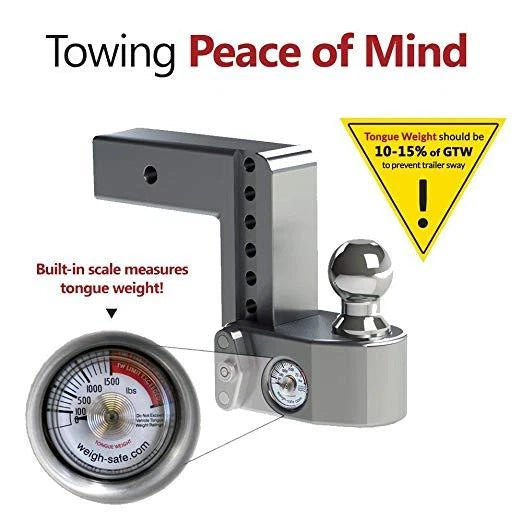

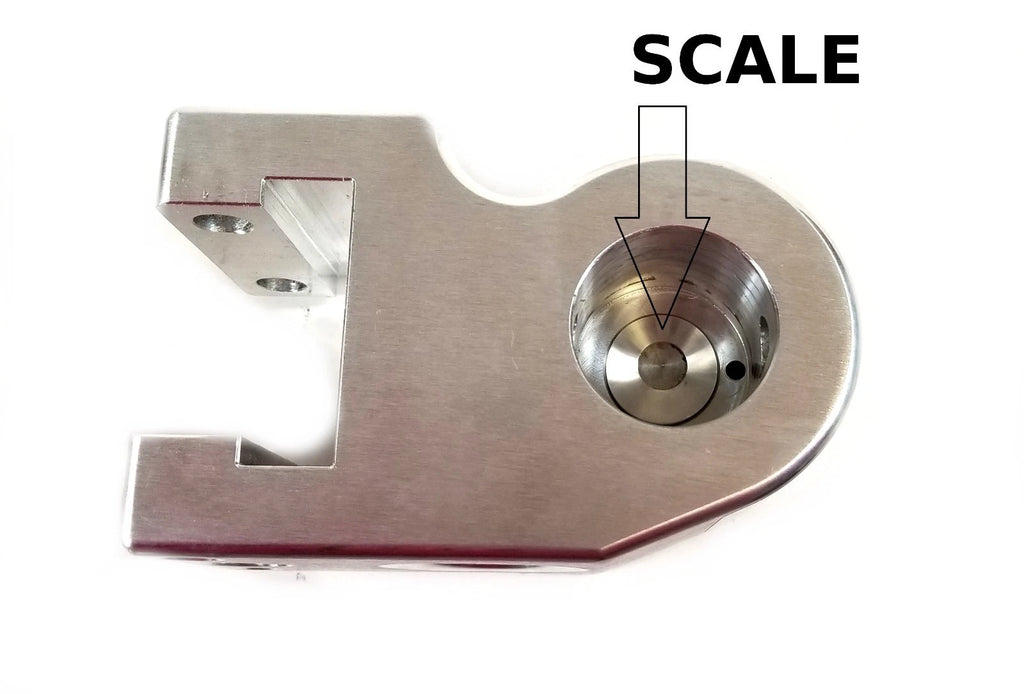

- Built-in tongue weight scale
- Adjustable from 10" drop to 11" rise
- 1" height adjustment increments
- Keyed-alike hitch pin and ball platform
- Aluminum mount with stainless steel balls
- Fits 2" receiver tube

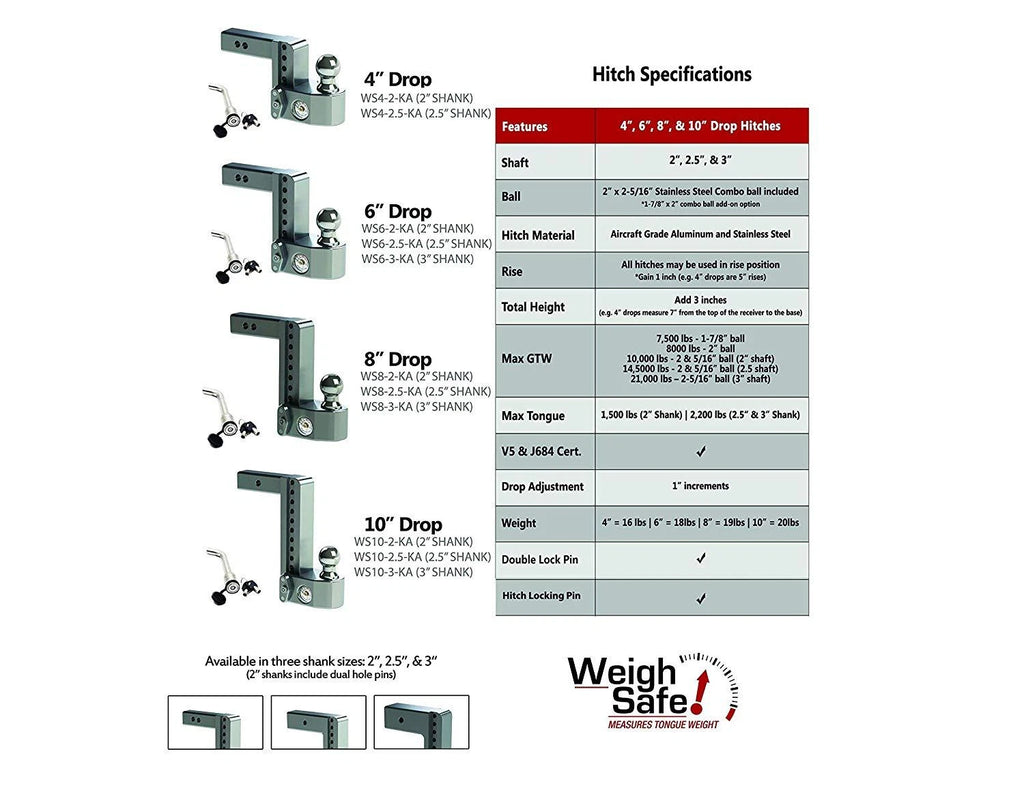

Specifications
| Specification | Detail |
|---|---|
| Receiver Size | 2" |
| Adjustment Range | 10" Drop / 11" Rise |
| Ball Sizes Included | 2" and 2-5/16" |
| Max GTW (2" Ball) | 8,000 lb |
| Max GTW (2-5/16" Ball) | 14,500 lb |
| Max Tongue Weight | 2,200 lb |

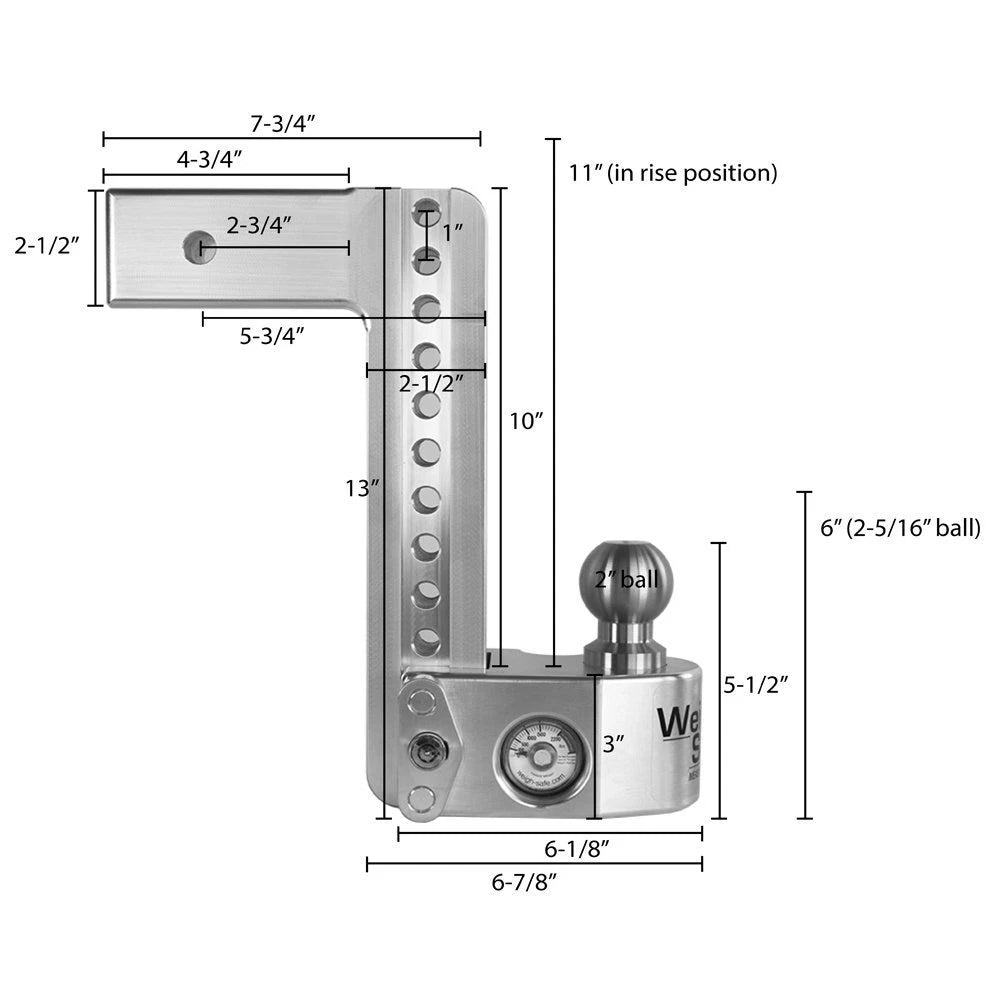

WS10-2-KA Dimensional Diagram
Overall & Structural Measurements
| Overall Horizontal Reach | 7-3/4" |
| Top Arm Flat Length | 4-3/4" |
| Top Arm Height | 2-1/2" |
| Center Hole Position | 2-3/4" |
| Horizontal Length to Vertical Support | 5-3/4" |
| Main Vertical Section Height | 10" |
| Overall Vertical Column Length | 13" |
| Rise Height | 11" |
| Vertical Column Width | 2-1/2" |
| Hole Spacing | 1" |
| Base Housing Height | 3" |
| Height to Ball Platform (2") | 5-1/2" |
| Height to Ball Platform (2-5/16") | 6" |
| Base Depth (Short) | 6-1/8" |
| Overall Base Depth | 6-7/8" |
