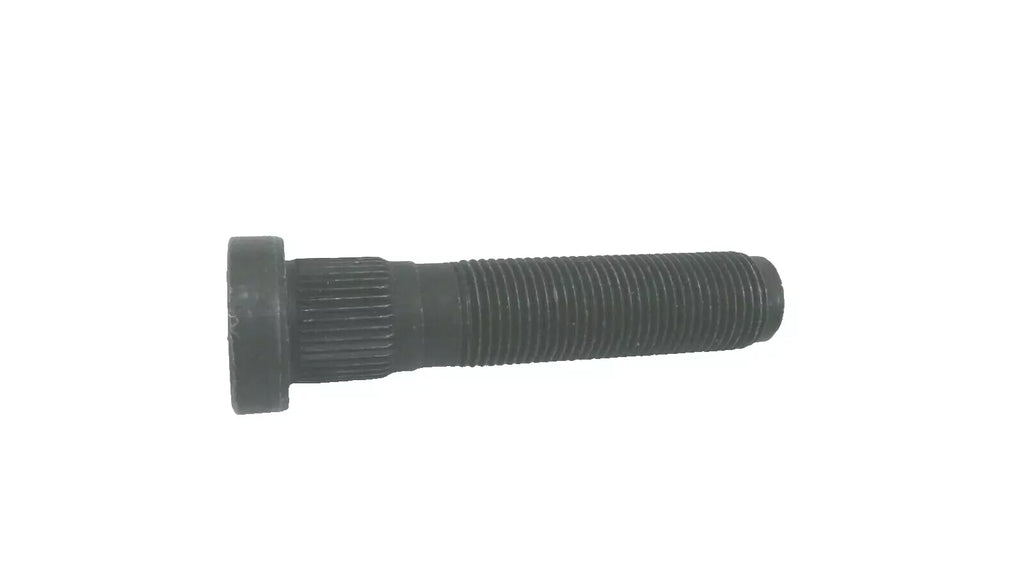

5/8"-18 Replacement Wheel Stud – AL-KO 10K–16K Brake Drums – Dexter 007-362-00
Part Number: 007-362-00
Replacement drive-in wheel stud designed for use with many AL-KO 10,000 lb to 16,000 lb brake drum applications. This stud is commonly used on heavy-duty axle assemblies including 10K and 12K systems with 8 on 6.5" bolt patterns. Always verify hub dimensions and spline diameter before ordering.
Compatible References
- Dexter: 007-362-00 (7-362)
- AL-KO: K363910 (kit of 8)
- Rockwell Quality: 4738-28
- Cross Reference: K710849-00
R&P Knowledge Hub
Wheel studs are press-fit fasteners that secure the wheel to the hub using lug nuts to create proper clamping force. The splined section of the stud forms an interference fit with the hub flange to prevent rotation under torque.
Stud damage can occur from corrosion, improper torque, or pulling studs into place using impact tools. When replacing a stud, thread size, spline diameter, and overall length must match the original hardware to ensure proper seating and load distribution. Hub flange condition should also be inspected for elongation or wear before installation.

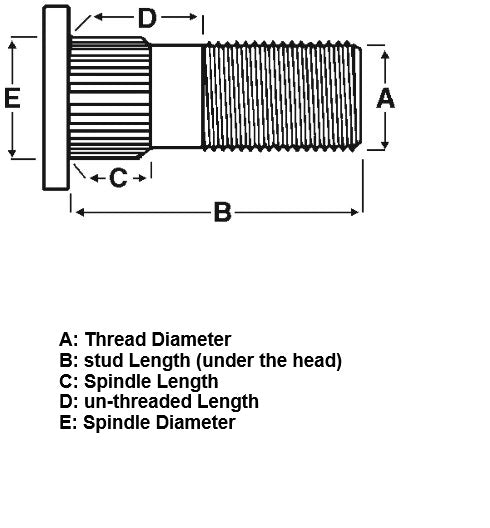

Specifications
| Specification | Detail |
|---|---|
| Thread Size | 5/8"-18 |
| Thread Diameter | 5/8" |
| Thread Length | 2.09" |
| Overall Stud Length | 2.85" |
| Spline Length | 0.52" |
| Spline Diameter | 0.68" |
| Base Length | 0.76" |
| Grade | Grade 8 |
Important: Verify specifications before installation.
