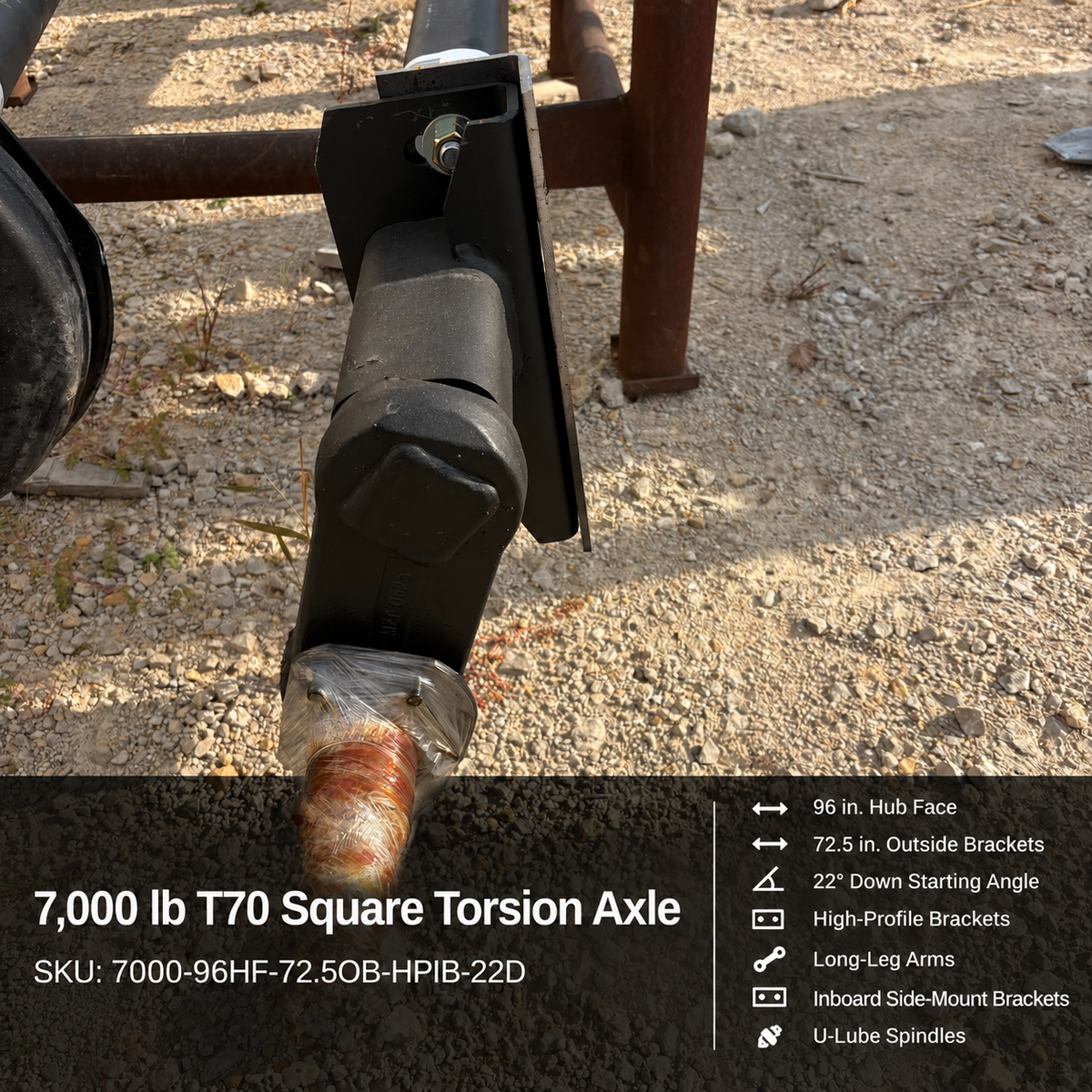

7,000 lb T70 Square Torsion Axle – 96" Hub Face, 72.5" O/B, 22° Down (7000-96HF-72.5OB-HPIB-22D)
Product Info
7,000 lb T70 Square Torsion Axle — 96" Hub Face
R&P SKU: 7000-96HF-72.5OB-HPIB-22D
This T70 square torsion trailer axle is specified with a 96-inch hub face, 72.5-inch outside-of-bracket measurement, and a 22-degree down torsion-arm configuration. The supplier description identifies high-profile, long-leg, inboard side-mount brackets and U-Lube spindle lubrication.
Measure Bracket Width Separately from Hub Face
Hub-face width and outside-of-bracket width are separate measurements. A torsion axle also requires confirmation of mounting bracket position, frame attachment, arm starting angle, and wheel clearance. Do not substitute spring-center dimensions from a leaf-spring axle.
Features
|
T70 / 7K Series Square-body torsion design
|
22° Down Specified starting arm angle
|
|
High-Profile Brackets Long-leg, inboard side-mount configuration
|
U-Lube Supplier-specified spindle lubrication system
|
Specifications & Fitment
| SKU | 7000-96HF-72.5OB-HPIB-22D |
|---|---|
| Axle series | T70 square torsion |
| Nominal axle capacity | 7,000 lb series |
| Hub-face width | 96 in. |
| Outside-of-bracket width | 72.5 in. |
| Arm starting angle | 22° down (supplier notation) |
| Bracket profile | High-profile |
| Arm / bracket configuration | Long-leg; inboard side-mount brackets (supplier notation) |
| Lubrication | U-Lube |
| Hubs, brakes and bolt pattern | Not specified in supplied description |
Compare your original axle tag or build sheet, 96-inch hub-face width, 72.5-inch outside-bracket width, torsion-arm angle, and mounting configuration. Confirm whether hubs and brakes are included before purchasing; they are not established by this supplier description.
Call 815-357-3292 with your measurements and axle tag information.
Ask R&P About This Item
Call, text, or send your measurements. Your inquiry will include this item and its SKU.
Close Specifications Form
Include the measurements you have. This inquiry automatically identifies the product and SKU.
Need the axle installed?
R&P Carriages also handles trailer service and axle-related repair work.
How to Get It
Collect this item from our Seneca location. Please confirm availability before traveling.
Pick Up at R&P Carriages
This exact item is available from our Seneca, Illinois location and is not set up for standard shipping.
Seneca, IL 61360 R&P Carriages
Please confirm measurements and availability before making the trip. We want to make sure the item waiting here is the one you need.
