8K Hybrid Straight Axle Assembly 82in HF 64in SC 8-Lug Oil Bath Pickup (8000-82=HYB-3-64SC-865-5/8HD-COMPLETE)
Product Info
8,000 lb Hybrid Straight Trailer Axle Assembly — 82" HF / 64" Spring Centers
R&P SKU: 8000-82-HYB-3-64SC-865-5/8HD-COMPLETE
Assembled hybrid axle package built around an 8,000 lb-rated, 3-inch straight axle beam with an 82-inch hub face, 64-inch spring-center specification and bottom-mounted spring arrangement noted on the sales order. The component list includes 8 on 6.5-inch hub-and-drum assemblies with 5/8-inch wheel studs, oil-bath hub hardware, electric brakes, perches and U-bolt mounting hardware. LOCAL PICKUP ONLY at R&P Carriages, Seneca, Illinois.
Match Measurements, Mounting & Component Ratings
Confirm 82-inch hub face, 64-inch spring centers, 3-inch tube, bottom-mount spring configuration, wheel stud specification and 8 on 6.5-inch hub bolt pattern. The specified 12 x 2-inch electric brake assemblies are the correct components for this hybrid axle build. Match the complete axle configuration to your trailer before installation.
Key Features
|
82" Hub Face
3-inch straight hybrid beam
|
64" Spring Centers
Bottom-mount noted on order
|
|
8 on 6.5"
5/8-inch heavy-duty wheel studs
|
Oil-Bath Hubs
Electric forward self-adjusting brakes
|
Included Components — Sales-Order Pick Sheet
| Qty | Part # | Description |
|---|---|---|
| 1 | 8000-82-HYB-3 | 8,000 lb hybrid straight axle beam; 82-inch hub face; 3-inch tube |
| 2 | SP-3 | Spring perches for 3-inch round axle tube |
| 2 | 99-865-58HD | 8,000 lb hybrid hub/drum assemblies; 8 on 6.5-inch; 5/8-inch studs |
| 2 | 2475 | Bearing, 1.25-inch ID (per pick sheet) |
| 2 | 25580 | Bearing, 1.75-inch ID (per pick sheet) |
| 2 | 10-225-15 | Oil seal, 2.25 x 3.38 inches |
| 2 | 21-35 | Dexter oil caps |
| 2 | 010-045-00 | Oil-cap O-rings |
| 2 | 046-032-00 | Oil-cap center plugs |
| 1 | BK-12E-01SA | 12 x 2-inch forward self-adjusting electric brake, correct for this hybrid axle configuration |
| 1 | BK-12E-02SA | 12 x 2-inch forward self-adjusting electric brake, opposite side, correct for this hybrid axle configuration |
| 10 | 38LW | 3/8-inch brake backing-plate washers |
| 10 | 38N | 3/8-24 brake backing-plate nuts |
| 1 | UBK-7000-R-916 | 9/16-inch U-bolt kit for 3-inch round axle tube |
Axle assembly labor is also listed on the sales order. Component names and quantities above are transcribed from the provided pick sheet. The specified brake assemblies are correct for this hybrid axle configuration.

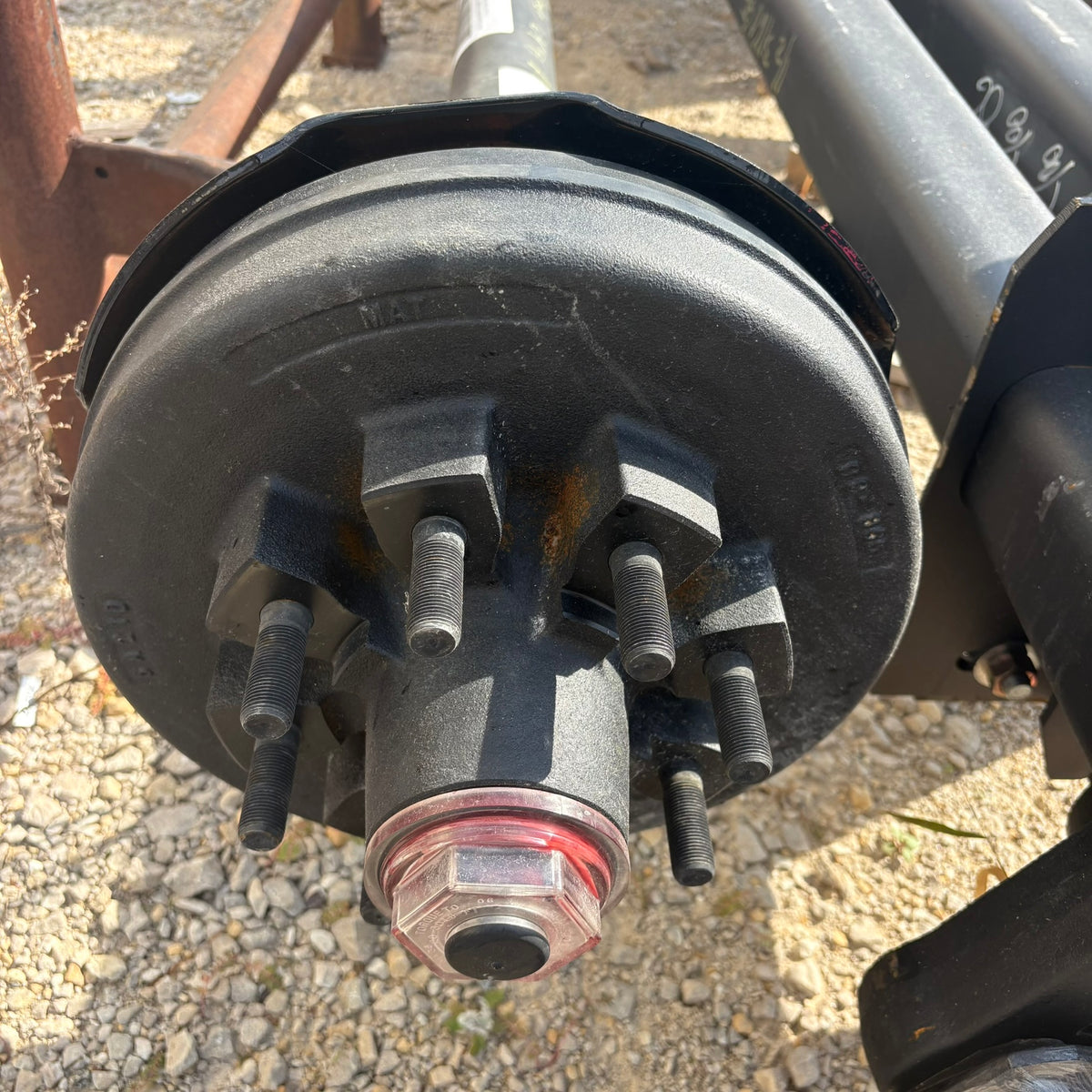

Inspect perch placement, hub oil components, brake wiring, mounting clearance and compatibility with the trailer before installation. Product photos show cosmetic storage marks and surface oxidation; review actual condition at pickup.
This assembled axle is not a universal replacement. Confirm hub-face width, spring centers, spring mounting arrangement, hub bolt pattern and trailer application before purchase. Pickup only — no shipping. R&P Carriages, 270 E. Jackson St., Seneca, IL 61360. Call 815-357-3292.
Contact us with your axle measurements and intended trailer application.
