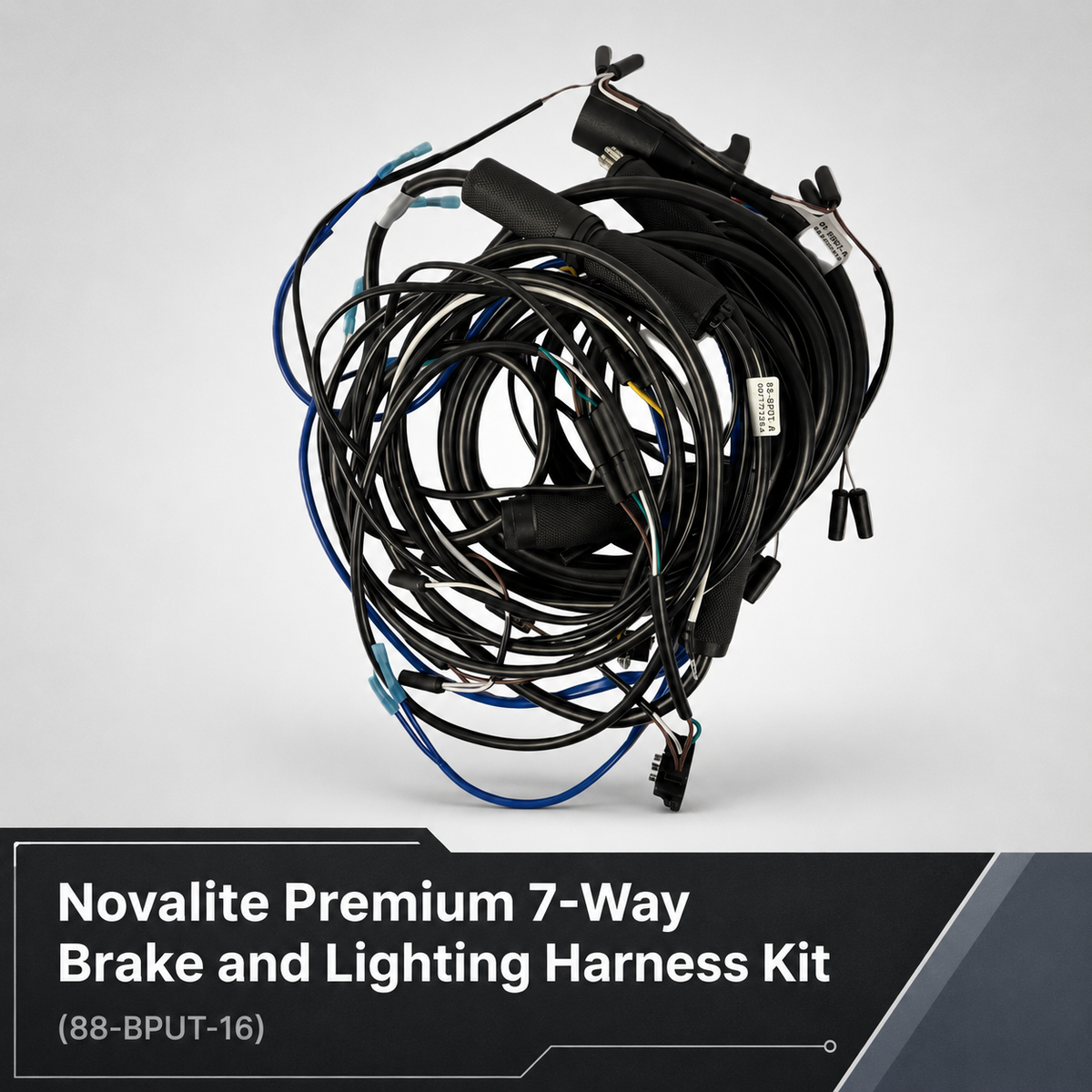

Novalite USA 7-Way Trailer Brake & Lighting Harness Kit – (88-BPUT-16)
Product Info
Novalite USA 7-Way Trailer Brake & Lighting Harness Kit – 88-BPUT-16
Novalite multi-section 7-way trailer brake and lighting harness for compatible electric-brake trailer applications.
Sheathed multi-section wiring layout. Confirm the actual connector styles and package configuration before ordering or installation.
R&P Knowledge Hub | Connector & Circuit Compatibility
System type: 7-way RV-style trailer connector. Four-way flat circuits normally support lighting but not a dedicated electric brake controller signal; seven-way RV-style connectors can support additional electric brake and auxiliary circuits.
Correct identification: Use the complete manufacturer SKU, not the connector appearance alone. BPUT-16 and BPUT-20 are distinct product versions.
Fitment: 7-way plug, trailer layout, brake count, branches and connector configuration.
Key Features
| Application | Electric brake, lighting and auxiliary wiring |
| Harness / kit configuration | Three harness sections: 01-8803-A, 02-8803-A, 03-8803-A |
| System design | Sheathed multi-section wiring layout |
| Verification before install | 7-way plug, trailer layout, brake count, branches and connector configuration |
Technical Specifications
| Brand | Novalite USA |
| SKU | 88-BPUT-16 |
| Product family | Trailer wiring and lighting |
| Connector / system | 7-way RV-style trailer connector |
| Application | Electric brake, lighting and auxiliary wiring |
| Packaged item | Three harness sections: 01-8803-A, 02-8803-A, 03-8803-A |
| Fulfillment | See checkout options |
| Important part-number difference | 88-BPUT-16 and 88-BPUT-20 are separate SKUs; compare actual harness dimensions and configurations |
Included Components
| Component | Quantity |
|---|---|
| Primary harness, 01-8803-A | 1 |
| Brake distribution harness, 02-8803-A | 1 |
| Rear lighting harness, 03-8803-A | 1 |
Package verification: Do not assume unlisted mounting clips, junction boxes, lamps, brake assemblies or installation fasteners are included.
Fitment, Installation & Troubleshooting
Confirm trailer length, connector gender and configuration, axle/brake count, ground return, lighting connections and mounting clearances. Route wiring away from sharp edges, moving suspension parts and heat sources; support and protect the harness along the frame.
Test the ground, running lights, left/right turn and brake-light circuits. For seven-way systems, also test electric brake output and auxiliary/reverse circuits as applicable. Trailer manufacturers may use different conductor colors, so confirm each wire by diagram and electrical test rather than color alone.
Related Parts & Compatible System Options
Browse these related items and alternatives from our actual catalog. Related links are not a guarantee of direct plug-and-play compatibility; confirm connections and circuit layouts.
| Novalite USA 7-Way Trailer Brake & Lighting Harness Kit – 88-BPUT-20 | 88-BPUT-20 |
| Novalite USA 24-Inch Trailer Brake Wire Extension – EXT-24-A | EXT-24-A |
Explore the Novalite Pre-Wired Harness Collection
