Add Brakes – Manual Adjust • 7,000 lb Trailer Axle Kit
12" x 2" Electric Brakes • 8 x 6.5" Hub/Drums • 1/2" Studs

Part Number: 92865-B-IMP-F-KIT

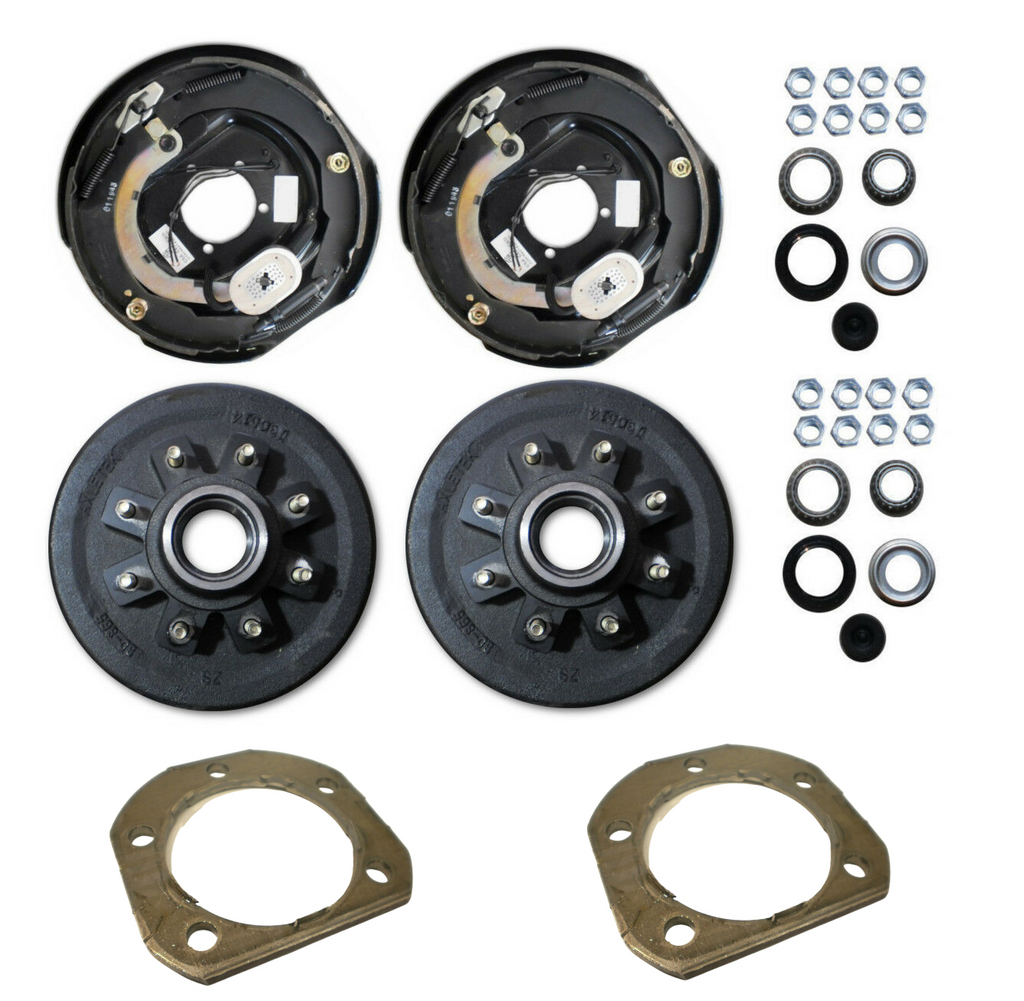

Complete Manual-Adjust Brake & Hub/Drum Kit (1 Axle)

A full left + right brake and hub/drum replacement kit for 7,000 lb axles using the standard #42 spindle. Includes manual-adjust 12" x 2" electric brakes, 8-lug 8x6.5 hub/drums with 1/2"-20 studs, plus all required bearings, seals, caps, and hardware.

Fits 5200 lb, 6000 lb, and 7000 lb axles from Dexter, Lippert, Al-Ko, Rockwell, and most others. Works with both torsion and leaf-spring axles.

What's Included

(2) Hub/Drum Assemblies – 92865-1

• 12" x 2" electric brake drums
• 8-lug, 8 x 6.5" bolt pattern
• 1/2"-20 installed wheel studs
• Rated for 5200–7000 lb axles

Manual-Adjust Electric Brake Assemblies (Left & Right)

• BK-12E-01 — Left / Driver Side (Manual Adjust)
• BK-12E-02 — Right / Curb Side (Manual Adjust)
• 12" x 2" electric backing plates

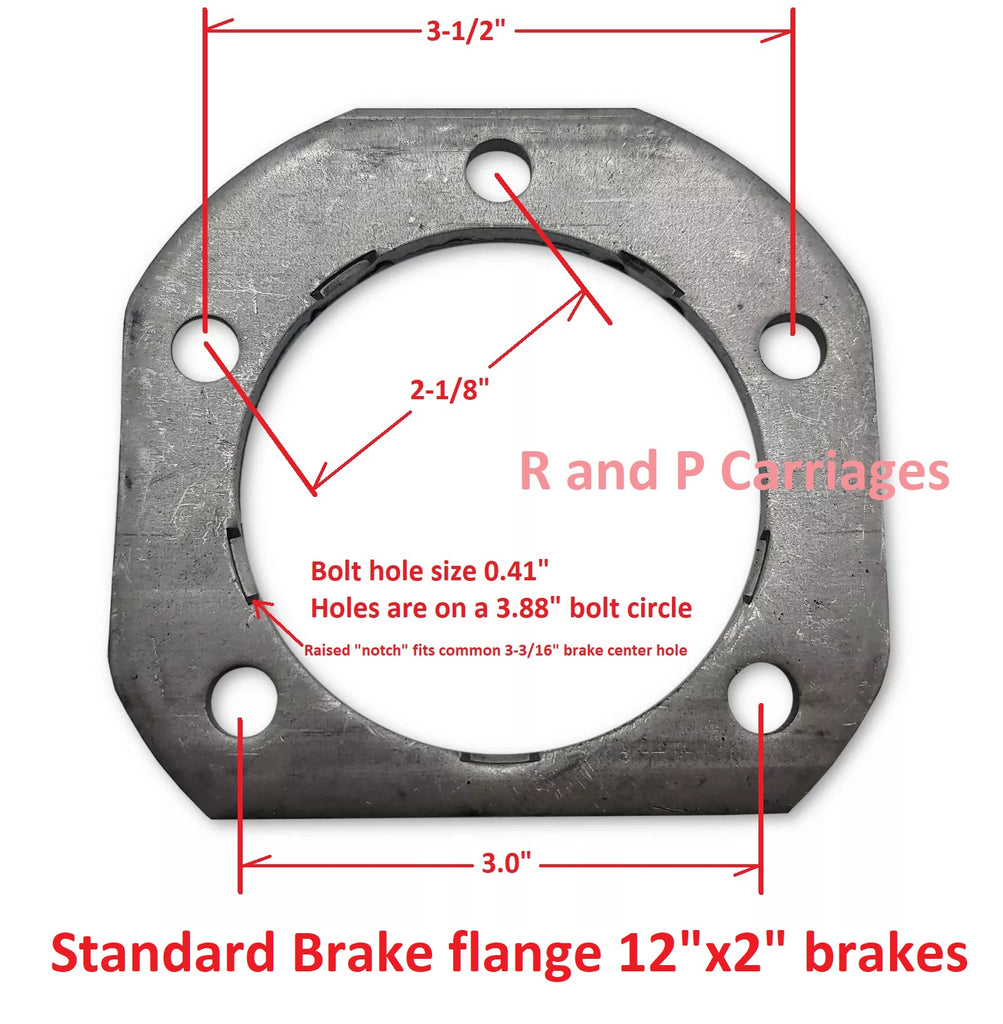

• 5-bolt brake flange
• Includes shoes, magnet, springs, and adjuster hardware

(2) HD-7000-KIT Bearing Sets

• Outer bearing: 14125A (1.25" ID)
• Inner bearing: 25580 (1.75" ID)
• Grease seal: 10-36 (2.25" x 3.376")
• Dust cap: 2.72" OD plug-style
• Includes (8) 1/2-20 coned lug nuts

Technical Specifications

This kit replaces every braking and rotating component on one axle. Perfect for full rebuilds or converting to fresh 12" x 2" manual-adjust electric brakes.
