OPTRONICS / LED TRAILER LIGHTING

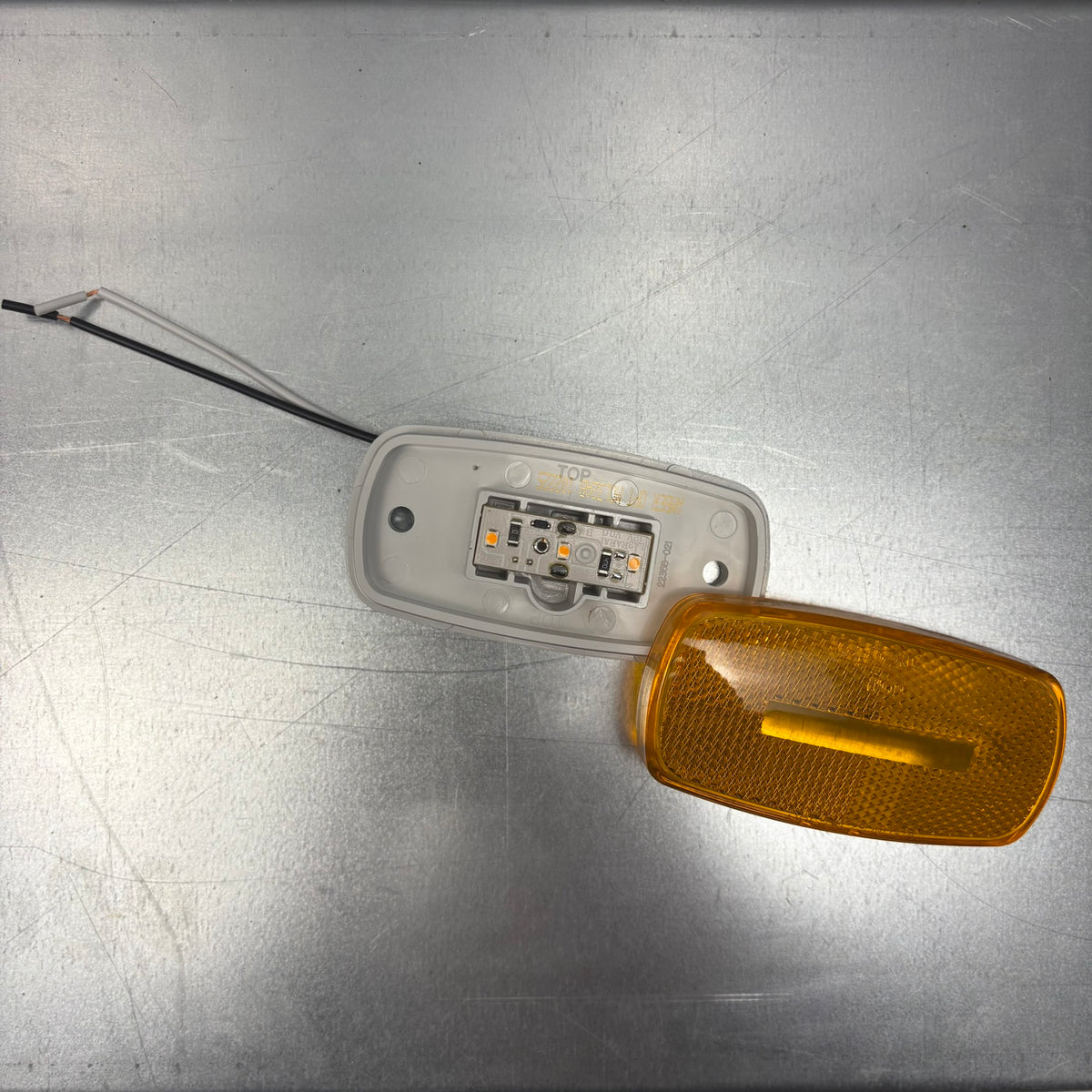

Optronics Amber LED Trailer Marker & Clearance Light – White Base (MCL32AB)
MANUFACTURER PART #
MCL32AB
SMALL LIGHT.
IMPORTANT VISIBILITY.
3 LEDs • Integrated reflex reflector • White base • 3" mounting centers
Give your trailer a clean, dependable marker-light replacement with the
Optronics MCL32AB amber LED clearance and side marker light.
This compact 4" × 2" rectangular light combines three LEDs, an amber reflex lens, and a white surface-mount housing. The integrated reflex reflector eliminates the need for a separate reflector where this configuration satisfies the applicable lighting requirements.
Its two-wire construction supplies dedicated power and ground leads, making it suitable for compatible mounting surfaces without relying on the mounting screws for electrical grounding.
|
LIGHT SOURCE
3 LEDs
|
DIMENSIONS
4" × 2"
|
MOUNTING
3" CENTERS
|
NATP KNOWLEDGE HUB / TRAILER VISIBILITY
What Does a Reflex Lens Actually Do?
A marker light and a reflector perform different functions.
The light produces its own illumination when powered, while a reflex reflector returns light from an external source, such as another vehicle's headlights.
The MCL32AB incorporates a reflex reflector directly into its amber lens. That combines two useful visibility functions into one compact component.
Its three-LED design also eliminates the replaceable incandescent bulb found in older marker lights, while retaining a snap-on lens that can be replaced separately if the appropriate replacement component is available.
Key Features
|
THREE LED DIODES
Efficient LED illumination designed for trailer clearance and marker-light applications.
|
INTEGRATED REFLEX LENS
Amber snap-on lens with built-in reflective function.
|
|
WHITE SURFACE-MOUNT BASE
White ABS housing with standard 3" mounting-hole centers.
|
TWO-WIRE CONNECTION
Dedicated power and ground leads for mounting on compatible surfaces.
|
Product Specifications
|
Specification
|
Detail
|
| Manufacturer |
Optronics |
| Part Number |
MCL32AB |
| Product Type |
LED marker / clearance light |
| Lens Color |
Amber / yellow |
| Base Color |
White |
| LED Count |
3 diodes |
| Overall Dimensions |
4" W × 2" H × 1" D |
| Mounting Centers |
3" center-to-center |
| Mount Type |
Surface mount |
| Electrical Connection |
Hardwired, 2-wire |
| Wire Identification |
Black: power / White: ground |
| Operating Voltage |
12V DC system |
| Manufacturer Test Voltage |
12.8V DC |
| Current Draw |
0.06A at 12.8V DC |
| Lens Material |
Acrylic |
| Housing Material |
ABS |
| Reflector |
Integrated reflex lens |
| FMVSS Designation |
P2 A |
| Manufacturer Warranty |
Lifetime LED warranty; manufacturer's terms apply |
| Package Quantity |
1 light |
R&P SERVICE INSIGHT
A Familiar Footprint Makes Replacement Easier.
The MCL32AB measures 4" × 2" × 1" and attaches using 3" mounting centers.
Compare these measurements to your existing lamp before ordering.
Because this is a two-wire light, the grounding connection is made through the dedicated white lead. You do not need to depend on a mounting screw making electrical contact with the trailer frame.
R&P REPAIR INSIGHT
Before You Replace the Light, Check the Wiring.
An intermittent marker light isn't always a bad lamp. Corroded connectors, a broken ground wire, or moisture in a splice can produce the same symptoms.
Check the existing circuit, clean the mounting surface, and use suitable weather-resistant electrical connections. Confirm lamp operation after installation and inspect the new wiring for interference with moving or sharp components.
What's Included
Quantity 1 — Optronics MCL32AB LED Marker Light
Amber three-LED lamp, integrated reflex lens, white surface-mount base and attached power/ground leads.
Mounting screws and additional installation accessories are not included.
IMPORTANT FITMENT INFORMATION
Before ordering, verify the following:
- 4" × 2" overall light dimensions
- 3" center-to-center mounting-hole spacing
- Available 1" installation depth
- 12V DC electrical compatibility
- Correct power and ground connections
- Required amber lighting location and function
This amber lamp is not a substitute for a red rear marker light. Verify the trailer's required lighting configuration before installation.
KEEP YOUR TRAILER VISIBLE
Updating More Trailer Lights?
Shop amber and red marker lights, LED replacements, wiring components, and additional trailer lighting products.
EXPLORE MARKER LIGHTS
Need Help Matching a Trailer Light?
Have the old lamp's measurements or part number ready. Our parts team can help you compare the connection, mounting pattern, and required light color.
