Brake Shoe Set – Left Side – Dexter 12K–15K Hydraulic 12.25" x 5" Trailer 9-28 Drum
Part Number: K71-169-00

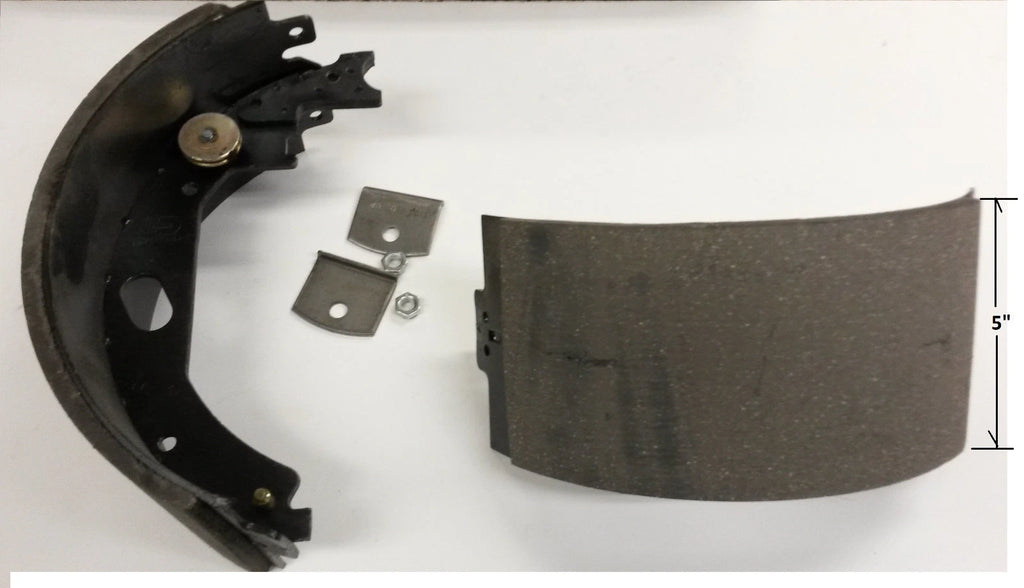

Left-side (driver side) brake shoe set for Dexter 12,000–15,000 lb hydraulic trailer brake systems. Designed for 12.25" x 5" drum configurations commonly identified as 9-28 assemblies. This listing includes shoe liners for one side only.
Features
- Left-side (Driver Side) configuration
- Hydraulic brake shoe liners
- 12.25" x 5" brake size
- Compatible with Dexter 12K–15K axles
- Designed for 9-28 drum assemblies
Specifications
| Specification | Detail |
|---|---|
| Axle Rating | 12,000–15,000 lb |
| Brake Type | Hydraulic Drum |

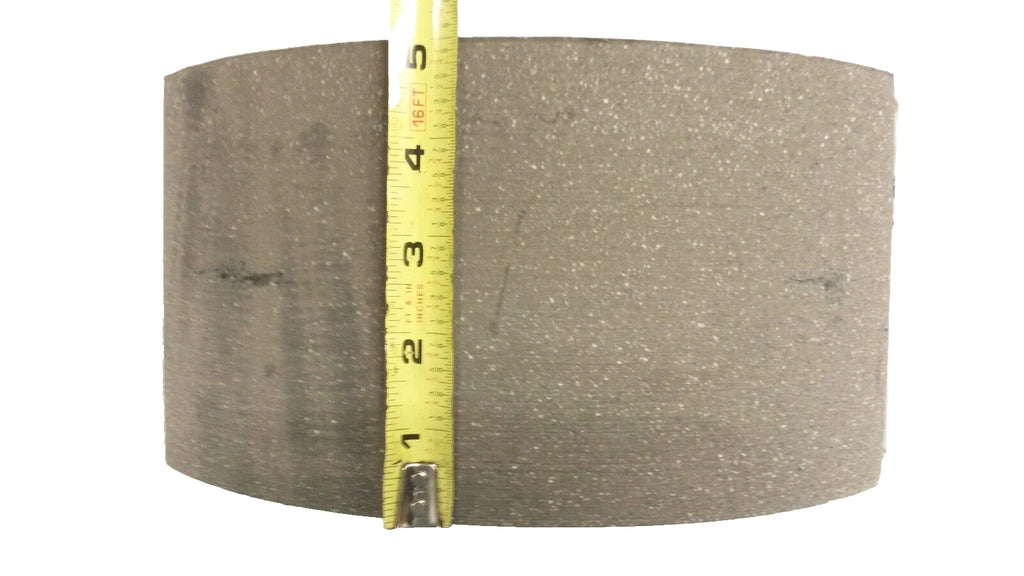

| Drum Size | 12.25" Diameter x 5" Wide |
| Drum Assembly | 9-28 |
| Side | Left (Driver Side) |
R&P Knowledge Hub
Brake shoe sets are side-specific and are not interchangeable. The left-hand shoe installs on the driver side of the axle and must be paired with the correct right-hand set.
Always confirm drum size (12.25" x 5") and assembly number (9-28) before ordering. For balanced braking performance, replace both sides of the axle at the same time.
Verify specifications before installation.
