PAIR 12-1/4x4" 10K HD Electric Backing Plate 10000 Trailer Brake For Dexter (bk-10khde-set)

R & P Carriages

Regular price $254.00

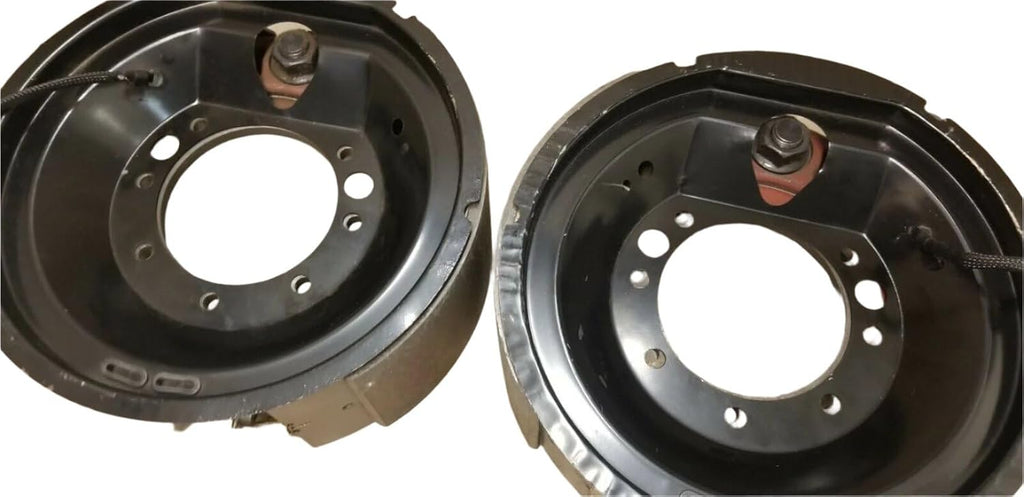

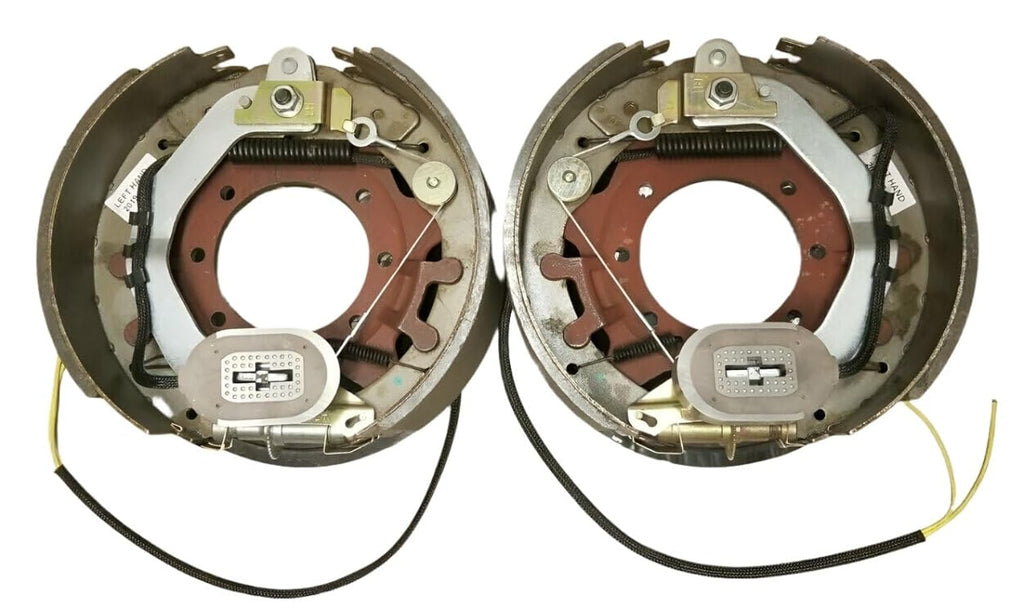

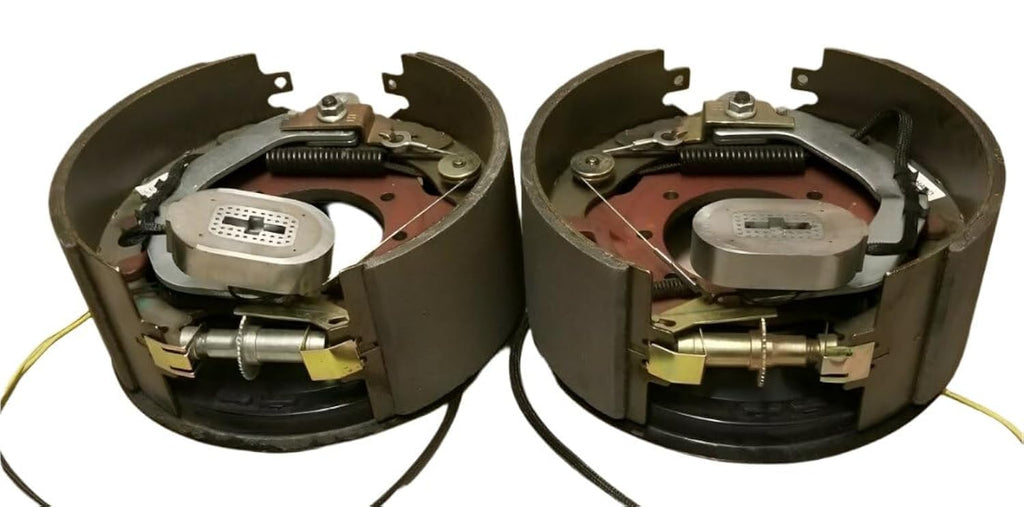

PAIR of 10,000# Heavy Duty Electric Brakes 12.25 x 4"
(One Left Side, One Right Side)

Typical Dexter Drum Casting Number is 9-27

SELF ADJUSTING (Never Adjust) Brakes
Heavy Duty (10K HD) Trailer Axle
 12-1/4 x 4" Electric Brake Assembly
7 Hole Mount Bolt


Part Number: EB-12 1/4 x 4R & EB-12 1/4 x 4L

Replacement for Dexter 023-438-00 and 023-439-00
(K23-438-00, K23-439-00)

Features
-Self Adjusting! (Nev-R-Adjust)
- Typical brakes for axles 10,000# HEAVY DUTY AXLES (will not work for general duty)
- This assembly uses a STANDARD 7 bolt mounting pattern that should match your trailer axle.  (will not fit older 4 bolt mounts!)
- Includes all hardware, magnet, shoes etc. (DOES NOT INCLUDE MOUNTING BOLTS)
- Price is PER PAIR, on left, one right
           (You will need 1 pair to do one axle, 2 to do 2 axles, etc)

Technical Information
- There is a pair of lead wires attached to the brake magnet. One is ground and one is power. It doesn't matter which one you use in either location as long as they are attached properly.

  - The way the brake assembly functions is there is a magnet that will apply friction to the lever in return pushes the shoes out into the drum causing friction which allows your trailer to come to a easy stop.

These Backing plates replace
Dexter Part Number
023-438-00 (K23-438-00) & 023-439-00 (K23-439-00)


Most Dexter 10K "General" Axles Use The 12-1/4" x 3-3/8" Brake Assembly. Please measure before ordering!
